12Vmax CXT Cross Line Red Laser Level, Tool Only

IP54 Rated

2 brightness mode selections: Eco mode, Bright mode
Powered by 12V MAX CXT batteries with option to use DC jack allowing power to be supplied from 18V Li-Ion batteries by using USB adapter ADP05 and power supply cable
Laser beam selection button allows for: Horizontal + vertical line, Horizontal line only, or Vertical line only
Levelling lock switch disables self-levelling feature for sloped line applications, and protects the self-levelling mechanism during transport
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions

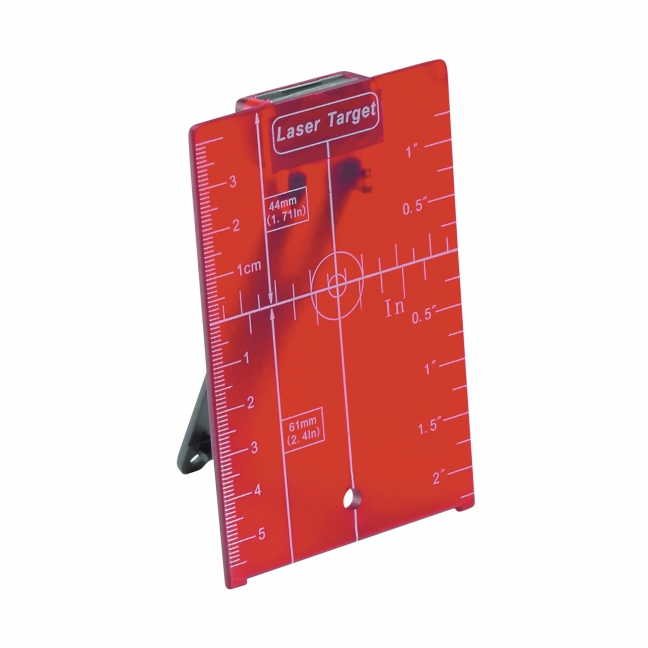

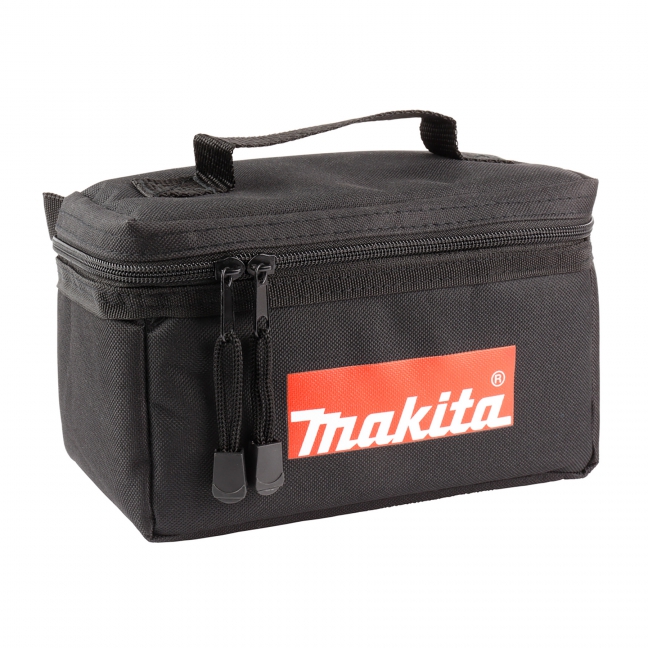

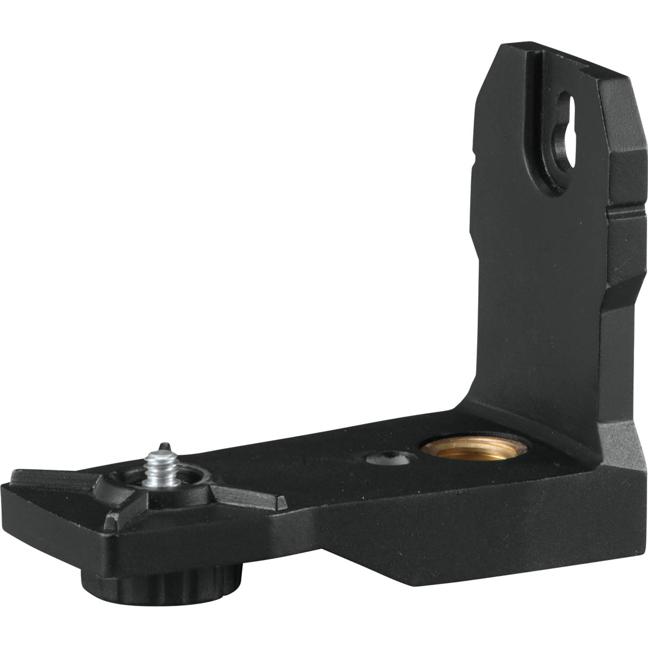

Items Included:L-Adapter (LE00870131), Red Target Plate (LE00758831), Soft Case (LE00864505)

Where to buy

2 brightness mode selections: Eco mode, Bright mode
Powered by 12V MAX CXT batteries with option to use DC jack allowing power to be supplied from 18V Li-Ion batteries by using USB adapter ADP05 and power supply cable
Laser beam selection button allows for: Horizontal + vertical line, Horizontal line only, or Vertical line only
Levelling lock switch disables self-levelling feature for sloped line applications, and protects the self-levelling mechanism during transport
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions

Items Included: L-Adapter (LE00870131), Red Target Plate (LE00758831), Soft Case (LE00864505)

Shipping Dimensions (Length x Width x Height) & Weight : 5.51 In. X 8.66 In. X 4.72 In. Weight : 2.12 Lb.

Specifications

Battery Capacities	12Vmax CXT Li-ion
Laser:
Line Beam Color	Red
Output	1 mW or less
Safety Class	Class 2
Wavelength	635 nm
Line Width at 5m	2.0 mm
Vertical Line Indication Range	+/- 4^o
Accuracy	+/- 3mm / 10 m
Dimensions (L x W x H w/o Protrusions)	5-7/16" x 2-1/2" x 4" (138 mm x 64 mm x 102 mm)
Net Weight	1.0 lbs (0.46 kg)
