DLW140Z

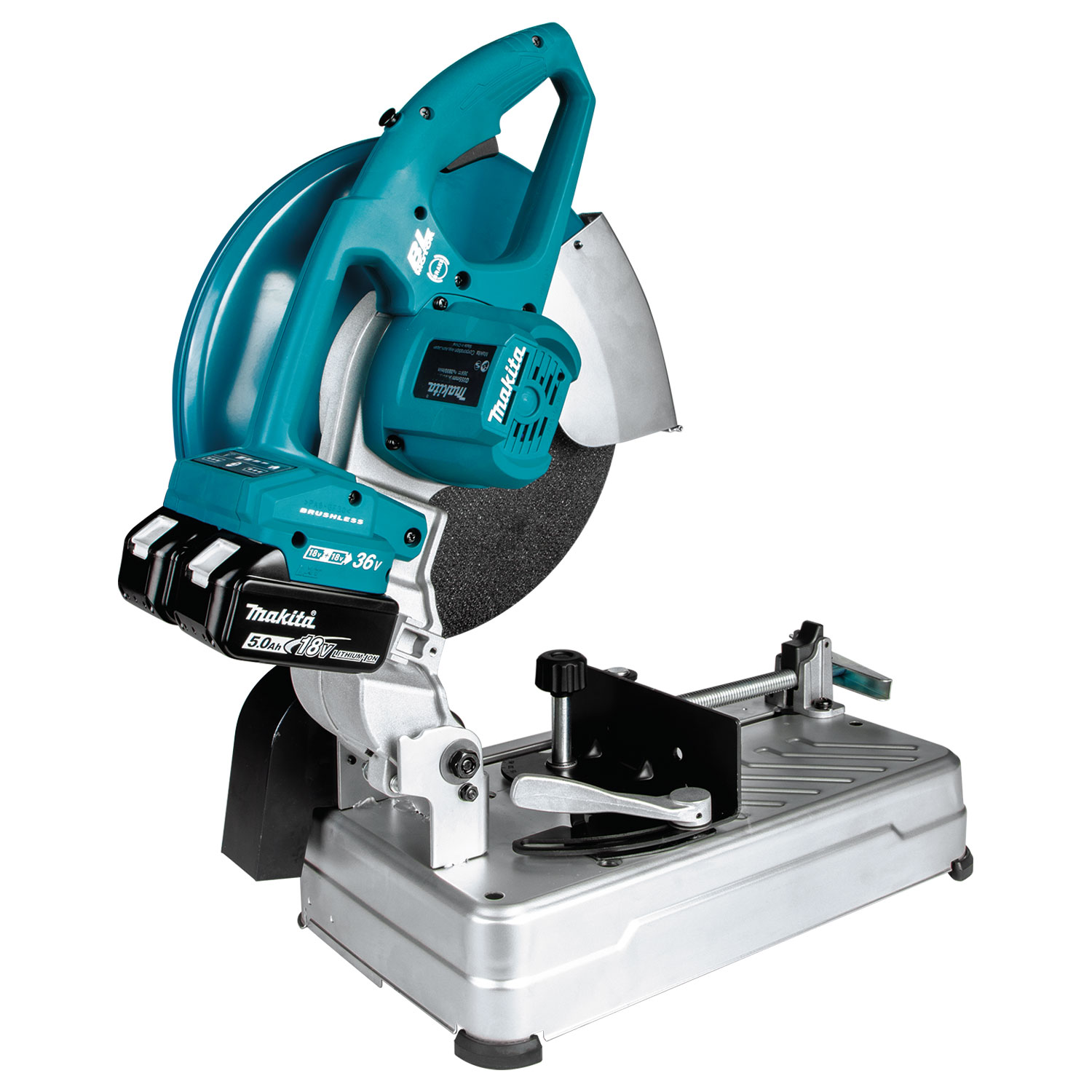

36V(18Vx2) LXT Brushless 14" Portable Cut-off Saw, Tool Only

THE WORLD'S FIRST CORDLESS PORTABLE CUT-OFF SAW!

Electric Brake, Soft Start, Mitres 45° Left, 5" (Round) Cutting Capacity

LXT Technology LXT Technology 18Vx2

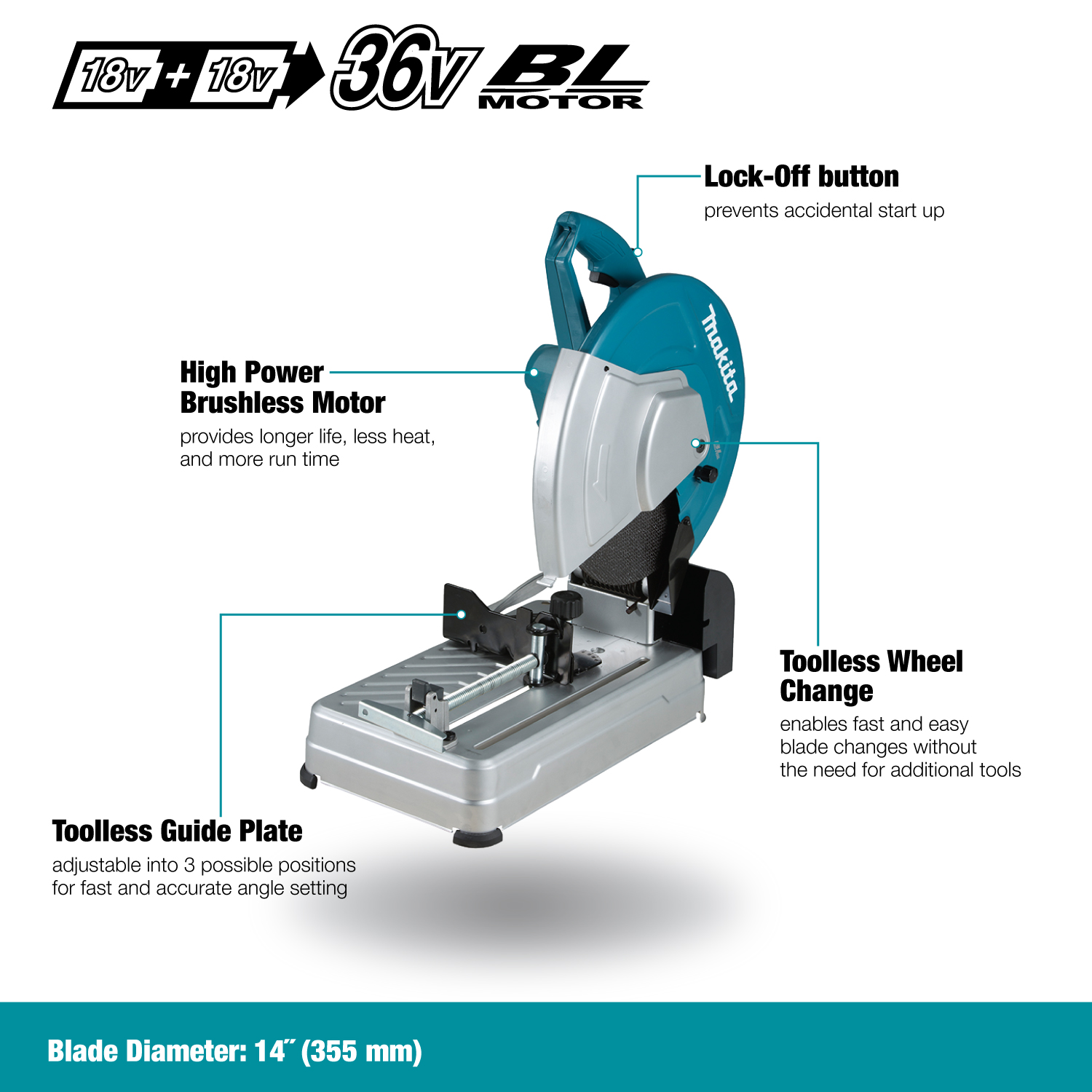

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • LED load status indicator shows the level of load on the motor during operation and alerts the user when an excessive amount of load is being applied on the tool

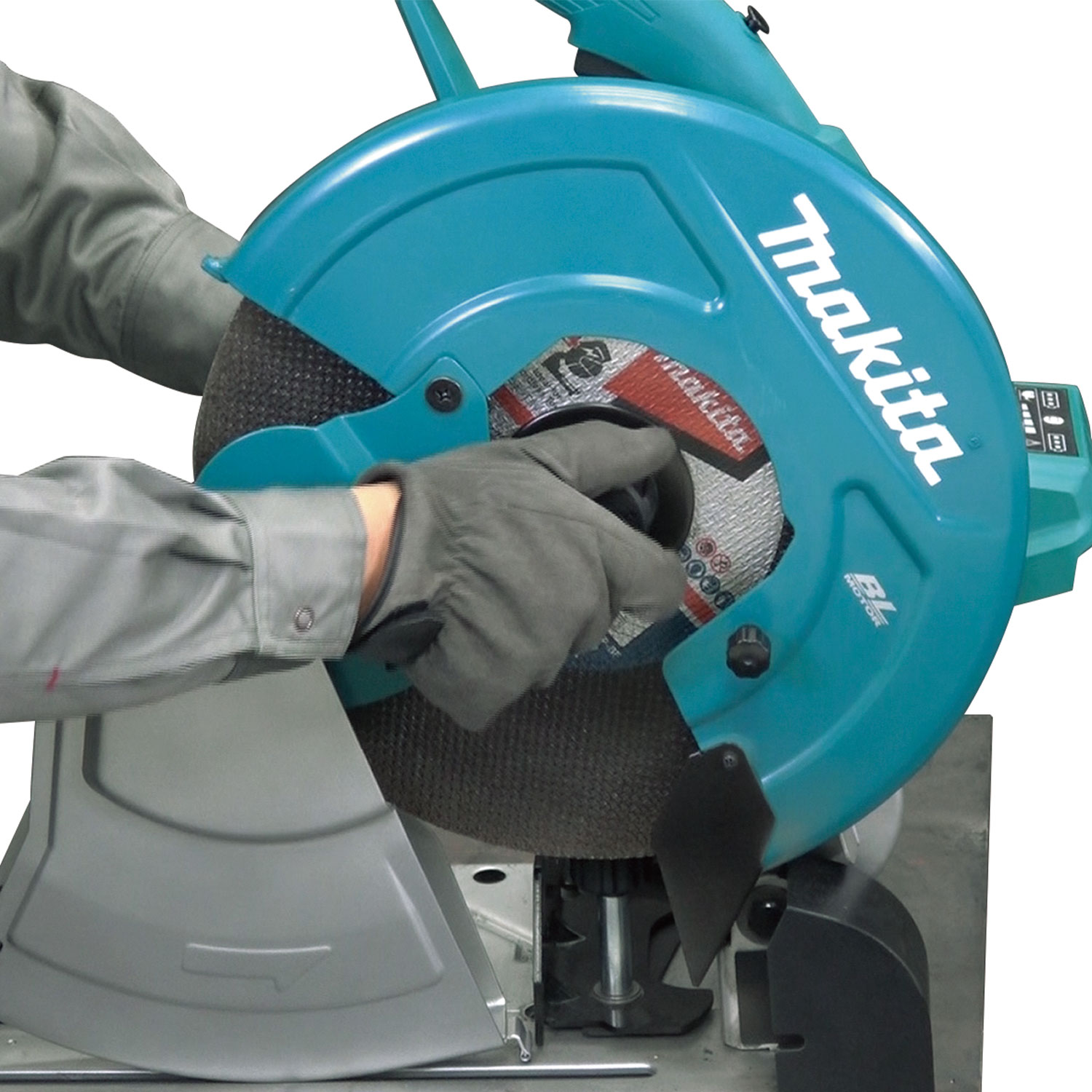

  • Toolless wheel change feature enables fast and easy blade changes without the need for additional tools
  • Quick release vise enables fast clamping of materials
  • Pin lock secures saw head in downward position for safe transportation and storage
  • Toolless 3 position guide plate adjustment for fast and accurate angle setting
  • Lock off button prevents accidental start up
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life

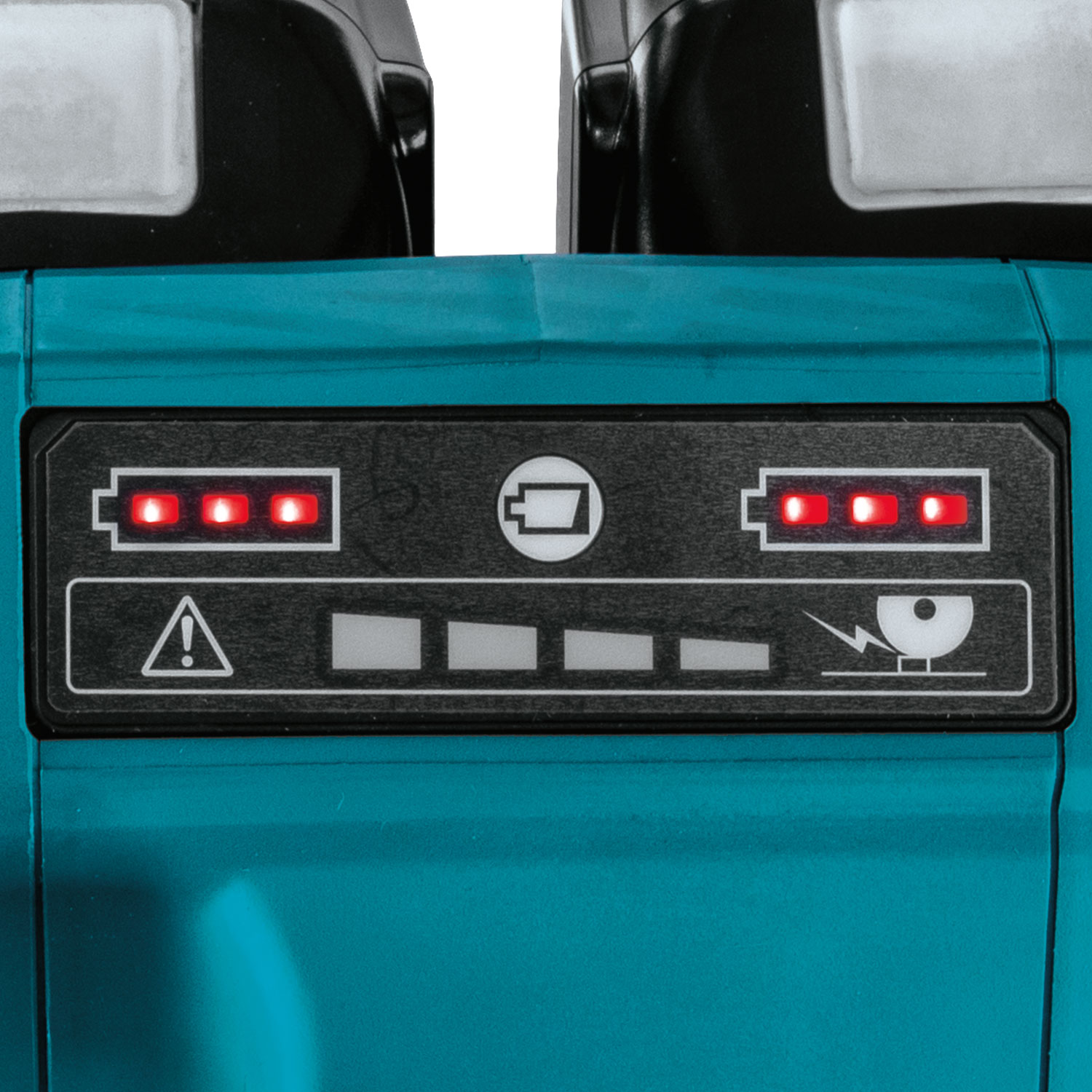

  • LED charge level indicator displays approximate remaining battery power

Items Included:Tool Only. Batteries and Charger Sold Separately. 14" Abrasive Wheel (1 Ea. B-64705-5), Vise (135708-8)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • LED load status indicator shows the level of load on the motor during operation and alerts the user when an excessive amount of load is being applied on the tool
  • Toolless wheel change feature enables fast and easy blade changes without the need for additional tools
  • Quick release vise enables fast clamping of materials
  • Pin lock secures saw head in downward position for safe transportation and storage
  • Toolless 3 position guide plate adjustment for fast and accurate angle setting
  • Lock off button prevents accidental start up
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • LED charge level indicator displays approximate remaining battery power

Items Included: Tool Only. Batteries and Charger Sold Separately. 14" Abrasive Wheel (1 Ea. B-64705-5), Vise (135708-8)

Shipping Dimensions (Length x Width x Height) & Weight : 18.19 In. X 22.05 In. X 14.17 In. Weight : 44.09 Lb.

Specifications

Battery Capacities Two 18V LXT
Blade Diameter 14" (355 mm)
Arbor 1" (25.4 mm)
No Load Speed 3,800 RPM
Cutting Capacity:
45 Degrees 5" (127 mm)
90 Degrees 5" (127 mm)
Overall Length 21-1/8" (537 mm)
Net Weight 32.9 lbs (14.9 kg)
