PC5010C

5" Concrete Planer w/SJS II

Thumb Switch with Lock-On (AC)

"SJS II" Technology, Variable Speed, Electronic Current Limiter, Constant Speed Control, Soft Start

SJS Technology
  • SJS II (Super Joint System II) reduces vibration and prevents kickback during wheel lock up for optimal tool and operator protection
  • Variable speed dial enables operator to adjust wheel speed based on materials or application
  • Electronic speed control maintains constant speed under heavy load
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter eliminates motor burnout due to current overload
  • Anti-restart feature prevents tool from operating if it is plugged in when locked in the on position
  • LED light indicates active power supply and activation of anti-restart feature
  • Removable front dust cap enables operator to plane flush to walls and corners

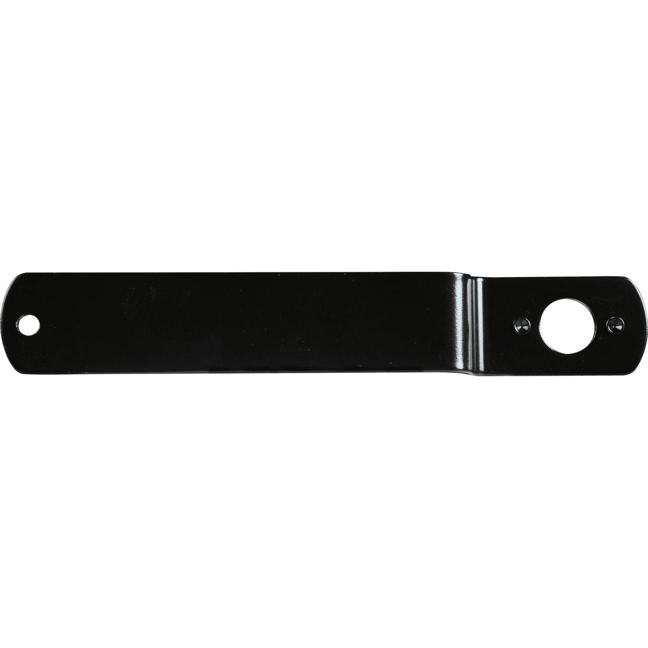

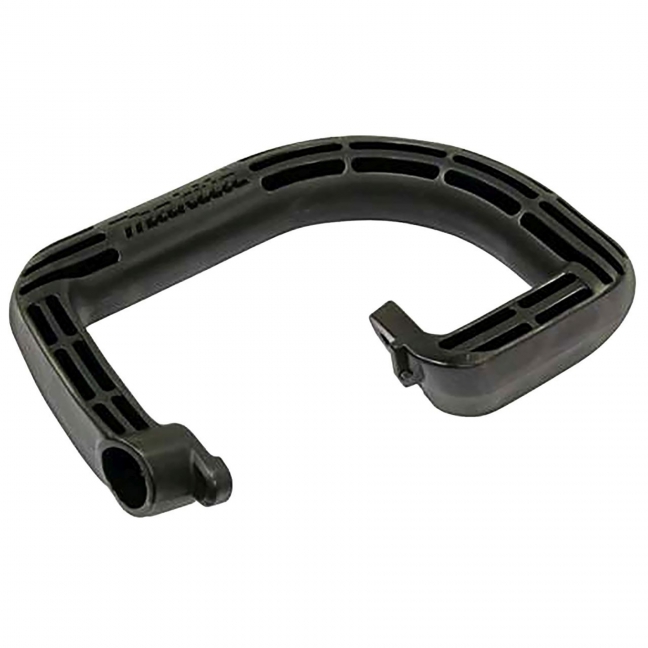

Items Included:Loop Handle (458690-7), Lock Nut Wrench 28 (782425-7)

  • SJS II (Super Joint System II) reduces vibration and prevents kickback during wheel lock up for optimal tool and operator protection
  • Variable speed dial enables operator to adjust wheel speed based on materials or application
  • Electronic speed control maintains constant speed under heavy load
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter eliminates motor burnout due to current overload
  • Anti-restart feature prevents tool from operating if it is plugged in when locked in the on position
  • LED light indicates active power supply and activation of anti-restart feature
  • Removable front dust cap enables operator to plane flush to walls and corners

Items Included: Loop Handle (458690-7), Lock Nut Wrench 28 (782425-7)

Shipping Dimensions (Length x Width x Height) & Weight : 7.75 In. X 14.5 In. X 8 In. Weight : 8.26 Lb.

Specifications

Wheel Diameter 5” (125 mm)
Wheel Type Offset Diamond
Hole Diameter 7/8” (22 mm)
No Load Speed 4,000 - 9,000 RPM
AMPS (120V) 12.0 A
Vibration Level 5.5 m/s2
Noise Level 85 dB
Cord Length 8.2’ (2.5 m)
Overall Length 13-3/4” (350 mm)
Net Weight 7.7 lbs. (3.5 kg)
