Home / Tool / Cordless / CXT / Drilling & Fastening / Impact Wrenches / TW160DWYE

CXT Technology

(Tool + Batteries + Charger)

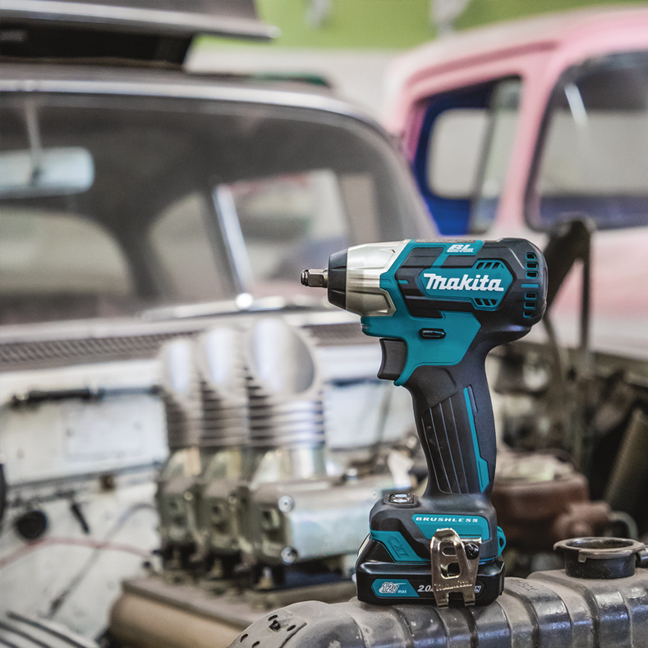

TW160DWYE

12Vmax CXT Brushless 3/8" Impact Wrench, Compact x2Kit

Compact eXtreme Technology (CXT)

3/8" Square Drive, Variable Speed, Reversible

CXT Technology LXT Technology
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Variable speed trigger allows operator to adjust fastening speed based on materials or application
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • LED job light with pre-glow and after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Two 12V MAX (1.5Ah) CXT Battery BL1016, Standard Charger (DC10WD), Hook (346909-5), Plastic Carrying Case (821661-1)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Variable speed trigger allows operator to adjust fastening speed based on materials or application
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • LED job light with pre-glow and after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Two 12V MAX (1.5Ah) CXT Battery BL1016, Standard Charger (DC10WD), Hook (346909-5), Plastic Carrying Case (821661-1)

Shipping Dimensions (Length x Width x Height) & Weight : 7.87 In. X 13.46 In. X 4.25 In. Weight : 6.39 Lb.

Specifications

Battery Capacities 12Vmax CXT Li-ion
Square Drive 3/8"
No Load Speed 0 - 2,400 RPM
Impacts Per Minute 0 - 3,600 IPM
Maximum Torque 118 ft.lbs (160 Nm)
Vibration Level 11.0 m/s²
Noise Level 90 dB(A)
Overall Length 5-5/8" (144 mm)
Net Weight 2.2 lbs (1.0 kg)
