DLS112Z

36V(18Vx2) LXT Brushless 10" Slide Compound Mitre Saw, Tool Only

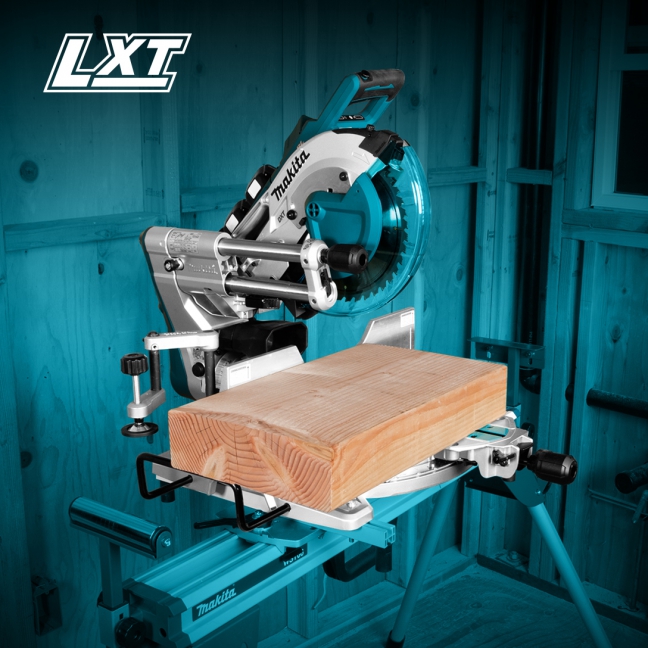

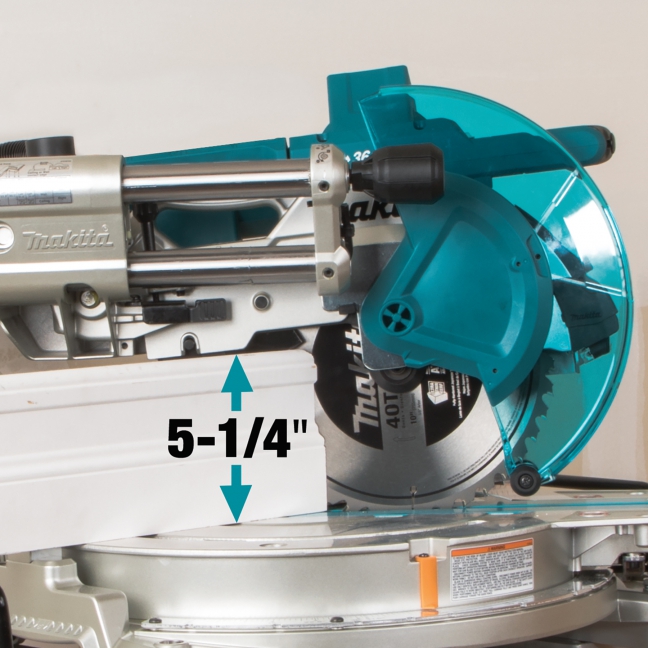

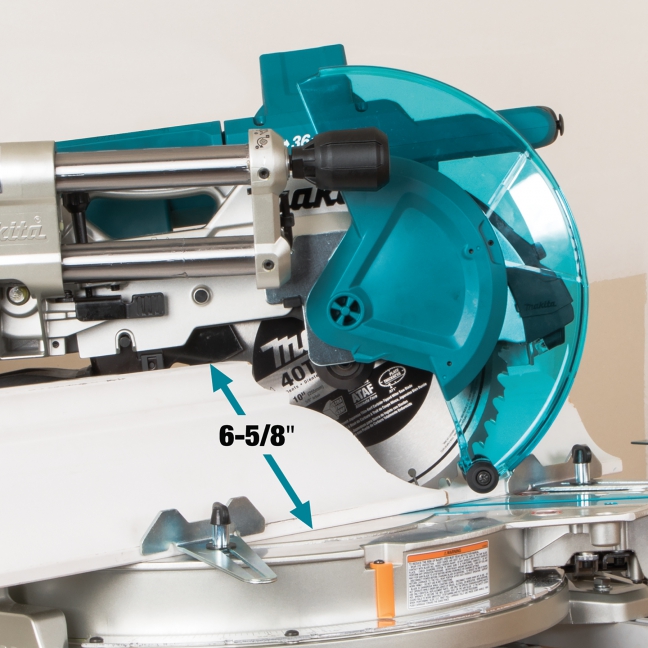

Incorporates Makita's Deep And Exact Cutting Technology (DXT) Up To 12" Cuts In 2x Material, 6-5/8" Nested Crown Moulding And 5-1/4" Vertical Baseboard

NEW Close To Wall "Zero Clearance" Design!

LXT Technology LXT Technology ADT 18Vx2

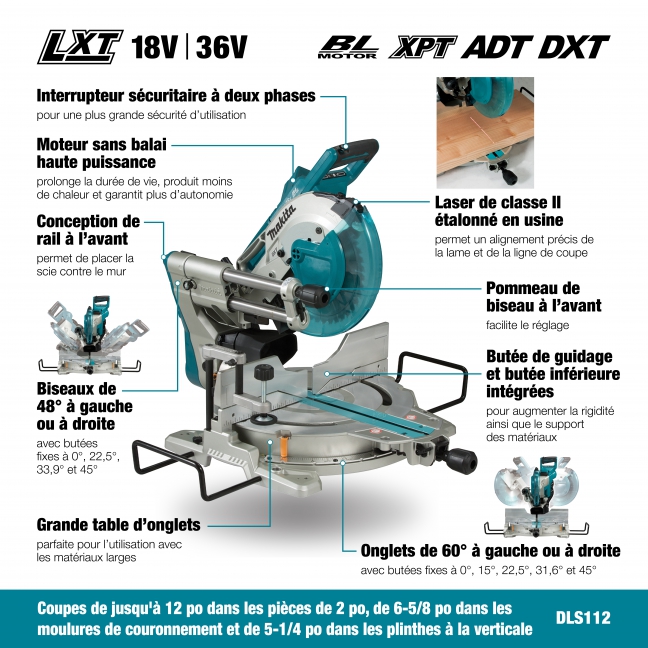

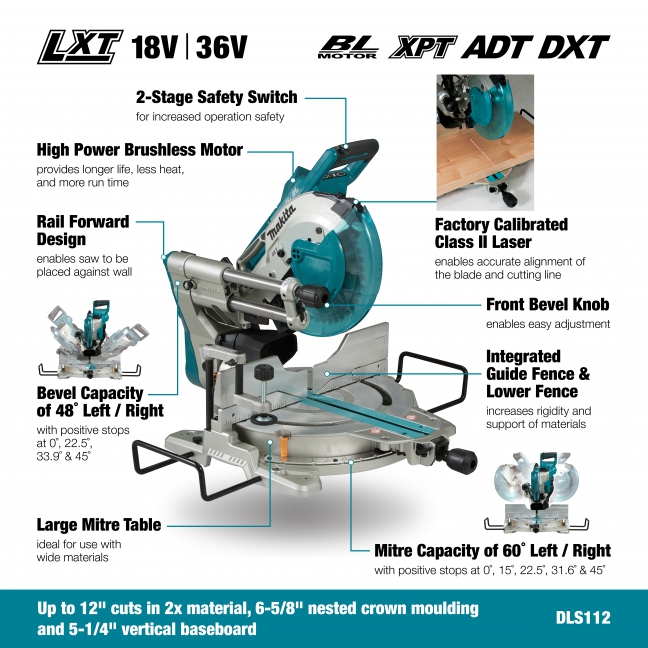

  • Professional cutting design and performance with cordless versatility!
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications

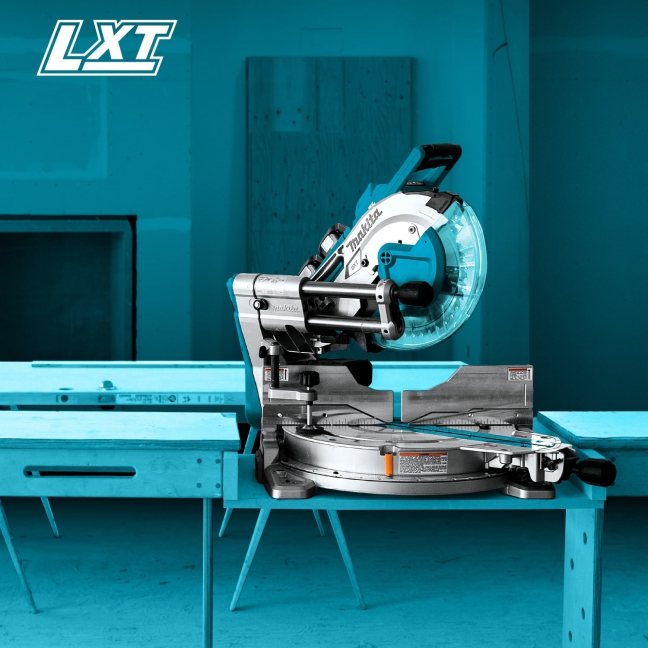

  • Rail forward design enables saw to be placed against wall to maximize effective workspace
  • 3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
  • 1-3/16" guide rail diameter provides increased stability and cutting precision

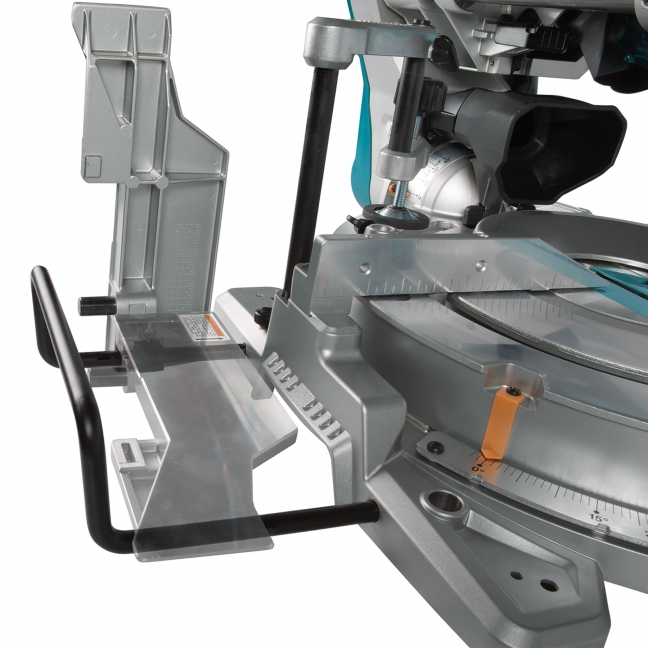

  • Integrated guide fence and lower fence increases rigidity and support of materials
  • Fence design allows fence to be secured to holders to prevent damage and/or loss

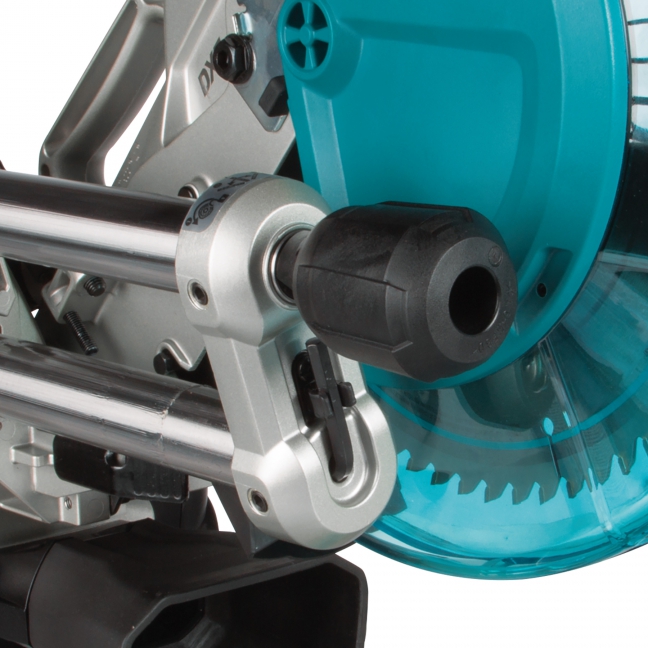

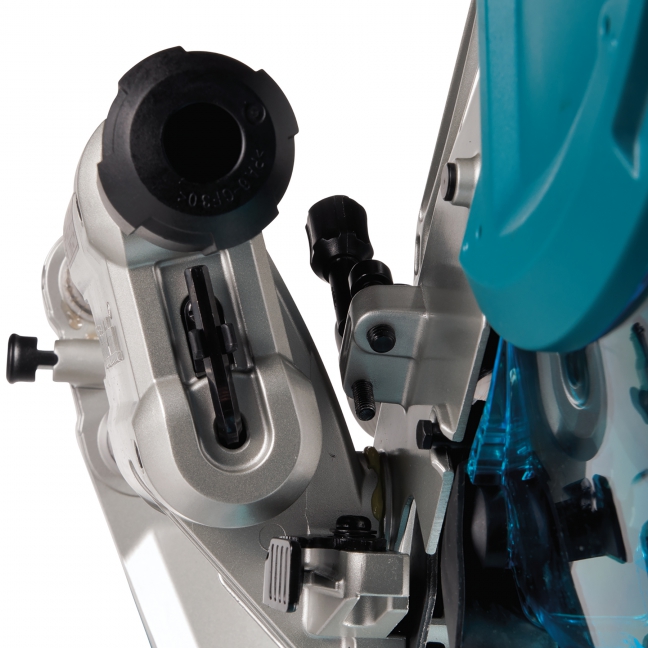

  • Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Factory calibrated class II laser enables accurate alignment of blade and material
  • LED charge level indicator displays approximate remaining battery power

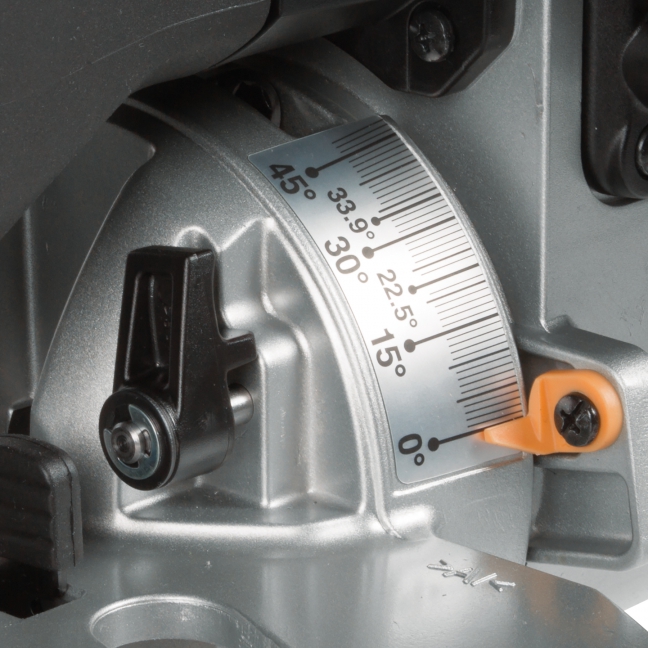

  • Bevel capacity of 48o left or right with positive stops at 0o, 22.5o, 33.9o & 45o

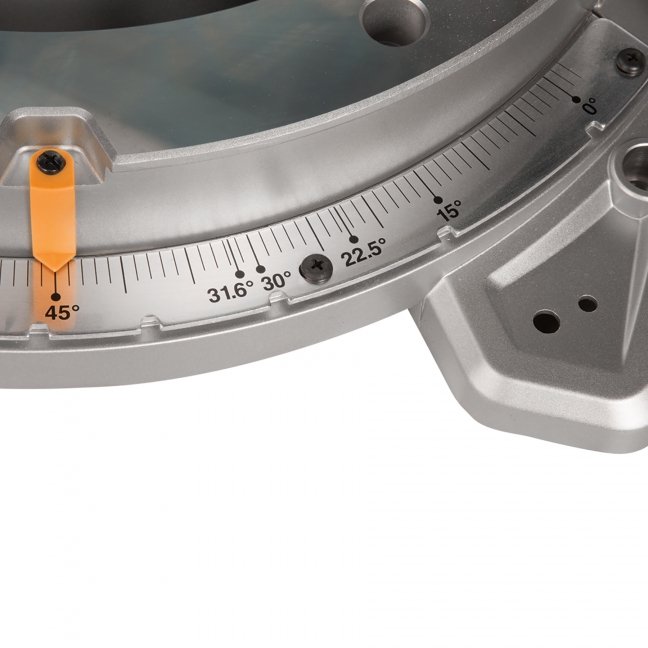

  • Mitre capacity of 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o

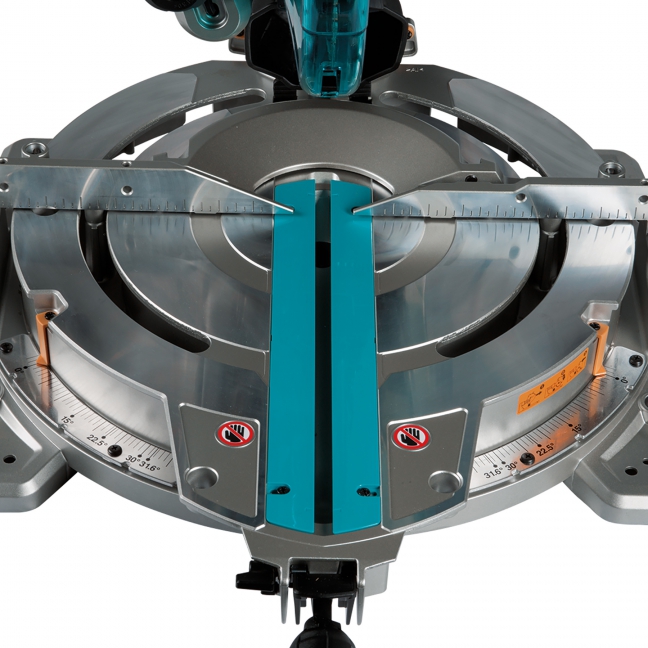

  • Large mitre table ideal for use with wide materials
  • Easy to operate mitre angle lock with free spin releasing lever and locking lever

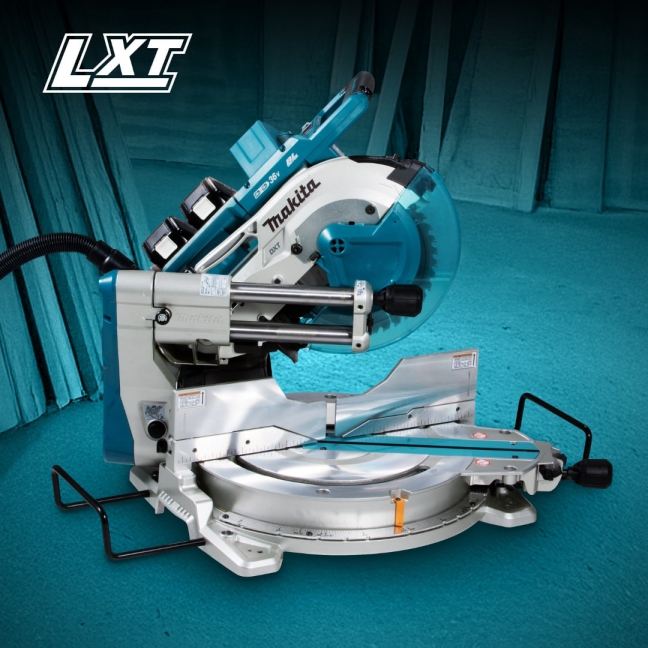

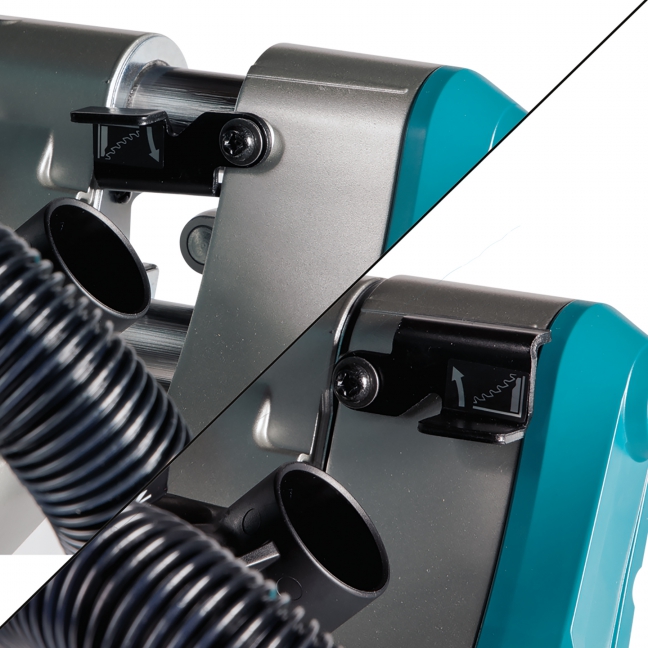

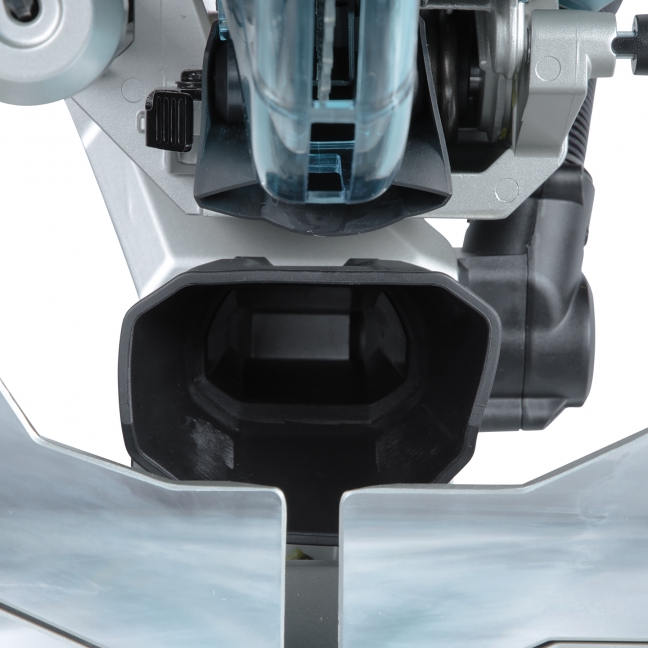

  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety

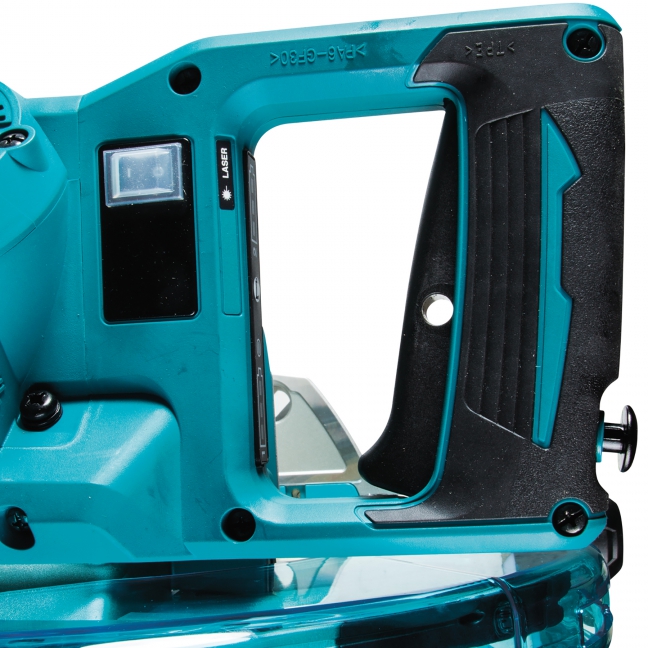

  • Ergonomic Horizontal Soft Rubber Grip design for vibration absorption and comfortable operation

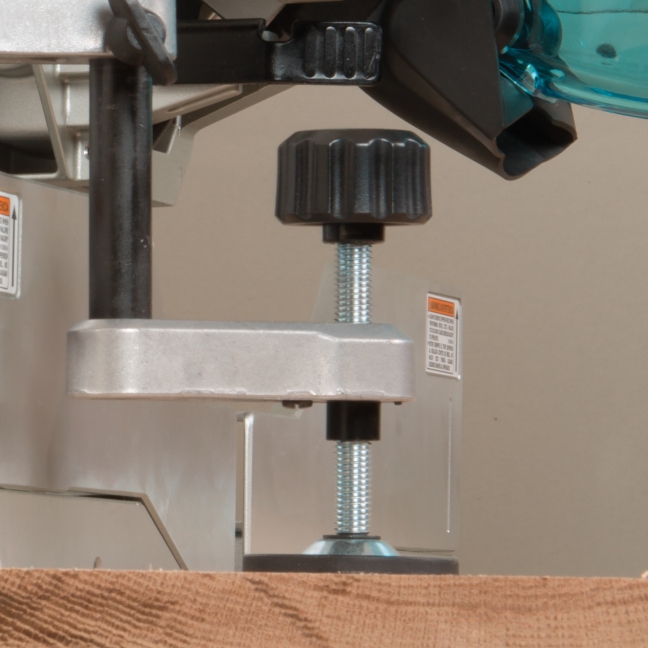

Items Included:Tool Only. Batteries and Charger Sold Separately. 10" C.T. Blade 40T (A-93669), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Hex Wrench 2.5 (783208-8), Hex Wrench 6 (781044-6)

  • Professional cutting design and performance with cordless versatility!
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • Rail forward design enables saw to be placed against wall to maximize effective workspace
  • 3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
  • 1-3/16" guide rail diameter provides increased stability and cutting precision
  • Integrated guide fence and lower fence increases rigidity and support of materials
  • Fence design allows fence to be secured to holders to prevent damage and/or loss
  • Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Factory calibrated class II laser enables accurate alignment of blade and material
  • LED charge level indicator displays approximate remaining battery power
  • Bevel capacity of 48o left or right with positive stops at 0o, 22.5o, 33.9o & 45o
  • Mitre capacity of 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Large mitre table ideal for use with wide materials
  • Easy to operate mitre angle lock with free spin releasing lever and locking lever
  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety
  • Ergonomic Horizontal Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 10" C.T. Blade 40T (A-93669), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Hex Wrench 2.5 (783208-8), Hex Wrench 6 (781044-6)

Shipping Dimensions (Length x Width x Height) & Weight : 20.87 In. X 32.28 In. X 22.05 In. Weight : 70.55 Lb.

Specifications

Battery Capacities Two 18V LXT
Blade Diameter 10" (255 mm)
Arbor 5/8" (15.88 mm)
No Load Speed 4,400 RPM
Vibration Level 2.5 m/s²
Noise Level 92 dB(A)
Dimensions (L x W x H) 31-3/4" x 25-3/8" x 26" (805 mm x 644 mm x 660 mm)
Net Weight 57.6 lbs (26.1 kg)
