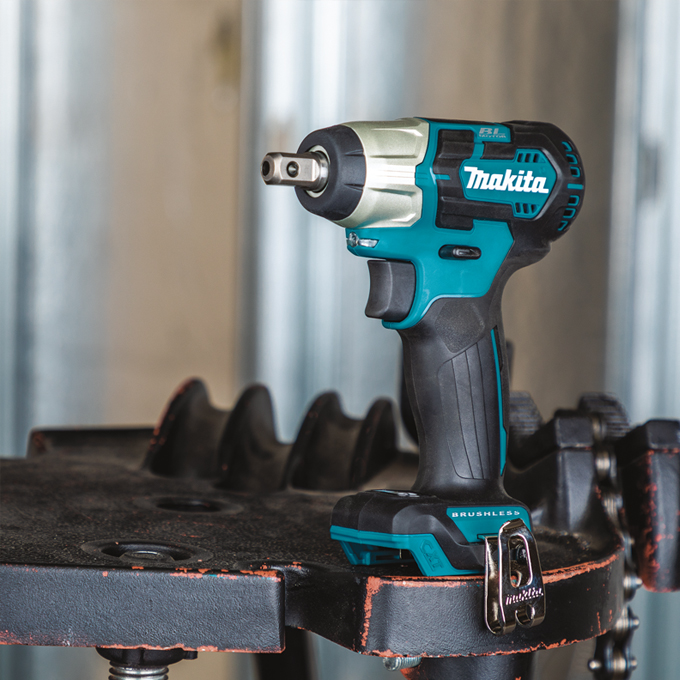

TW161DZ

12Vmax CXT Brushless 1/2" Impact Wrench, Tool Only

Compact eXtreme Technology (CXT)

1/2" Square Drive, Variable 2-Speed, Reversible

CXT Technology LXT Technology
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Variable speed trigger allows operator to adjust fastening speed based on materials or application
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 2 stage impact power selection prevents over-tightening of fasteners
  • LED job light with pre-glow and after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Hook (346909-5)

  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Variable speed trigger allows operator to adjust fastening speed based on materials or application
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 2 stage impact power selection prevents over-tightening of fasteners
  • LED job light with pre-glow and after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Hook (346909-5)

Shipping Dimensions (Length x Width x Height) & Weight : 6.46 In. X 7.72 In. X 2.83 In. Weight : 2.31 Lb.

Specifications

Battery Capacities 12Vmax CXT Li-ion
Square Drive 1/2"
No Load Speed Hard 0 - 2,400 RPM, Soft 0 - 1,300 RPM
Impacts Per Minute Hard 0 - 3,600 IPM, Soft 0 - 2,000 IPM
Maximum Fastening Torque  122 ft.lbs (165 Nm)
Nut-busting Torque (reverse)  210 ft. lbs (290 Nm)
Vibration Level 8.0 m/s²
Noise Level 93 dB(A)
Overall Length 5-7/8" (150 mm)
Net Weight 1.8 lbs (0.8 kg)
