WR100DWY

12Vmax CXT 1/4" - 3/8" Ratchet Wrench, Compact x1Kit

1/4" or 3/8" Square Drive

Variable Speed, Reversible, Electric Brake

CXT Technology LXT Technology
  • Long reach and compact head design enables maximum access to fasteners in tightn areas
  • High no load speed (800 RPM) for fast installation or removal of fasteners
  • Locking position enables operation as a hand ratchet
  • Includes 1/4” and 3/8” square drive adapters for fast and easy installation of sockets
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions
  • Variable speed trigger allows operator to adjust fastening speed based on materials or applications
  • LED job light with pre-glow and after-glow features
  • Use with Makita 3/8” ImpactX Socket Sets and 3/8” Deep Drive Sockets
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

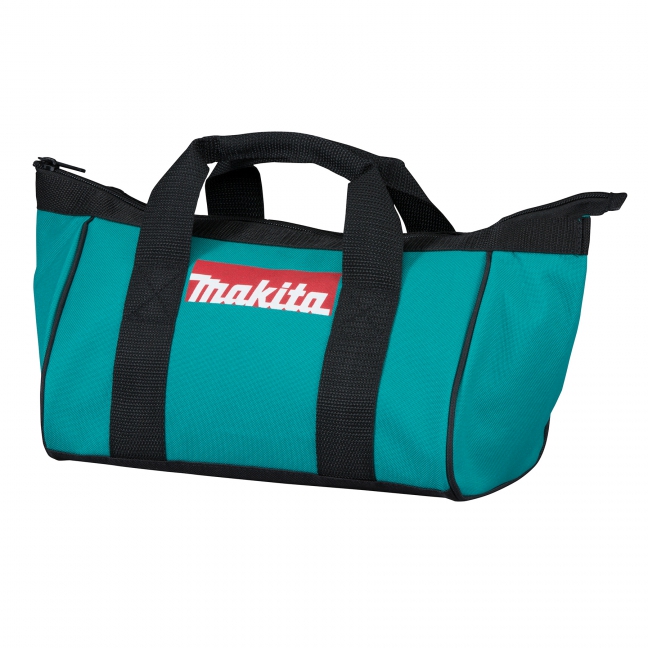

Items Included:12V MAX (1.5Ah) CXT Battery BL1016, Standard Charger (DC10WD),Battery Cover (456128-6), Socket Adapter 9.5 (191A50-3), Socket Adapter 6.35 (191A51-1), Tool Bag (832071-7)

  • Long reach and compact head design enables maximum access to fasteners in tightn areas
  • High no load speed (800 RPM) for fast installation or removal of fasteners
  • Locking position enables operation as a hand ratchet
  • Includes 1/4” and 3/8” square drive adapters for fast and easy installation of sockets
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions
  • Variable speed trigger allows operator to adjust fastening speed based on materials or applications
  • LED job light with pre-glow and after-glow features
  • Use with Makita 3/8” ImpactX Socket Sets and 3/8” Deep Drive Sockets
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 12V MAX (1.5Ah) CXT Battery BL1016, Standard Charger (DC10WD),Battery Cover (456128-6), Socket Adapter 9.5 (191A50-3), Socket Adapter 6.35 (191A51-1), Tool Bag (832071-7)

Shipping Dimensions (Length x Width x Height) & Weight : 4.49 In. X 14.09 In. X 8.11 In. Weight : 6.61 Lb.

Specifications

Battery Capacities 12Vmax CXT Li-ion
Square Drive 3/8", 1/4"
No Load Speed 0 - 800 RPM
Maximum Torque 35 ft.lbs (47.5 Nm)
Vibration Level 2.5 m/s²
Noise Level 74 dB(A)
Overall Length 13-7/16" (341 mm)
Net Weight 2.3 lbs (1.0 kg)
