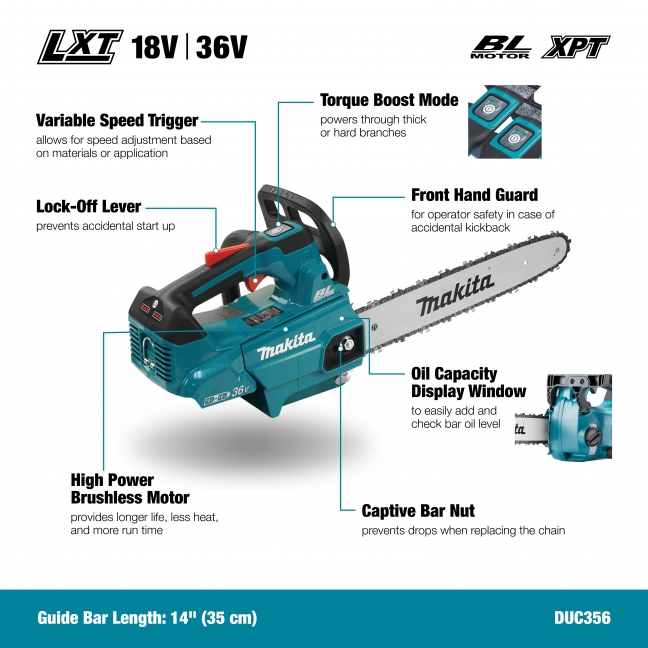

DUC356Z

36V(18Vx2) LXT Brushless 14" Top Handle Chainsaw, Tool Only

Power Equivalent To A 30cc Gasoline Chainsaw

Captive Bar Nut

LXT Technology LXT Technology LXT Technology 18Vx2

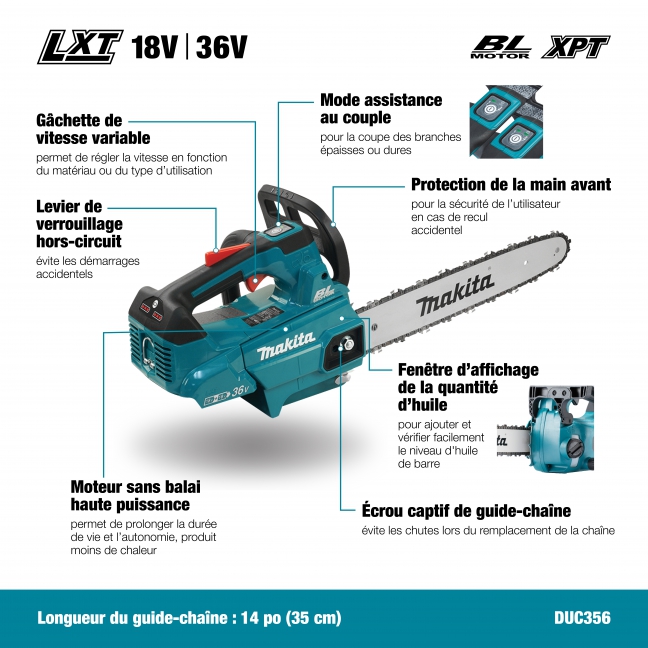

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Compact and Lightweight design making cutting branches in difficult places an easy task
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Low noise level at only 89 dB(A) with zero emissions for operator comfort and reduced environmental impact

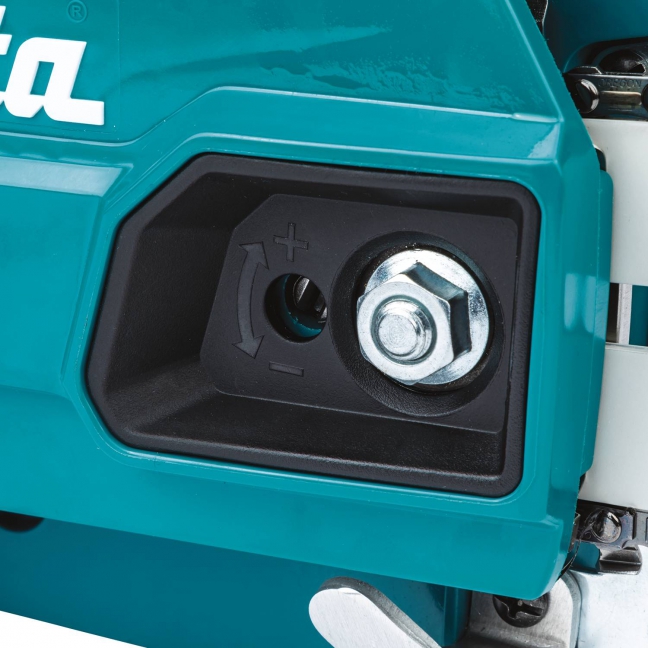

  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain

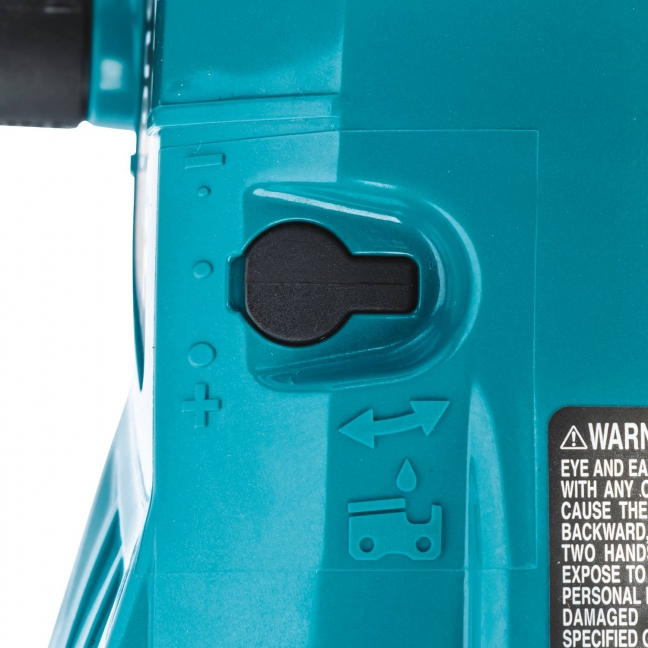

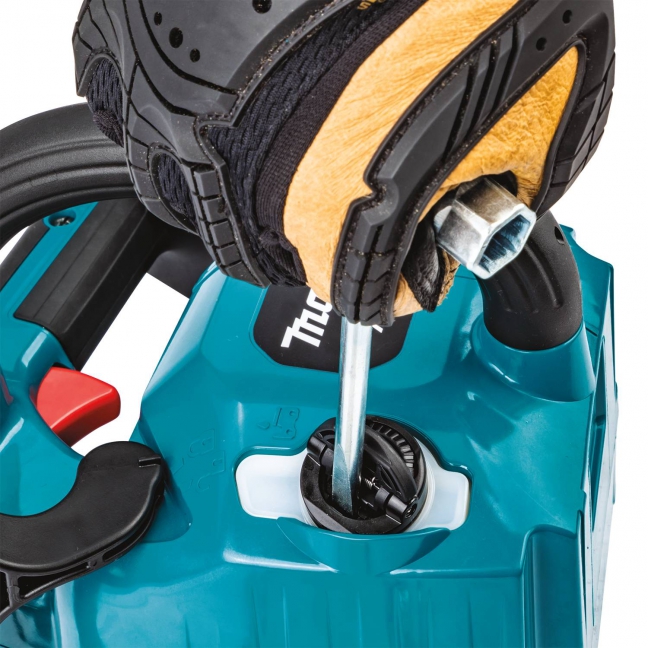

  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required

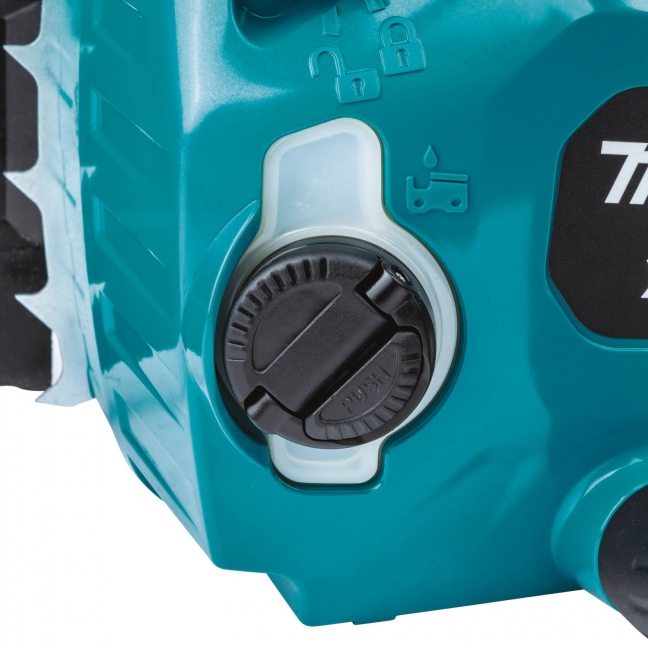

  • Chain oil view window enables operator to easily check oil level

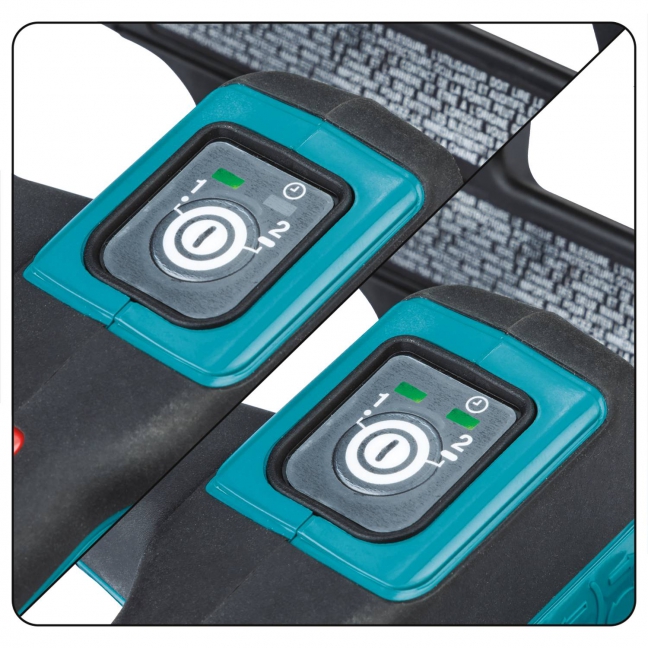

  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 – 4,060 FPM) allows operator to adjust cutting speed
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

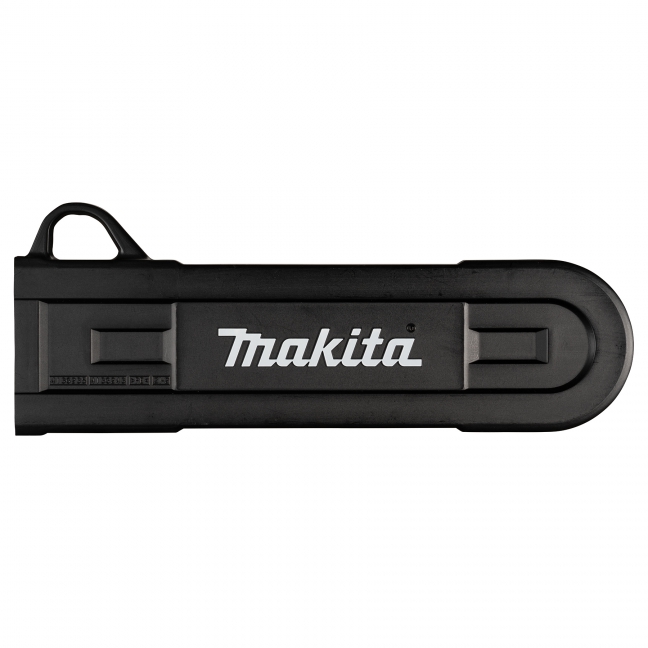

Items Included:Tool Only. Batteries and Charger Sold Separately. 14" Chain (191H02-6), 14" Guide Bar (191G16-9), Chain Cover (413G23-5), Spike Bumper (346809-9), Wrench 13-16 (782023-7), Oil Supply (199897-3)

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged cutting applications
  • Compact and Lightweight design making cutting branches in difficult places an easy task
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Low noise level at only 89 dB(A) with zero emissions for operator comfort and reduced environmental impact
  • Captive bar nuts prevent loss of nut when removing sprocket cover to replace guide bar or saw chain
  • Automatic chain oiler maintains optimal bar/chain lubrication during operation with no adjustments required
  • Chain oil view window enables operator to easily check oil level
  • Push-button on/off switch with auto power-off function for extended battery life
  • Lock-off button prevents accidental start up for maximum operator safety
  • Variable speed trigger switch (0 – 4,060 FPM) allows operator to adjust cutting speed
  • Inertia chain brake provides maximum operator protection if kickback occurs
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 14" Chain (191H02-6), 14" Guide Bar (191G16-9), Chain Cover (413G23-5), Spike Bumper (346809-9), Wrench 13-16 (782023-7), Oil Supply (199897-3)

Shipping Dimensions (Length x Width x Height) & Weight : 19.45 In. X 8.43 In. X 10.63 In. Weight : 11.02 Lb.

Specifications

Battery Capacities Two 18V LXT
Guide Bar Length 14" (350 mm)

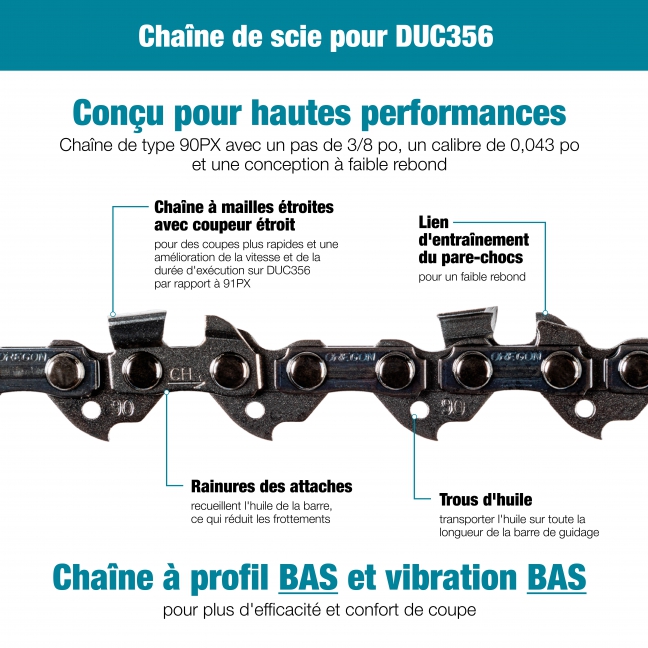

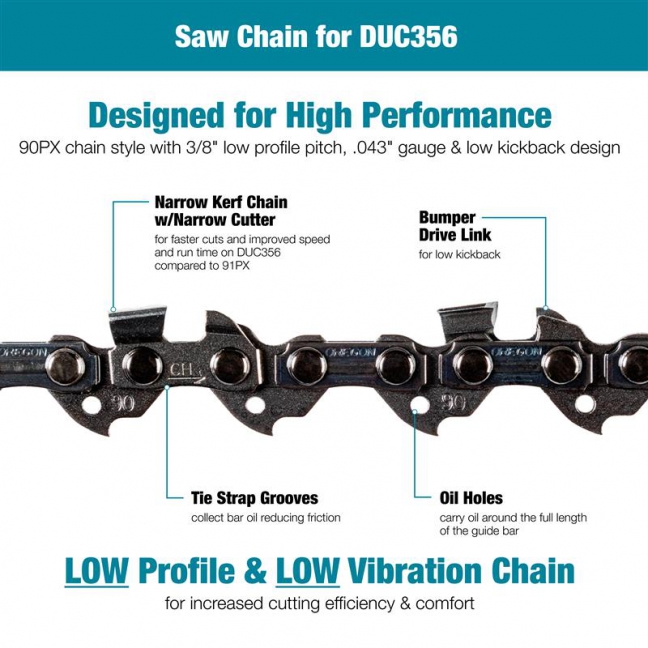

Chain Pitch / Gauge 3/8" / 0.043"
Chain Speed  0 - 4,060 FPM (0-1,240 m/min)
Vibration Level 2.7 m/s² (Front), 3.2 m/s² (Rear)
Noise Level 89 dB(A)
Overall Length 24-1/8" (612 mm)
Net Weight 8.2 lbs (3.7 kg)
