36V X2 Brushless Technology

(Tool only)


DLM532Z

36V(18Vx2) LXT Brushless 21" Self-Propelled Lawn Mower, Tool Only

Suitable For Lawns Up To 2,300 square meters (Approx. 24,800 square feet)

Soft Start, Variable Speed, Constant Speed Control, Electric Brake

LXT Technology LXT Technology LXT Technology 18Vx2
  • Brushless DC motor with 1.6 kW of power designed to cut thick grass quickly and easily
  • 18Vx2 innovation accepts second set of 18V batteries with manual switch to provide twice the mowing capacity
  • Large steel deck with 21” cutting width ensures the job is completed with fewer passes
  • Adjustable self-propelled speeds with on/off switch provides operator comfort and reduces fatigue
  • 3 in 1 capability enables mulching, rear bagging or side discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.

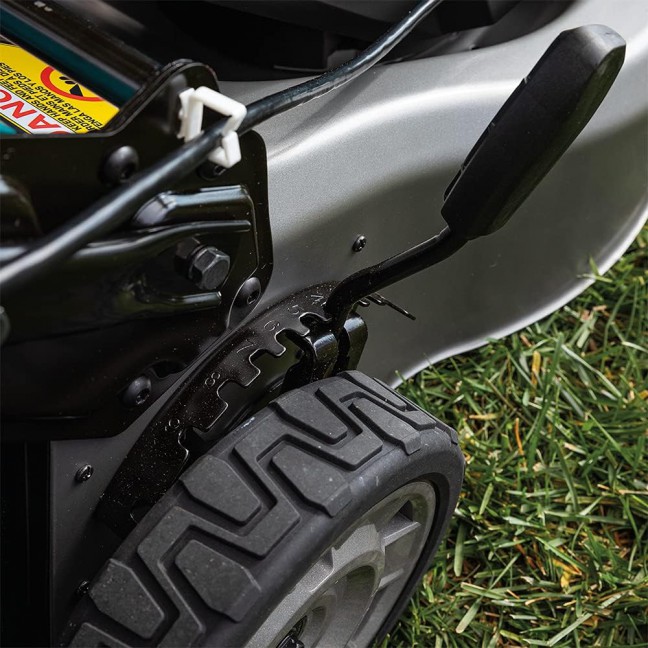

  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Battery capacity warning light indicates approximate remaining battery power for each battery
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety
  • Constant speed control maintains constant speed under heavy load

Items Included:Tool Only. Batteries and Charger Sold Separately. Blade Set (191D52-7), Rod 6 (327589-6), Side Discharge Mouth (459887-1), Socket Wrench 17 (782210-8), Socket Wrench 13 (782212-4), Mulching Plug Assembly (127516-1)

  • Brushless DC motor with 1.6 kW of power designed to cut thick grass quickly and easily
  • 18Vx2 innovation accepts second set of 18V batteries with manual switch to provide twice the mowing capacity
  • Large steel deck with 21” cutting width ensures the job is completed with fewer passes
  • Adjustable self-propelled speeds with on/off switch provides operator comfort and reduces fatigue
  • 3 in 1 capability enables mulching, rear bagging or side discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Battery capacity warning light indicates approximate remaining battery power for each battery
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety
  • Constant speed control maintains constant speed under heavy load

Items Included: Tool Only. Batteries and Charger Sold Separately. Blade Set (191D52-7), Rod 6 (327589-6), Side Discharge Mouth (459887-1), Socket Wrench 17 (782210-8), Socket Wrench 13 (782212-4), Mulching Plug Assembly (127516-1)

Shipping Dimensions (Length x Width x Height) & Weight : 21.81 In. X 39.45 In. X 24.84 In. Weight : 104.94 Lb.

Specifications

Battery Capacities Two 18V LXT
Cutting Width 21" (534 mm)
Range of Height 13/16" - 3-15/16" (20 - 100 mm)
Step 10 Steps
Grass Box Capacity 70 L
No Load Speed 2,300 RPM
Vibration Level 2.5 m/s²
Noise Level 78.1 dB(A)
Dimensions (L x W x H) 67-1/2” x 23-1/4"x 43” (1,715 mm x 590 mm x 1,195 mm)
Net Weight 84.5 lbs. (38.3 kg)
