HR003GZ

40Vmax XGT Brushless 1-1/8" Rotary Hammer SDS-PLUS, Tool Only

Heavy Duty Performance!

Rotation Only / Rotation + Hammer / Hammer Only

SDS-PLUS Shank

Variable Speed

XGT Technology LXT Technology LXT Technology Anti vibration Technology
  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • 3 Operating Modes: Rotation  / Hammer /  Rotation + Hammer
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • No-load motor suppression limits vibration and bit deflection when idling

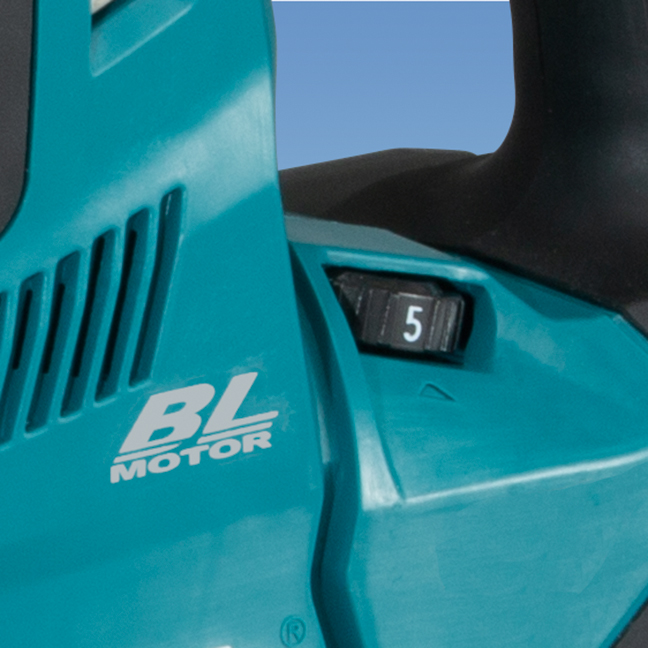

  • Variable speed dial and trigger allows operator to adjust speed based on materials or application
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal

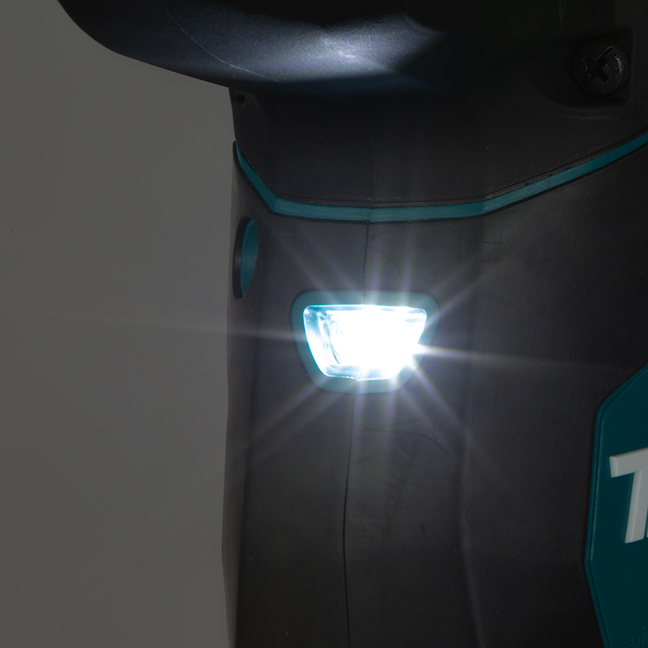

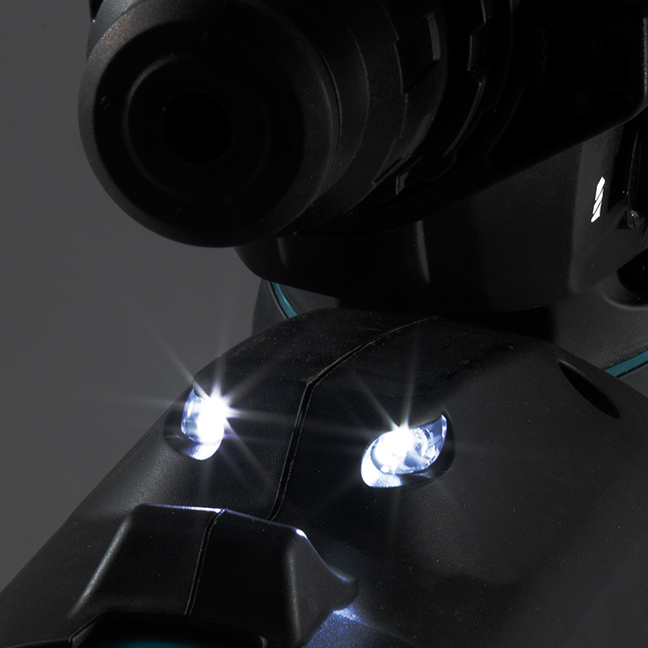

  • LED job light with after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

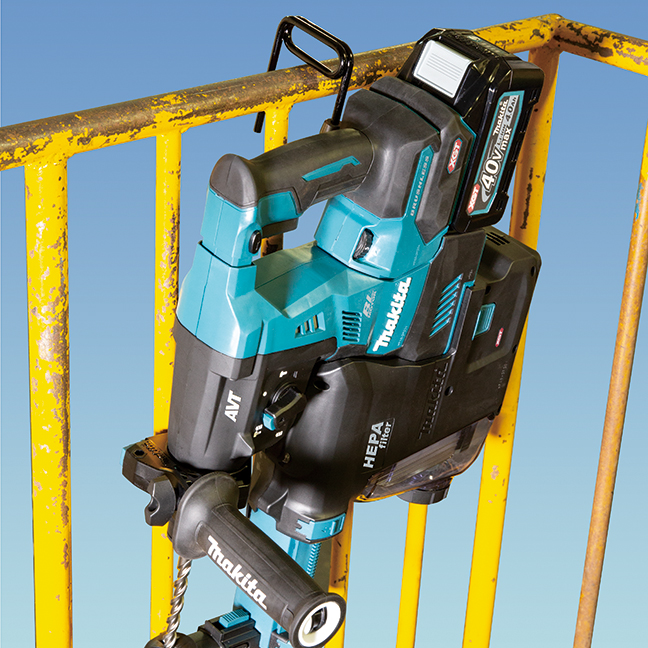

  • Use with Makita DX12 Dust Extraction Attachment for dust-free operation

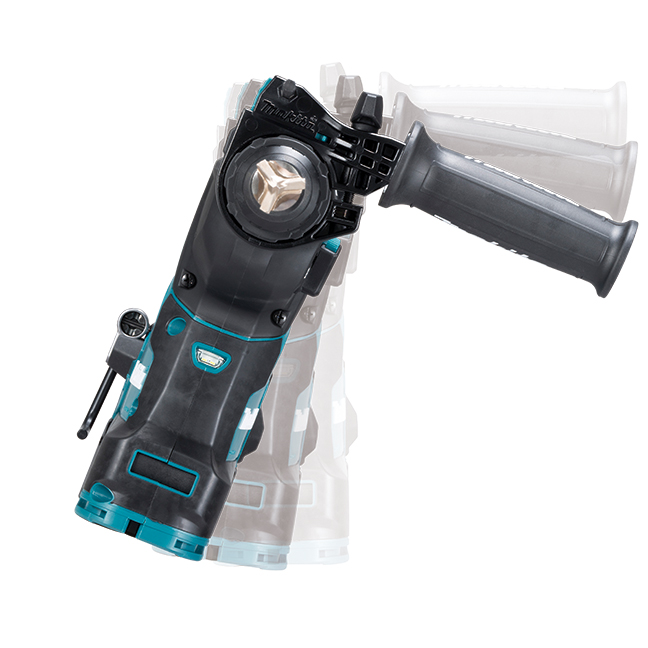

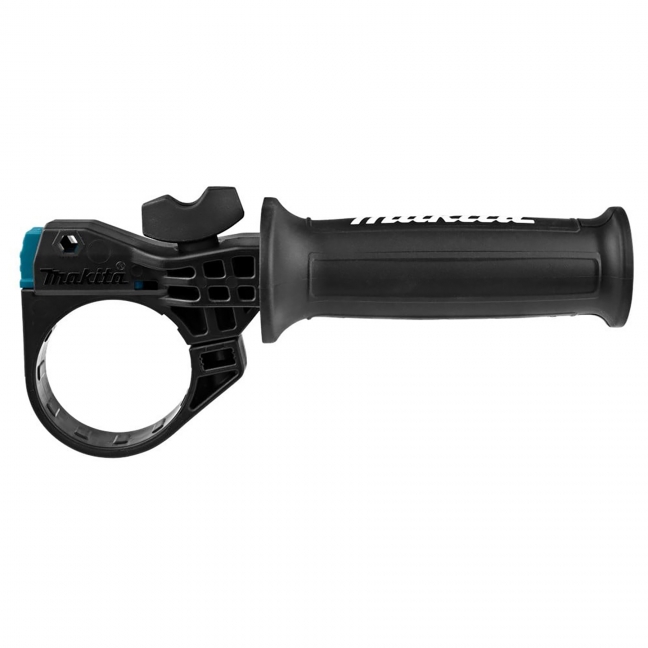

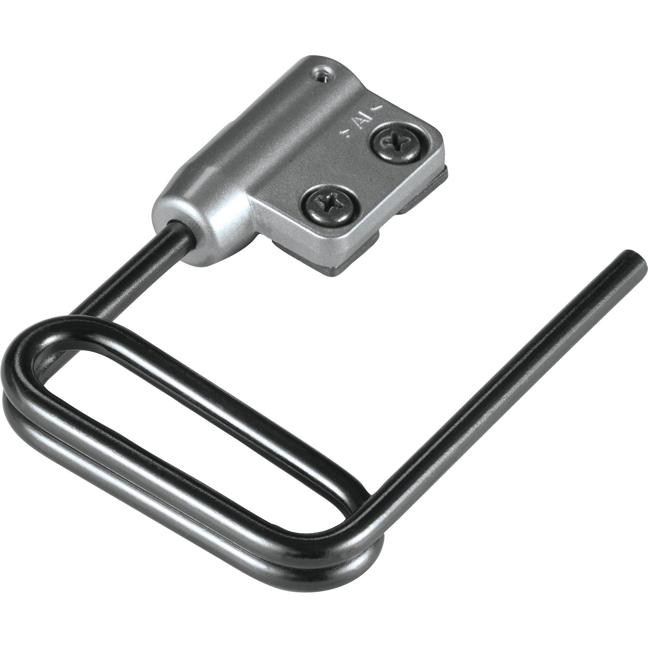

Items Included:Tool Only. Batteries and Charger Sold Separately. Side Handle (126882-3), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (331886-4), Hook (191C37-7)

  • Anti-vibration technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • 3 Operating Modes: Rotation  / Hammer /  Rotation + Hammer
  • Trigger-lock button prevents accidental start-up for increased safety
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • No-load motor suppression limits vibration and bit deflection when idling
  • Variable speed dial and trigger allows operator to adjust speed based on materials or application
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal
  • LED job light with after-glow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with Makita DX12 Dust Extraction Attachment for dust-free operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Side Handle (126882-3), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (331886-4), Hook (191C37-7)

Shipping Dimensions (Length x Width x Height) & Weight : 11.22 In. X 19.33 In. X 13.31 In. Weight : 9.92 Lb.

Specifications

Battery Capacities  40Vmax XGT
Capacities:
Concrete 1-1/8" (28 mm)
Steel 1/2" (13 mm)
Wood 1-1/4" (32 mm)
Impact Energy 3.2 J (2.4 ft. lbs)
No Load Speed 0 - 980 RPM
Blows Per Minute 0 - 5,000 BPM
Vibration Level 7.0 m/s²
Noise Level 93 dB(A)
Overall Length  14-1/8" (358 mm)
Net Weight 7.1 lbs (3.2 kg)
40V max XGT / 18V LXT 10,000lm LED WORKLIGHT w/LAMP SHADE (TOOL ONLY)

40V max XGT / 18V LXT 10,000lm LED WORKLIGHT w/LAMP SHADE (TOOL ONLY)

Read More
40V max XGT 2.5 Ah Li-Ion Battery (BL4025)

40V max XGT 2.5 Ah Li-Ion Battery (BL4025)

Read More
40V max XGT 4.0Ah Li-Ion Battery (BL4040)

40V max XGT 4.0Ah Li-Ion Battery (BL4040)

Read More
40V max XGT 5.0 Ah Li-Ion Battery (BL4050F)

40V max XGT 5.0 Ah Li-Ion Battery (BL4050F)

Read More
40V max XGT 8.0 Ah Li-Ion Battery (BL4080F)

40V max XGT 8.0 Ah Li-Ion Battery (BL4080F)

Read More

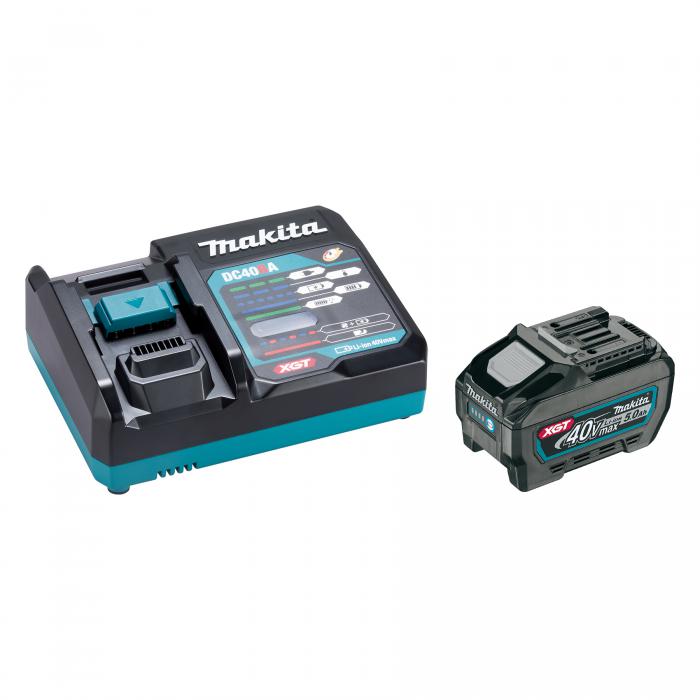

40V max XGT Battery & Fast Charger Starter Kit (2.5Ah)
