HR3011FCK

1-3/16" Rotary Hammer SDS-PLUS

SDS-PLUS Shank

Hammer & Rotation / Hammer Only / Rotation Only

Variable Speed, Constant Speed Control

Anti vibration Technology

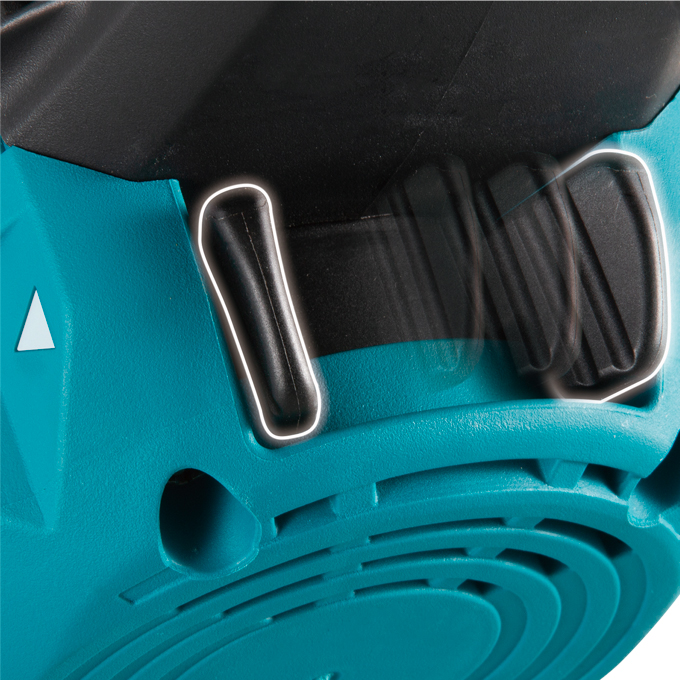

  • NEW Anti-Vibration Technology (AVTTM) with dual counterweights and anti-vibration rear handle actively counteracts vibration of tool for greatly reduced transmission to operator
  • Longer bit guide reduces bit wobbling for more efficient drilling
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection

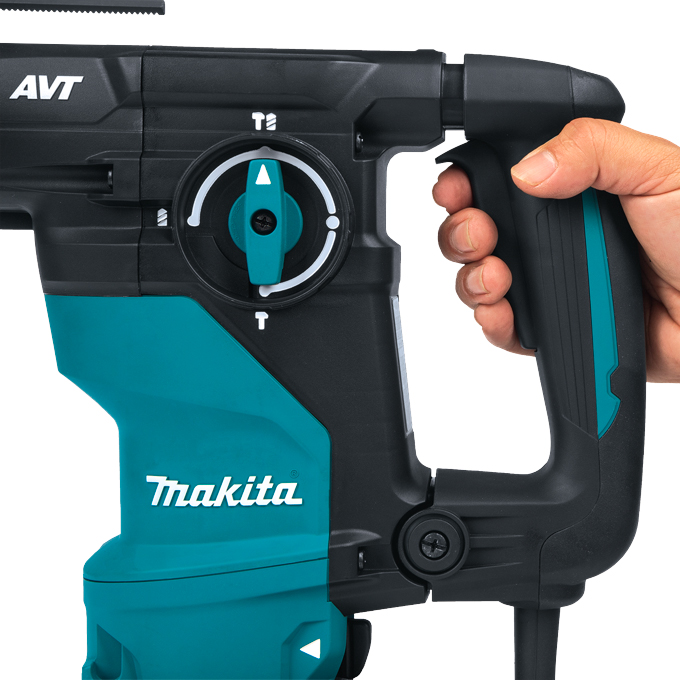

  • 3 operating modes – rotation only / rotation + hammer / hammer only
  • Constant speed control maintains constant speed under heavy load
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • 16 angle bit positions enable chisels to be positioned at optimum angle of operation
  • One-touch sliding chuck for easy bit installation and removal
  • LED job light illuminates drilling position for maximum precision and operator safety
  • Vibration absorbing side handle with ergonomic soft rubber grip for vibration absorption and comfortable operation
  • Optional DX10 dust extraction system with HEPATM filter captures harmful silica dust at point of origin for virtually dust-free operation and reduced harm to workers
  • Dust filter cleaning dial removes excess dust from filter, maintaining vacuum efficiency and performance
  • Ideal for use in dust sensitive environments, e.g. hospitals, healthcare facilities, offices, facilities, institutions and more!

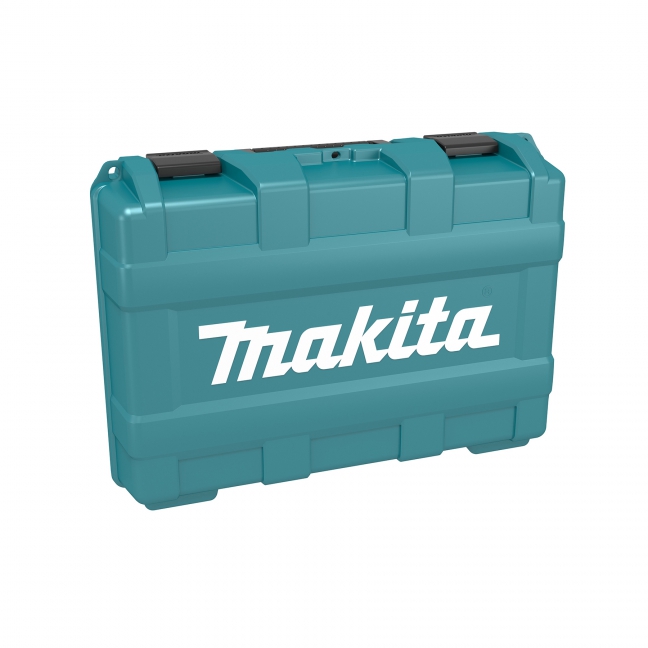

Items Included:Side Handle (126882-3), Depth Gauge (331886-4), Plastic Carrying Case (821825-7)

  • NEW Anti-Vibration Technology (AVTTM) with dual counterweights and anti-vibration rear handle actively counteracts vibration of tool for greatly reduced transmission to operator
  • Longer bit guide reduces bit wobbling for more efficient drilling
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • 3 operating modes – rotation only / rotation + hammer / hammer only
  • Constant speed control maintains constant speed under heavy load
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • 16 angle bit positions enable chisels to be positioned at optimum angle of operation
  • One-touch sliding chuck for easy bit installation and removal
  • LED job light illuminates drilling position for maximum precision and operator safety
  • Vibration absorbing side handle with ergonomic soft rubber grip for vibration absorption and comfortable operation
  • Optional DX10 dust extraction system with HEPATM filter captures harmful silica dust at point of origin for virtually dust-free operation and reduced harm to workers
  • Dust filter cleaning dial removes excess dust from filter, maintaining vacuum efficiency and performance
  • Ideal for use in dust sensitive environments, e.g. hospitals, healthcare facilities, offices, facilities, institutions and more!

Items Included: Side Handle (126882-3), Depth Gauge (331886-4), Plastic Carrying Case (821825-7)

Shipping Dimensions (Length x Width x Height) & Weight : 21.38 In. X 7.44 In. X 15.59 In. Weight : 20.88 Lb.

Specifications

Bit Type SDS-PLUS
Maximum Capacities:
Concrete (TCT)   1-3/16" (30 mm)
Concrete (Core Bit)  3-1/8" (80 mm)
Concrete (Diamond Core) 3-1/8" (80 mm)
Wood 1-1/4" (32 mm)
Steel 1/2" (13 mm)
No Load Speed  0 - 840 RPM
Blows Per Minute  0 - 4,500 BPM
Impact Energy   4.5 J (3.3 ft. lbs)
AMPS (120V)  9 A
Vibration Level  9.5 m/s² (Concrete ) / 5.5 m/s² (Metal)
Noise Level 94 dB(A)
Overall Length  14-1/2" (369 mm)
Net Weight  9.7 lbs (4.4 kg)
Dust Extraction Attachment

Dust Extraction Attachment

Read More

User Manual: HR3011F - EN FR SP.pdf

Parts Breakdown: HR3011FCK, HR3011FCWK - DEC2024.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
