Home / Tool / OPE / Lawn Mowers / DLM533Z

36V X2 Brushless Technology

(Tool only)


DLM533Z

36V(18Vx2) LXT Brushless 21" Self-Propelled Lawn Mower, Tool Only

Suitable For Lawns Up To 2,300 square meters (Approx. 24,800 square feet)

Commercial grade aluminum deck for durability and long life

Soft Start, Variable Speed, Constant Speed Control, Electric Brake

LXT Technology LXT Technology LXT Technology ADT 18Vx2
  • Commercial grade aluminum deck with 21” cutting width ensures the job is completed with fewer passes
  • Brushless DC motor with 1.6 kW of power designed to cut thick grass quickly and easily
  • 18Vx2 innovation accepts second set of 18V batteries with manual switch to provide twice the mowing capacity
  • Adjustable self-propelled speeds with on/off switch provides operator comfort and reduces fatigue
  • 3 in 1 capability enables mulching, rear bagging or rear discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a      single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Battery capacity warning light indicates approximate remaining battery power for each battery
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety

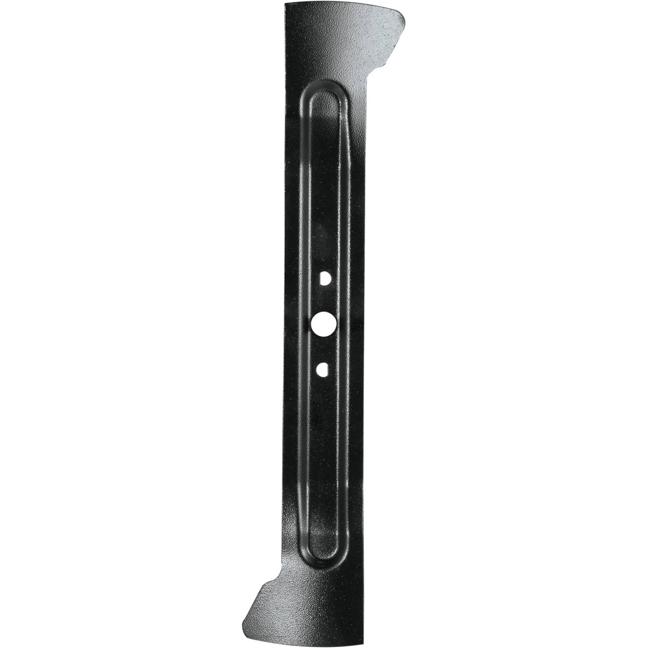

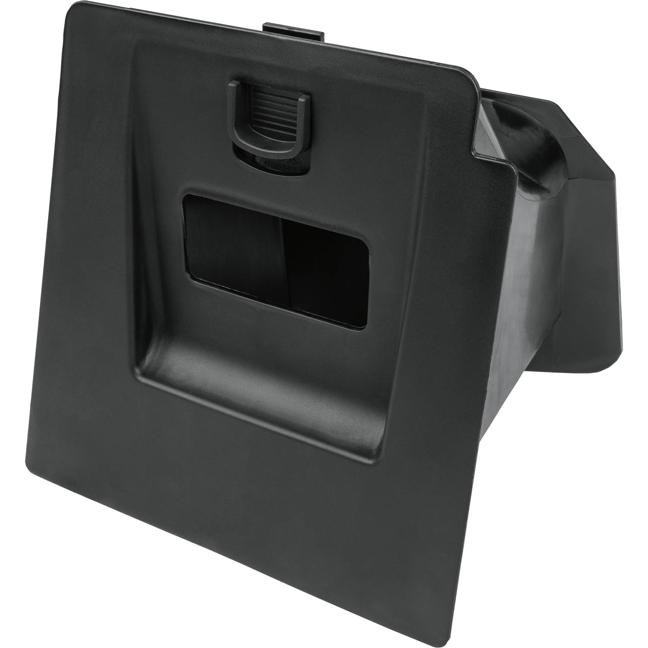

Items Included:Tool Only. Batteries and Charger Sold Separately. Blade Set (191D52-7), Rod 6 (327589-6), Socket Wrench 17 (782210-8), Socket Wrench 13 (782212-4), Mulching Plug Assembly (127550-1)

  • Commercial grade aluminum deck with 21” cutting width ensures the job is completed with fewer passes
  • Brushless DC motor with 1.6 kW of power designed to cut thick grass quickly and easily
  • 18Vx2 innovation accepts second set of 18V batteries with manual switch to provide twice the mowing capacity
  • Adjustable self-propelled speeds with on/off switch provides operator comfort and reduces fatigue
  • 3 in 1 capability enables mulching, rear bagging or rear discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a      single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Battery capacity warning light indicates approximate remaining battery power for each battery
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety

Items Included: Tool Only. Batteries and Charger Sold Separately. Blade Set (191D52-7), Rod 6 (327589-6), Socket Wrench 17 (782210-8), Socket Wrench 13 (782212-4), Mulching Plug Assembly (127550-1)

Shipping Dimensions (Length x Width x Height) & Weight : 22.6 In. X 44.09 In. X 25.59 In. Weight : 114.2 Lb.

Specifications

Battery Capacities Two 18V LXT
Cutting Width 21" (534 mm)
Range of Height 13/16" - 3-15/16" (20 - 100 mm)
Step 10 Steps
Grass Box Capacity 70 L
No Load Speed 2,300 / 2800 RPM
Vibration Level 2.5 m/s²
Noise Level 78.8 dB(A)
Dimensions (L x W x H) 68-1/2” x 23-1/4" x 43-1/4” (1,740 mm x 590 mm x 1,100 mm)
Net Weight  101 lbs. (45.80 kg)
