DJS131Z

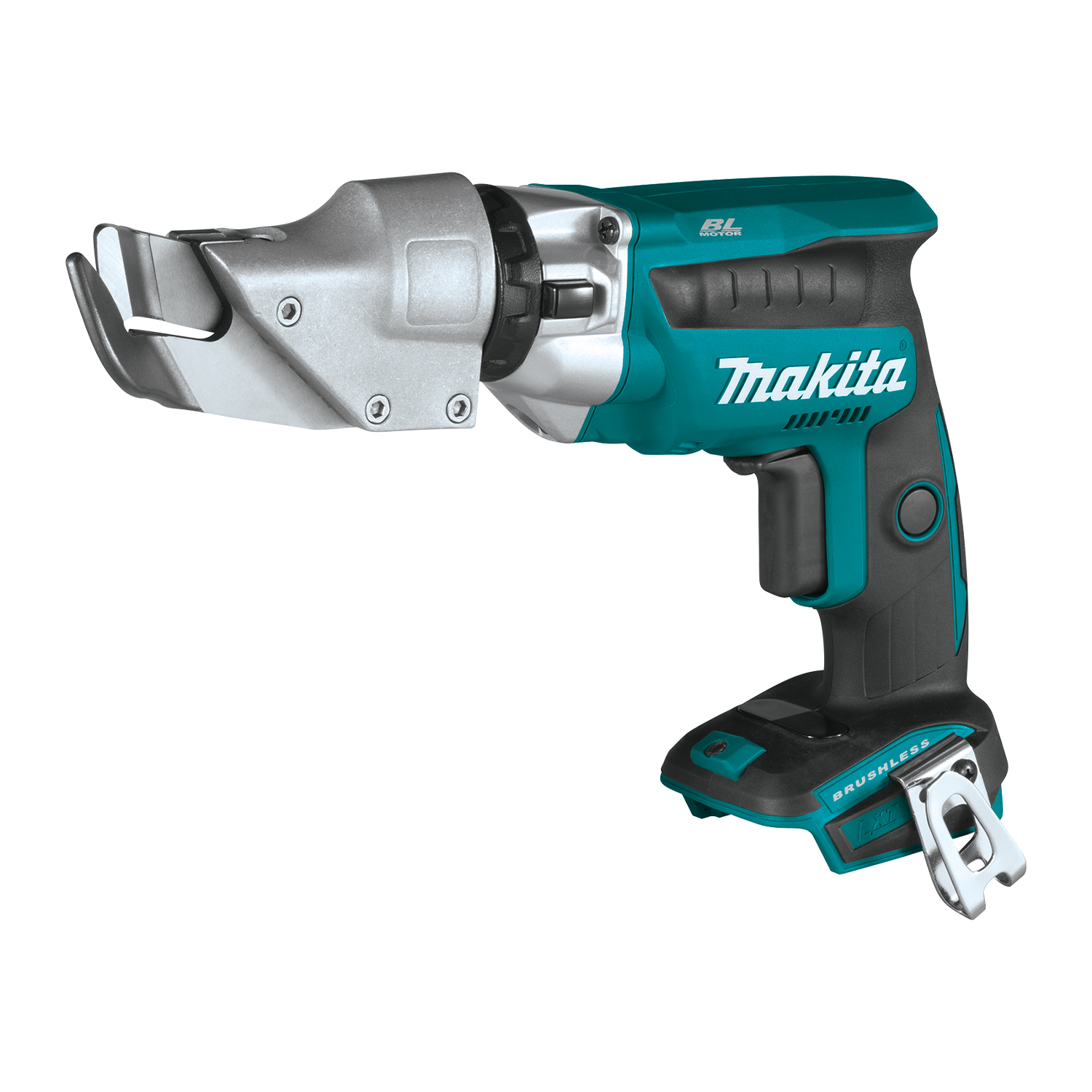

18V LXT Brushless 18 ga Metal Offset Shear, Tool Only

Offset Shear Head Design For Corrugated Sheet Metal and Spiral Ducting!


LXT Technology LXT Technology LXT Technology 18V Battery

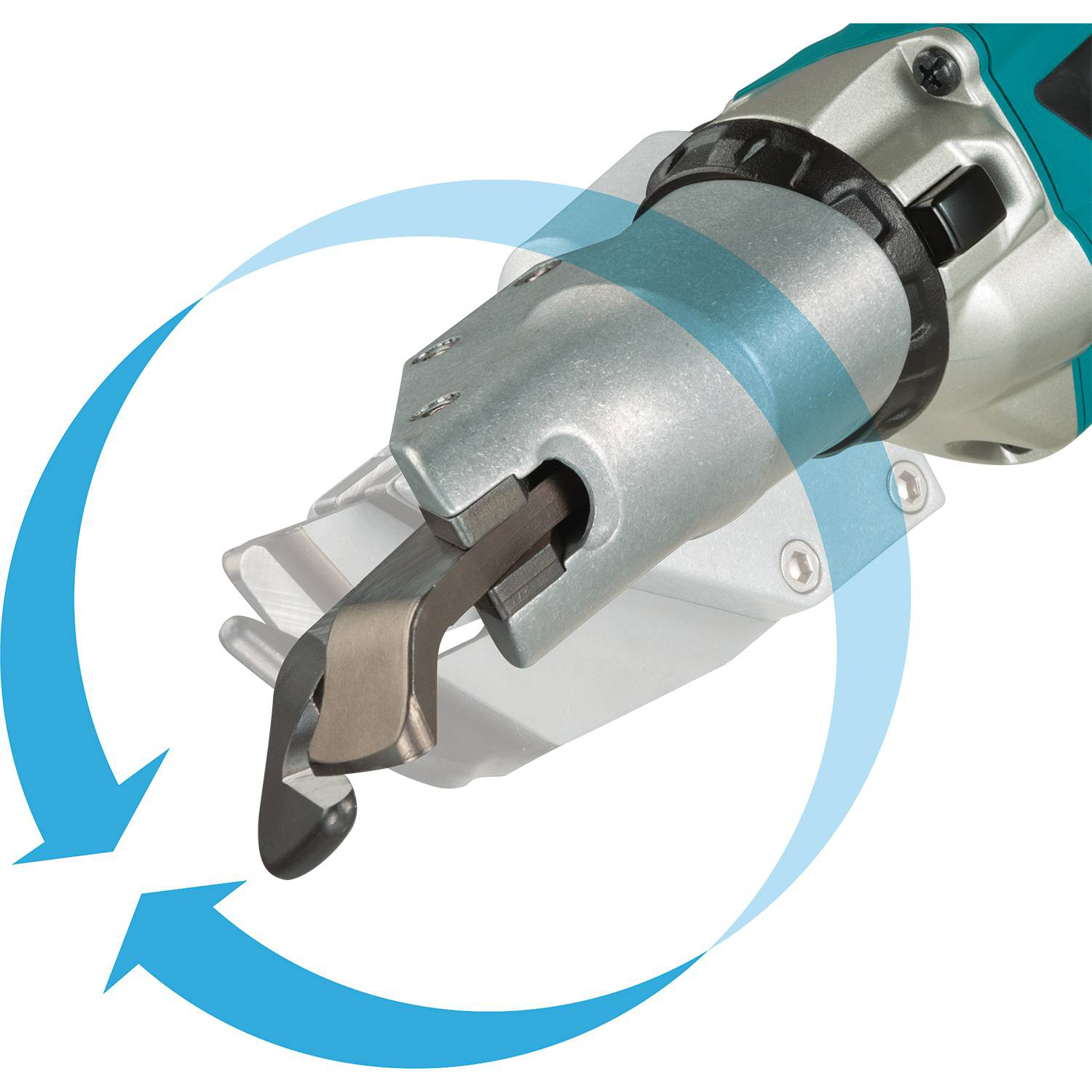

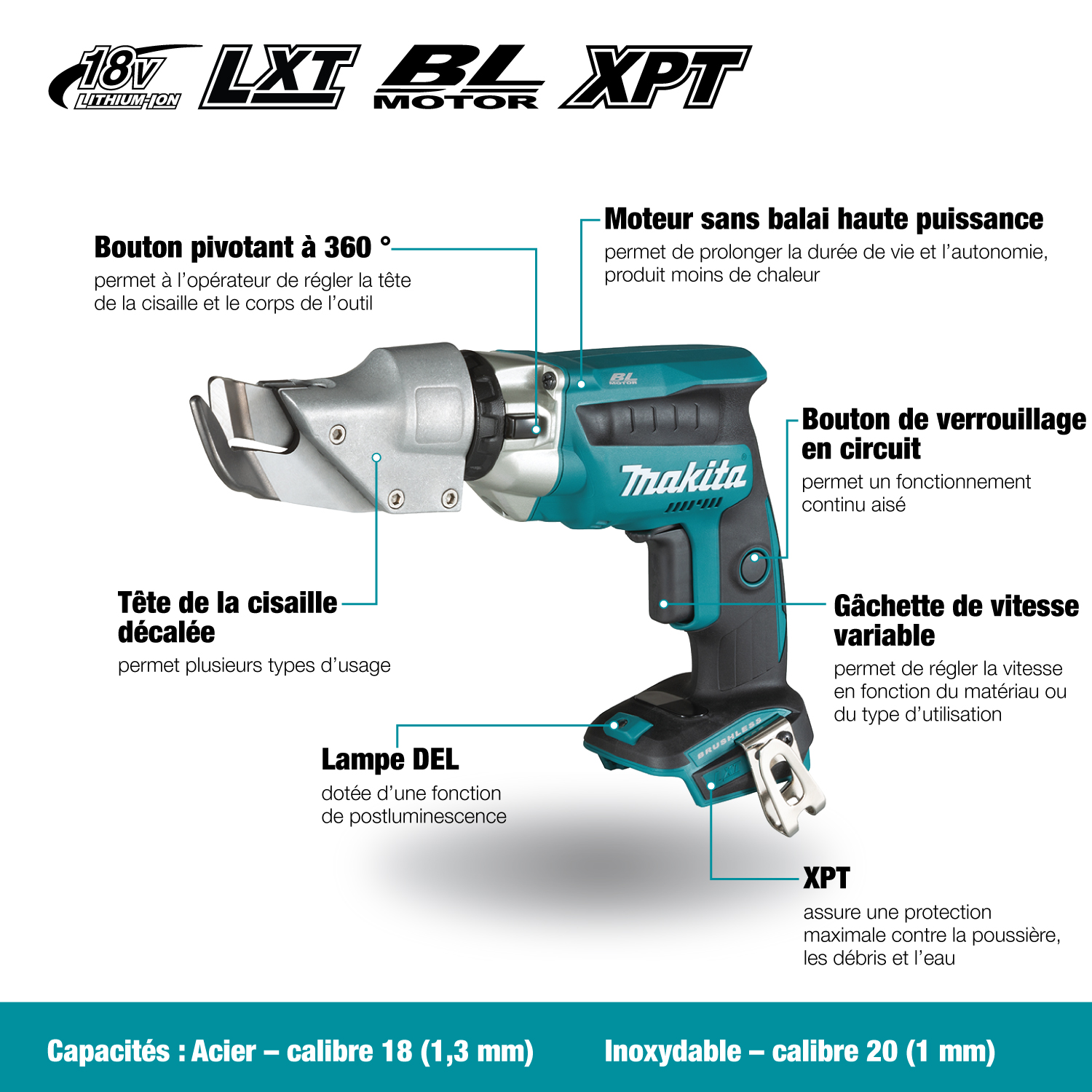

  • 360° rotating shear head with push button release allows operator to adjust shear head and tool body for maximum maneuverability and versatility in tight spaces

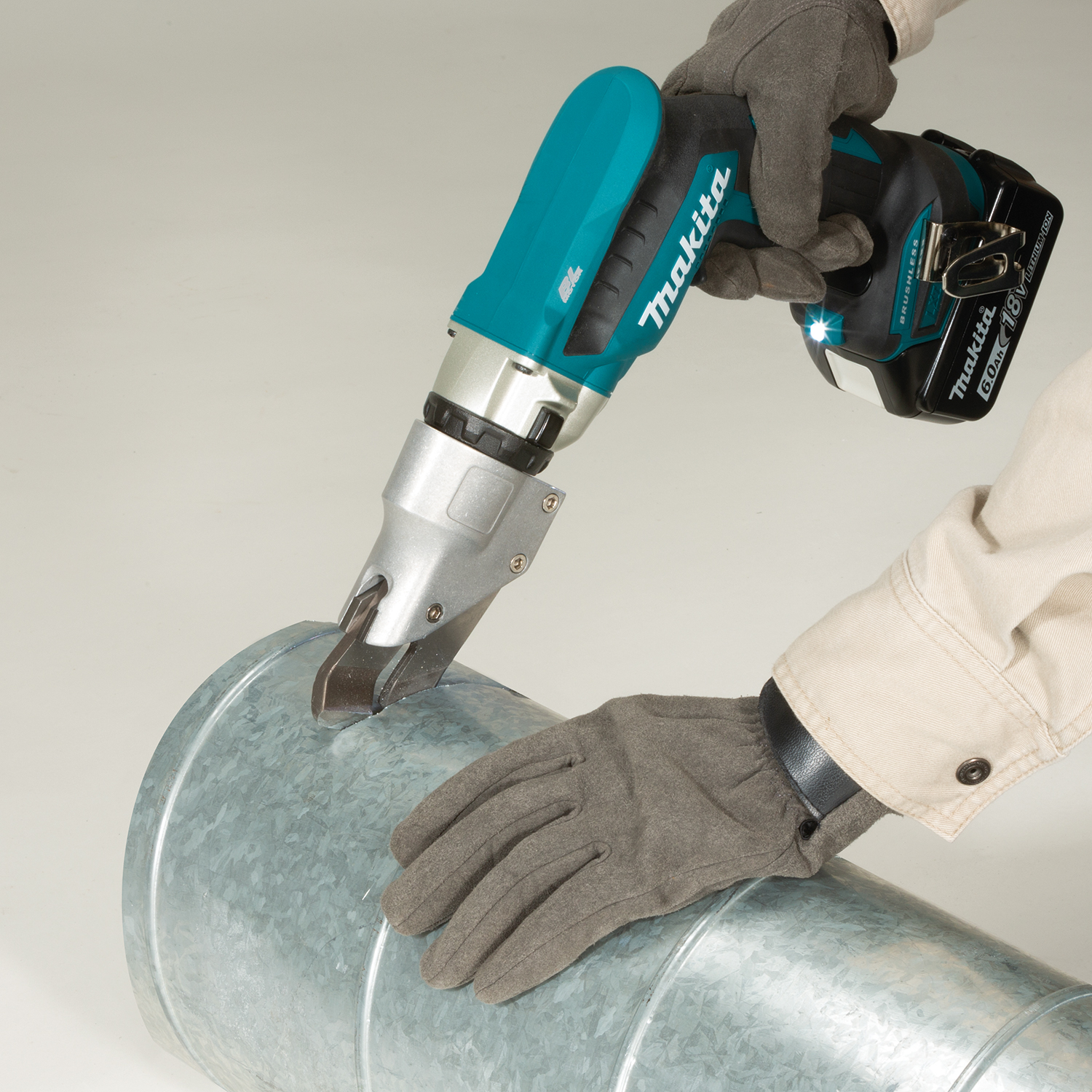

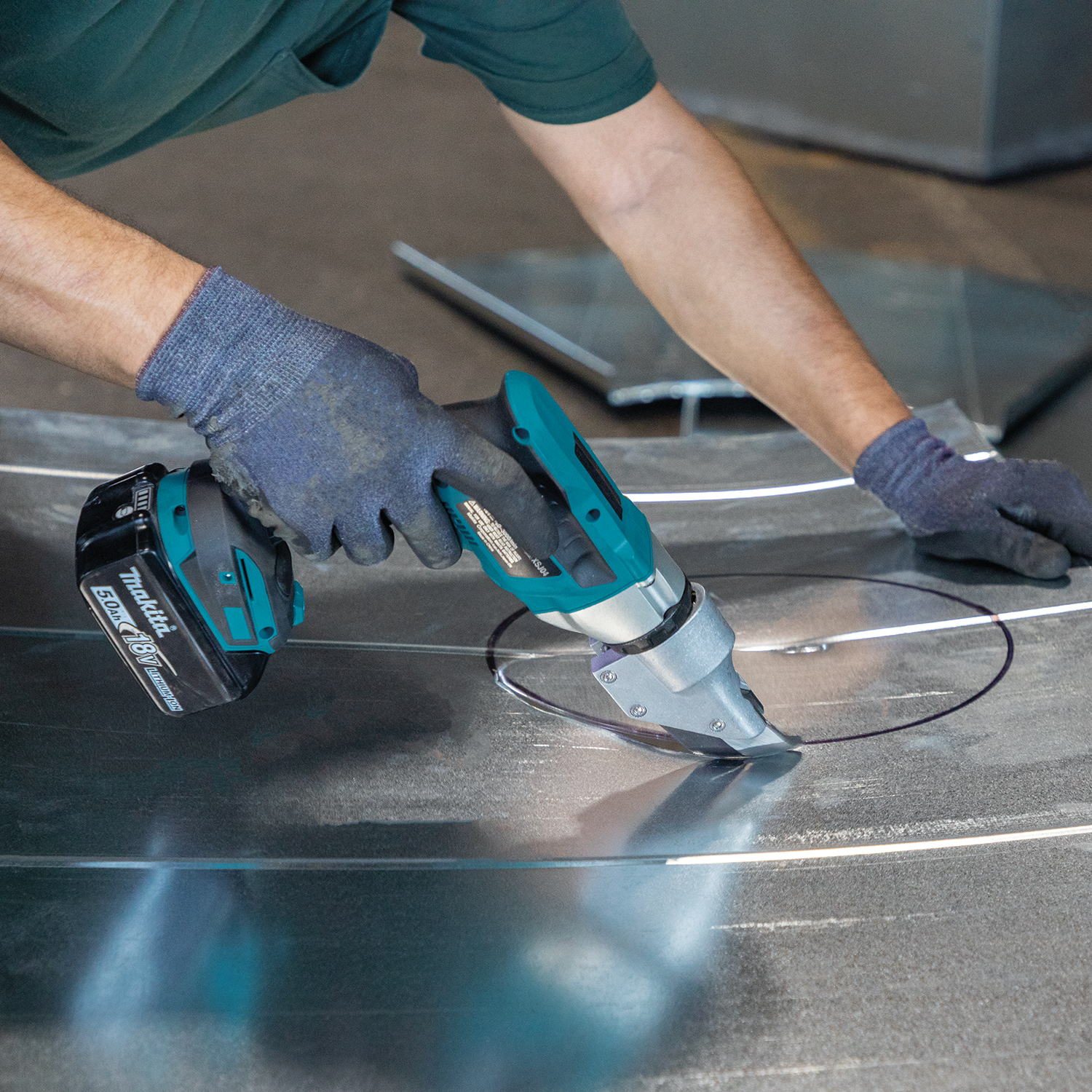

  • Offset shear head ideal for use when straight cutting corrugated metal sheet or ducting and performing curved cuts!
  • BL motor with high power to weight ratio
  • Lock-on button enables comfortable continuous operation
  • Variable speed trigger switch allows user to quickly adjust cutting speed during operation
  • eXtreme Protection Technology (XPT) offer maximum protection against dust, debris and liquids for optimal performance in extreme conditions

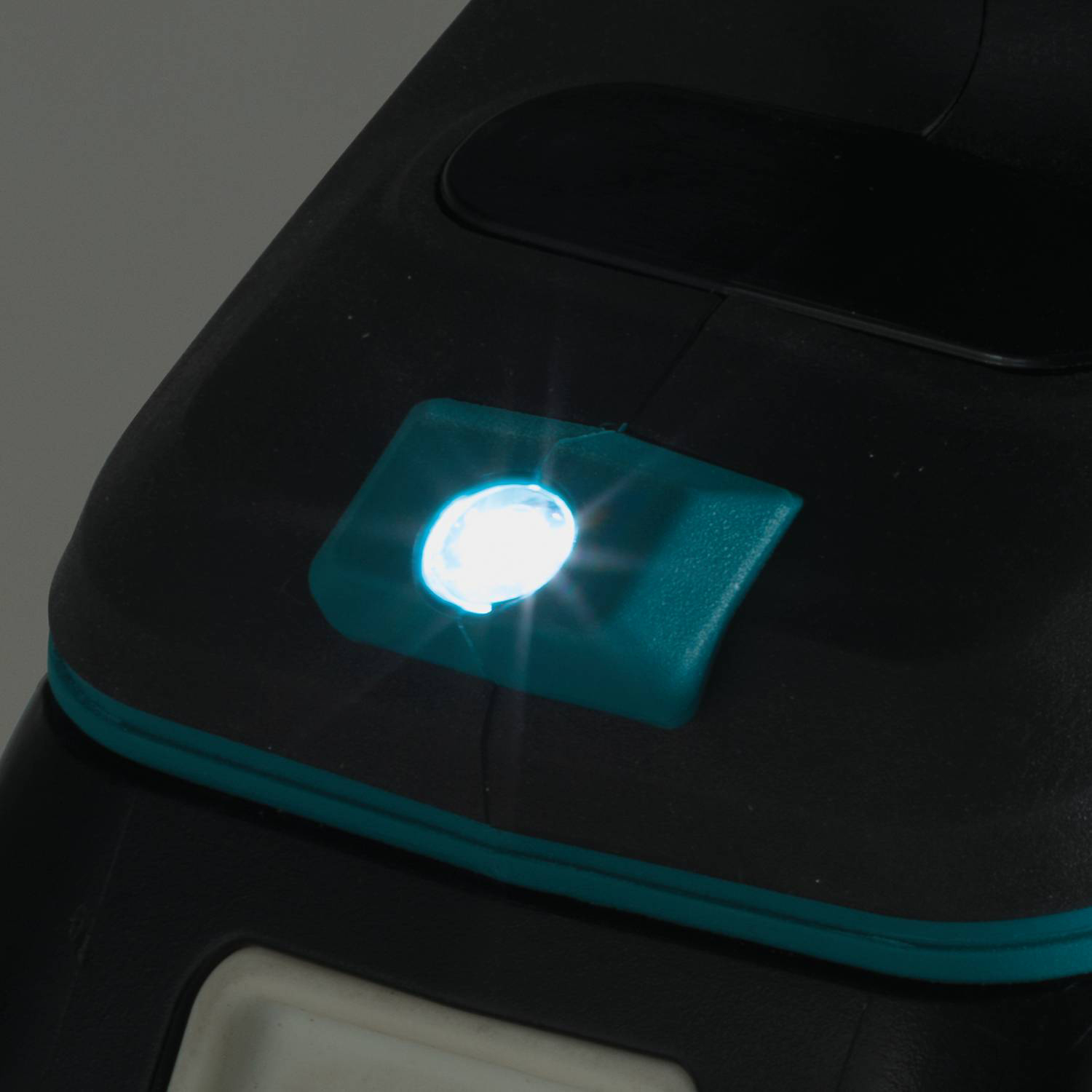

  • LED job light with afterglow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation during period of prolonged use

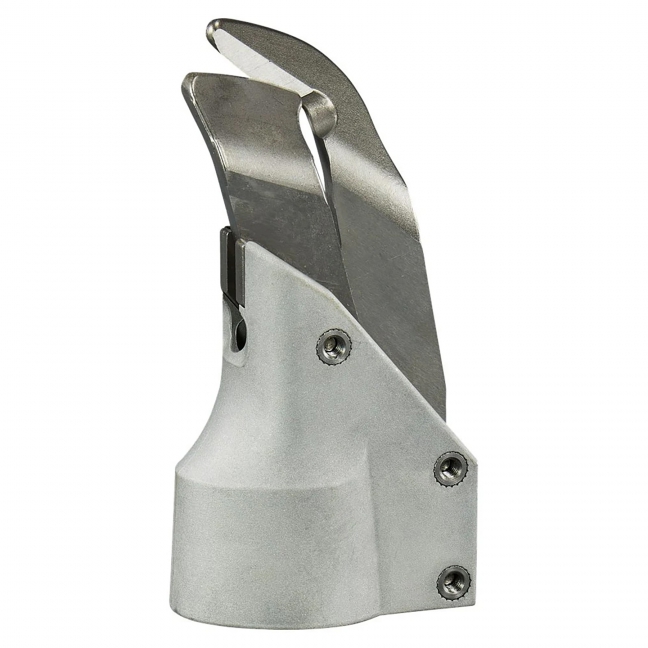

Items Included:Tool Only. Batteries and Charger Sold Separately. Shear Head Assembly (127488-0), Hook (346449-3), Hex Wrench 5/32” (783215-1)

  • 360° rotating shear head with push button release allows operator to adjust shear head and tool body for maximum maneuverability and versatility in tight spaces
  • Offset shear head ideal for use when straight cutting corrugated metal sheet or ducting and performing curved cuts!
  • BL motor with high power to weight ratio
  • Lock-on button enables comfortable continuous operation
  • Variable speed trigger switch allows user to quickly adjust cutting speed during operation
  • eXtreme Protection Technology (XPT) offer maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • LED job light with afterglow feature illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation during period of prolonged use

Items Included: Tool Only. Batteries and Charger Sold Separately. Shear Head Assembly (127488-0), Hook (346449-3), Hex Wrench 5/32” (783215-1)

Shipping Dimensions (Length x Width x Height) & Weight : 8.50 In. X 8.31 In. X 3.66 In. Weight : 4.91 Lb.

Specifications

Battery Capacities 18V LXT
Capacities:
Steel 18 gauge (1.3 mm)
Stainless 20 gauge (1 mm)
No Load Speed 0 - 3,000 SPM
Vibration Level  7.0 m/s2
Noise Level 79 dB(A)
Overall Length 13-1/8" (332 mm)
Net Weight 3.6 lbs (1.6 kg)
