DPB183Z

18V LXT Brushless Portable Band Saw, Tool Only

Compact Design For One-Handed Overhead Cutting Applications

Electric Brake, Variable Speed, Constant Speed Control

LXT Technology LXT Technology 18V Battery
  • Compact and lightweight design ideal for overhead cutting applications or small diameter pipes, channel, strut and more!
  • Brushless DC motor with high power to weight ratio resists heat buildup for maximum cutting efficiency and battery life

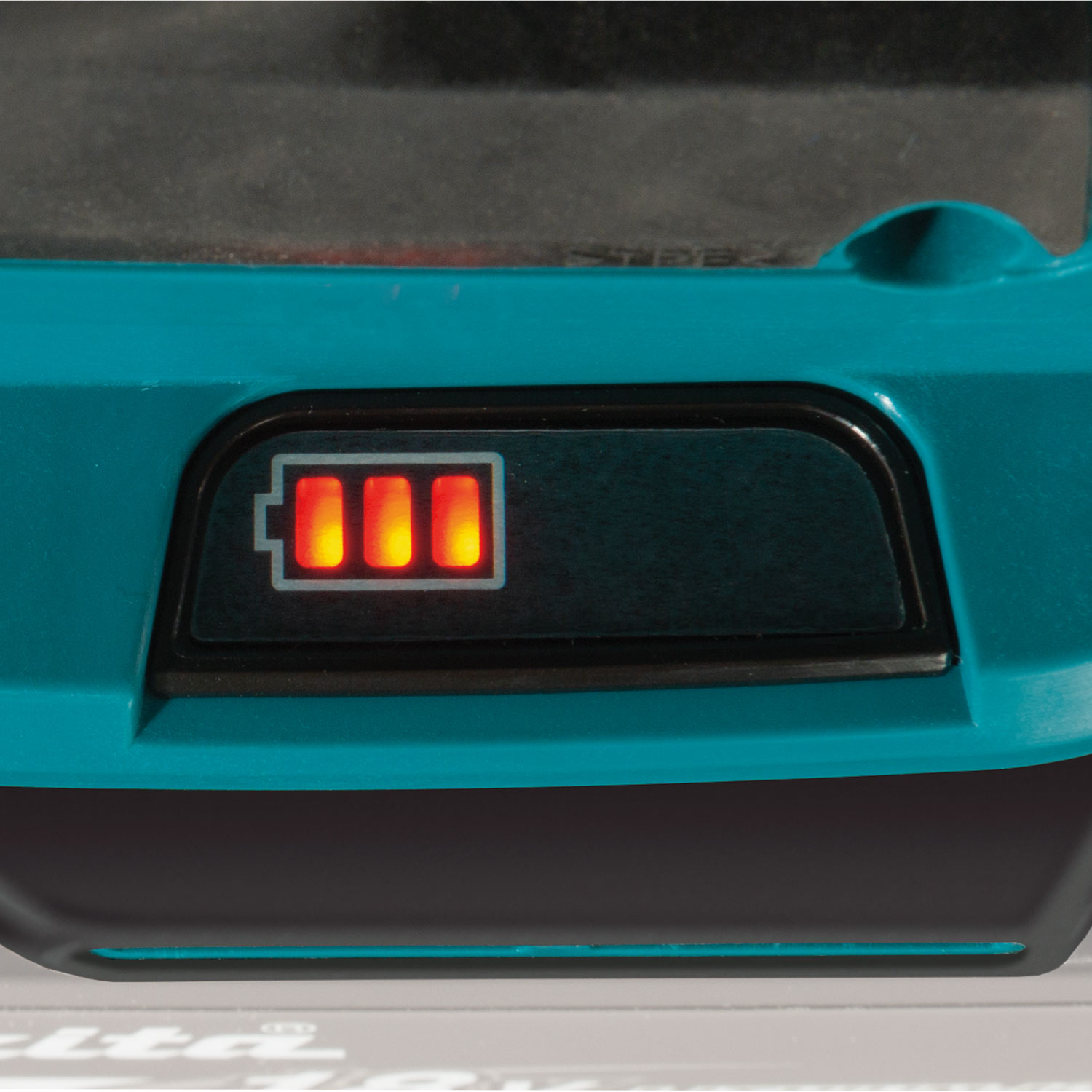

  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Aluminum diecast frame for maximum cutting rigidity and increased durability
  • Easy blade tracking adjustment for increased performance and productivity
  • Lock-off button prevents accidental startup and is easily accessible by left or right hand users
  • Ball bearing blade guide provides smooth blade movement for increased cutting efficiency
  • Adjustable guide plate
  • Constant speed control maintains constant speed under heavy load

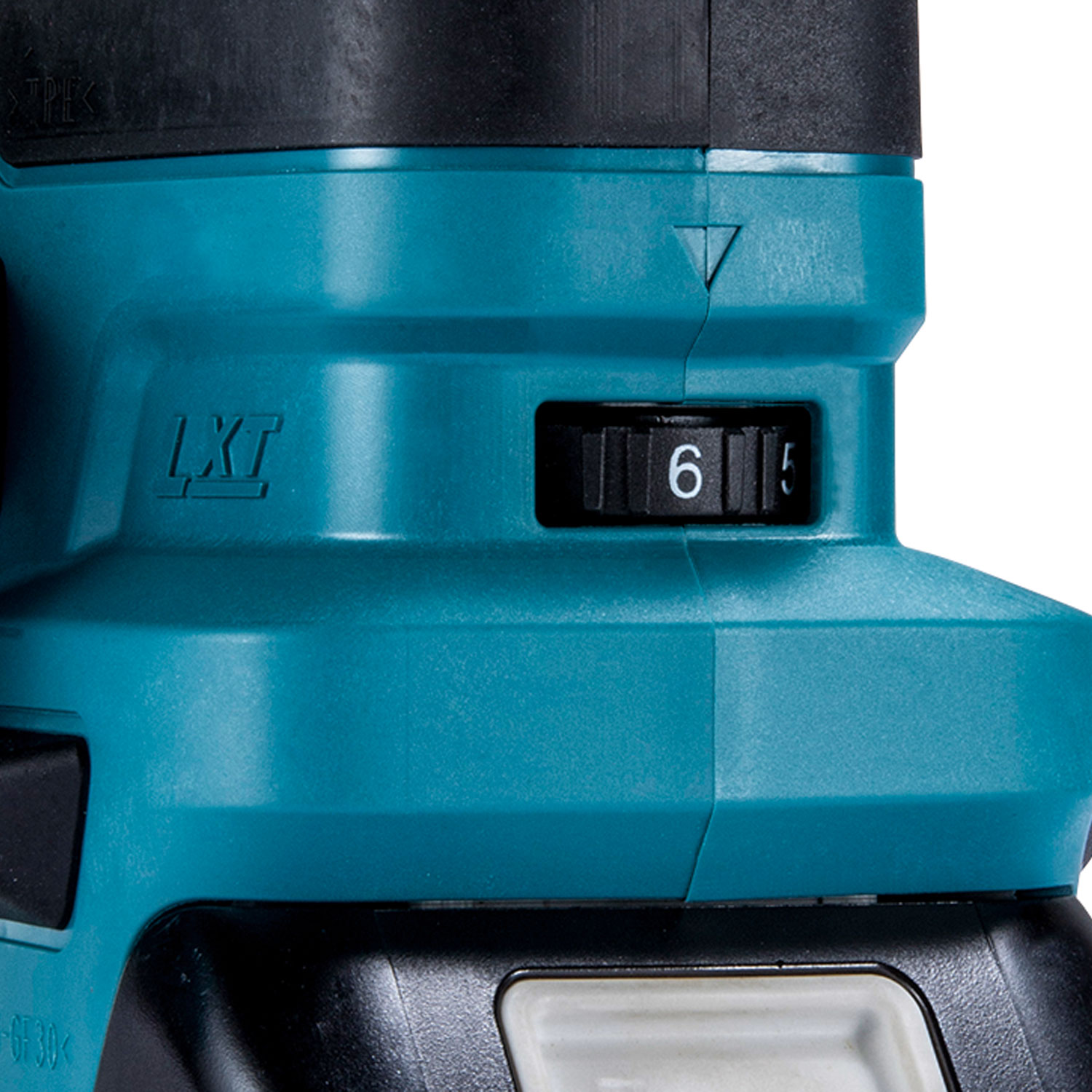

  • Variable speed feature allows operator to adjust speed based on materials or application

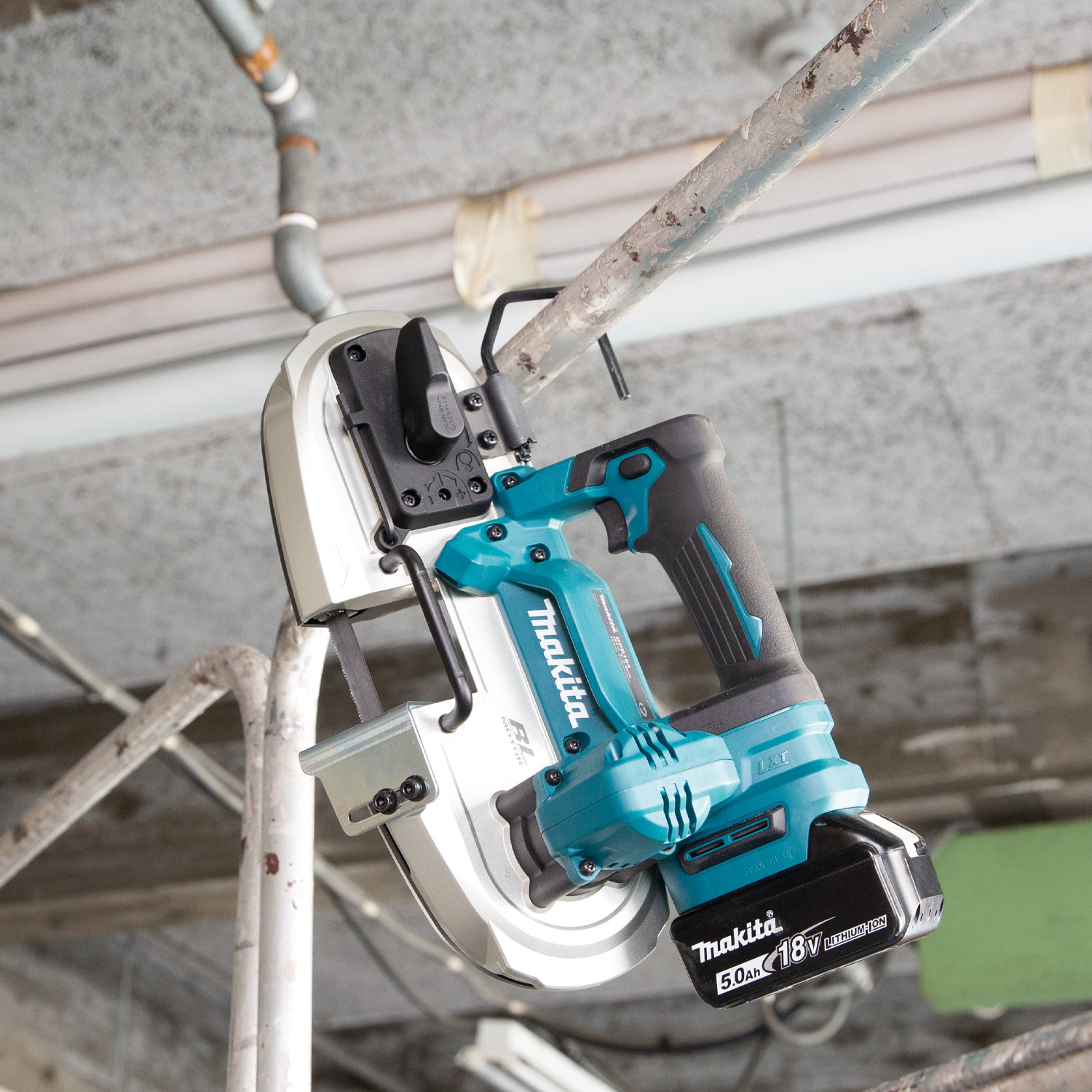

  • Retractable hook allows tool to be hung on ladders, pipes or scaffolding
  • Blade cover protects blade and wheels from damage and limits contamination by debris and materials
  • LED job light with pre-glow and after-glow features
  • Accepts 1/2" x 32-7/8" bandsaw blades
  • Optional front handle (part no. 194514-0) available for two-handed cutting applications
  • Use with Makita Bandsaw Blade Wax (part no. 191897-9) for optimal blade lubrication

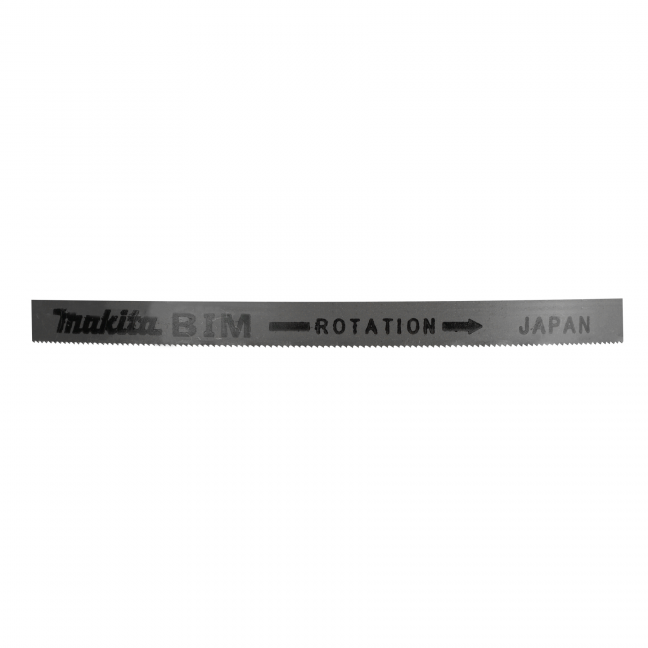

Items Included:Tool Only. Batteries and Charger Sold Separately. Bi-Metal Band Saw Blade 18 TPI (B-40559), Hex Wrench 4 (783202-0)

  • Compact and lightweight design ideal for overhead cutting applications or small diameter pipes, channel, strut and more!
  • Brushless DC motor with high power to weight ratio resists heat buildup for maximum cutting efficiency and battery life
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Aluminum diecast frame for maximum cutting rigidity and increased durability
  • Easy blade tracking adjustment for increased performance and productivity
  • Lock-off button prevents accidental startup and is easily accessible by left or right hand users
  • Ball bearing blade guide provides smooth blade movement for increased cutting efficiency
  • Adjustable guide plate
  • Constant speed control maintains constant speed under heavy load
  • Variable speed feature allows operator to adjust speed based on materials or application
  • Retractable hook allows tool to be hung on ladders, pipes or scaffolding
  • Blade cover protects blade and wheels from damage and limits contamination by debris and materials
  • LED job light with pre-glow and after-glow features
  • Accepts 1/2" x 32-7/8" bandsaw blades
  • Optional front handle (part no. 194514-0) available for two-handed cutting applications
  • Use with Makita Bandsaw Blade Wax (part no. 191897-9) for optimal blade lubrication

Items Included: Tool Only. Batteries and Charger Sold Separately. Bi-Metal Band Saw Blade 18 TPI (B-40559), Hex Wrench 4 (783202-0)

Shipping Dimensions (Length x Width x Height) & Weight : 10.87 In. X 16.81 In. X 9.49 In. Weight : 10.12 Lb.

Specifications

Battery Capacities 18V LXT
Cutting Capacities:
Round Material 2-5/8" (66 mm)
Square Material  2-5/8" x 2-5/8" (66 mm x 66 mm)
Blade Speed 0-630 ft./min.
Vibration Level 2.5 m/s2
Noise Level 80 dB(A)
Overall Length 15-1/25/8" (392 mm)
Net Weight 7.1 lbs (3.2 kg)
