XGT Technology

(Tool + Battery + Charger)


HP001GM102

40Vmax XGT Brushless 1/2" Hammer Drill-Driver, 4.0Ah x1Kit

Heavy Duty Drilling Performance!

Variable 2-Speed, Reversible

XGT Technology LXT Technology Active Feedback technology LXT Technology
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Up to 41 electronic clutch settings deliver up to 1,240 in. lbs. of torque
  • Mechanical 2-speed control allows operator to quickly access high and low speed modes
  • Variable torque thumb dial with digital display provides visual confirmation of selected torque value
  • All metal gears for more efficient power transmission
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

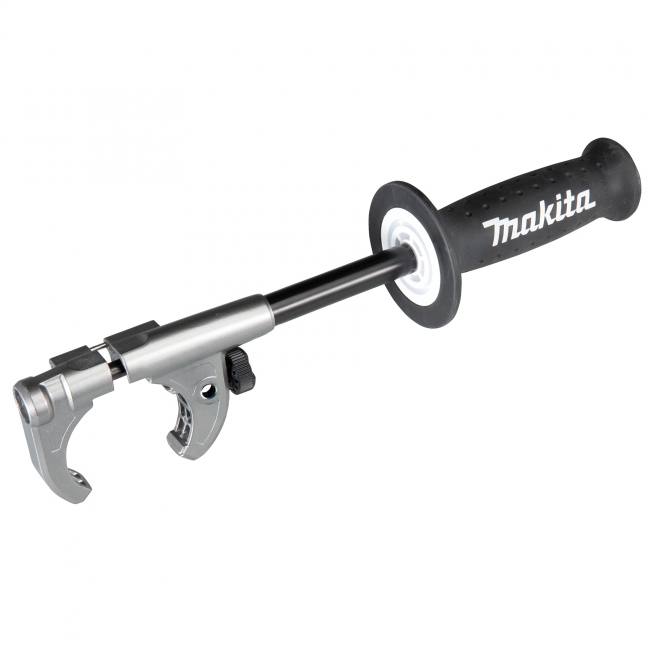

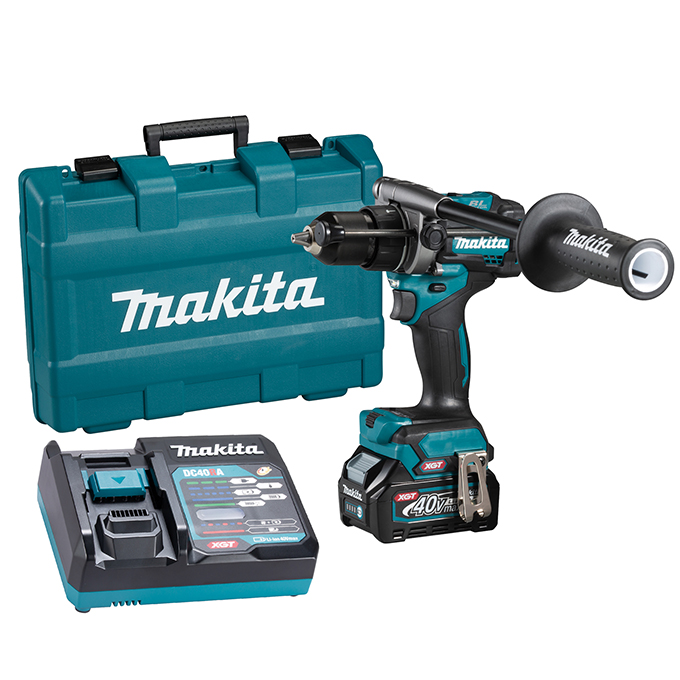

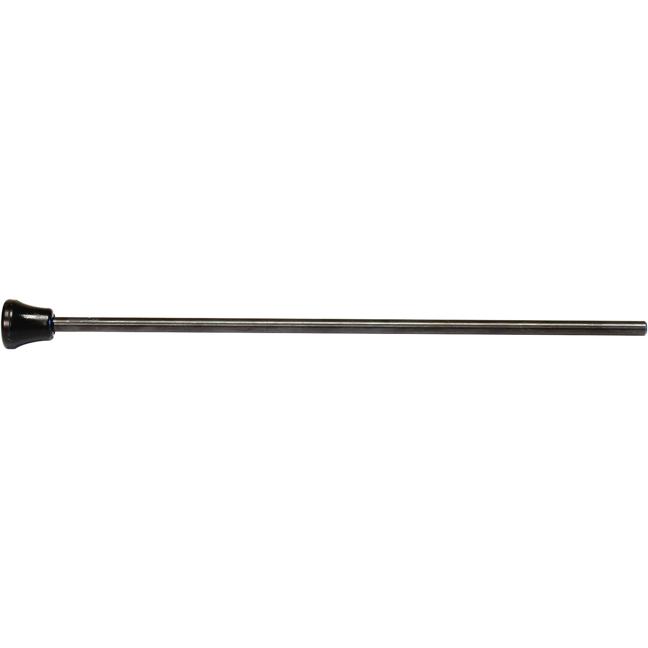

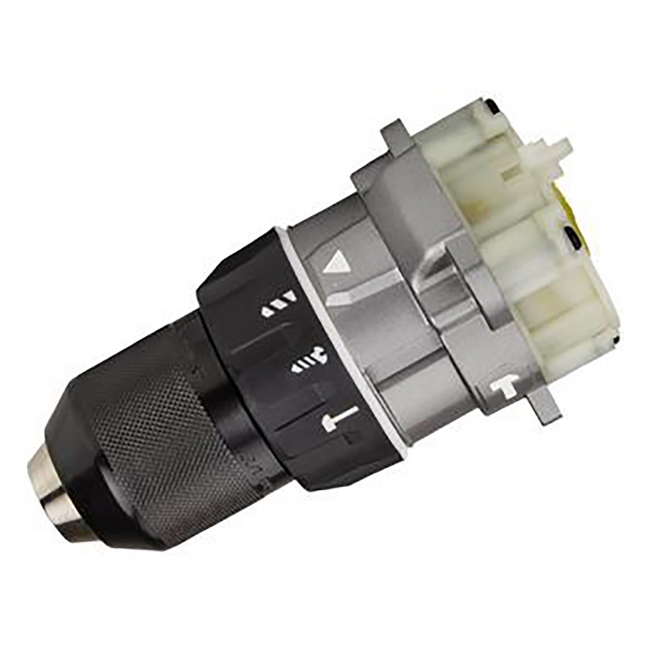

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040, Rapid Charger (DC40RA), Battery Cover (412393-7), 1/2" Keyless Drill Chuck (136405-9), Side Handle (127578-9), Two Double Ended Bit 2-45 (784637-8), Bit Holder (452947-8), Stopper Pole (122576-8), Hook (346317-0), Plastic Carrying Case (821821-5)

  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Up to 41 electronic clutch settings deliver up to 1,240 in. lbs. of torque
  • Mechanical 2-speed control allows operator to quickly access high and low speed modes
  • Variable torque thumb dial with digital display provides visual confirmation of selected torque value
  • All metal gears for more efficient power transmission
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040, Rapid Charger (DC40RA), Battery Cover (412393-7), 1/2" Keyless Drill Chuck (136405-9), Side Handle (127578-9), Two Double Ended Bit 2-45 (784637-8), Bit Holder (452947-8), Stopper Pole (122576-8), Hook (346317-0), Plastic Carrying Case (821821-5)

Shipping Dimensions (Length x Width x Height) & Weight : 16.02 In. X 20.47 In. X 7.17 In. Weight : 19.11 Lb.

Specifications

Battery Capacities: 40Vmax XGT
Capacities:
Masonry: 13/16" (20 mm)
Steel: 13/16" (20 mm)
Wood: Auger-Bit 2" (50 mm), Self-Feed Bit 3" (76 mm), Hole Saw 6" (152 mm)
No Load Speed:
Low 0 - 650 RPM
High 0 - 2,600 RPM
Blows Per Minute:
Low 0 - 9,750 BPM
High 0 - 39,000 BPM
Maximum Torque   1,240 in. lbs (140 Nm)
Vibration Level 6.0 m/s2
Noise Level 85 dB(A)
Overall Length  7-1/8" (182 mm)
Net Weight  6.6 lbs (3.0 kg)
