Home / Tool / Cordless / XGT / Saws / Circular Saws / HS003GM103

XGT Technology

(Tool + Battery + Charger)


HS003GM103

40Vmax XGT Brushless 7-1/4" Circular Saw w/AWS, 4.0Ah x1Kit

High Power Professional Cutting!

Electric Brake, Soft Start

XGT Technology LXT Technology LXT Technology AWS Technology ADT

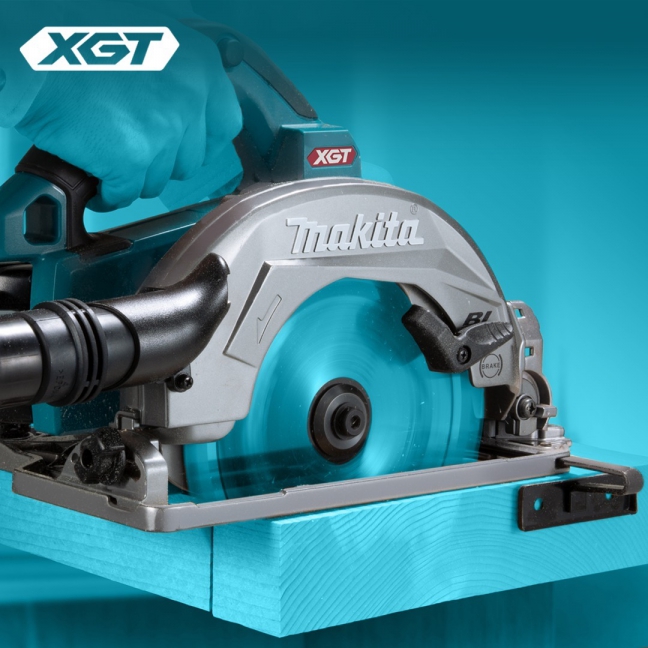

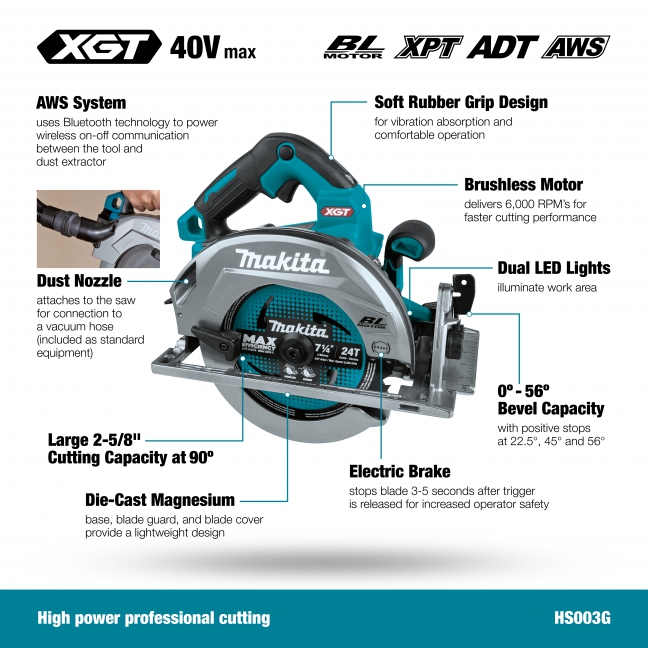

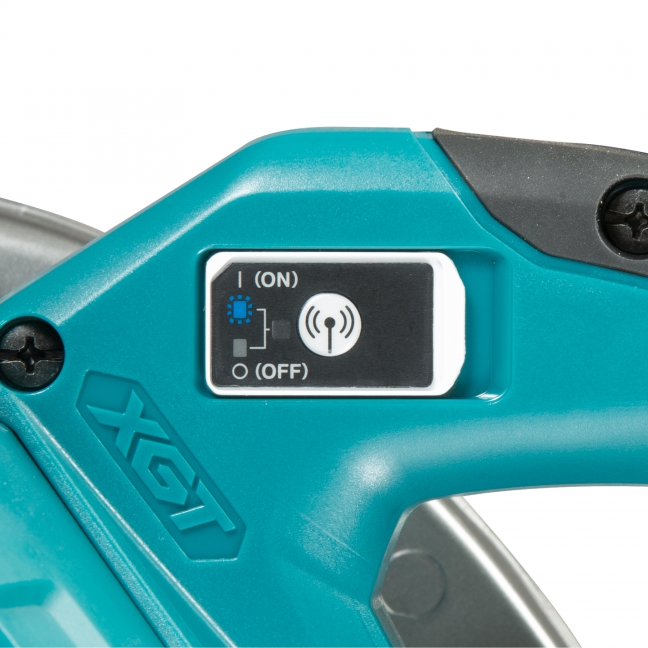

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Twin LED job light, with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
  • Trigger-lock button prevents accidental start-up for increased safety

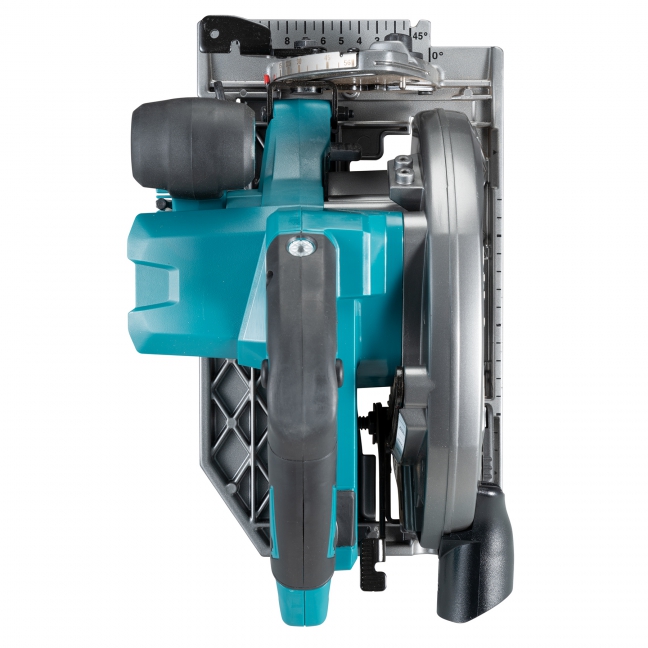

  • Bevel capacity of 0o - 56o with positive stop at 22.5o and 45o

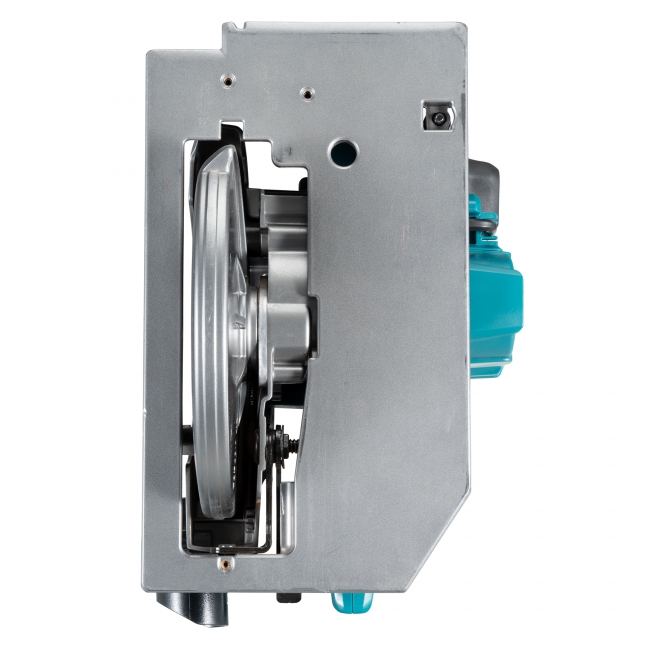

  • High performance and lightweight design with magnesium blade case and base plate
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

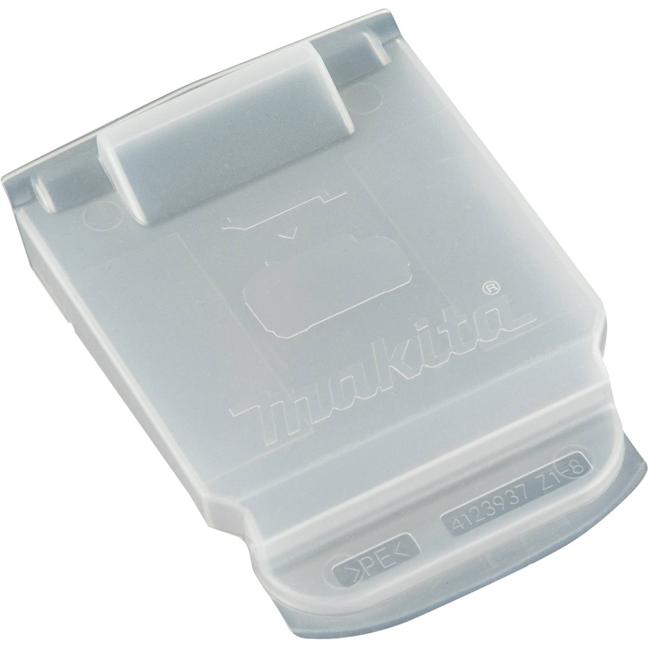

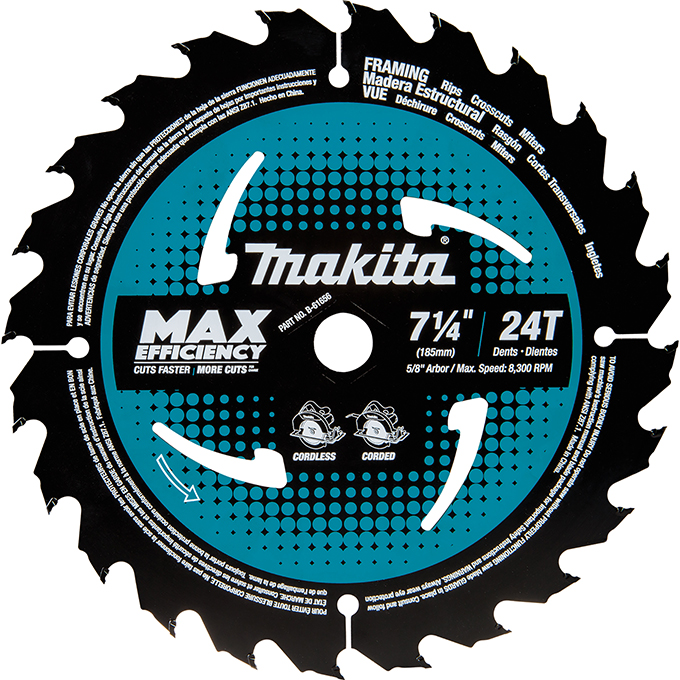

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040, Rapid Charger (DC40RA), Battery Cover (412393-7), 7-1/4" CT Blade 24T (B-61656), Dust Nozzle Set (196520-1), Hex Wrench 6 (783204-6), 21" Tool Bag (821007X)

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Twin LED job light, with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
  • Trigger-lock button prevents accidental start-up for increased safety
  • Bevel capacity of 0o - 56o with positive stop at 22.5o and 45o
  • High performance and lightweight design with magnesium blade case and base plate
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040, Rapid Charger (DC40RA), Battery Cover (412393-7), 7-1/4" CT Blade 24T (B-61656), Dust Nozzle Set (196520-1), Hex Wrench 6 (783204-6), 21" Tool Bag (821007X)

Shipping Dimensions (Length x Width x Height) & Weight : 13.46 In. X 22.24 In. X 14.76 In. Weight : 20.11 Lb.

Specifications

Battery Capacities 40Vmax XGT
Blade Diameter 7-1/4" (165 mm)
Arbor 5/8" (15.88 mm)
Max. Cutting Depth:
0°  2-5/8" (66 mm)
45° 1-13/16" (45.5 mm)
56°  1-5/16" (34.0 mm)
No Load Speed 6,000 RPM
Vibration Level 2.5 m/s²
Noise Level 93 dB(A)
Overall Length 13" (331 mm)
Net Weight 9.7 lbs (4.4 kg)
