36V(18Vx2) LXT Brushless 7-1/4" Circular Saw, Tool Only

Guide Rail Compatible Base Design Requires No Additional Adapters!

Cutting Capacity of 2-3/8" (60 mm)

Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
Blower feature keeps cut line free of sawdust
Lightweight design with die-cast magnesium baseplate, blade casing and safety cover
LED charge level indicator displays approximate remaining battery power
Twin LED job lights with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance

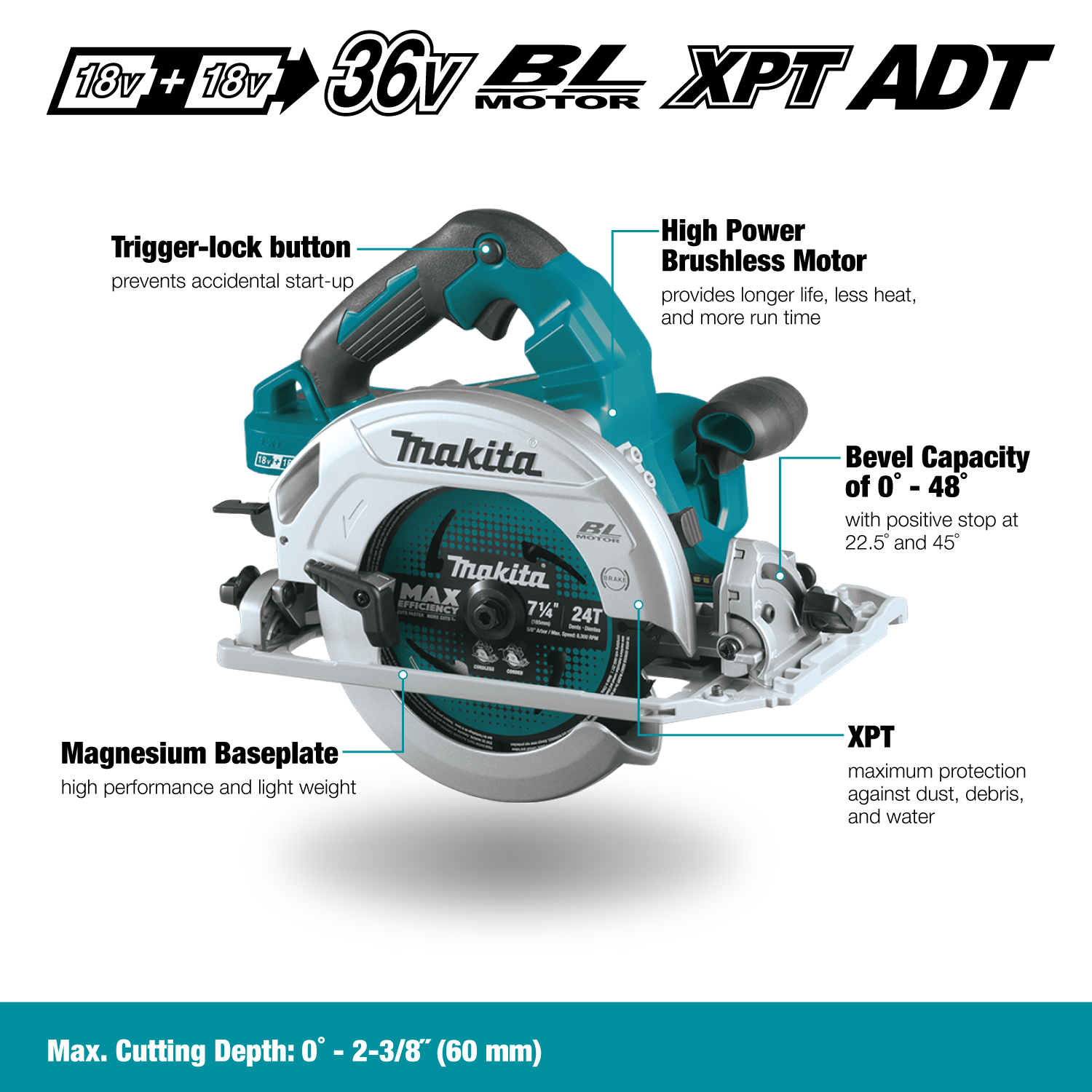

Trigger-lock button prevents accidental start-up for increased safety

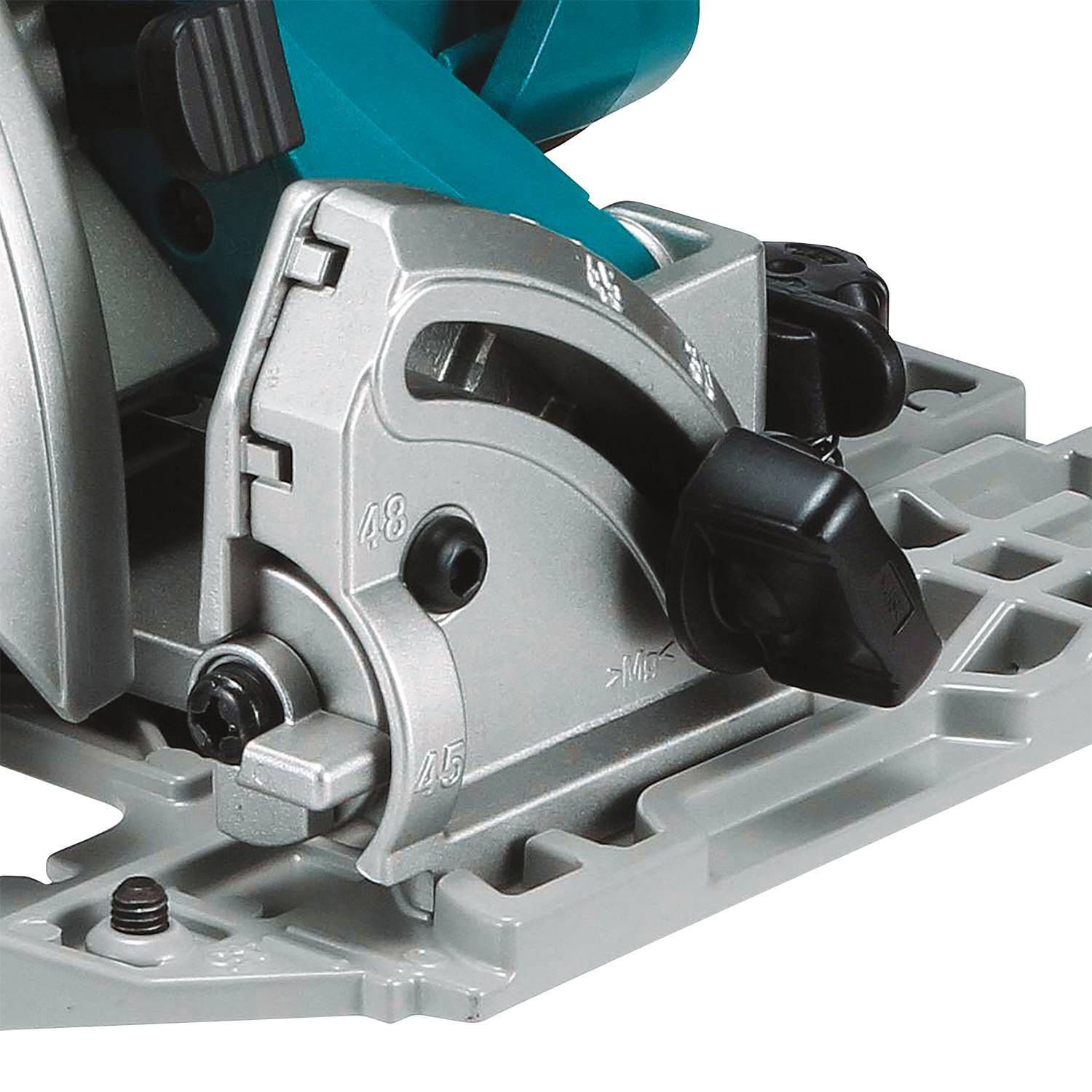

Bevel capacity of 0° - 48° with positive stop at 22.5° and 45°
High performance and lightweight design with magnesium blade case and base plate

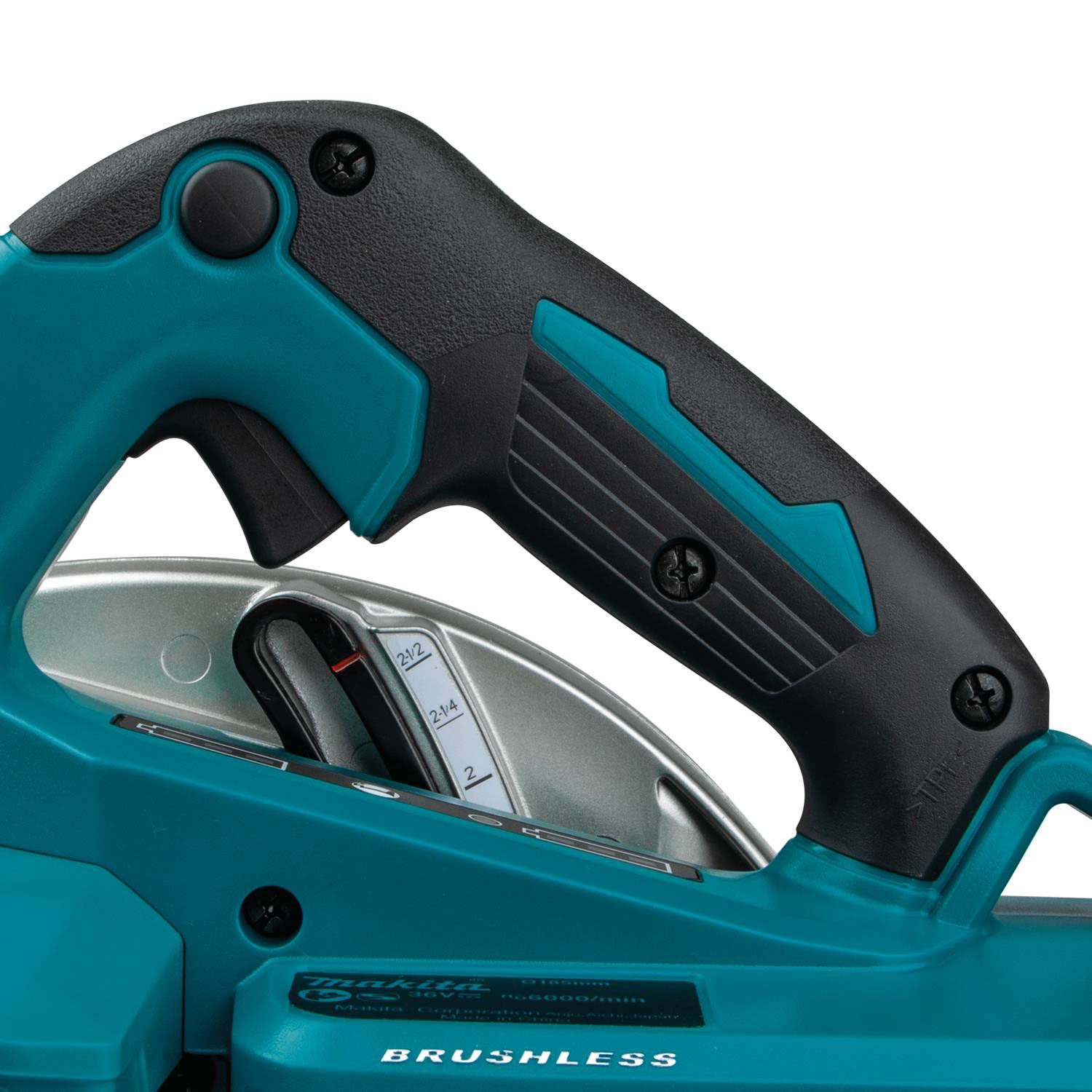

Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Use with optional hook set part no. 1993876-8

Items Included:Tool Only. Batteries and Charger Sold Separately. 7-1/4" CT Blade 24T (B-61656), Dust Nozzle Set (196520-1), Hex Wrench 6 (783204-6)

Where to buy

Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
Blower feature keeps cut line free of sawdust
Lightweight design with die-cast magnesium baseplate, blade casing and safety cover
LED charge level indicator displays approximate remaining battery power
Twin LED job lights with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
Trigger-lock button prevents accidental start-up for increased safety
Bevel capacity of 0° - 48° with positive stop at 22.5° and 45°
High performance and lightweight design with magnesium blade case and base plate
Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Use with optional hook set part no. 1993876-8

Items Included: Tool Only. Batteries and Charger Sold Separately. 7-1/4" CT Blade 24T (B-61656), Dust Nozzle Set (196520-1), Hex Wrench 6 (783204-6)

Shipping Dimensions (Length x Width x Height) & Weight : 12.83 In. X 15.94 In. X 10.59 In. Weight : 12.01 Lb.

Specifications

Battery Capacities	Two 18V LXT
Blade Diameter	7-1/4" (185 mm)
Arbor	5/8" (15.88 mm)
Max. Cutting Depth:
0°	2-3/8" (60 mm
45°	1-11/16" (43 mm)
48°	1-5/8" (41.0 mm)
No Load Speed	6,000 RPM
Vibration Level	2.5 m/s²
Noise Level	93 dB(A)
Overall Length	13-3/4" (348 mm)
Net Weight	8.4 lbs (3.8 kg)
