DTW701XVZ

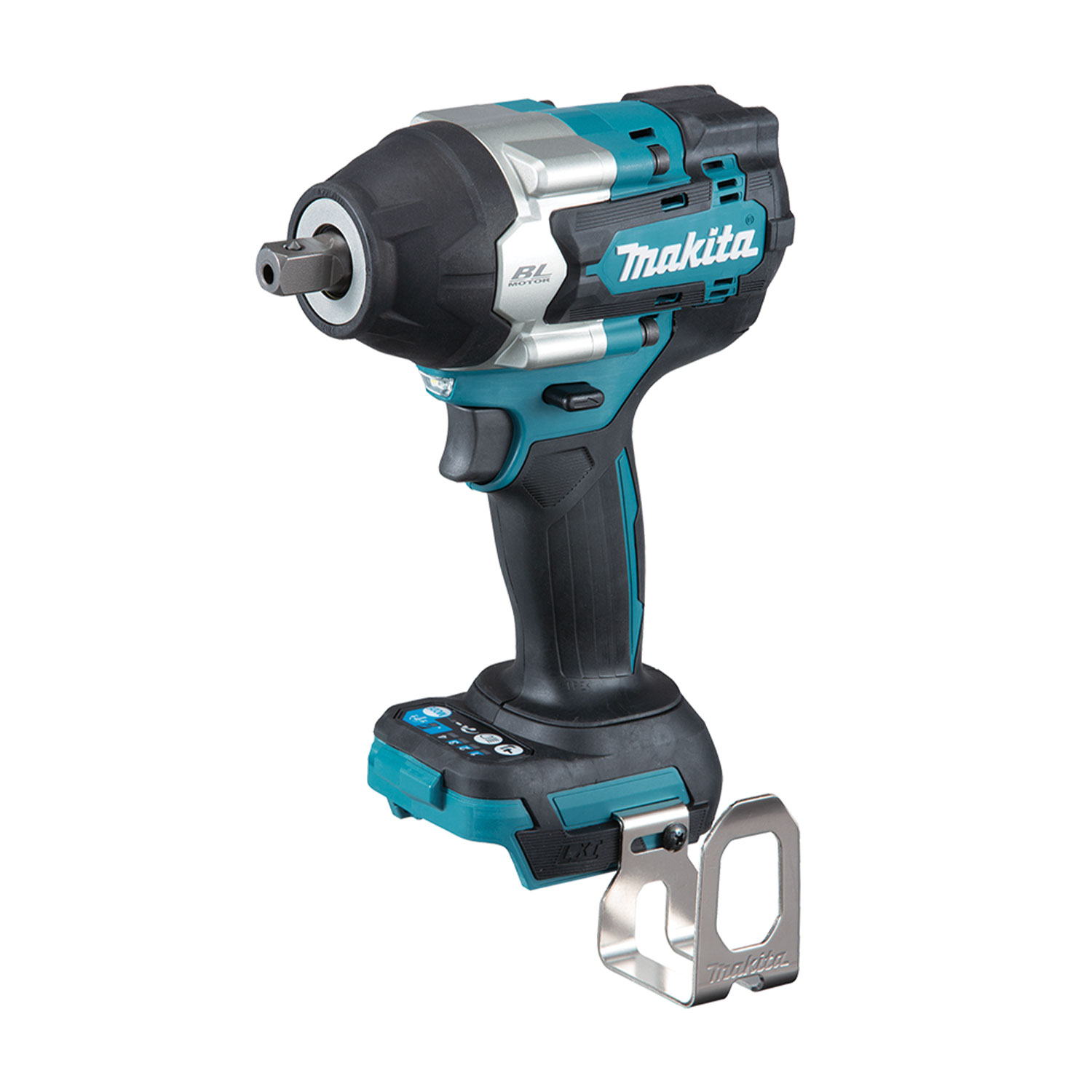

18V LXT Brushless 1/2" Impact Wrench w/Round Pin, Tool Only

BEST POWER TO WEIGHT RATIO IN CLASS!

Detent Pin

1/2" Square Drive, Variable 4-Speed, Reversible, Electric Brake, Detent Pin

LXT Technology LXT Technology 18V Battery

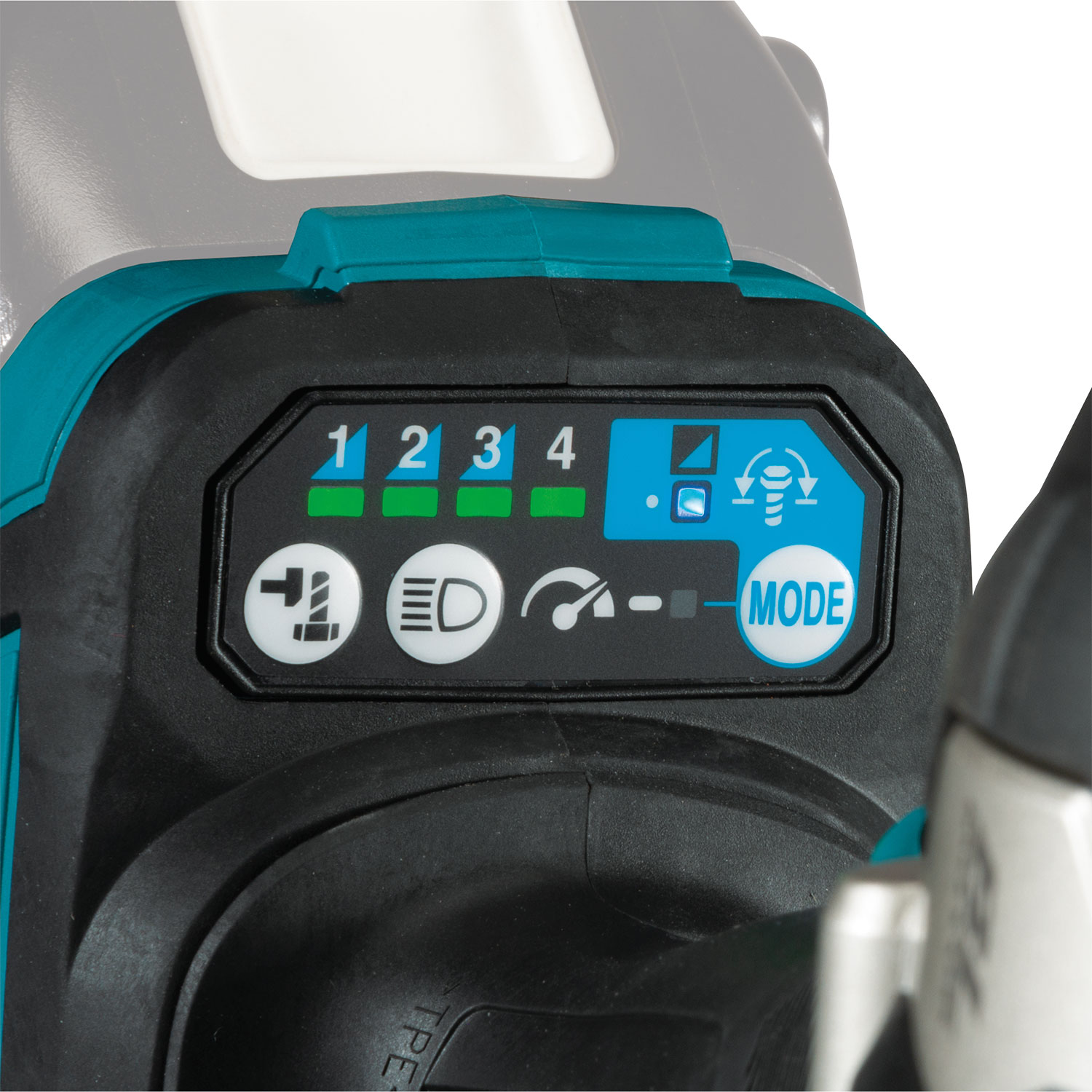

  • 4 stage impact power selection ensure precise fastening and prevents damage to fasteners or materials
  • 3 forward and 3 reverse auto stop modes stop impact and rotation at pre-set levels to ensure fastening accuracy and prevent over/under tightening of fasteners
  • BL DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Up to 520 ft. lbs. Max. Fastening Torque and up to 740 ft. lbs. of Nut-Busting Torque!
  • Suitable for use in high-voltage environments
  • Variable speed trigger with full speed mode features shorter trigger travel for reduced operator fatigue
  • Electric brake prevents over-tightening of fasteners
  • Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions
  • Twin LED job lights with pre-glow and afterglow features illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

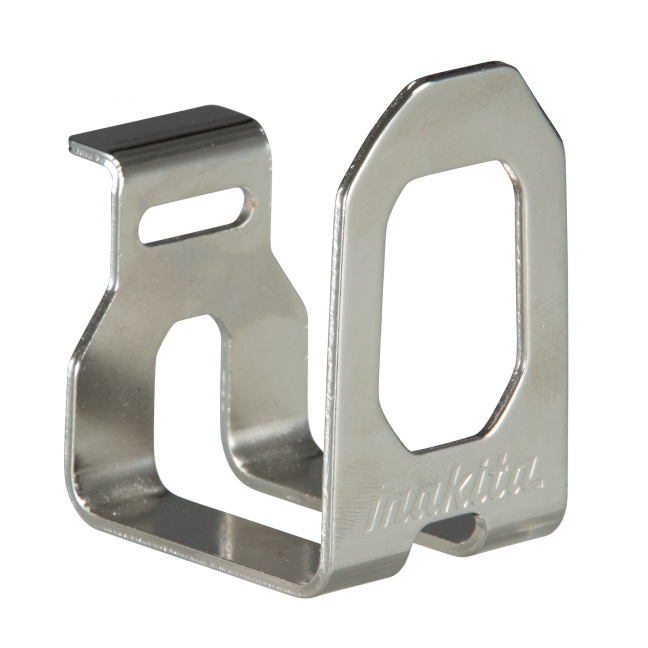

Items Included:Tool Only. Batteries and Charger Sold Separately. Hook (347723-2)

  • 4 stage impact power selection ensure precise fastening and prevents damage to fasteners or materials
  • 3 forward and 3 reverse auto stop modes stop impact and rotation at pre-set levels to ensure fastening accuracy and prevent over/under tightening of fasteners
  • BL DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Up to 520 ft. lbs. Max. Fastening Torque and up to 740 ft. lbs. of Nut-Busting Torque!
  • Suitable for use in high-voltage environments
  • Variable speed trigger with full speed mode features shorter trigger travel for reduced operator fatigue
  • Electric brake prevents over-tightening of fasteners
  • Rubber joint construction suppresses transmission of vibration to battery, minimizing battery failures due to terminal breakage or poor electrical contact
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions
  • Twin LED job lights with pre-glow and afterglow features illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Hook (347723-2)

Shipping Dimensions (Length x Width x Height) & Weight : 10.08 In. X 9.29 In. X 4.13 In. Weight : 10.8 Lb.

Specifications

Battery Capacities 18V LXT
Square Drive   1/2"
No Load Speed: 0 - 500 / 1,200 / 1,900 / 2,200 RPM
Impacts Per Minute: 0 - 1,000 / 1,700 / 2,400 / 2,700 IPM
Maximum Fastening Torque 520 ft. lbs (700 Nm)
Nut-busting Torque (reverse)  740 ft. lbs (1,000 Nm)
Vibration Level 19.0 m/s2
Noise Level 94 dB(A)
Overall Length 6-11/16" (170 mm)
Net Weight 4.5 lbs (2.0 kg)
