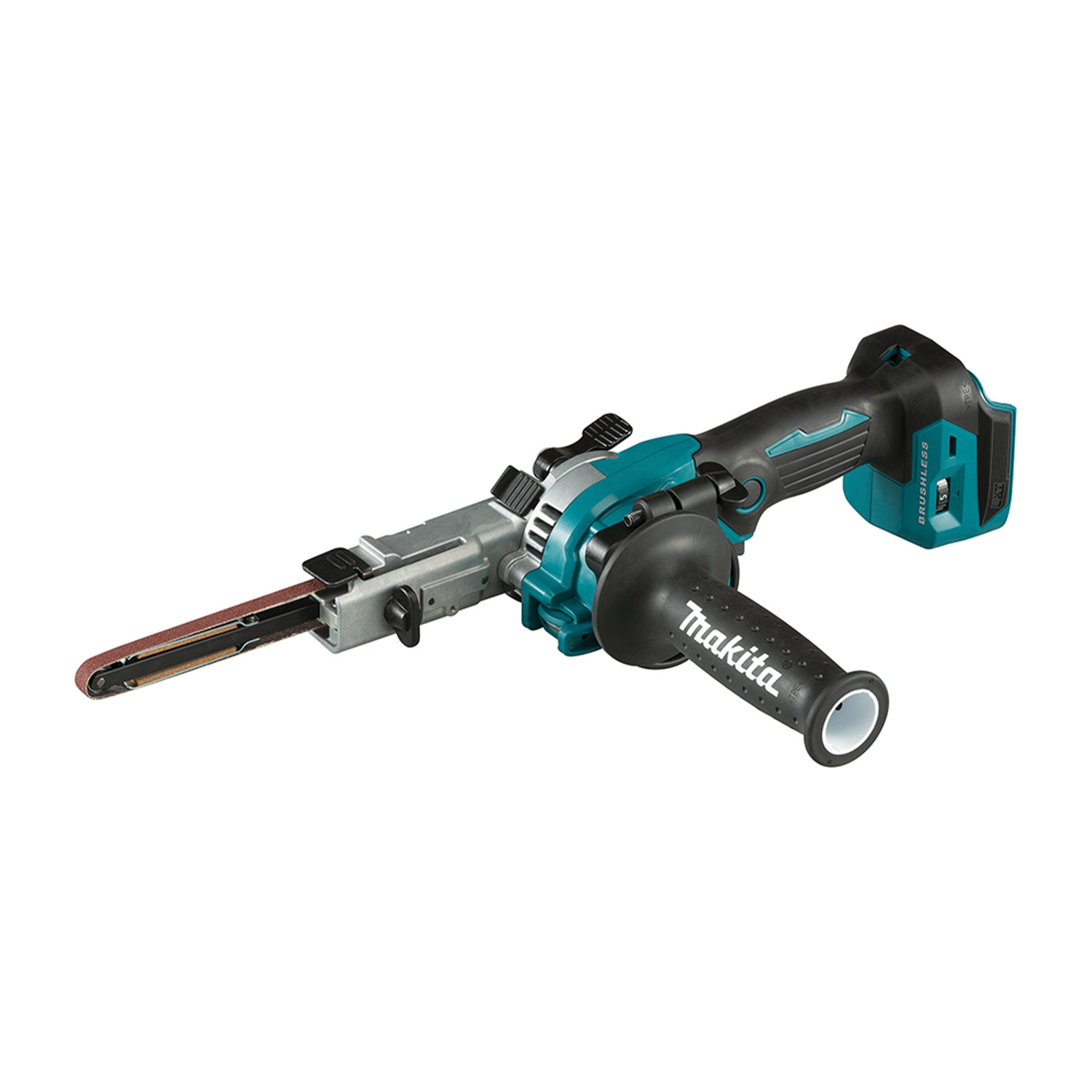

DBS180Z

18V LXT Brushless 3/8 x 21" Belt Sander, Tool Only

HIGH POWER And CORDLESS FREEDOM!

Variable Speed, Electric Brake

LXT Technology LXT Technology 18V Battery

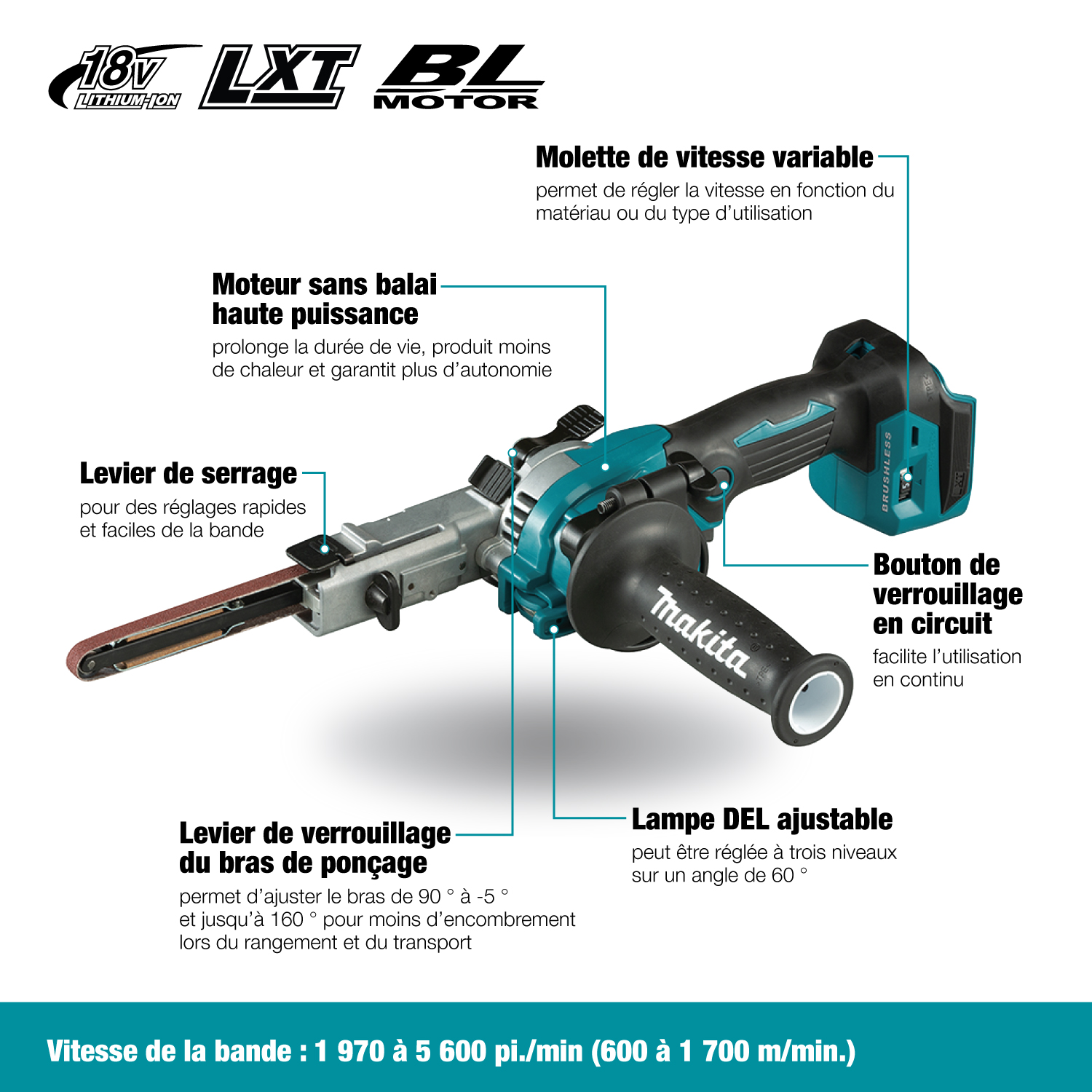

  • Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Variable speed dial allows operator to adjust speed based on materials or application
  • Anti-restart feature with lock-off button prevents accidental start up of tool during storage or transport when the sanding arm is folded greater than 90o
  • Precision belt tracking knob for easy adjustment of belt position
  • Quick and easy belt changes using belt tensioning lever
  • Sanding arm can be adjusted from 90° to -5° for maximum operational versatility and up to 160o for compact storage and transport
  • Slim tension roller enables sanding and filing in confined areas
  • Electric brake bring belt to a quick stop to minimize wait time and prevent damage to materials
  • Lock-on button enables easy continuous operation with reduced operator strain and fatigue
  • Dust port with removable cap can be quickly and easily connected to a dust extractor

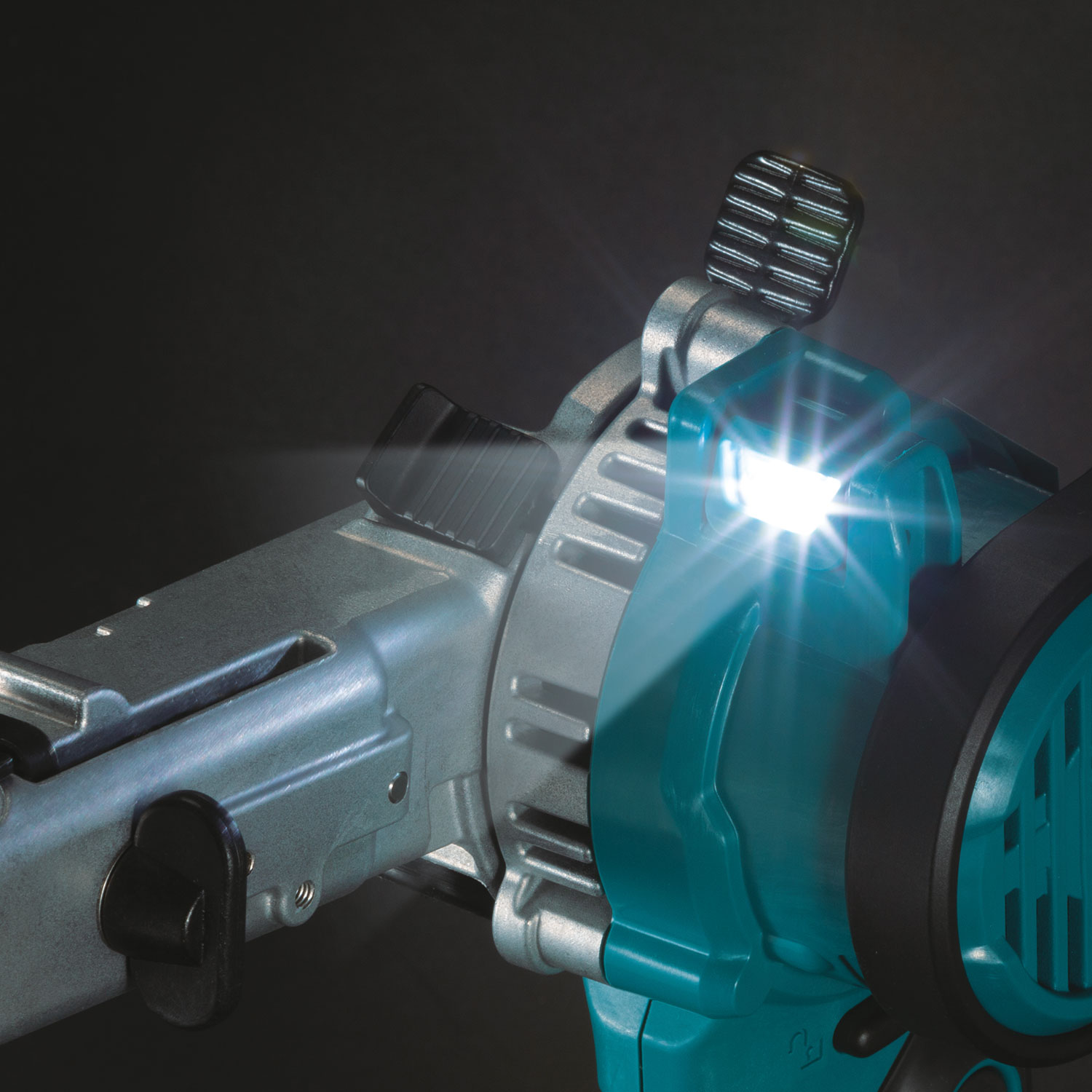

  • LED job light with pre-glow and afterglow features manually pivots to matches the angle of the sanding arm
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with optional 1/4" (125157-7) or 1/2" (125159-3) width sanding arms for a variety of applications
  • Use with optional stand set part no. 193618-5 when sanding in cavities for easy handing

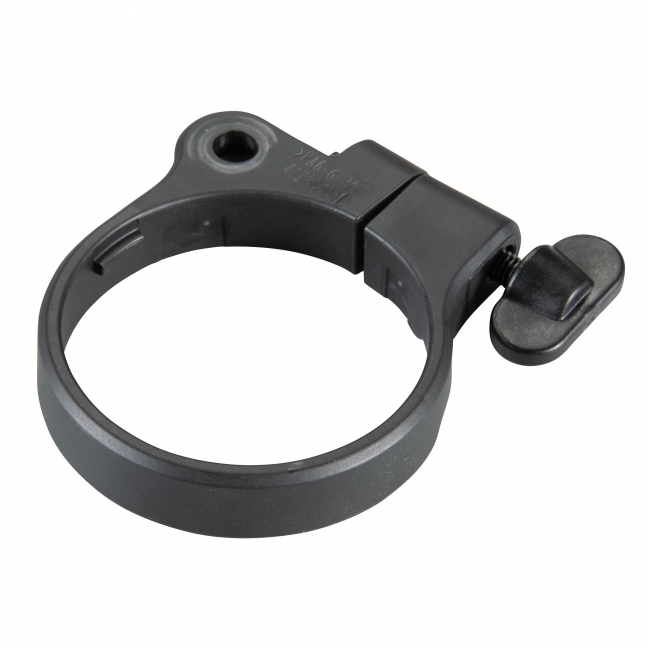

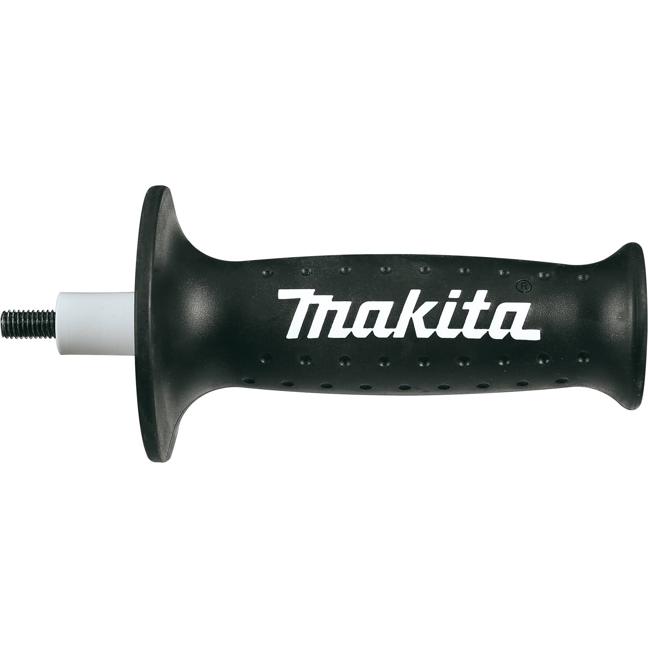

Items Included:Tool Only. Batteries and Charger Sold Separately. Abrasive Belt 80G (2 Ea. A-34469), Side Handle (144163-3), Grip Base (140W02-3)

  • Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Variable speed dial allows operator to adjust speed based on materials or application
  • Anti-restart feature with lock-off button prevents accidental start up of tool during storage or transport when the sanding arm is folded greater than 90o
  • Precision belt tracking knob for easy adjustment of belt position
  • Quick and easy belt changes using belt tensioning lever
  • Sanding arm can be adjusted from 90° to -5° for maximum operational versatility and up to 160o for compact storage and transport
  • Slim tension roller enables sanding and filing in confined areas
  • Electric brake bring belt to a quick stop to minimize wait time and prevent damage to materials
  • Lock-on button enables easy continuous operation with reduced operator strain and fatigue
  • Dust port with removable cap can be quickly and easily connected to a dust extractor
  • LED job light with pre-glow and afterglow features manually pivots to matches the angle of the sanding arm
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with optional 1/4" (125157-7) or 1/2" (125159-3) width sanding arms for a variety of applications
  • Use with optional stand set part no. 193618-5 when sanding in cavities for easy handing

Items Included: Tool Only. Batteries and Charger Sold Separately. Abrasive Belt 80G (2 Ea. A-34469), Side Handle (144163-3), Grip Base (140W02-3)

Shipping Dimensions (Length x Width x Height) & Weight : 5.75 In. X 13.9 In. X 7.83 In. Weight : 4.28 Lb.

Specifications

Battery Capacities: 18V LXT
Belt Size 3/8" x 21" (9 mm x 533 mm)
Belt Speed 1,970 - 5,600 ft./min. (600 - 1,700 m/min.)
Vibration Level 2.5 m/s²
Noise Level 77 dB(A)
Overall Length 19-3/4" (500 mm)
Net Weight 2.92 lbs (1.32 kg)
