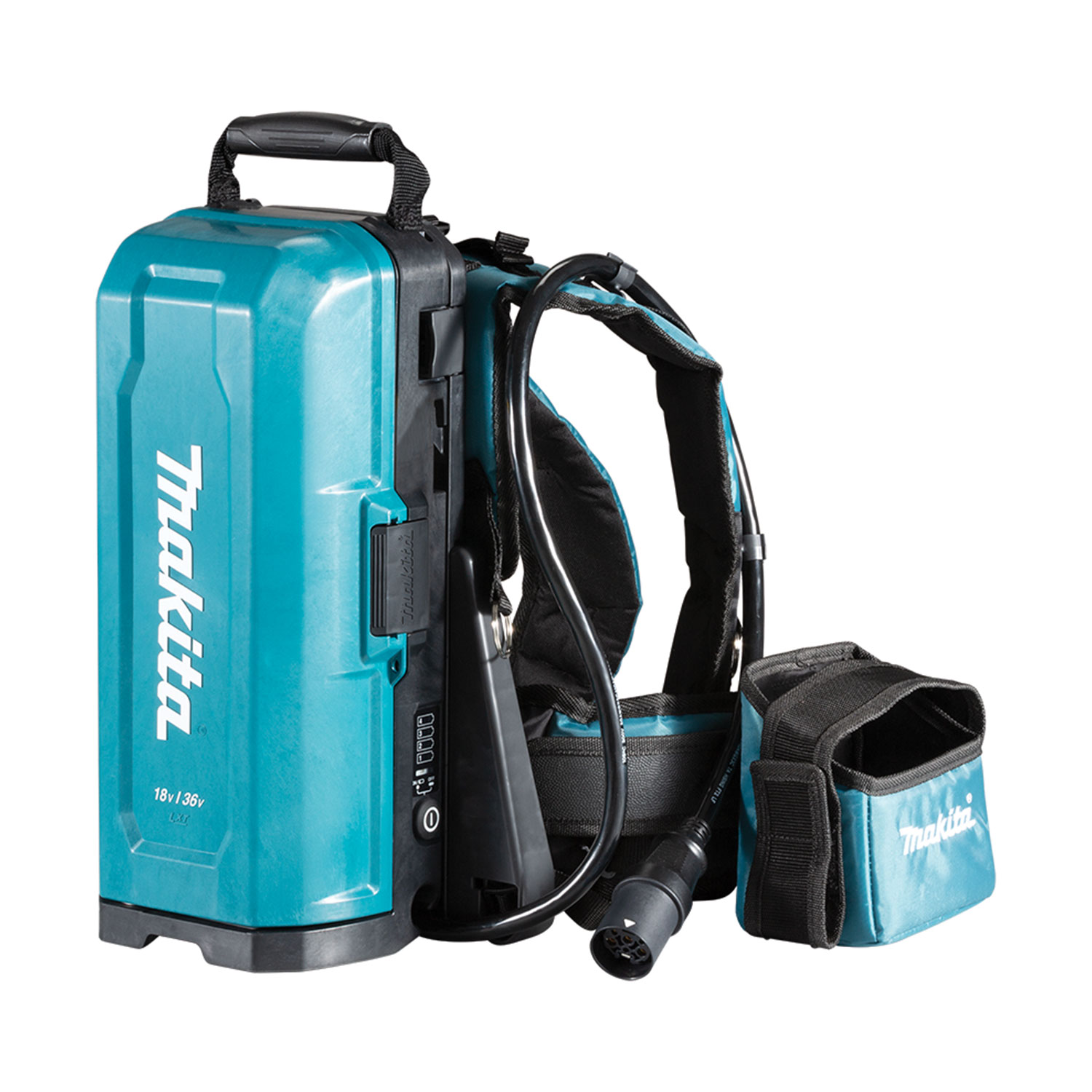

PDC01

18V LXT Portable Backpack Power Supply, Tool Only

Provides up to 2X run time with 18Vx2 LXT or 4X run time with 18V LXT products

Accepts up to 4 Makita 18V LXT batteries for use with Makita 18Vx2 / 18V LXT power tools


LXT Technology 18V Battery

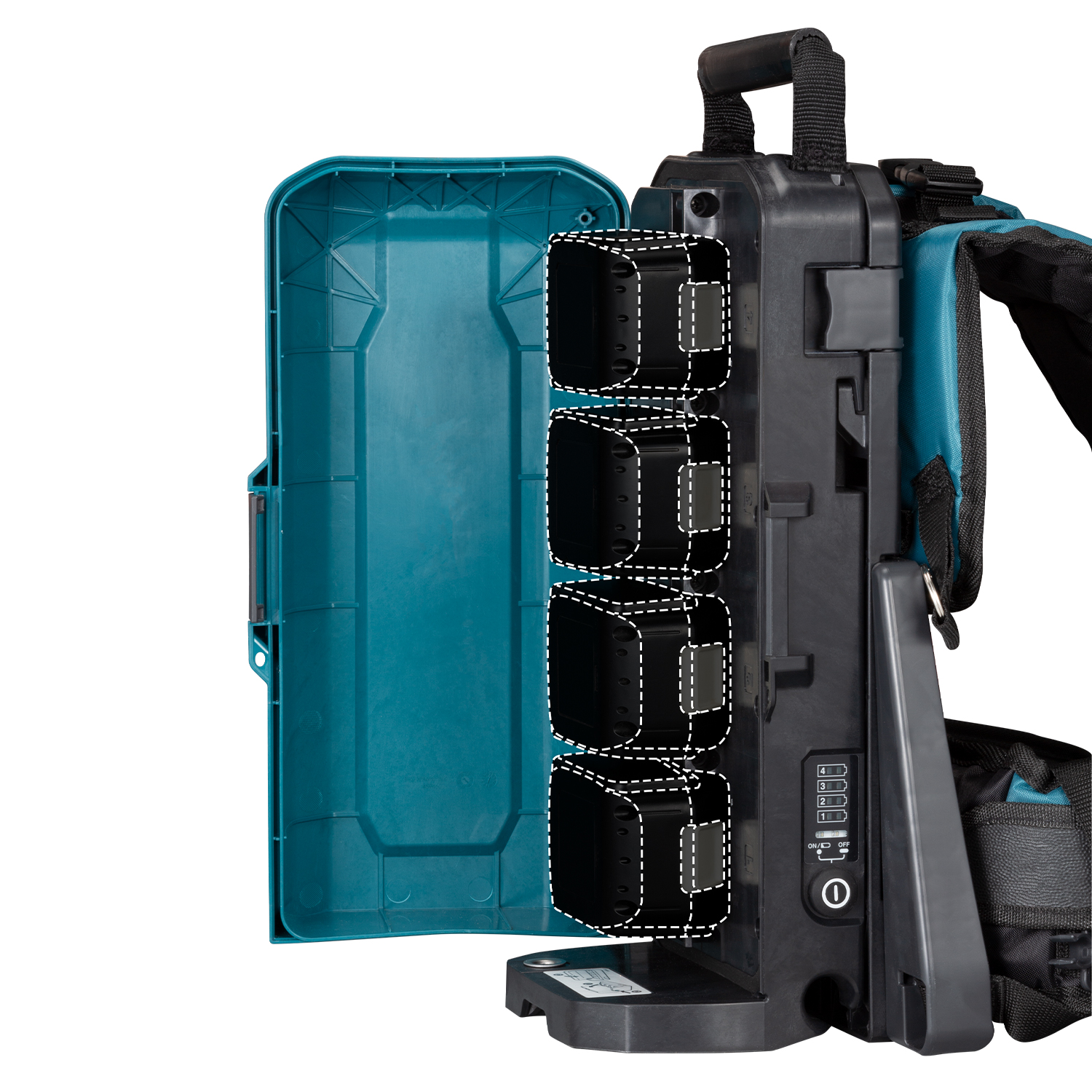

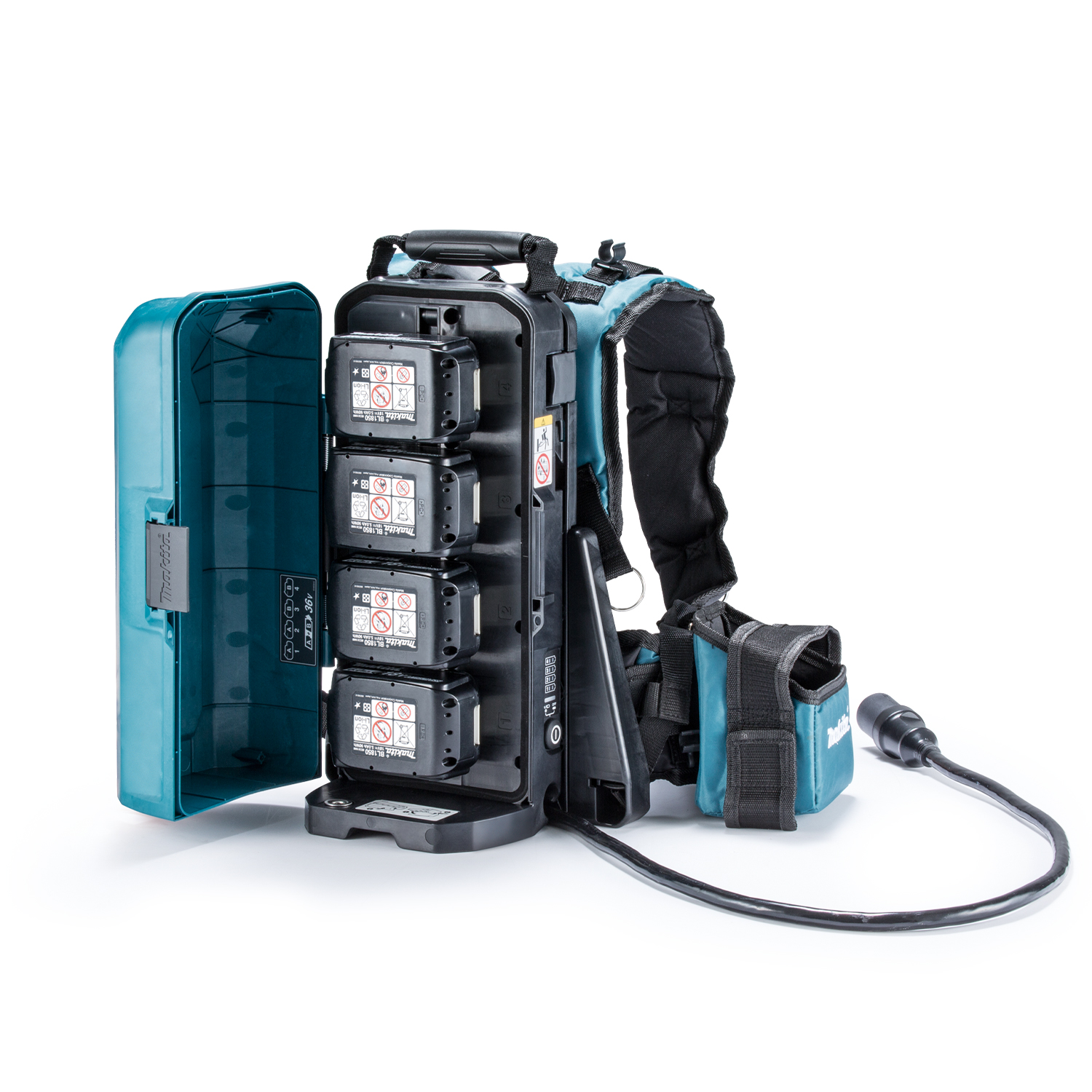

  • Backpack utilizes four 18V LXT batteries providing longer run time on 18Vx2 / 18V LXT power tools
  • Provides up to 2X the run time when used with 18Vx2 LXT products (with included adapter)
  • Provides up to 4X the run time when used with 18V LXT products (with optional 18V Battery Adapter, 191J50-7)
  • Padded harness with quick release shoulder and waist straps for operator comfort
  • Battery box can be detached from the harness for use as a stationary power supply
  • LED display indicators allows monitoring of power level on all four batteries individually
  • Durable housing with base allows product to stand upright
  • Integrated carry handle for operator convenience
  • Main power switch with auto-off function conserves battery power when not in use
  • Belt pouch securely holds second set of two 18V LXT batteries or power cord adapter
  • Can be used with the Line Trimmer Hanging Band (191E43-4 or 197243-4)

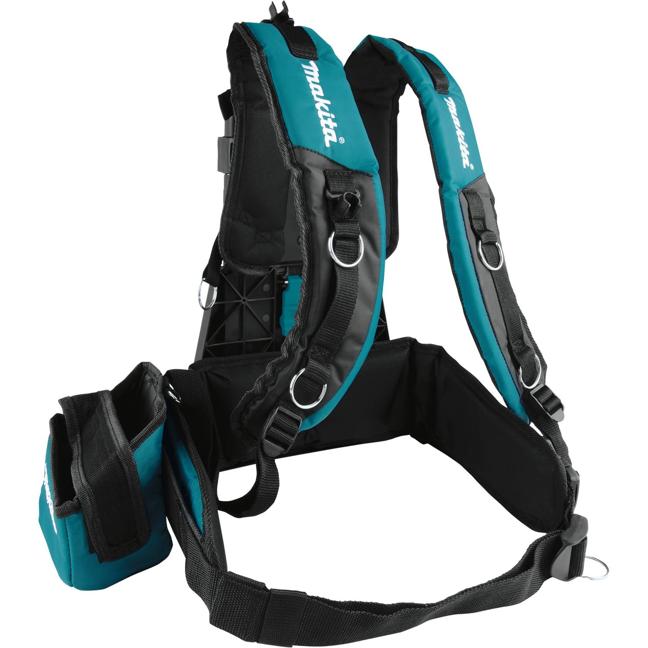

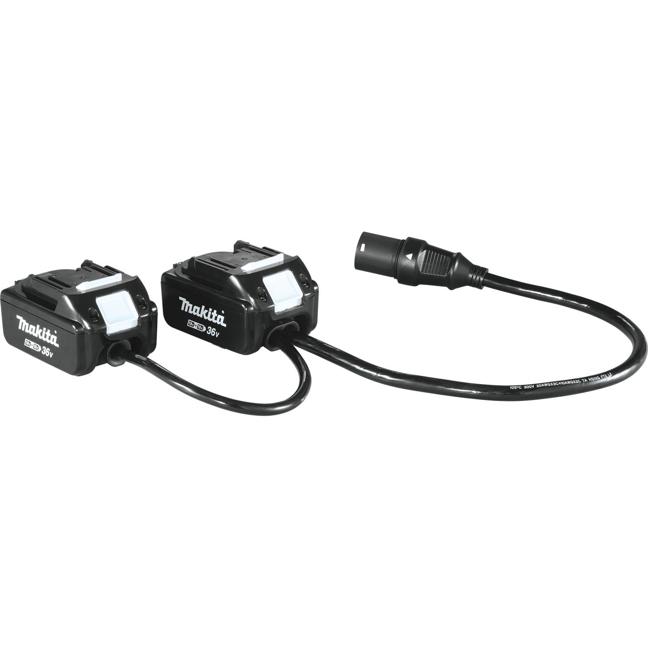

Items Included:Adapter for 18Vx2 Battery (191J51-5), Shoulder Harness (127347-8)

  • Backpack utilizes four 18V LXT batteries providing longer run time on 18Vx2 / 18V LXT power tools
  • Provides up to 2X the run time when used with 18Vx2 LXT products (with included adapter)
  • Provides up to 4X the run time when used with 18V LXT products (with optional 18V Battery Adapter, 191J50-7)
  • Padded harness with quick release shoulder and waist straps for operator comfort
  • Battery box can be detached from the harness for use as a stationary power supply
  • LED display indicators allows monitoring of power level on all four batteries individually
  • Durable housing with base allows product to stand upright
  • Integrated carry handle for operator convenience
  • Main power switch with auto-off function conserves battery power when not in use
  • Belt pouch securely holds second set of two 18V LXT batteries or power cord adapter
  • Can be used with the Line Trimmer Hanging Band (191E43-4 or 197243-4)

Items Included: Adapter for 18Vx2 Battery (191J51-5), Shoulder Harness (127347-8)

Shipping Dimensions (Length x Width x Height) & Weight : 12.72 In. X 21.54 In. X 12.01 In. Weight : 15.28 Lb.

Specifications

Battery Capacities: Two 18V LXT
Power Cord Length  5.6 ft (1.7 m)
Dimensions (L x W x H) 15-3/4" x 10-5/8" x 5-7/8" (400 mm x 270 mm x 149 mm)
Net Weight 12.4lb (5.6kg)
Power Converter

Power Converter

Read More

User Manual: PDC01 - EN FR SP.pdf

Parts Breakdown: PDC01X2, PDC01 - JUL2021.pdf
