GA036GZ

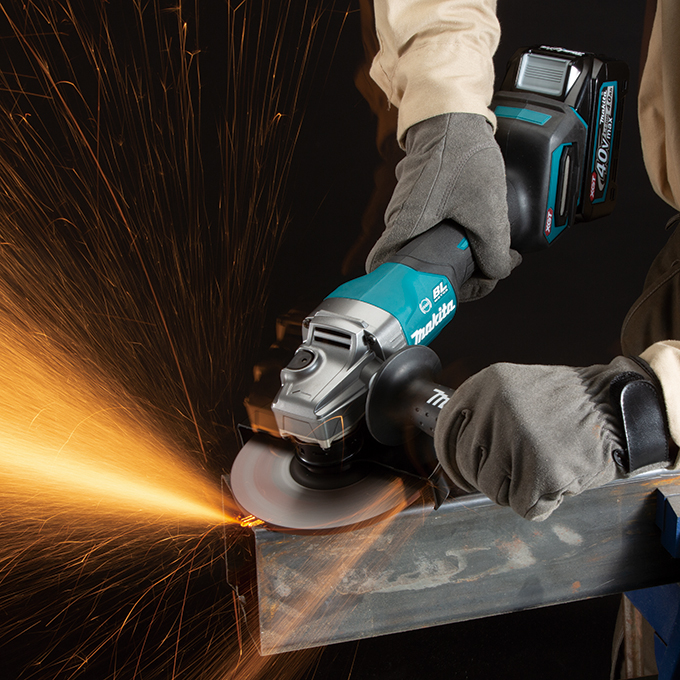

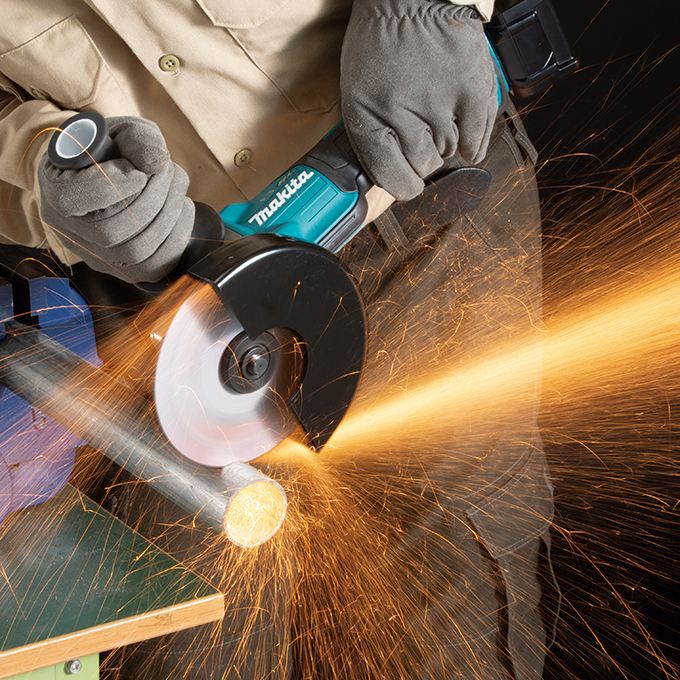

40Vmax XGT Brushless 6" Angle Grinder, Tool Only

HEAVY DUTY GRINDING POWER WITH CORDLESS FREEDOM!

Two-Stage Safety Paddle Switch, Electric Brake, Soft Start, Electronic Current Limiter, Anti-Restart

XGT Technology LXT Technology Active Feedback technology LXT Technology
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

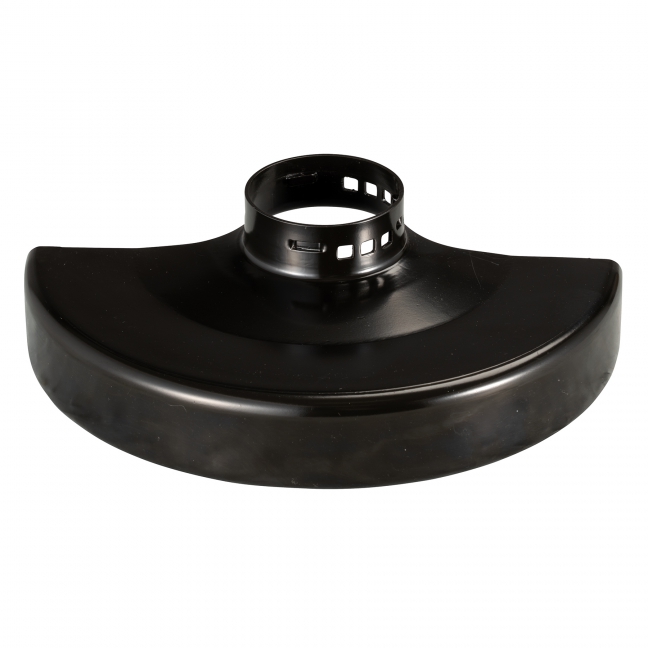

Items Included:Tool Only. Batteries and Charger Sold Separately. 6" Depressed Centre Wheel (1Ea.A-95978-25), Wheel Cover (347776-1), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4)

  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. 6" Depressed Centre Wheel (1Ea.A-95978-25), Wheel Cover (347776-1), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4)

Shipping Dimensions (Length x Width x Height) & Weight : 6.1 In. X 16.89 In. X 7.05 In. Weight : 8 Lb.

Specifications

Battery Capacities 40Vmax XGT
Grinding Wheel 6” (150 mm)
No Load Speed 8,500 RPM
Arbor Size 7/8" (22.23 mm)
Spindle Thread 5/8"
Vibration Level 9.0 m/s²
Noise Level 82 dB(A)
Overall Length 16-1/8" (410 mm)
Net Weight 5.3 lbs (2.4 kg)
