DHP486Z

18V LXT Brushless 1/2" Hammer Drill-Driver, Tool Only

Up to 1,155 in. lbs. Max Fastening Torque!

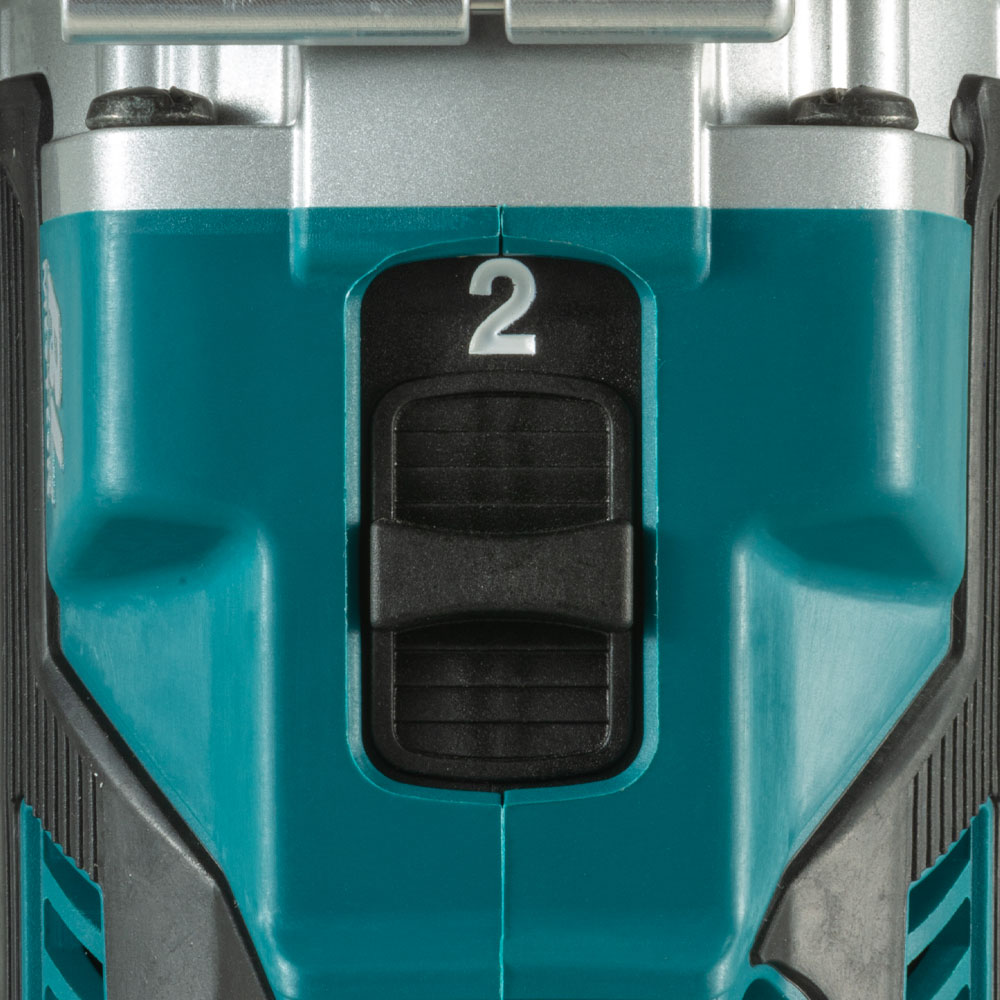

Variable Speed, Reversible, Electric Brake

LXT Technology LXT Technology LXT Technology 18V Battery

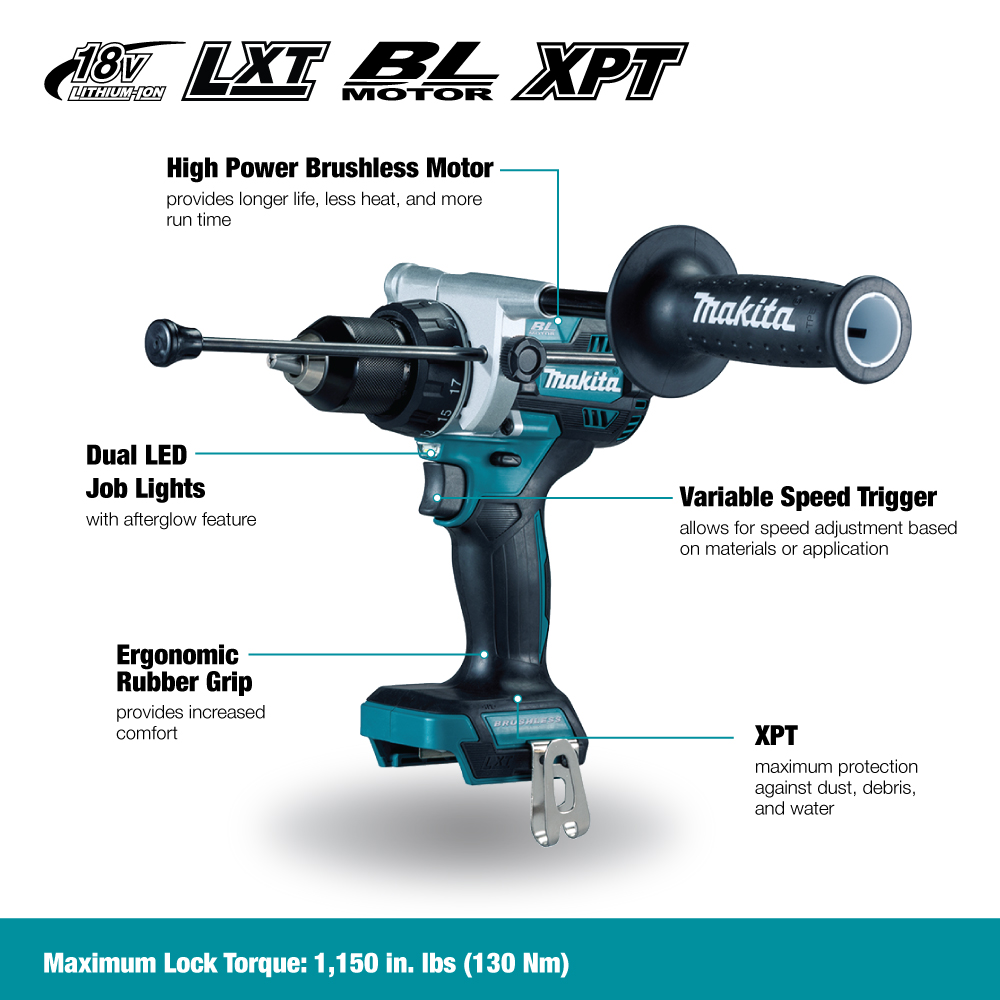

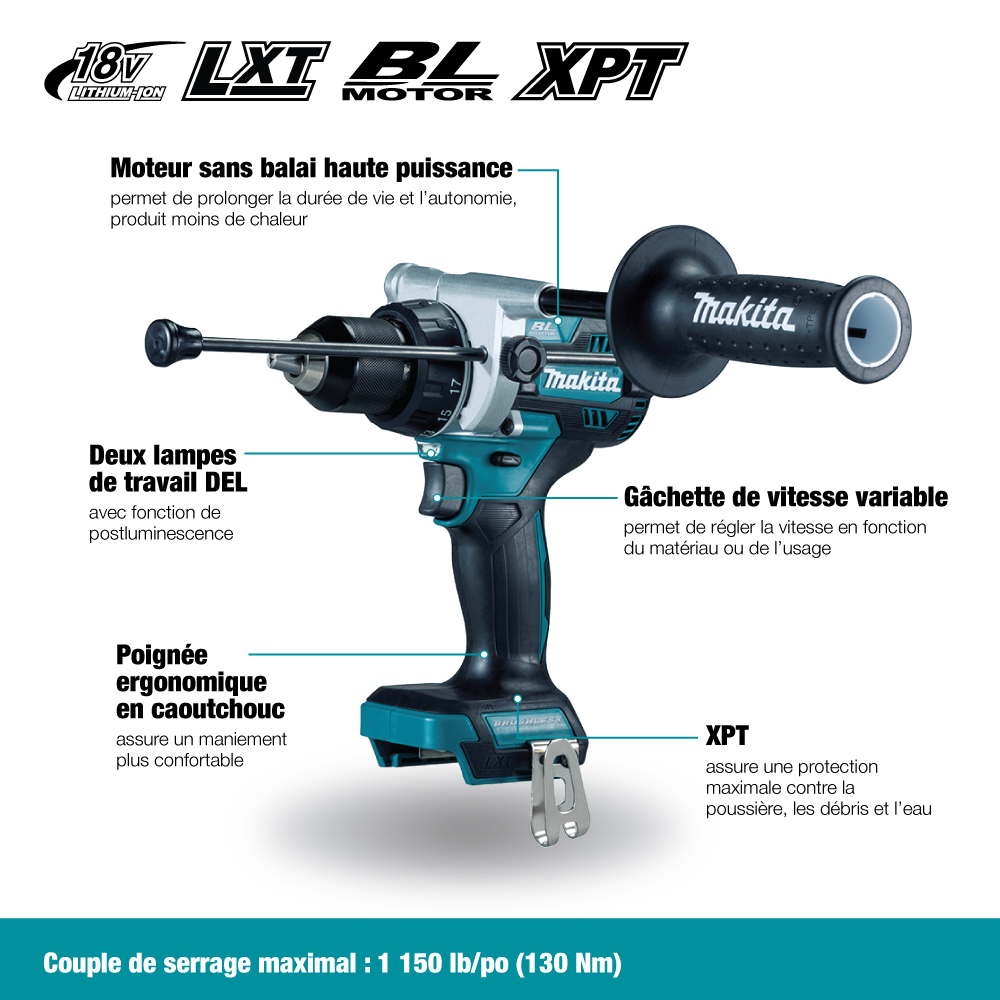

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

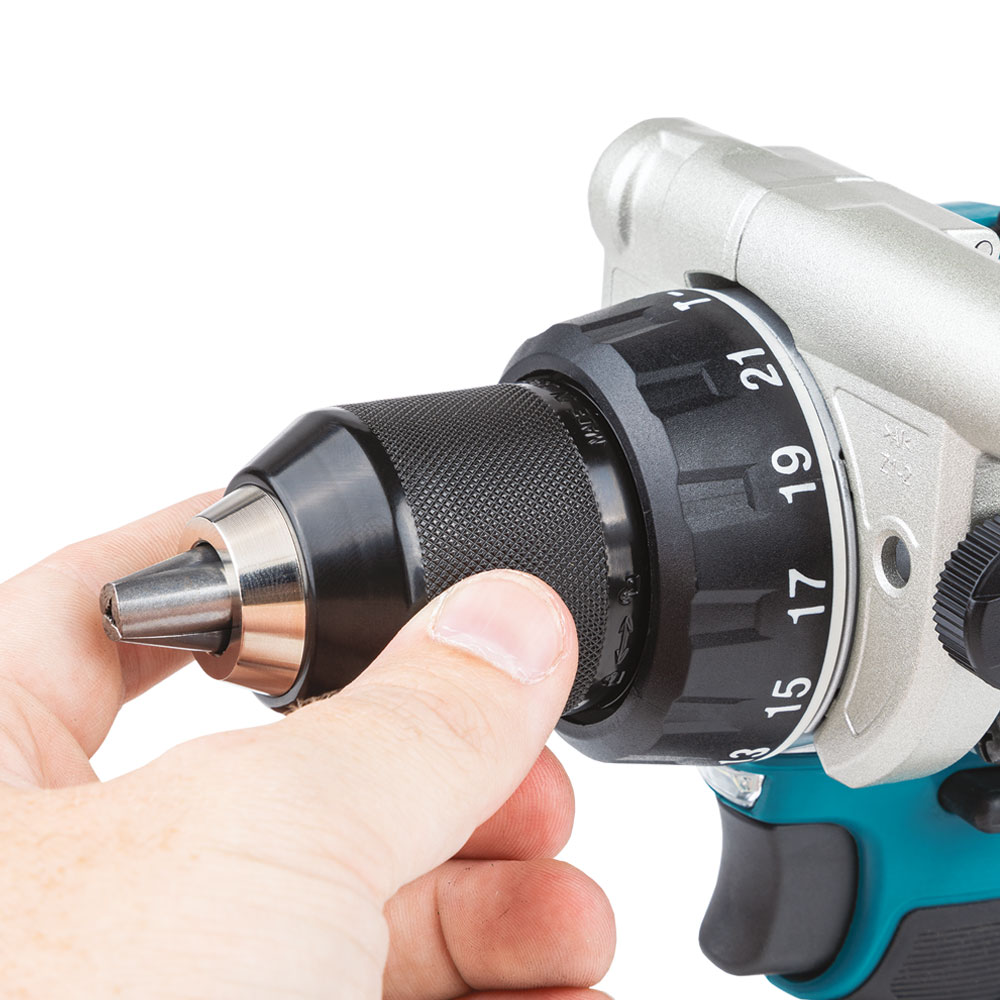

  • 21 clutch settings + drill mode deliver up to 1,150 in. lbs. of torque
  • All metal gears for more efficient power transmission
  • Ultra-compact design (only 7" long)

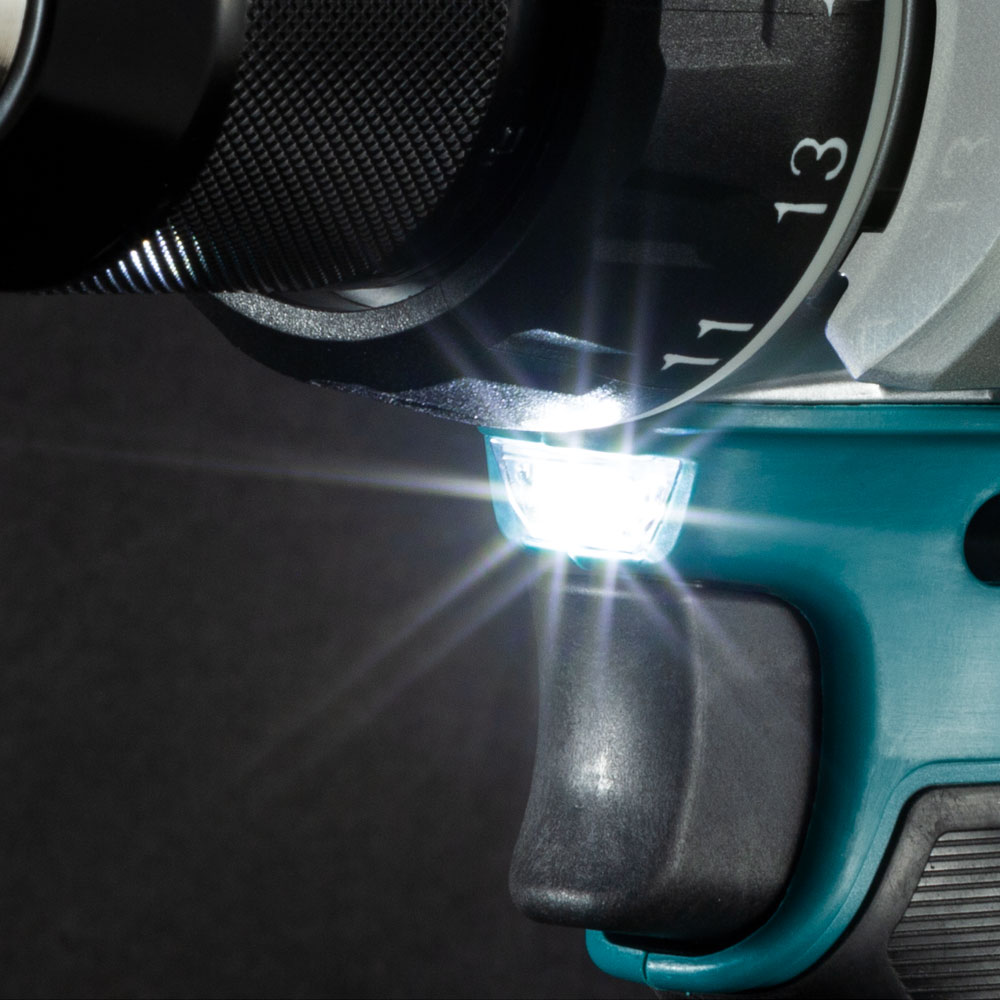

  • Dual LED job lights with afterglow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

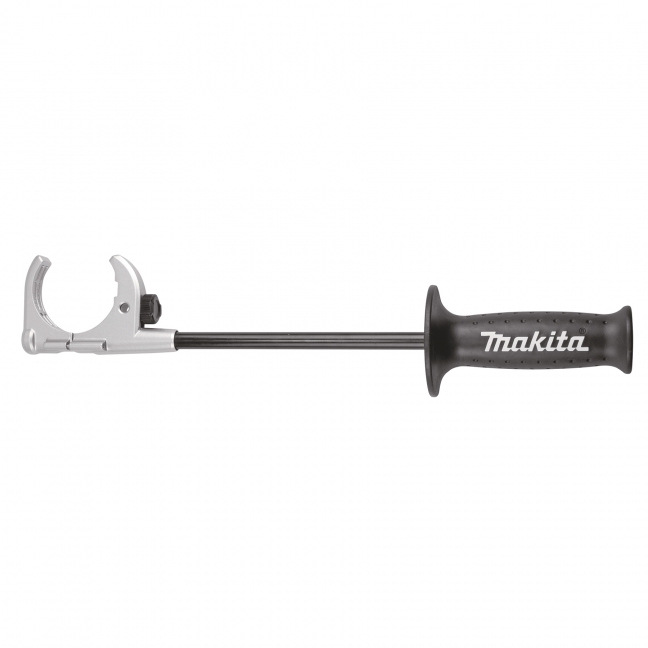

Items Included:Tool Only. Batteries and Charger Sold Separately. Side Handle (126413-8), Two Double Ended Bits 2-45 (784637-8), Bit Holder (452947-8), Stopper Pole (122576-8), 1/2" Keyless Drill Chuck (763252-1), Hook (346449-3)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 21 clutch settings + drill mode deliver up to 1,150 in. lbs. of torque
  • All metal gears for more efficient power transmission
  • Ultra-compact design (only 7" long)
  • Dual LED job lights with afterglow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included: Tool Only. Batteries and Charger Sold Separately. Side Handle (126413-8), Two Double Ended Bits 2-45 (784637-8), Bit Holder (452947-8), Stopper Pole (122576-8), 1/2" Keyless Drill Chuck (763252-1), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 8.228 In. X 12.598 In. X 5.236 In. Weight : 5.86 Lb.

Specifications

Battery Capacities: 18V LXT
Capacities:

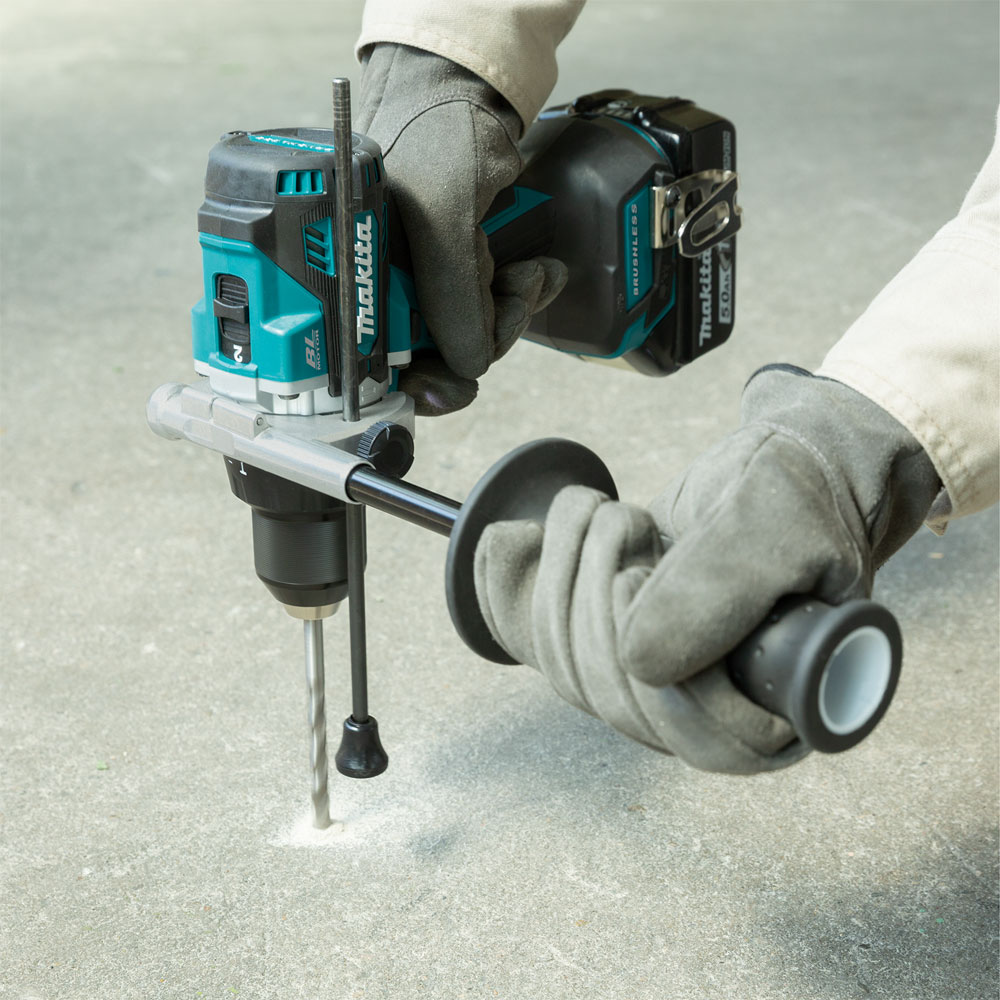

Concrete 5/8" (16 mm)
Steel 1/2" (13 mm)
Wood Auger bit 2" (50 mm), Self-feeding bit 3" (76 mm), Hole saw 6" (152 mm)
No Load Speed:
Low 0 - 550 RPM
High 0 - 2,100 RPM
Blows Per Minute:
Low 0 - 8,250 BPM
High 0 - 31,500 BPM
Maximum Lock Torque  1,150 in. lbs (130 Nm)
Vibration Level  8.0 m/s²
Noise Level 84 dB(A)
Overall Length  7" (178 mm)
Net Weight  4.5 lbs (2.0 kg)
