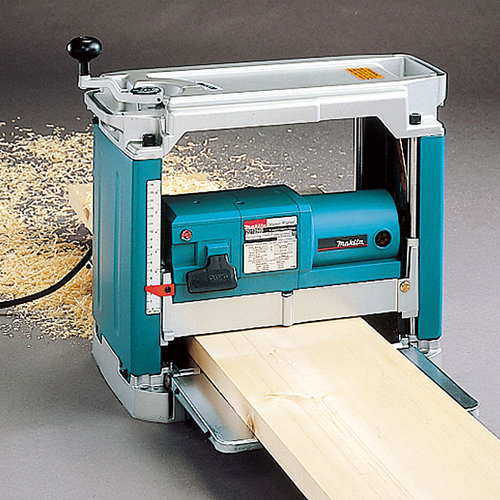

12" Planer

Fastest And Easiest Blade Change On The Market

4-Post design with Diagonal Cross Supports provide maximum operational stability
Interna-Lok Automated Head Clamp Feed Mechanism ensures smooth finishes with minimal snipe
Indicator Lamp indicates active power supply
Large Support Table for maximum material support
Fold Away Depth Adjustment Handle for compact transport and storage
Flat Top Design facilitates repetitive cutting operations
On-Board, Detachable Tool Box for operator convenience

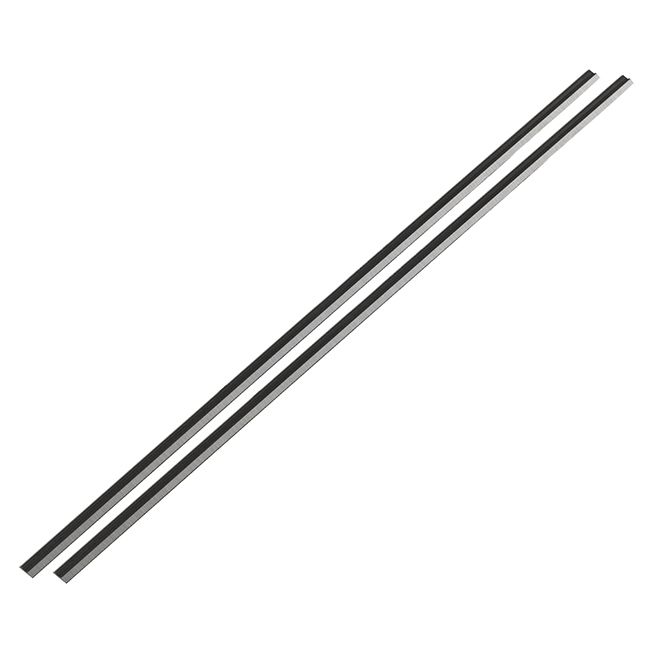

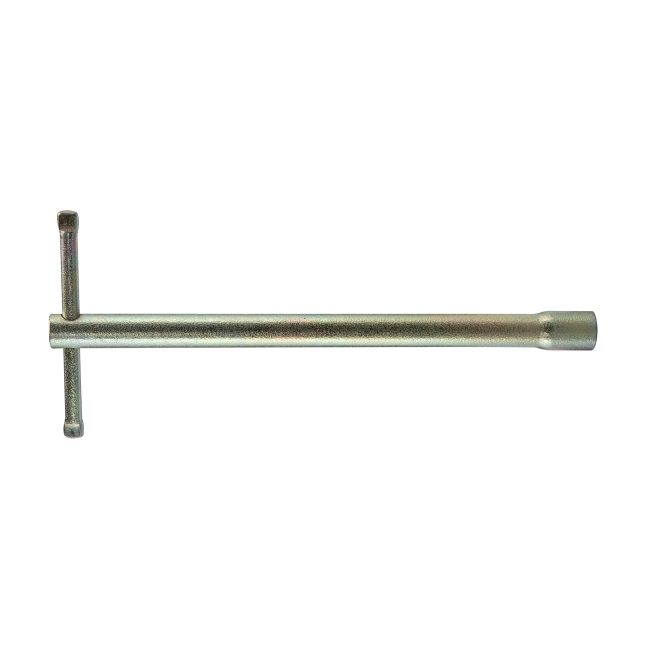

Items Included:12” Double Edged HSS Planer Blades (793346-8), Two Magnetic Holder (762014-4), Socket Wrench 9 (782203-5), Hex Wrench 2.5 (783208-8), Key (415715-0A), Plastic Tool Box (824002-0)

Where to buy

4-Post design with Diagonal Cross Supports provide maximum operational stability
Interna-Lok Automated Head Clamp Feed Mechanism ensures smooth finishes with minimal snipe
Indicator Lamp indicates active power supply
Large Support Table for maximum material support
Fold Away Depth Adjustment Handle for compact transport and storage
Flat Top Design facilitates repetitive cutting operations
On-Board, Detachable Tool Box for operator convenience

Items Included: 12” Double Edged HSS Planer Blades (793346-8), Two Magnetic Holder (762014-4), Socket Wrench 9 (782203-5), Hex Wrench 2.5 (783208-8), Key (415715-0A), Plastic Tool Box (824002-0)

Shipping Dimensions (Length x Width x Height) & Weight : 18.23 In. X 21.81 In. X 16.3 In. Weight : 67.68 Lb.

Specifications

Cutting Capacities:
Width	12" (304 mm)
Depth	1/8" (3 mm)
Thickness	6-3/32" (155 mm)
Feed Rate Per Minute	27.9' (8.5 m)
No Load Speed	8,500 RPM
AMPS (120V)	15.0 A
Noise Level	86 dB(A)
Table Size (W x L)	12" (304 mm) x 30-3/8" (771 mm)
Overall Dimensions (W x H x L)	19" x 15-13/16" x 30-3/8" (483 mm x 401 mm x 771 mm)
Net Weight	61.9 lbs (28.1 kg)
