DDF486Z

18V LXT Brushless 1/2" Drill-Driver, Tool Only

Up to 1,155 in. lbs. Max Fastening Torque!

Variable Speed, Reversible, Electric Brake

LXT Technology LXT Technology LXT Technology 18V Battery

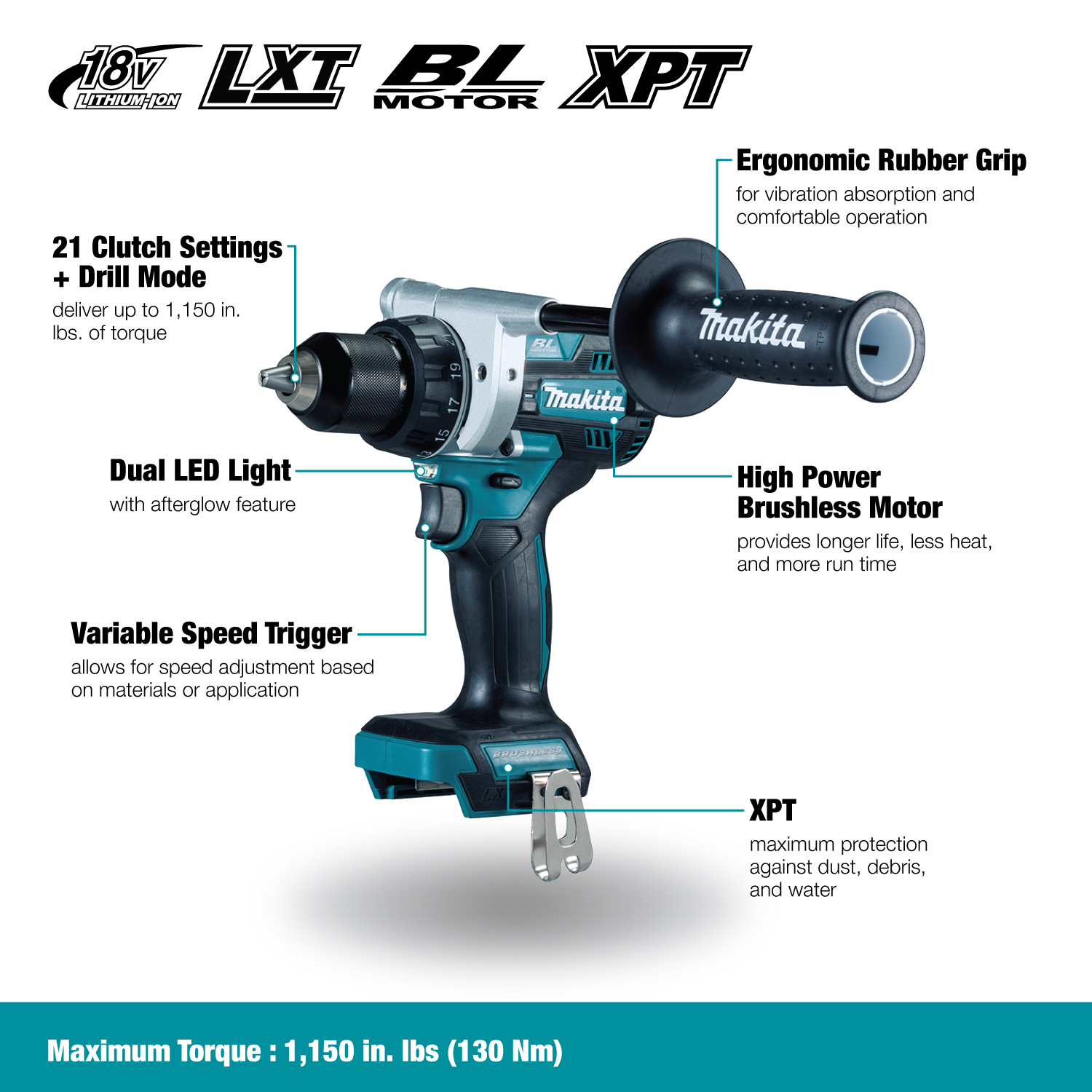

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 21 clutch settings + drill mode deliver up to 1,150 in. lbs. of torque
  • All metal gears for more efficient power transmission
  • Ultra-compact design (only 7" long)
  • Dual LED job lights with afterglow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

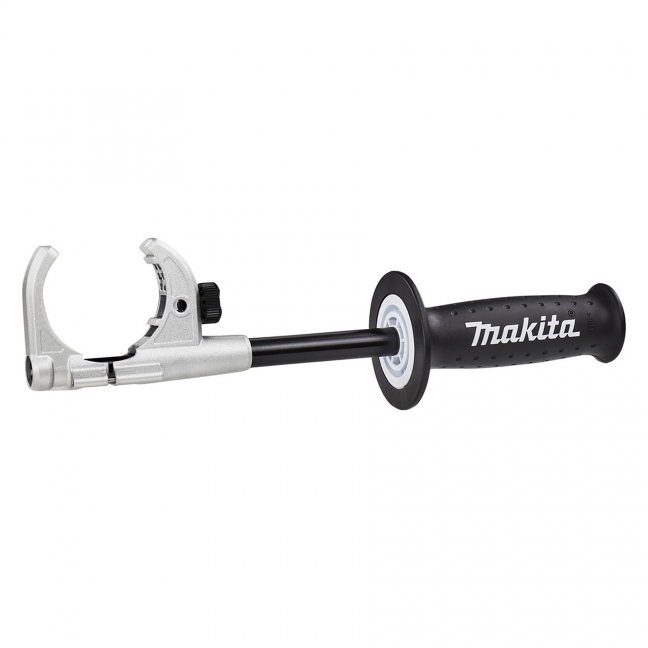

Items Included:Tool Only. Batteries and Charger Sold Separately. Side Handle (127702-4), 1/2" Keyless Drill Chuck (763252-1), Two Double Ended Bit 2-45 (784637-8), Bit Holder (452947-8), Hook (346449-3)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 21 clutch settings + drill mode deliver up to 1,150 in. lbs. of torque
  • All metal gears for more efficient power transmission
  • Ultra-compact design (only 7" long)
  • Dual LED job lights with afterglow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included: Tool Only. Batteries and Charger Sold Separately. Side Handle (127702-4), 1/2" Keyless Drill Chuck (763252-1), Two Double Ended Bit 2-45 (784637-8), Bit Holder (452947-8), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 8.228 In. X 12.598 In. X 5.236 In. Weight : 5.71 Lb.

Specifications

Battery Capacities 18V LXT
Capacities:
Steel 1/2" (13 mm)
Wood  Auger bit 2" (50 mm), Self-feeding bit 3" (76 mm), Hole saw 6" (152 mm), Siding board 6-11/16" (170 mm)
No Load Speed:
Low 0 - 550 RPM
High 0 - 2,100 RPM
Maximum Torque  1,150 in. lbs (130 Nm)
Vibration Level 2.5 m/s2
Noise Level 74 dB(A)
Overall Length  7" (178 mm)
Net Weight  4.2 lbs (1.9 kg)
