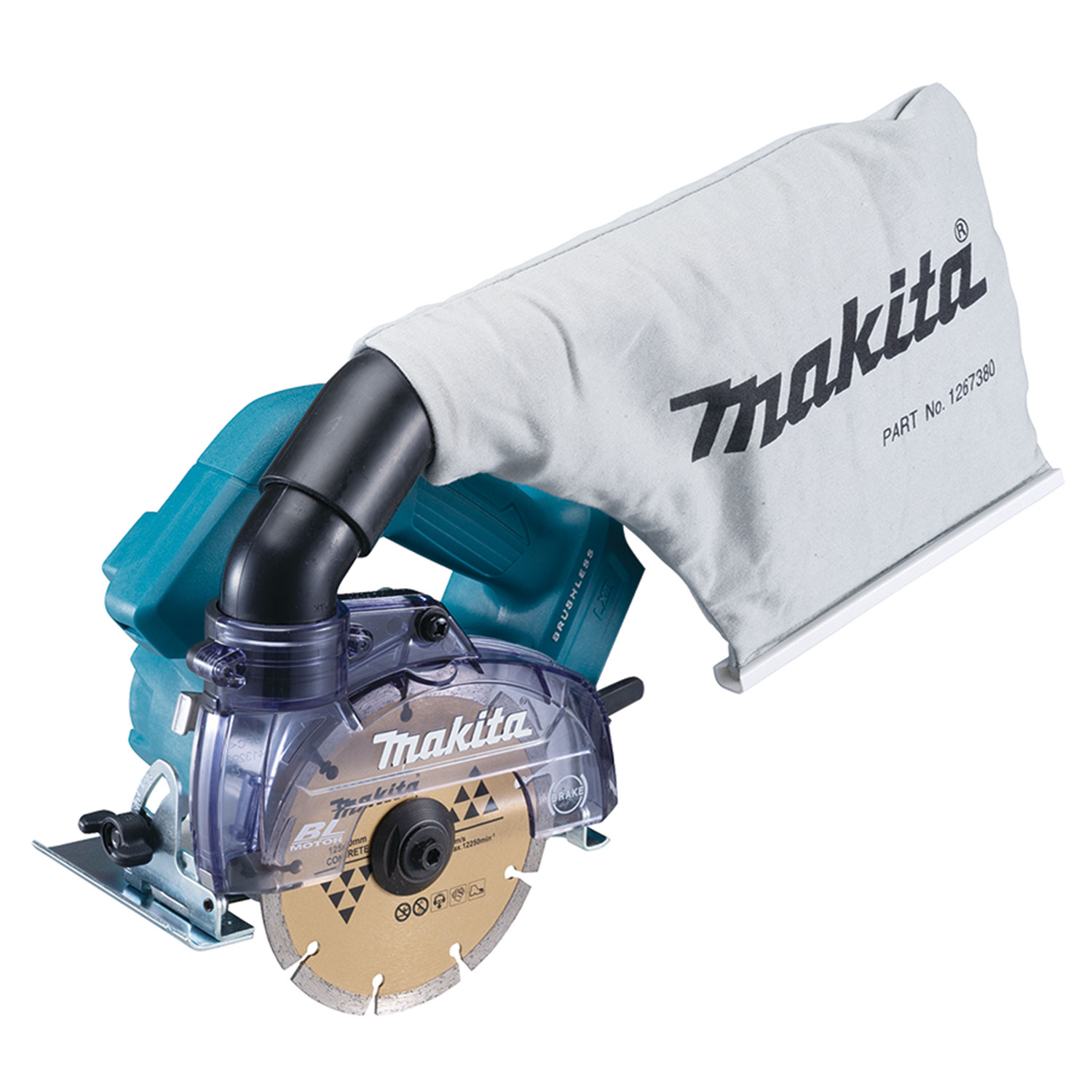

DCC500ZX1

18V LXT Brushless 5" Masonry Saw w/AWS, Tool Only

Makita's FIRST Cordless Masonry Circular Saw!

Designed for Wet or Dry Cutting Applications

Soft Start, Electric Brake, LED Job Lights

LXT Technology LXT Technology LXT Technology AWS Technology ADT 18V Battery

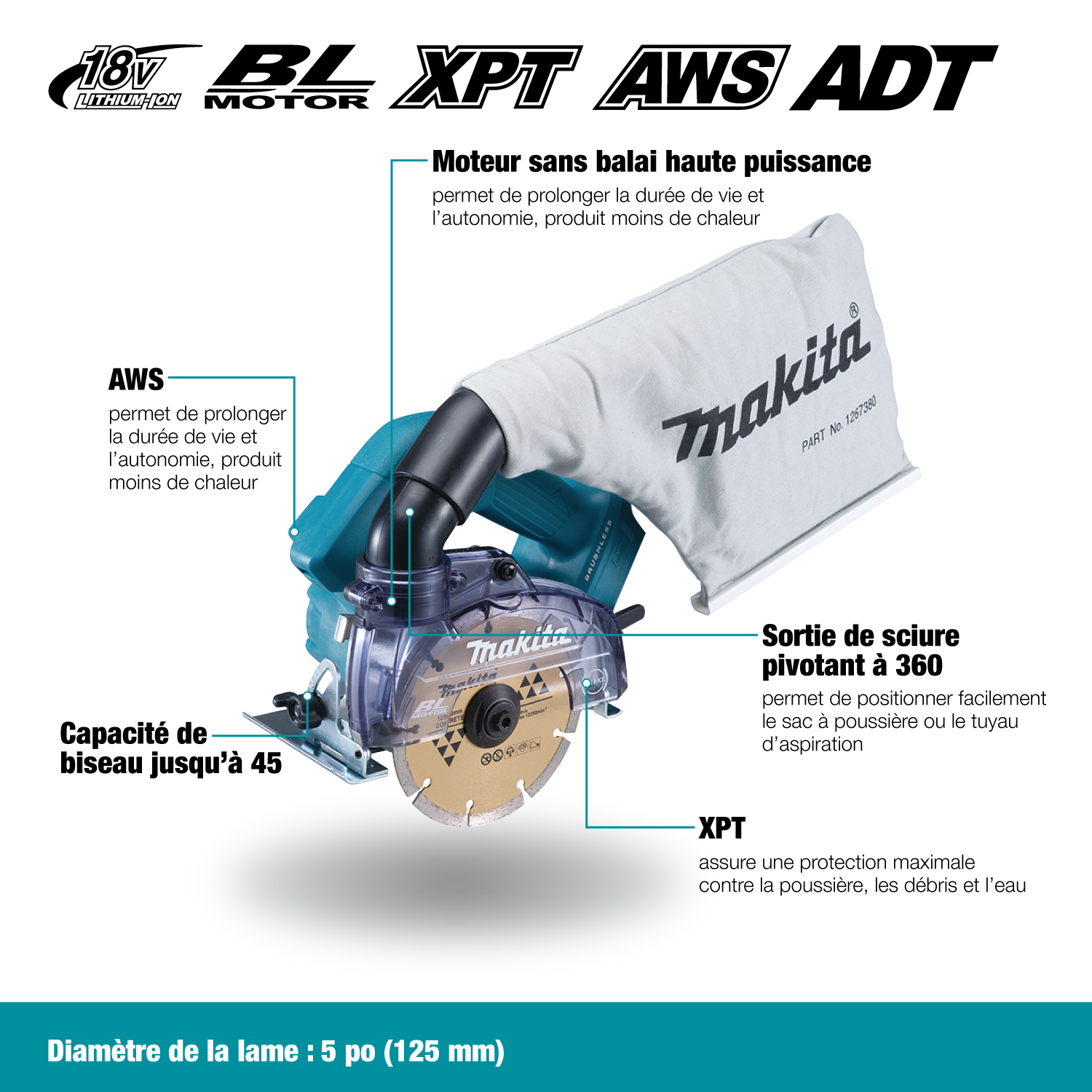

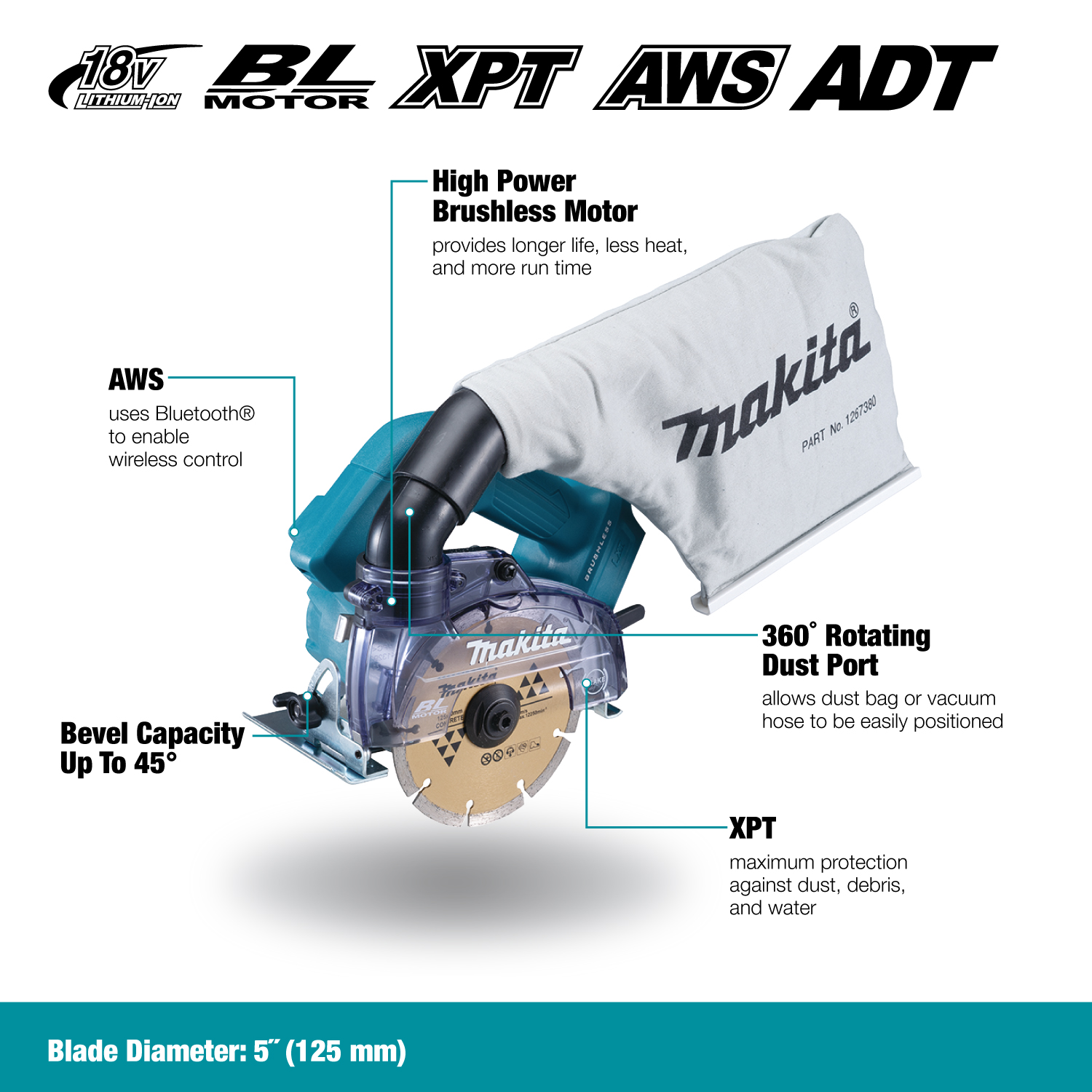

  • Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications

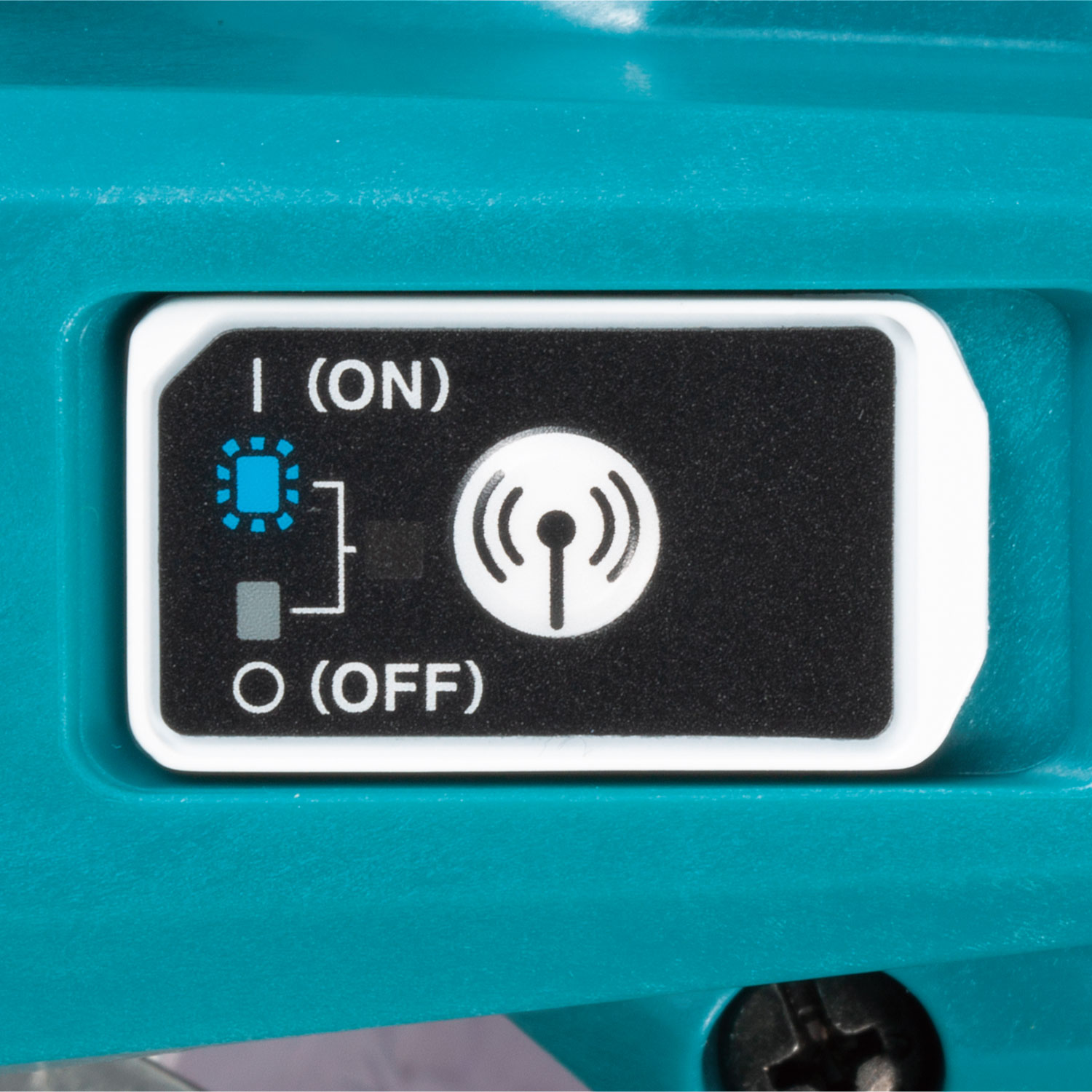

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Soft start feature gradually increases speed to eliminate start up shock
  • LED job light with pre-glow and afterglow features
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety

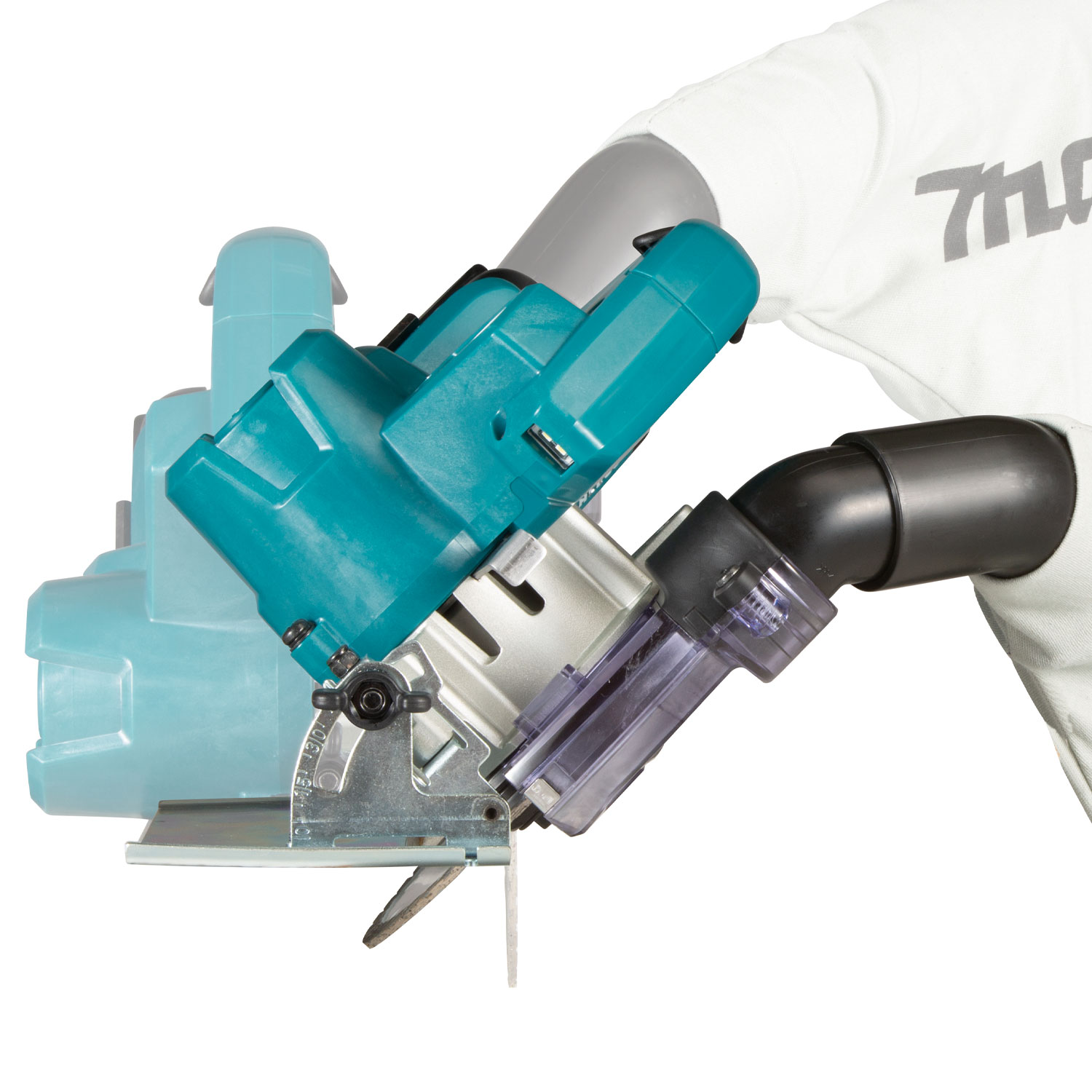

  • Bevel capacity up to 45°
  • 360° rotating dust port allows dust bag or vacuum hose to be easily positioned by operator
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with optional Water Attachment (part no 19M48-2) to enable dust-free wet cutting for maximum operator safety
  • Use with optional 4-3/8" Curved Diamond Blade for more effective circular cutting (part no. D-36938)
  • Use with optional Guide Rail Adapter (part no. 198673-2) to quickly adapt to 39” – 118” Guide Rails for maximum accuracy on long straight cuts

Items Included:Tool Only. Batteries and Charger Sold Separately. Dust Bag Assembly (126738-0), Hex Wrench 5 (783217-7)

  • Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Soft start feature gradually increases speed to eliminate start up shock
  • LED job light with pre-glow and afterglow features
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Bevel capacity up to 45°
  • 360° rotating dust port allows dust bag or vacuum hose to be easily positioned by operator
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with optional Water Attachment (part no 19M48-2) to enable dust-free wet cutting for maximum operator safety
  • Use with optional 4-3/8" Curved Diamond Blade for more effective circular cutting (part no. D-36938)
  • Use with optional Guide Rail Adapter (part no. 198673-2) to quickly adapt to 39” – 118” Guide Rails for maximum accuracy on long straight cuts

Items Included: Tool Only. Batteries and Charger Sold Separately. Dust Bag Assembly (126738-0), Hex Wrench 5 (783217-7)

Shipping Dimensions (Length x Width x Height) & Weight : 7.8 In. X 11.61 In. X 9.06 In. Weight : 6.92 Lb.

Specifications

Battery Capacities 18V LXT
Blade Diameter 5" (125 mm)
No Load Speed 8,800 RPM
Maximum Cutting Capacity
0°: 1-9/16" (40 mm)
45°: 1-1/16" (27 mm)
Vibration Level 4.0 m/s²
Noise Level 96 dB(A)
Overall Length 11-1/8" (283 mm)
Net Weight 4.9 lbs (2.2 kg)
18V LXT Cordless 500 lm LED Flashlight (Tool Only)

18V LXT Cordless 500 lm LED Flashlight (Tool Only)

Read More
18V LXT Cordless 500 lm LED Flashlight with Lamp Shade (Tool Only)

18V LXT Cordless 500 lm LED Flashlight with Lamp Shade (Tool Only)

Read More

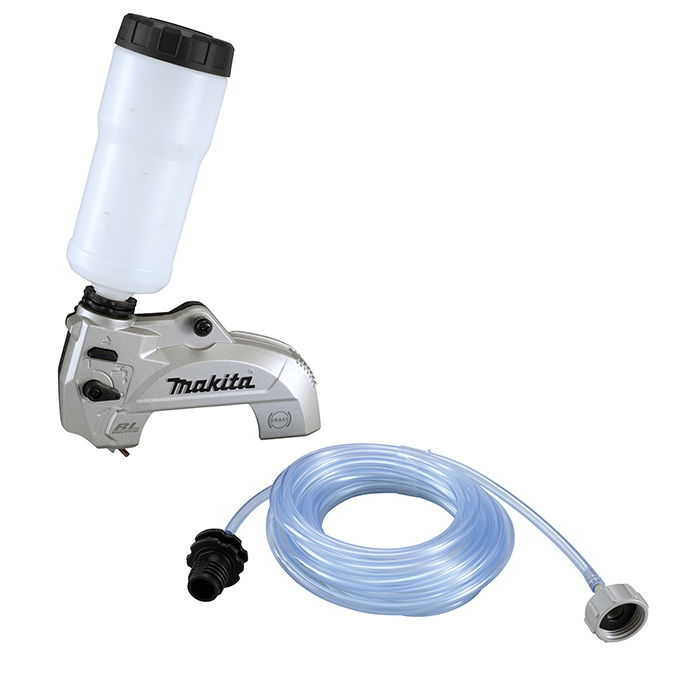

Water Attachment Kit for DCC500ZX1
