Home / Tool / Cordless / XGT / Saws / Mitre Saws / LS003GZ

XGT Technology

(Tool only)


LS003GZ

40Vmax XGT Brushless 12" Dual Compound Mitre Saw w/AWS, Tool Only

LARGE CUTTING CAPACITY AND MAXIMUM CUTTING POWER!

Cuts Up To 4-1/4" x 14-1/4"!

XGT Technology LXT Technology AWS Technology
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch allows operator to run dust extractor when mitre saw is not running for maximum dust collection and cleaning after operation
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • “Zero clearance” rail forward design enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains cutting speed under heavy load
  • LED cut line indication enables easy and precise alignment of blade and material for fast and accurate cutting with no adjustment required

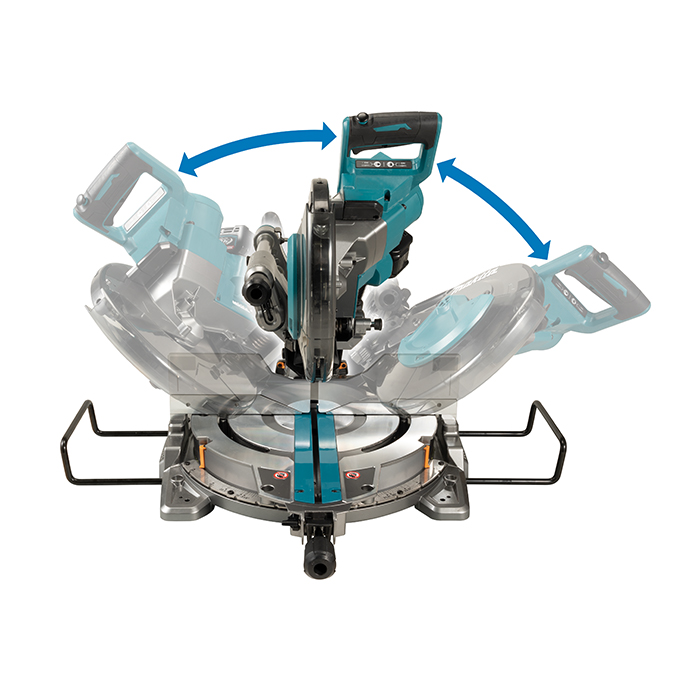

  • Bevel capacity of 48o left or right

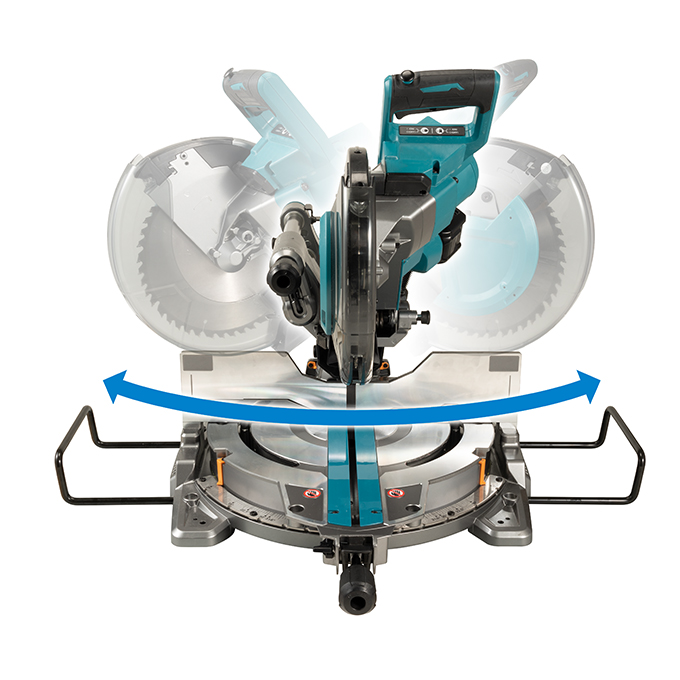

  • Mitre capacity of 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Easy to operate mitre angle lock with free spin releasing and locking levers
  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

Items Included:Batteries and Charger Sold Separately. 12" C.T. Blade 60T (B-66983), Dust Bag (122852-0), Triangle Rule (762001-3), Vertical Vise (126617-2), Holder 90 (327145-2), Hex Wrench 6 (781044-6)

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch allows operator to run dust extractor when mitre saw is not running for maximum dust collection and cleaning after operation
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • “Zero clearance” rail forward design enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains cutting speed under heavy load
  • LED cut line indication enables easy and precise alignment of blade and material for fast and accurate cutting with no adjustment required
  • Bevel capacity of 48o left or right
  • Mitre capacity of 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Easy to operate mitre angle lock with free spin releasing and locking levers
  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. 12" C.T. Blade 60T (B-66983), Dust Bag (122852-0), Triangle Rule (762001-3), Vertical Vise (126617-2), Holder 90 (327145-2), Hex Wrench 6 (781044-6)

Shipping Dimensions (Length x Width x Height) & Weight : 21.65 In. X 36.02 In. X 23.11 In. Weight : 81.57 Lb.

Specifications

Battery Capacities 40Vmax XGT
Blade Diameter 12" (305 mm)
Arbor 1" (25.4  mm)
No Load Speed 3,600 RPM
Vibration Level 2.5 m/s²
Noise Level 91 dB(A)
Dimensions (L x W x H)  35-1/4" x 27-1/4" x 28-1/2"  (898 mm x 690 mm x 725 mm)
Net Weight 65.7 lbs (29.8 kg)
