Home / Tool / Cordless / XGT / Saws / Circular Saws / SP001GZ02

XGT Technology

(Tool only)


SP001GZ02

40Vmax XGT Brushless Plunge Cut Circular Saw w/AWS, Tool Only

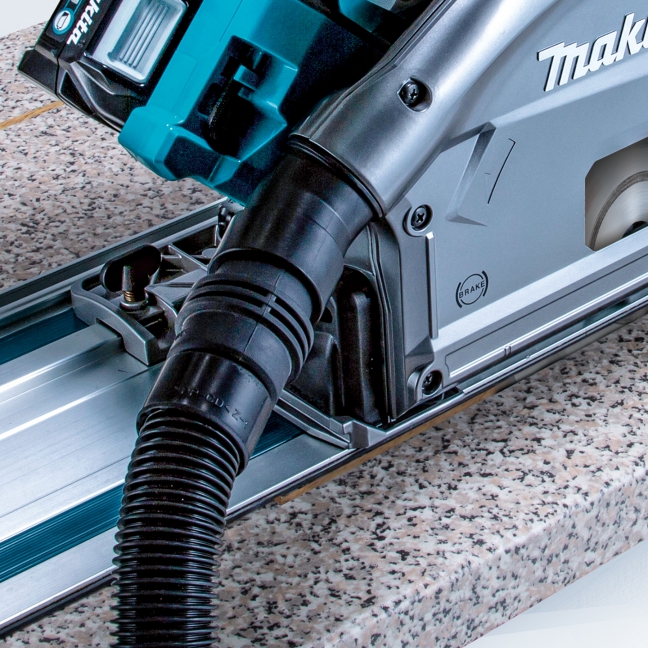

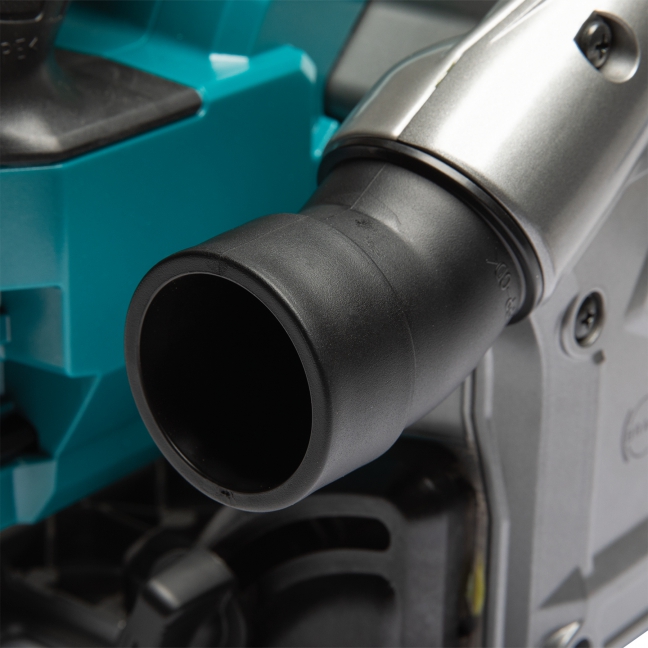

Auto-Start Wireless System (AWS) Technology Features Wireless Dust Collection Technology!

Two-Stage Safety Switch, Electric Brake, Soft Start

XGT Technology LXT Technology LXT Technology AWS Technology

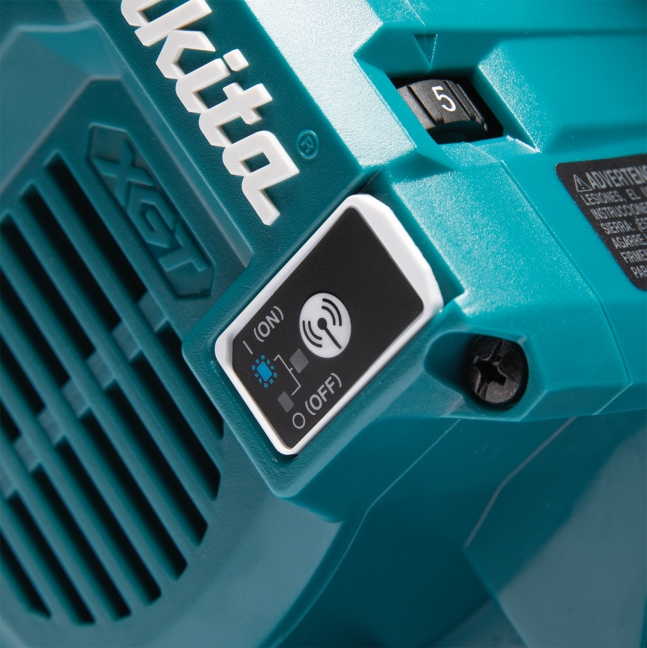

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • High performance and lightweight design with magnesium diecast baseplate
  • Constant speed control maintains constant speed under heavy load
  • Overload protection prevents motor burnout due to current overload

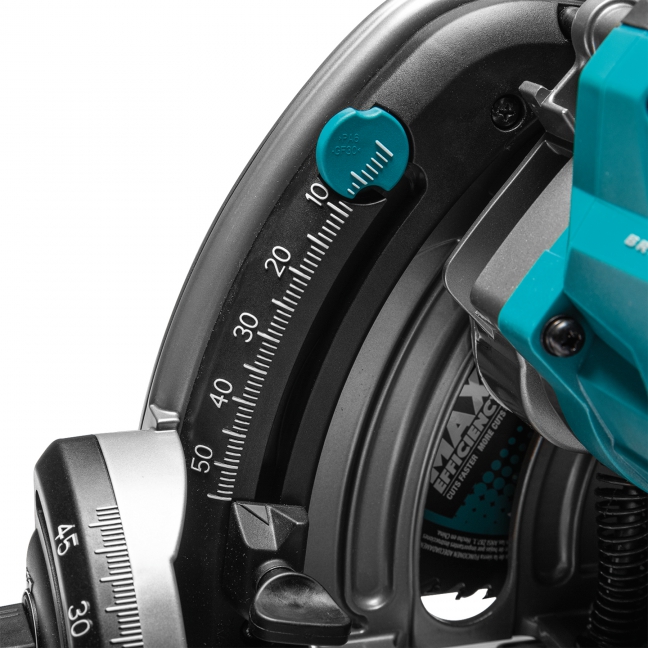

  • Depth stopper enables splinter free cutting
  • VS dial enables operator to adjust cutting speed based on materials or application
  • LED charge level indicator displays approximate remaining battery power
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock

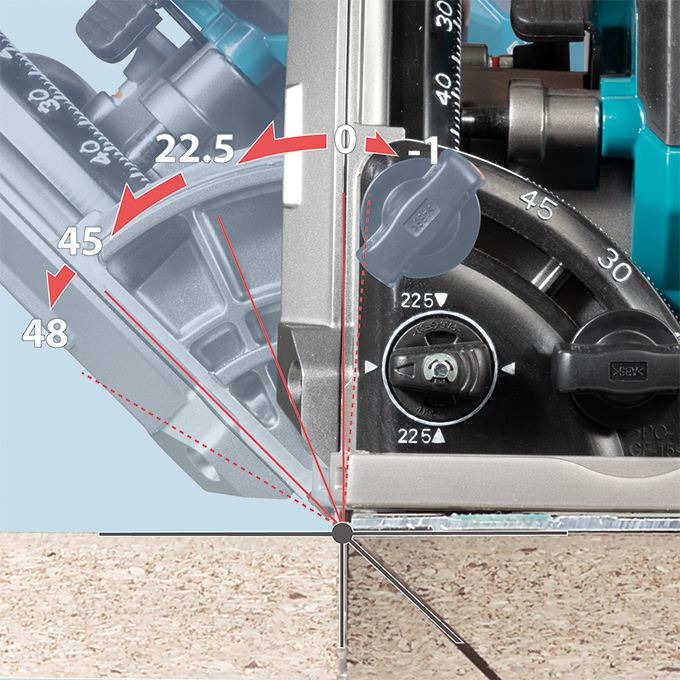

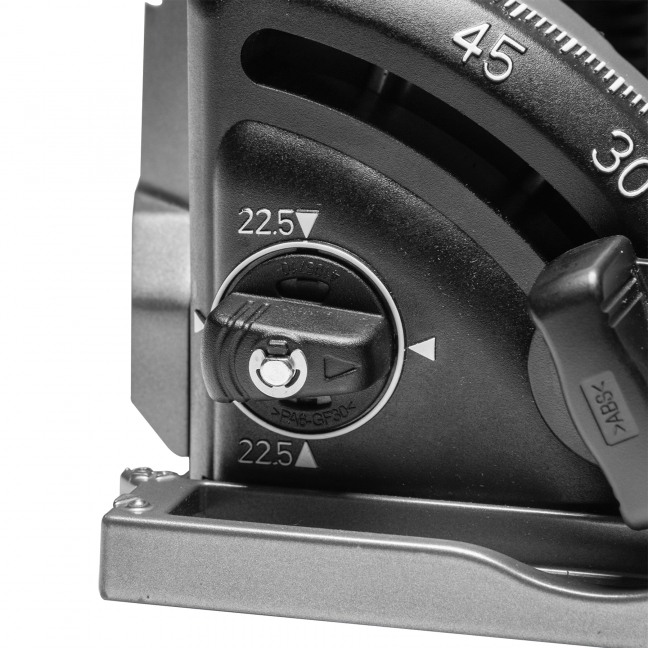

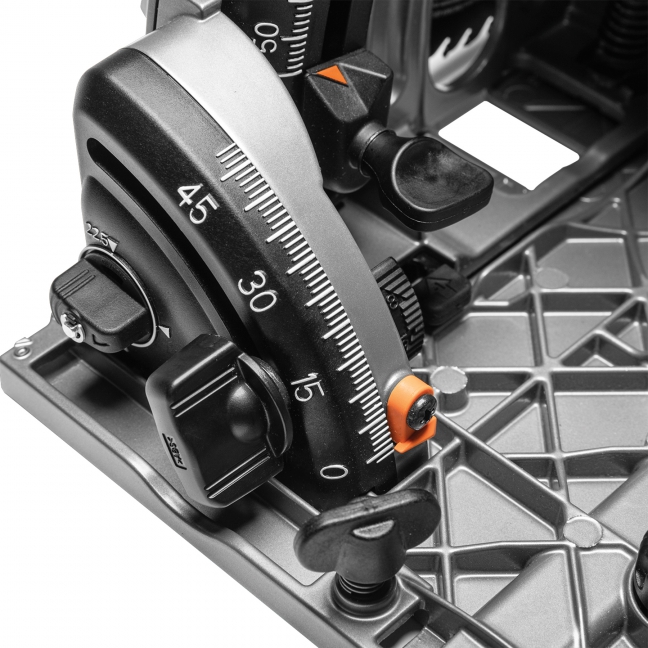

  • Bevel capacity of -1o - 48o with positive stop at 22.5o and 45o
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • (Bluetooth® is a registered trademark of Bluetooth® SIG)

Items Included:Batteries and Charger Sold Separately. 6-1/2" C.T. Blade 56T (B-57342), Hex Wrench 5 (783203-8), Interlocking Case (197213-3)

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • High performance and lightweight design with magnesium diecast baseplate
  • Constant speed control maintains constant speed under heavy load
  • Overload protection prevents motor burnout due to current overload
  • Depth stopper enables splinter free cutting
  • VS dial enables operator to adjust cutting speed based on materials or application
  • LED charge level indicator displays approximate remaining battery power
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Bevel capacity of -1o - 48o with positive stop at 22.5o and 45o
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • (Bluetooth® is a registered trademark of Bluetooth® SIG)

Items Included: Batteries and Charger Sold Separately. 6-1/2" C.T. Blade 56T (B-57342), Hex Wrench 5 (783203-8), Interlocking Case (197213-3)

Shipping Dimensions (Length x Width x Height) & Weight : 13.27 In. X 15.94 In. X 12.01 In. Weight : 15.12 Lb.

Specifications

Battery Capacities  40Vmax XGT

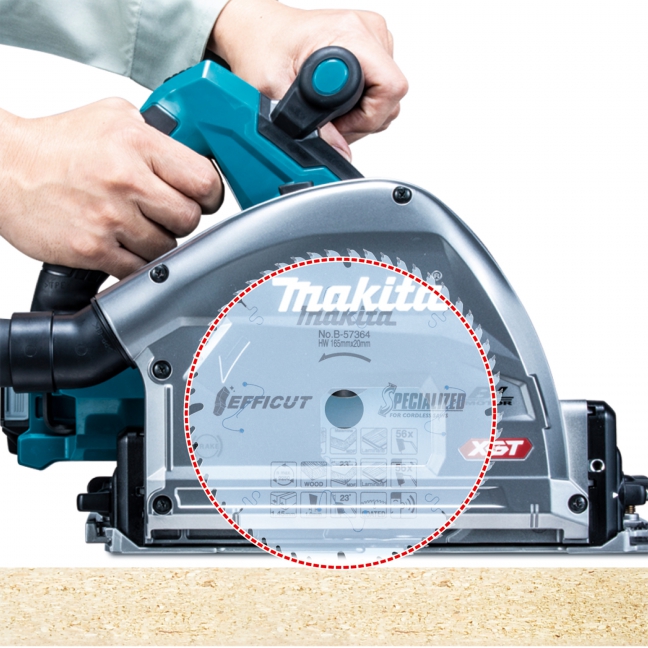

Blade Diameter 6-1/2" (165 mm)
Arbor 13/16" (20 mm)
Maximum Cutting Depth:
0°  2-3/16" (56 mm)
45°  1-9/16" (40 mm)
48°  1-1/2" (38 mm)
No Load Speed  2,500 - 4,900 RPM
Vibration Level  2.5 m/s²
Noise Level 89 dB(A)
Overall Length  14-1/2" (375 mm)
Net Weight  8.2 lbs. (3.7 kg)
