DTW302XVZ

18V LXT Brushless 3/8" Impact Wrench w/Friction Ring, Tool Only

Up To 220 ft. lbs Max. Fastening Torque And 370 ft. lbs. Nut Busting Torque!

Friction Ring

3/8" Square Drive, Variable 4-Speed, Reversible, Electric Brake, Friction Ring

LXT Technology LXT Technology LXT Technology 18V Battery

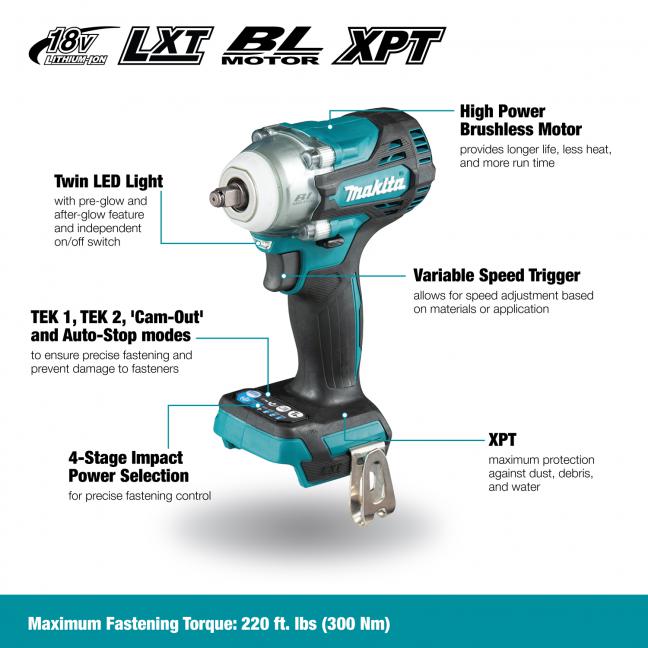

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Shielded motor suitable for use in high-voltage environments and applications

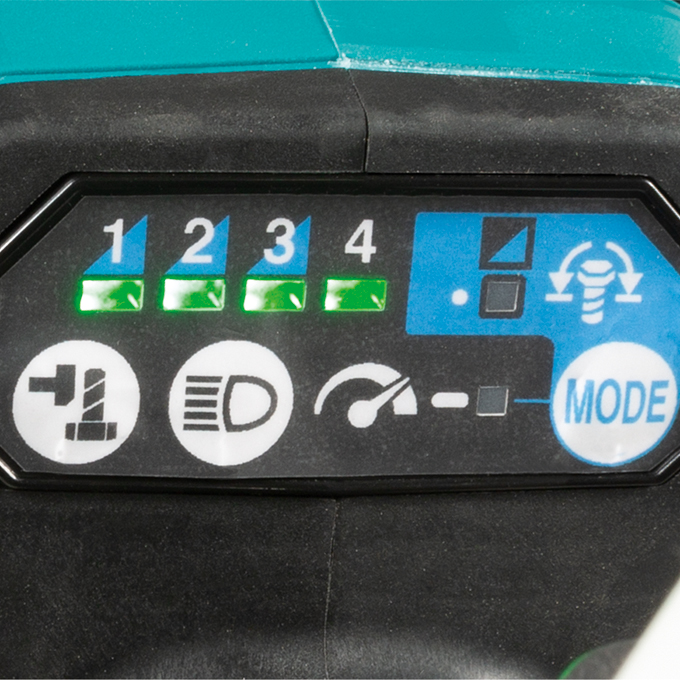

  • 4 stage impact power selection ensure precise fastening and prevents damage to fasteners or materials
  • 3 forward and 3 reverse auto stop modes stop impact and rotation at pre-set levels to ensure fastening accuracy and prevent over/under tightening of fasteners
  • Variable speed trigger with full speed mode features shorter trigger travel for reduced operator fatigue
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

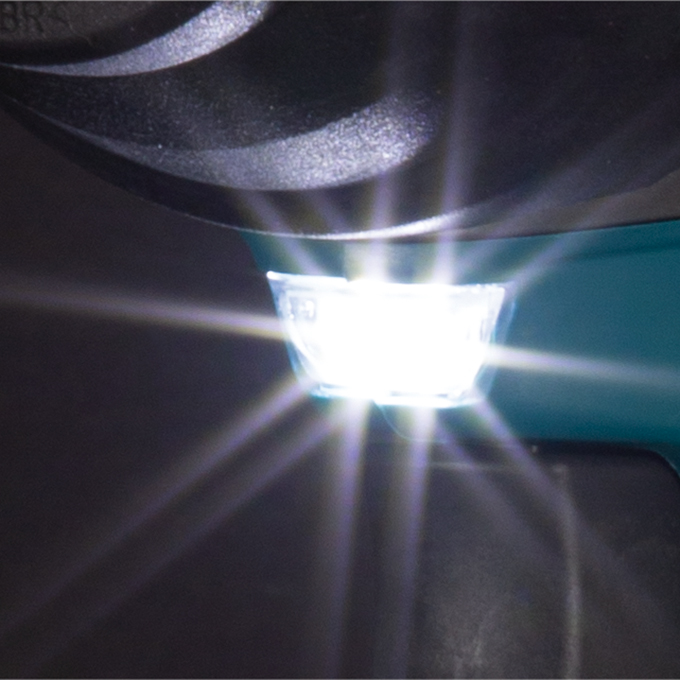

  • Twin LED job light with pre-glow and after-glow feature and independent on/off switch
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Batteries and Charger Sold Separately. Hook (346449-3)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Shielded motor suitable for use in high-voltage environments and applications
  • 4 stage impact power selection ensure precise fastening and prevents damage to fasteners or materials
  • 3 forward and 3 reverse auto stop modes stop impact and rotation at pre-set levels to ensure fastening accuracy and prevent over/under tightening of fasteners
  • Variable speed trigger with full speed mode features shorter trigger travel for reduced operator fatigue
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Twin LED job light with pre-glow and after-glow feature and independent on/off switch
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 9.21 In. X 6.81 In. X 3.98 In. Weight : 3.02 Lb.

Specifications

Battery Capacities: 18V LXT
Square Drive 3/8"
No Load Speed 0 - 1,000 / 1,800 / 2,600 / 3,200 RPM
Impacts Per Minute 0 - 1,800 / 2,600 / 3,400 / 4,000 IPM
Maximum Fastening Torque 220 ft. lbs (300 Nm)
Nut-busting Torque (reverse) 370 ft. lbs (500 Nm)
Vibration Level 15.4 m/s²
Noise Level 94 dB(A)
Overall Length 5-7/16" (138 mm)
Net Weight 2.5 lbs (1.1 kg)
