DA001GM101

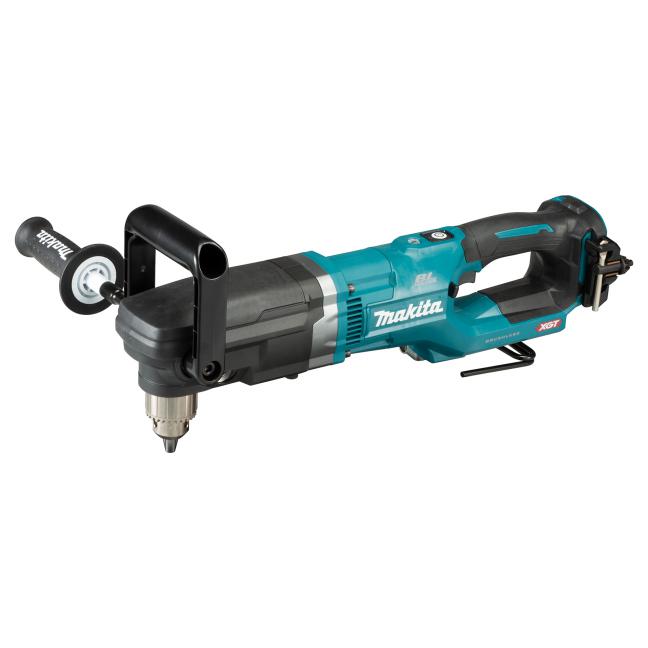

40Vmax XGT Brushless 1/2" Angle Drill, 4.0Ah x1Kit

AC Power - Cordless Versatility

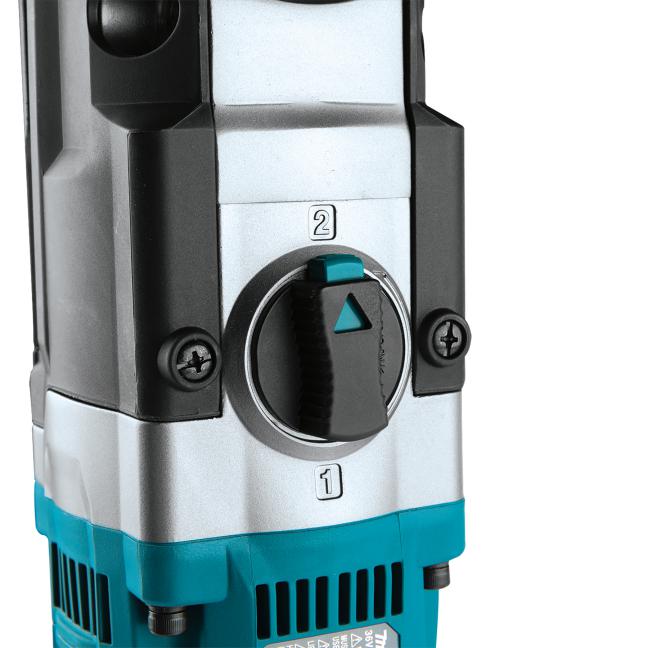

Automatic torque Drive Technology (ADT), Variable 2-Speed, Reversible, Soft Start

XGT Technology LXT Technology LXT Technology ADT

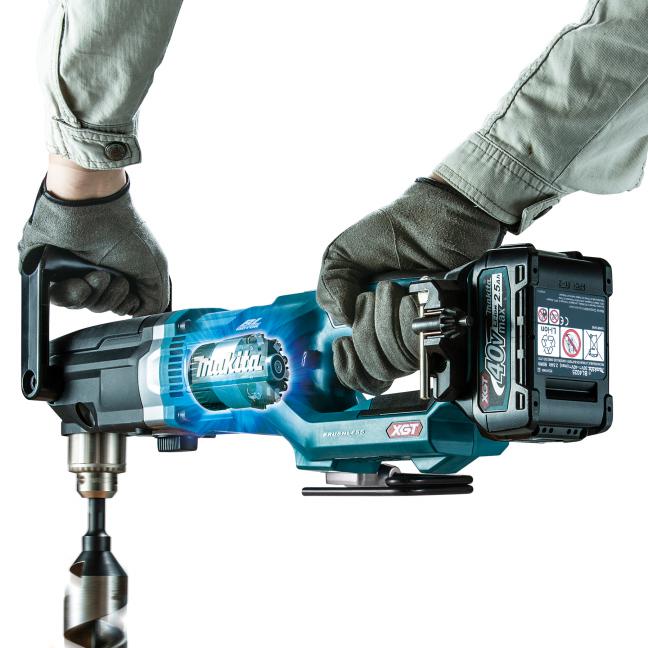

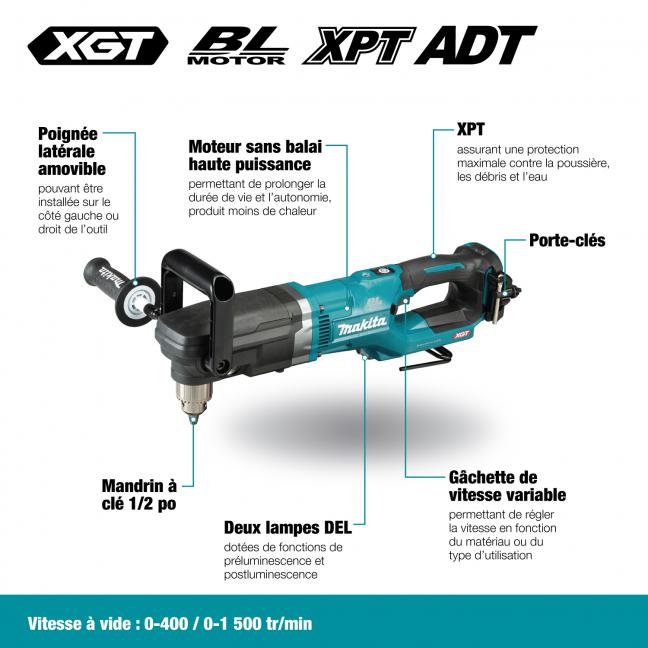

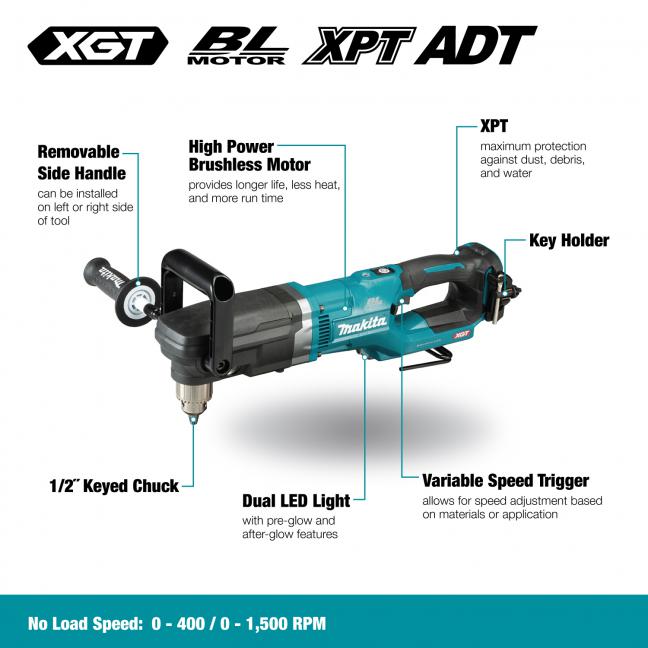

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • Soft start feature gradually increases speed to eliminate start up shock
  • Variable speed trigger allows operator to adjust speed based on materials or application

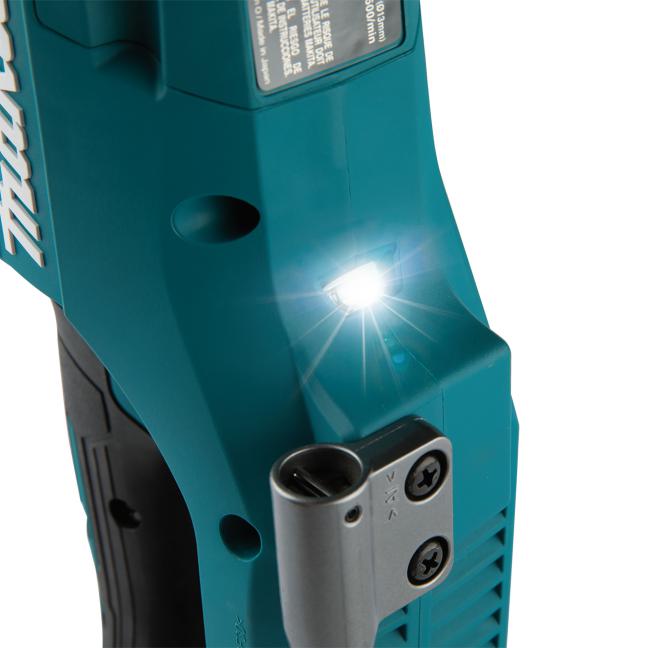

  • Dual LED job light with pre-glow and after-glow features illuminates work area

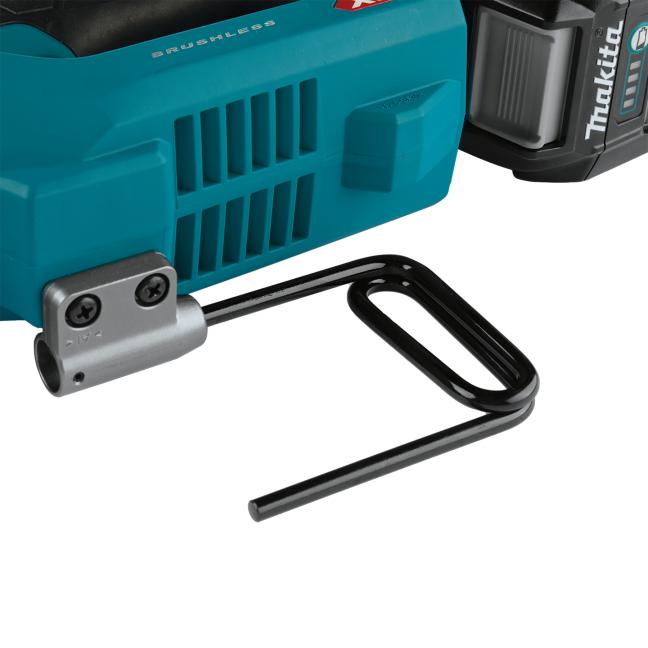

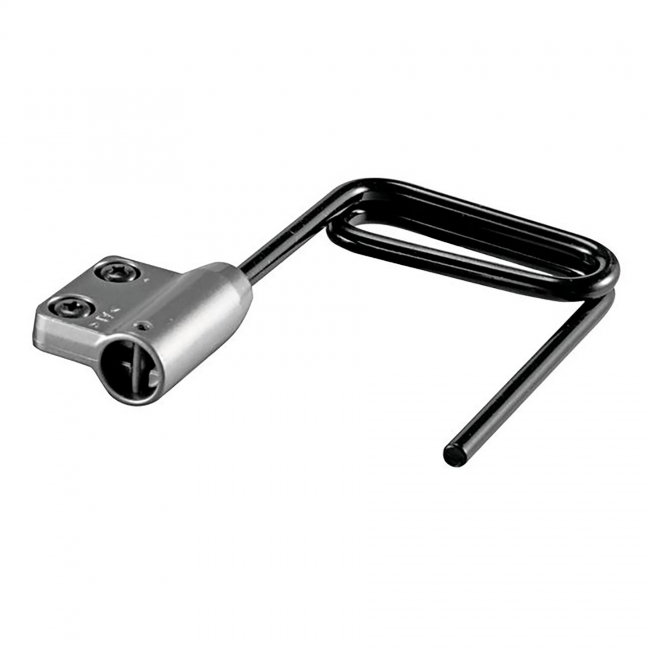

  • Integrated rafter hook allows operators to hang tool on wood stud, pipe and scaffolding or as lanyard attachment point
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

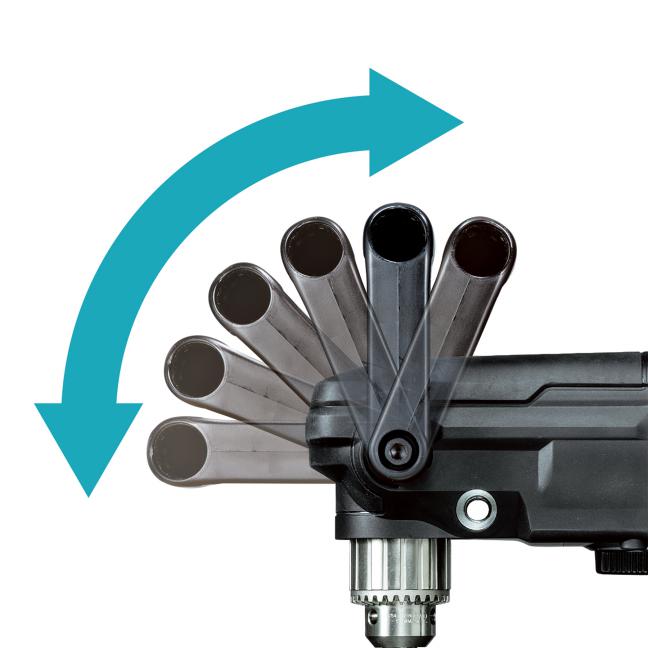

  • Includes D and straight style side handles

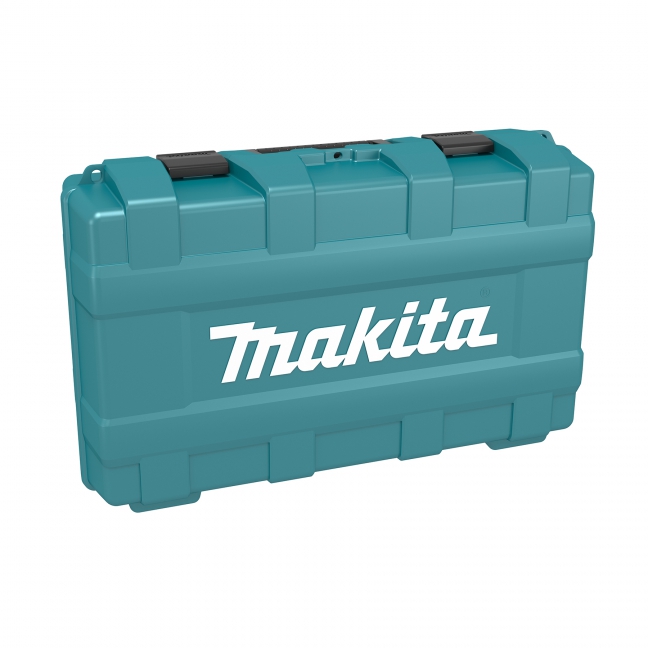

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040, Rapid Charger (DC40RA), 1/2" Drill Chuck (763250-5), Chuck Key (763251-3), Straight Side Handle (122A18-8), D-Style Front Handle (458431-1), Hex Wrench 6 (783204-6), Hook (127811-9), Plastic Carrying Case (821847-7)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Torque limiter stops bit rotation if bit jams for increased operator safety and tool protection
  • Soft start feature gradually increases speed to eliminate start up shock
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • Dual LED job light with pre-glow and after-glow features illuminates work area

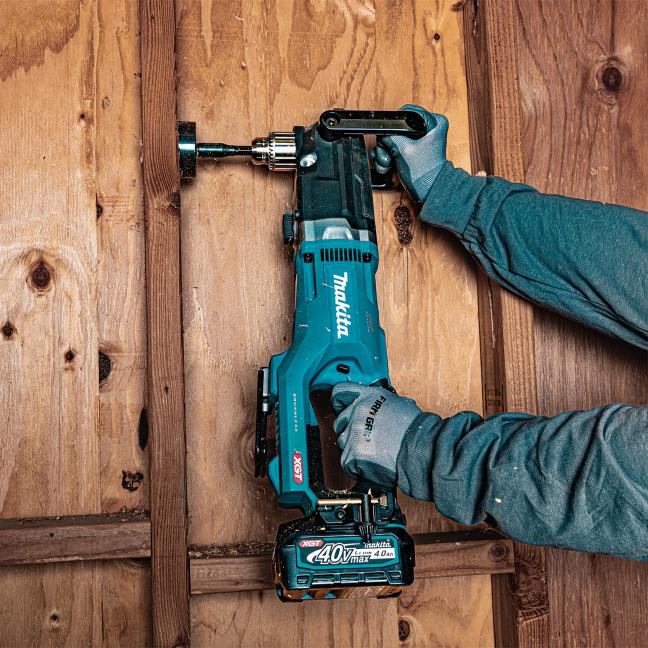

  • Integrated rafter hook allows operators to hang tool on wood stud, pipe and scaffolding or as lanyard attachment point
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Includes D and straight style side handles

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040, Rapid Charger (DC40RA), 1/2" Drill Chuck (763250-5), Chuck Key (763251-3), Straight Side Handle (122A18-8), D-Style Front Handle (458431-1), Hex Wrench 6 (783204-6), Hook (127811-9), Plastic Carrying Case (821847-7)

Shipping Dimensions (Length x Width x Height) & Weight : 7.68 In. X 24.8 In. X 15.75 In. Weight : 27.62 Lb.

Specifications

Battery Capacities 40Vmax XGT
Drilling Capacities

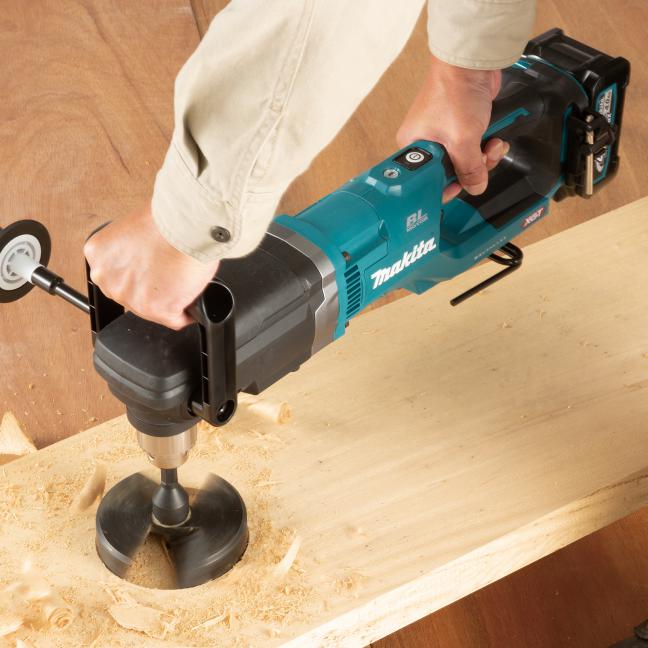

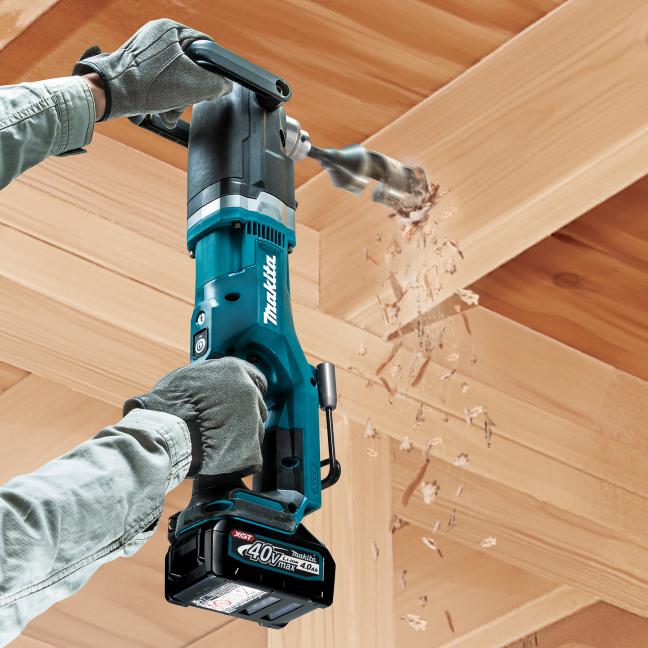

Wood: Auger-bit 2" (50 mm)
Self-feed bit High 2-9/16" (65 mm) / Low 4-5/8" (118 mm)
Hole saw High 4-1/8" (105 mm) / Low 6-1/4" (159 mm)
Steel 1/2" (13 mm)
No Load Speed  0 - 400 / 0 - 1,500 RPM
Vibration Level  2.5 m/s²
Noise Level 84 dB(A)
Overall length  21-1/2" (545 mm)
Net Weight  13 lbs (5.89 kg)
