GA9070

9" Angle Grinder w/Mechanical Brake, Trigger Switch

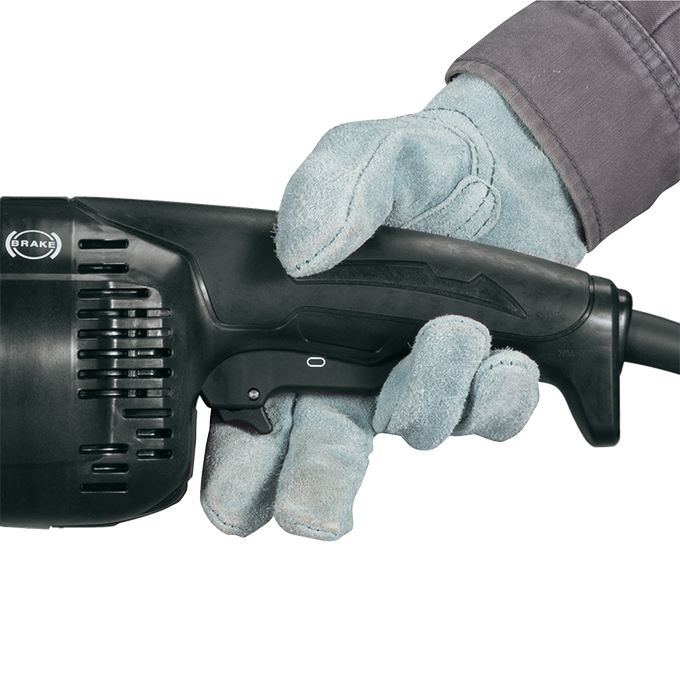

Two-Stage Safety Paddle Switch (AC)

Active Feedback-sensing Technology (AFT), Mechanical Brake, Soft Start, Anti-Restart

Active Feedback technology
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load
  • Anti-restart feature prevents tool from operating if it is plugged in when locked in the on position
  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Anti-vibration rear handle ideal for improved operator comfort during periods of prolonged use

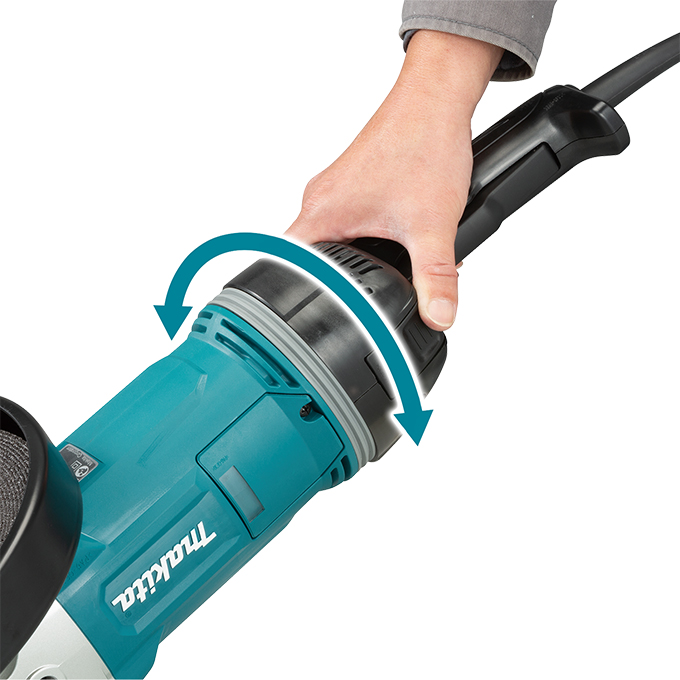

  • Rear handle swivels 180o to adjust to the most comfortable grinding position
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Transparent cover protects serial number against wear
  • Removable 3 position side handle can be mounted on left, right or top side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Side Handle (143486-6), Lock Nut Wrench 28 (782412-6), Wheel Cover (141E83-2), Inner Flange (224500-8), Lock Nut 5/8"-45 (224486-6)

  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load
  • Anti-restart feature prevents tool from operating if it is plugged in when locked in the on position
  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Anti-vibration rear handle ideal for improved operator comfort during periods of prolonged use
  • Rear handle swivels 180o to adjust to the most comfortable grinding position
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Transparent cover protects serial number against wear
  • Removable 3 position side handle can be mounted on left, right or top side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Side Handle (143486-6), Lock Nut Wrench 28 (782412-6), Wheel Cover (141E83-2), Inner Flange (224500-8), Lock Nut 5/8"-45 (224486-6)

Shipping Dimensions (Length x Width x Height) & Weight : 7.8 In. X 24.21 In. X 8.31 In. Weight : 17.64 Lb.

Specifications

Maximum Capacities:
Grinding Wheel 9" (230 mm)
No Load Speed 6,600 RPM
AMPS (120V) 15.0 A
Vibration Level 4.9 m/s²
Noise Level 91 dB(A)
Overall Length 20" (506 mm)
Net Weight 13.9 lbs (6.3 kg)
7

7" - 9" Dust Extraction Surface Grinding Shroud

Read More

User Manual: GA9070 - EN FR SP.pdf

Parts Breakdown: GA9070 - MAR2021.pdf
