SK40GD

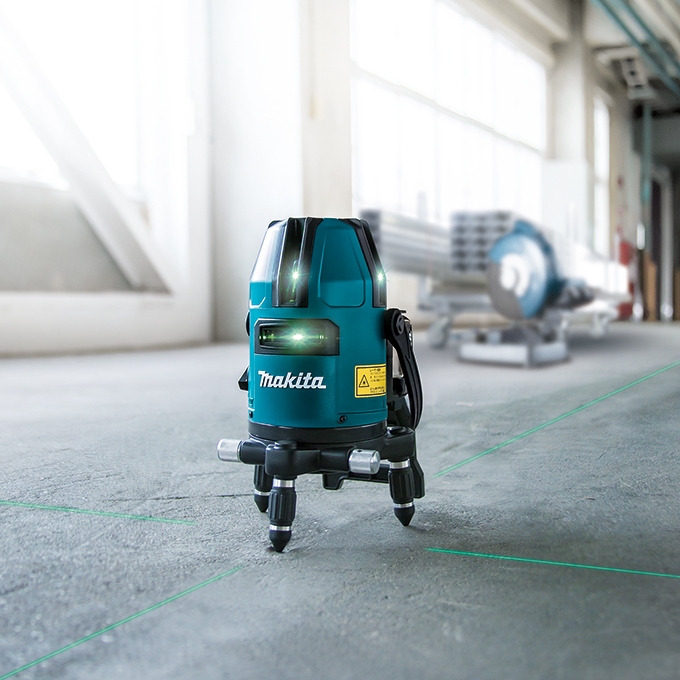

12Vmax CXT Green Laser Level 4V1H, Tool Only

4 Vertical Lines / 1 Horizontal Line


CXT Technology LXT Technology
  • Green laser ideal for increased visibility in bright working conditions
  • 2 brightness mode selections: normal, bright
  • Powered by 12V MAX CXT Li-Ion batteries with option to use 8 x AA batteries with  optional ADP09 Battery Adapter
  • Mode memory function remembers line beam mode that was used when last turned off and stays in that mode when turned on
  • Shock absorbing construction protects the laser from damage during transport and storage
  • eXtremeProtection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system with LED indicator light provides over-discharge protection
  • Large carrying handle for operator convenience

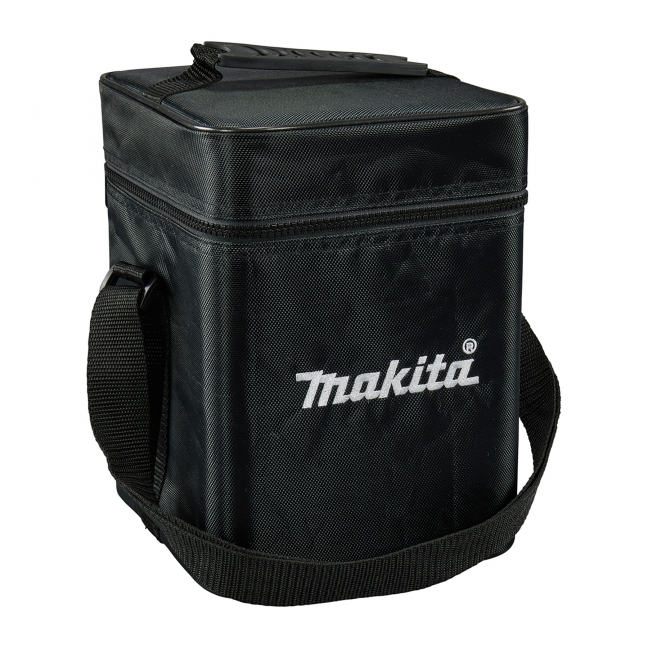

Items Included:Batteries and Charger Sold Separately. Laser Viewing Glass (TK02100200), Soft Case (TKK233F000)

  • Green laser ideal for increased visibility in bright working conditions
  • 2 brightness mode selections: normal, bright
  • Powered by 12V MAX CXT Li-Ion batteries with option to use 8 x AA batteries with  optional ADP09 Battery Adapter
  • Mode memory function remembers line beam mode that was used when last turned off and stays in that mode when turned on
  • Shock absorbing construction protects the laser from damage during transport and storage
  • eXtremeProtection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Battery protection system with LED indicator light provides over-discharge protection
  • Large carrying handle for operator convenience

Items Included: Batteries and Charger Sold Separately. Laser Viewing Glass (TK02100200), Soft Case (TKK233F000)

Shipping Dimensions (Length x Width x Height) & Weight : 11.02 In. X 8.27 In. X 7.87 In. Weight : 4.03 Lb.

Specifications

Battery Capacities 12Vmax CXT Li-ion
Laser:
Line Beam Color Green
Output 1 mW or less
Safety Class Class 2
Wavelength 510 - 530 nm
Line Width at 10m 3 mm
Vertical Line Indication Range +/- 4˚
Accuracy:
2-Vertical Line 90o +/- 0.01o
Emitted Laser +/- 1 mm / 10 m
Dimensions (dia. x H) 3-7/8" x 4-3/4" (ø98 mm x 223 mm)
Net Weight 2.7 lbs (1.2 kg)
12Vmax CXT Rapid Charger Starter Kit, DC10SB, 4.0Ah x2

12Vmax CXT Rapid Charger Starter Kit, DC10SB, 4.0Ah x2

Read More
12Vmax CXT Standard Charger Starter Kit, DC10WD, 2.0Ah x1

12Vmax CXT Standard Charger Starter Kit, DC10WD, 2.0Ah x1

Read More

User Manual: SK10GD, SK20GD, SK40GD_EN.pdf

Parts Breakdown: SK40GD - AUG2021.pdf
