CXT Technology

(Tool only)


SK700GD

12Vmax CXT 360 Full Line Green Laser 4V4H, Tool Only

360° 4 Vertical Lines / 4 Horizontal Lines

IP54 Rated

CXT Technology LXT Technology
  • Green laser ideal for increased visibility in bright working conditions or outdoors
  • 3 brightness mode selections: eco, normal, bright
  • Powered by 12V MAX CXT Li-Ion batteries with option to use 8 x AA batteries with optional ADP09 Battery Adapter
  • Laser beam selection button allows for: 2V (F/R)/4H, 4V/4H, 4V, 4H, 2V (F/R) or 2V (L/R)
  • Levelling lock switch disables self-levelling feature for sloped line applications, and protects the self-levelling mechanism during transport
  • Integrated rotary base with eccentric rotation mechanism allows laser body to rotate without changing position of plumb point
  • Fine adjustment dial enables precise positioning of laser lines
  • Self-levelling gimbal mechanism with magnetic damper brake for easy and accurate set up
  • eXtremeProtection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IP54 rated against penetration from water, dust and debris

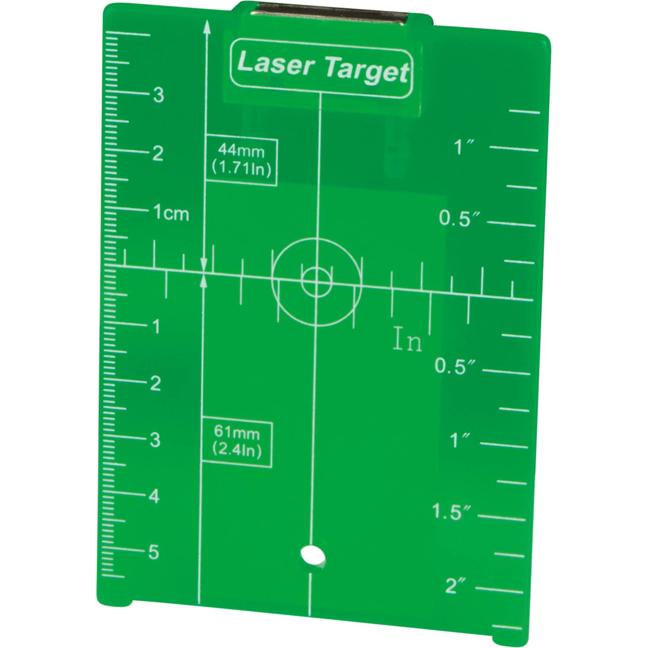

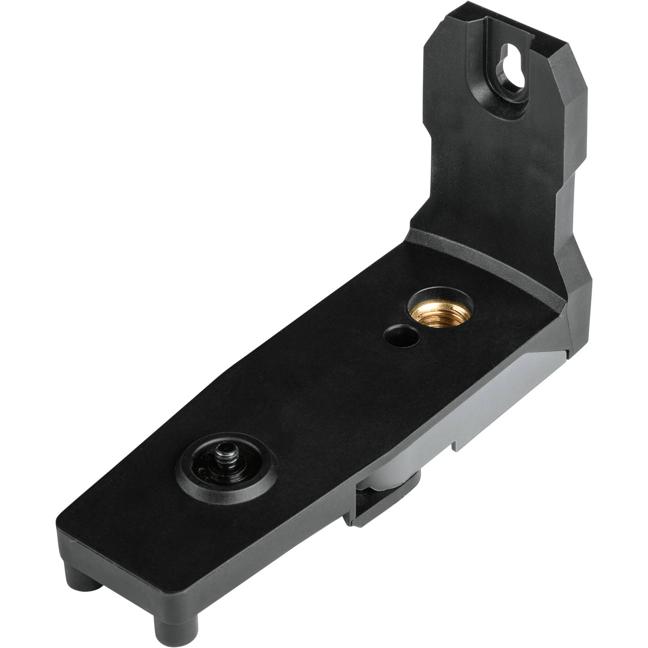

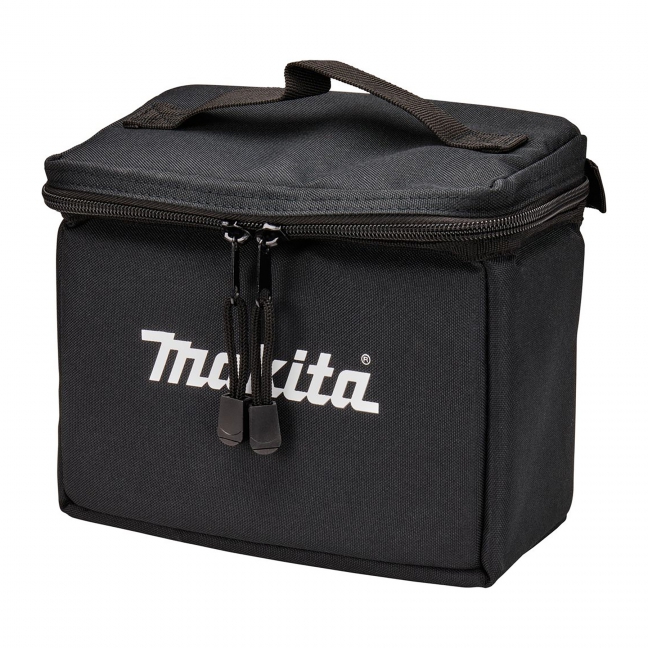

Items Included:Batteries and Charger Sold Separately. Holster (LE00929103), L Adapter (LE00929104), Target Plate Green (LE00823195)

  • Green laser ideal for increased visibility in bright working conditions or outdoors
  • 3 brightness mode selections: eco, normal, bright
  • Powered by 12V MAX CXT Li-Ion batteries with option to use 8 x AA batteries with optional ADP09 Battery Adapter
  • Laser beam selection button allows for: 2V (F/R)/4H, 4V/4H, 4V, 4H, 2V (F/R) or 2V (L/R)
  • Levelling lock switch disables self-levelling feature for sloped line applications, and protects the self-levelling mechanism during transport
  • Integrated rotary base with eccentric rotation mechanism allows laser body to rotate without changing position of plumb point
  • Fine adjustment dial enables precise positioning of laser lines
  • Self-levelling gimbal mechanism with magnetic damper brake for easy and accurate set up
  • eXtremeProtection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IP54 rated against penetration from water, dust and debris

Items Included: Batteries and Charger Sold Separately. Holster (LE00929103), L Adapter (LE00929104), Target Plate Green (LE00823195)

Shipping Dimensions (Length x Width x Height) & Weight : 7.48 In. X 8.66 In. X 5.12 In. Weight : 3.33 Lb.

Specifications

Battery Capacities 12Vmax CXT Li-ion
Laser:
Line Beam Color Green
Output 2 mW or less
Safety Class Class 2
Wavelength 510 - 530 nm
Line Width at 5m 2.0 mm
Vertical Line Indication Range +/- 4˚
Accuracy +/- 2mm / 10 m
Dimensions (L x W x H w/o Protrusions) 5-1/4" x 4-1/8" x 6" (133 mm x 104 mm x 153 mm)
Net Weight 1.8 lbs (0.8 kg)
12Vmax CXT Rapid Charger Starter Kit, DC10SB, 4.0Ah x2

12Vmax CXT Rapid Charger Starter Kit, DC10SB, 4.0Ah x2

Read More
12Vmax CXT Standard Charger Starter Kit, DC10WD, 2.0Ah x1

12Vmax CXT Standard Charger Starter Kit, DC10WD, 2.0Ah x1

Read More

User Manual: SK700D-SK700GD - EN.pdf

Parts Breakdown: SK700GD - FEB2022.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
