DTD172Z

18V LXT Brushless 1/4" Impact Driver, Tool Only

Features "Quick Change Memory Mode"

Variable 4-Speed, Reversible

LXT Technology LXT Technology LXT Technology 18V Battery
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions

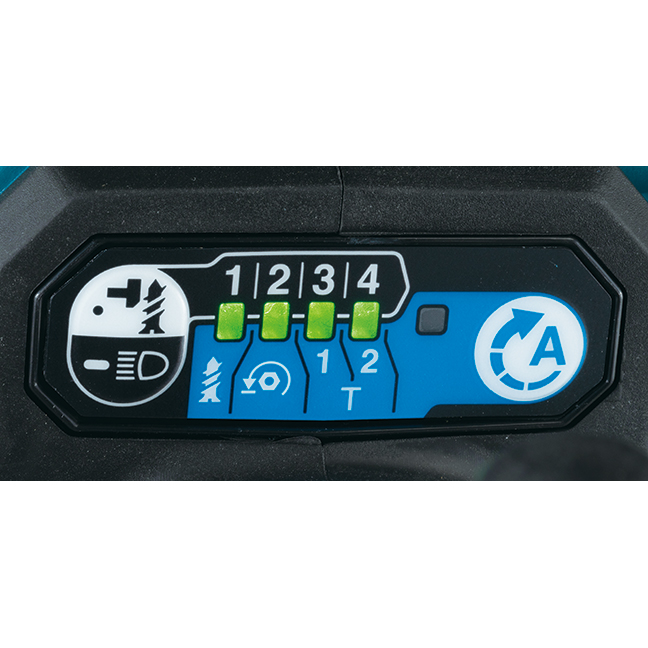

  • 4 stage impact power selection + TEK 1, TEK 2, 'Cam-Out' and Auto-Stop modes to ensure precise fastening and prevent damage to fasteners
  • 'Cam-out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • 2-stage TEK modes reduce impact power during final stages of fastener seating in thick or thin metal
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • Quick-change memory mode allows operator to rapidly toggle between two registered settings
  • Light mode allows operator to engage LED light for use as a worklight in dark areas
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • LED charge level indicator displays approximate remaining battery power
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Batteries and Charger Sold Separately. Hook (346449-3)

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • 4 stage impact power selection + TEK 1, TEK 2, 'Cam-Out' and Auto-Stop modes to ensure precise fastening and prevent damage to fasteners
  • 'Cam-out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • 2-stage TEK modes reduce impact power during final stages of fastener seating in thick or thin metal
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • Quick-change memory mode allows operator to rapidly toggle between two registered settings
  • Light mode allows operator to engage LED light for use as a worklight in dark areas
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • LED charge level indicator displays approximate remaining battery power
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 5.63 In. X 8.39 In. X 3.82 In. Weight : 2.6 Lb.

Specifications

Battery Capacities: 18V LXT
Hex Shank 1/4"
No Load Speed 0 - 3,600/3,200/2,100/1,100 RPM
Impacts Per Minute 0 - 3,800/3,600/2,600/1,100 IPM
Maximum Torque   1,590 in. lbs (180 Nm)
Vibration Level 13.5 m/s²
Noise Level 97 dB(A)
Overall Length  4-1/2" (114 mm)
Net Weight  1.8 lbs (0.8 kg)
