Home / Tool / Cordless / LXT / Drilling & Fastening / Impact Drivers / DTD172RTX1

LXT Technology

(Tool + Battery + Charger)


DTD172RTX1

18V LXT Brushless 1/4" Impact Driver, 5.0Ah x2Kit

Features "Quick Change Memory Mode"

Variable 4-Speed, Reversible

LXT Technology LXT Technology LXT Technology 18V 5.0Ah Fuel Guage Battery
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • 4 stage impact power selection + TEK 1, TEK 2, 'Cam-Out' and Auto-Stop modes to ensure precise fastening and prevent damage to fasteners
  • 'Cam-out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • 2-stage TEK modes reduce impact power during final stages of fastener seating in thick or thin metal
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)

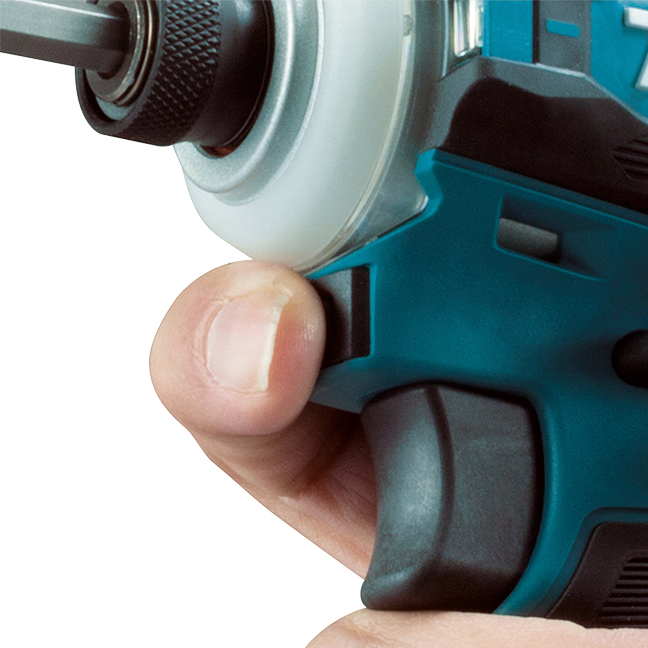

  • Quick-change memory mode allows operator to rapidly toggle between two registered settings
  • Light mode allows operator to engage LED light for use as a worklight in dark areas
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • LED charge level indicator displays approximate remaining battery power
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

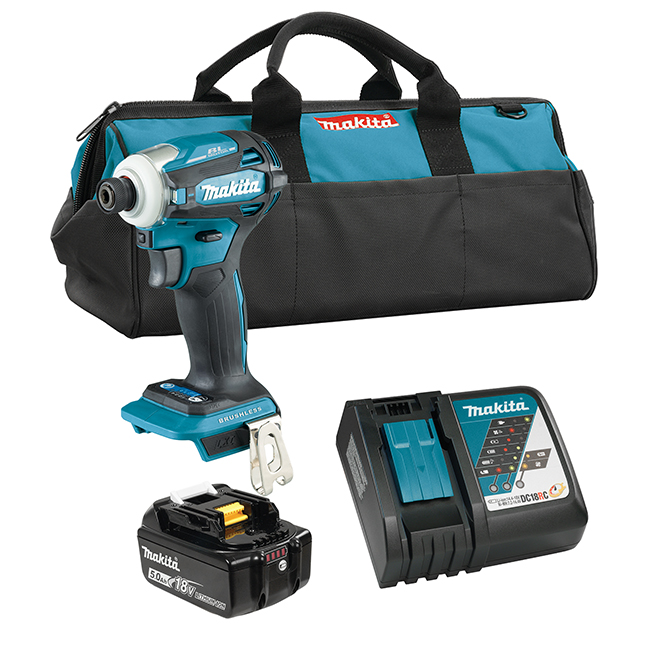

Items Included:18V (5.0 Ah) Li-Ion Battery BL1850B (196675-2), Rapid Charger (DC18RC), Battery Cover (450128-8), Hook (346449-3), 21" Tool Bag (821007X)

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • 4 stage impact power selection + TEK 1, TEK 2, 'Cam-Out' and Auto-Stop modes to ensure precise fastening and prevent damage to fasteners
  • 'Cam-out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • 2-stage TEK modes reduce impact power during final stages of fastener seating in thick or thin metal
  • Auto stop mode stops impact and rotation in 0.2 seconds after fastener is loosened (when trigger is fully depressed in reverse rotation)
  • Quick-change memory mode allows operator to rapidly toggle between two registered settings
  • Light mode allows operator to engage LED light for use as a worklight in dark areas
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • LED charge level indicator displays approximate remaining battery power
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 18V (5.0 Ah) Li-Ion Battery BL1850B (196675-2), Rapid Charger (DC18RC), Battery Cover (450128-8), Hook (346449-3), 21" Tool Bag (821007X)

Shipping Dimensions (Length x Width x Height) & Weight : 8.78 In. X 21.22 In. X 6.89 In. Weight : 10.36 Lb.

Specifications

Battery Capacities: 18V LXT
Hex Shank 1/4"
No Load Speed 0 - 3,600/3,200/2,100/1,100 RPM
Impacts Per Minute 0 - 3,800/3,600/2,600/1,100 IPM
Maximum Torque   1,590 in. lbs (180 Nm)
Vibration Level 13.5 m/s²
Noise Level 97 dB(A)
Overall Length  4-1/2" (114 mm)
Net Weight  3.3 lbs (1.5 kg)
