(Tool + Battery + Charger)


LM002JM101

64Vmax Brushless 21" Lawn Mower, 4.0Ah x1Kit

Suitable For Lawns Up To 1,600 square meters (Approx. 17,220 square feet)

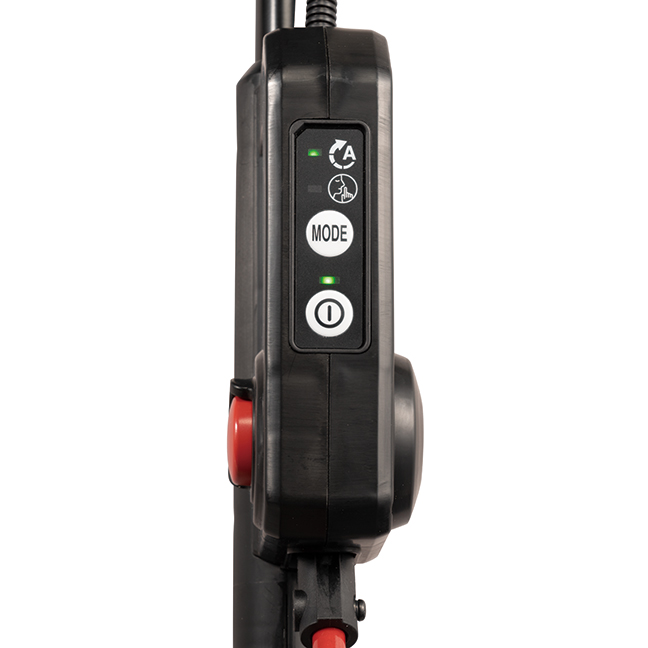

3 cutting modes, normal, soft no-load, noise reduction

LXT Technology LXT Technology
  • Powerful Brushless DC motor with 2.3 kW of power designed to cut thick grass quickly and easily
  • Large lightweight plastic deck with 21” cutting width ensures the job is completed with less passes
  • 3 in 1 capability enables mulching, rear bagging or rear discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety

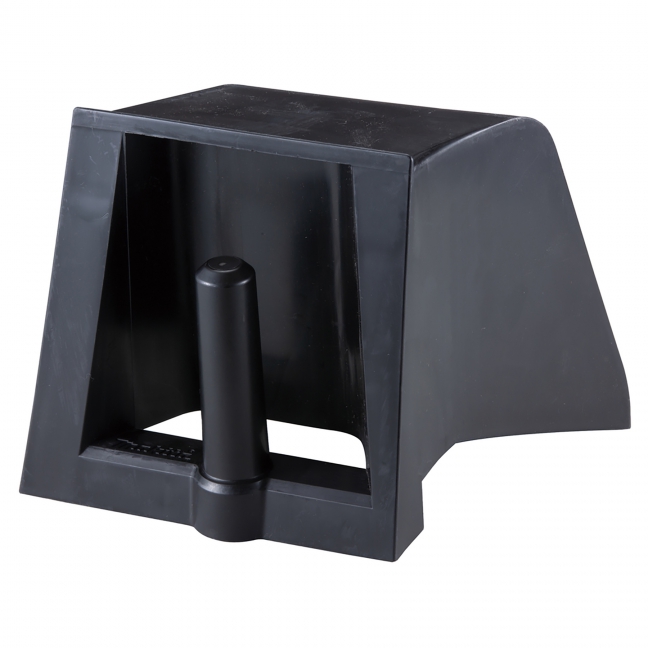

Items Included:64V Max (4.0Ah) Li-Ion Battery BL6440 (BL6440), Charger (DC64WA), Battery Cover (413A28-9), Blade Set (191V96-5), Rod 6 (327589-6), Mulching Plug (413945-7), Socket Wrench 17 (782210-8)

  • Powerful Brushless DC motor with 2.3 kW of power designed to cut thick grass quickly and easily
  • Large lightweight plastic deck with 21” cutting width ensures the job is completed with less passes
  • 3 in 1 capability enables mulching, rear bagging or rear discharge
  • Grass level indicator shows operator when clipping bag is full
  • Low noise mode adjusts to the condition of the grass being mowed for more efficient quieter operation and increased battery life.
  • 10 cutting heights for optimum grass length from 13/16" - 3-15/16" achieved with a single lever for adjustment
  • Large wheels with ball bearings make for more smoother operation on bumpy or muddy lawns
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • IPX4 rated for maximum weather and water resistance
  • Electric brake for operator safety
  • Folding handles and two point carrying handles for easy and compact transport and storage
  • 2-step switch/handle lever starting system and child lock key prevents accidental start up for maximum safety

Items Included: 64V Max (4.0Ah) Li-Ion Battery BL6440 (BL6440), Charger (DC64WA), Battery Cover (413A28-9), Blade Set (191V96-5), Rod 6 (327589-6), Mulching Plug (413945-7), Socket Wrench 17 (782210-8)

Shipping Dimensions (Length x Width x Height) & Weight : 18.7 In. X 43.7 In. X 24.41 In. Weight : 82.67 Lb.

Specifications

Battery Capacities  64Vmax Li-ion
Cutting Width 21" (534 mm)
Range of Height 13/16" - 3-15/16" (20 - 100 mm)
Step 10 Steps
Grass Box Capacity 70 L
No Load Speed:
  Normal mode 2,800 RPM
  Soft no-load mode  2,300 / 2,800 RPM
  Noise reduction mode 2,300 RPM
Vibration Level 2.5 m/s²
Noise Level  82.1 dB(A)
Dimensions (L x W x H)  71” x 23" x 43” (1,800 mm x 585 mm x 1,090 mm)
Net Weight 61.3 lbs. (27.8 kg)

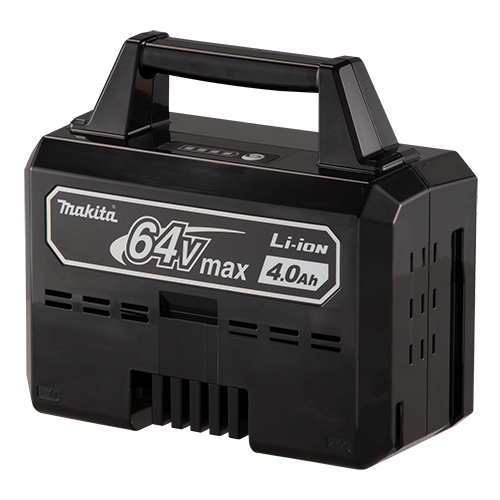

64V max 4.0Ah Li-Ion Battery

64V max 4.0Ah Li-Ion Battery

Read More
64Vmax Li-Ion Battery, 10.0Ah

64Vmax Li-Ion Battery, 10.0Ah

Read More

User Manual: LM002J - EN FR SP.pdf

Parts Breakdown: LM002JM101 - NOV2024.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
