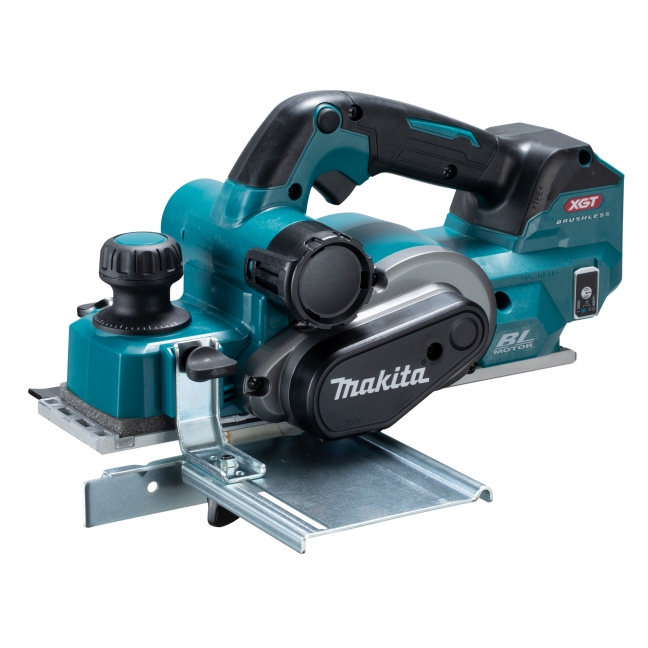

KP001GM101

40Vmax XGT Brushless 3-1/4" Planer w/AWS, 4.0Ah x1Kit

Makita's FIRST 40V max XGT Li-Ion Planer!

Max. 5/32" Planing & 1" Shiplapping Depth

Soft Start, Anti-Restart

XGT Technology LXT Technology LXT Technology AWS Technology

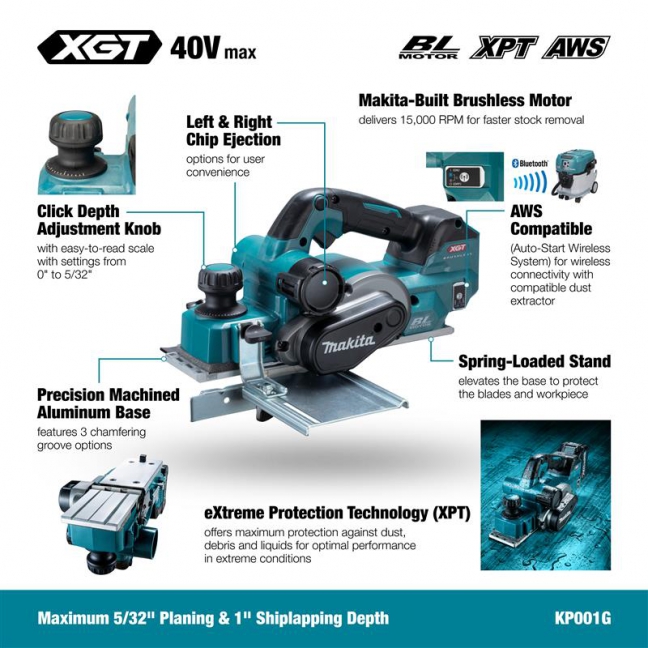

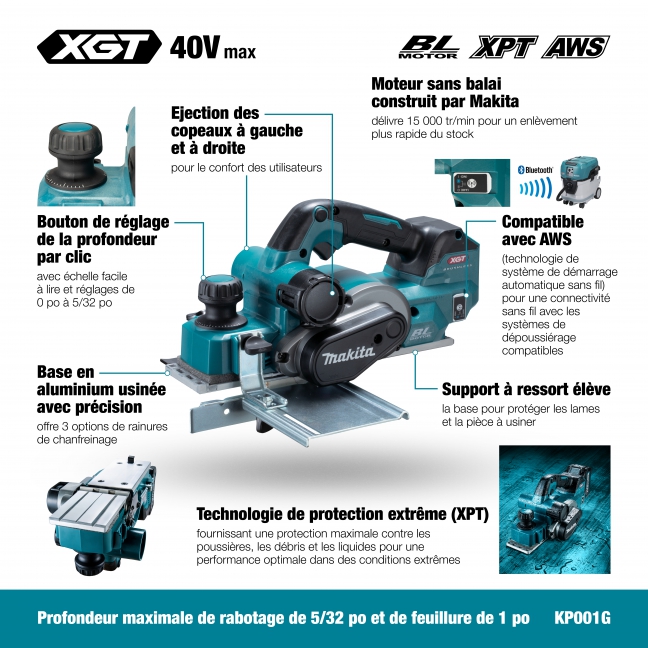

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications

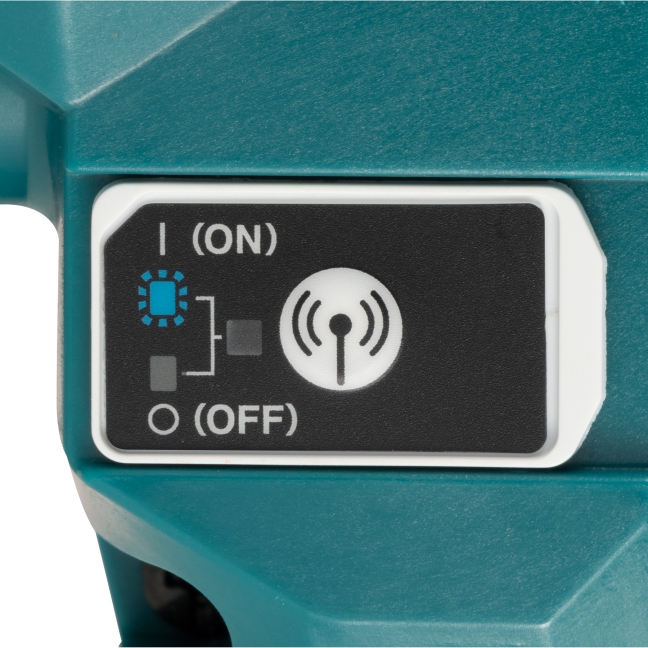

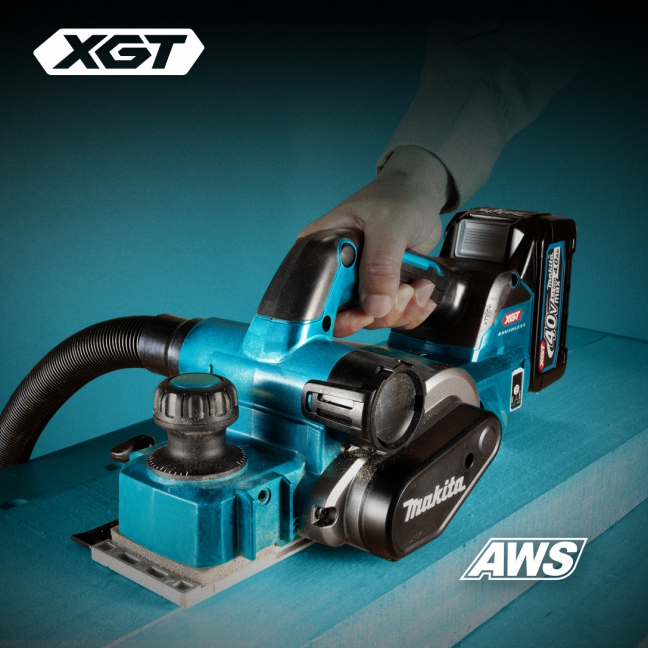

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools

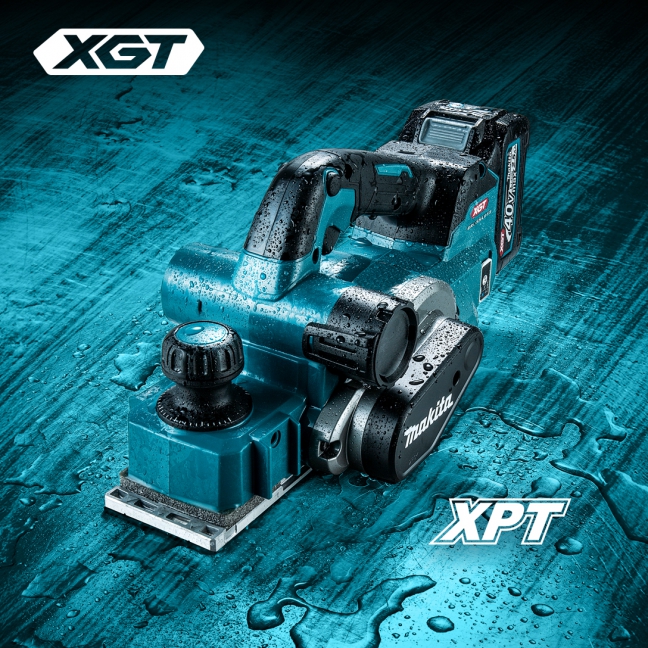

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electric brake stops blades 3-5 seconds after trigger is released for increased operator safety
  • Anti-restart feature prevents accidental startup of tool during battery changing when switch is locked in the on position
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life

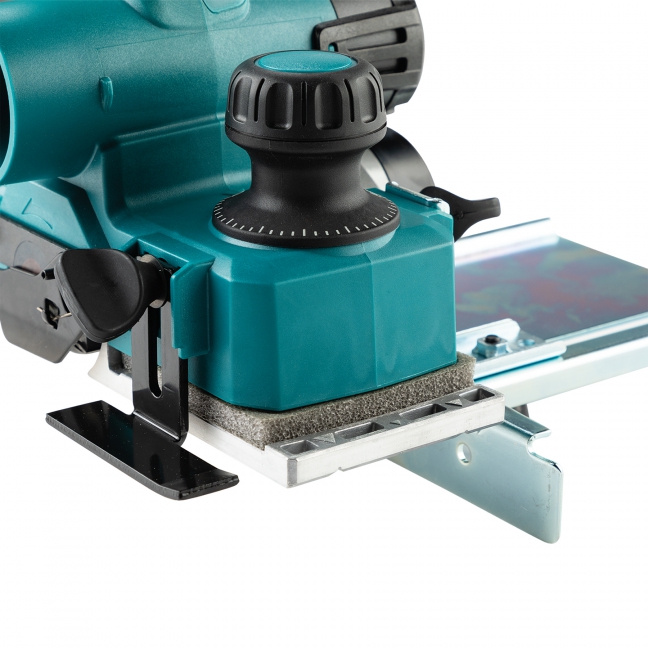

  • Base plate foot protects materials and blade from damage

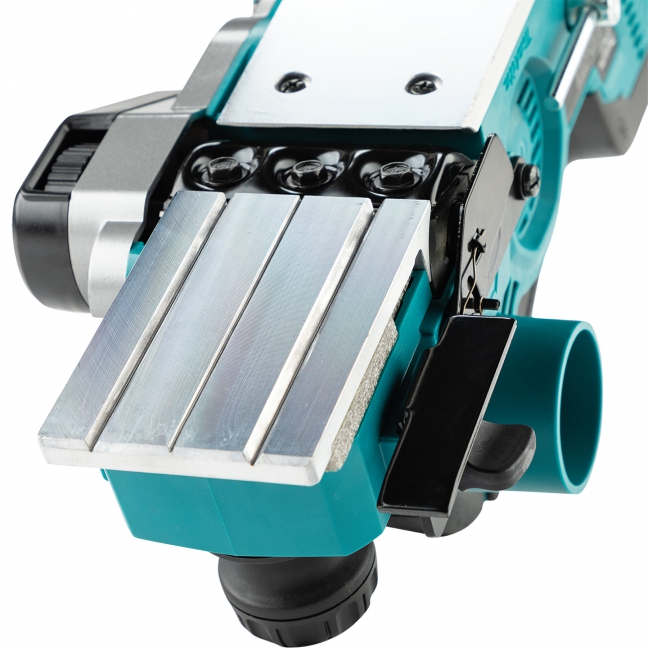

  • Three chamfering grooves enables quick and easy chamfering of corners

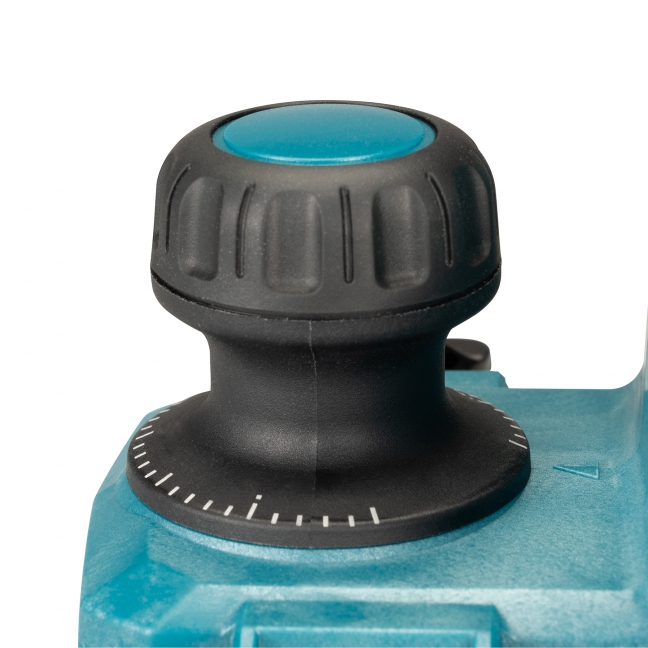

  • Depth adjustment knob with click stops for precision planing applications
  • Large lock-off safety lever prevents accidental start up

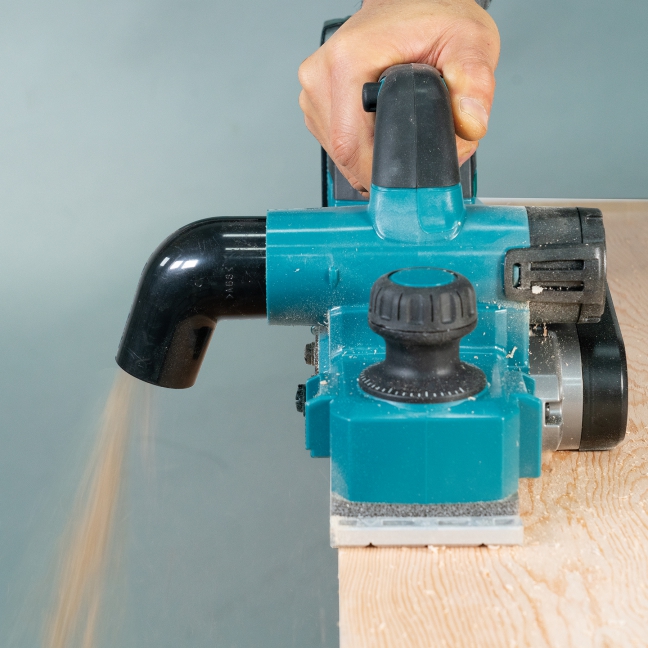

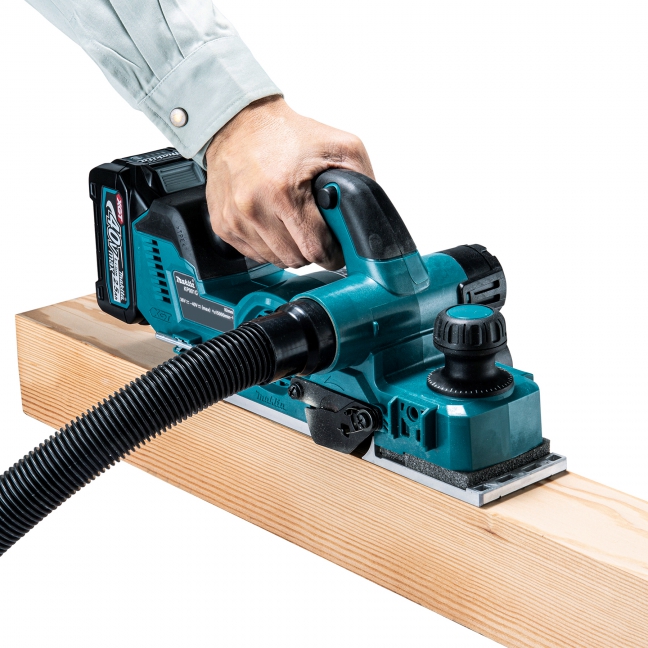

  • Left or right side chip ejection or dust collection using dust bag or Makita dust extractor
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

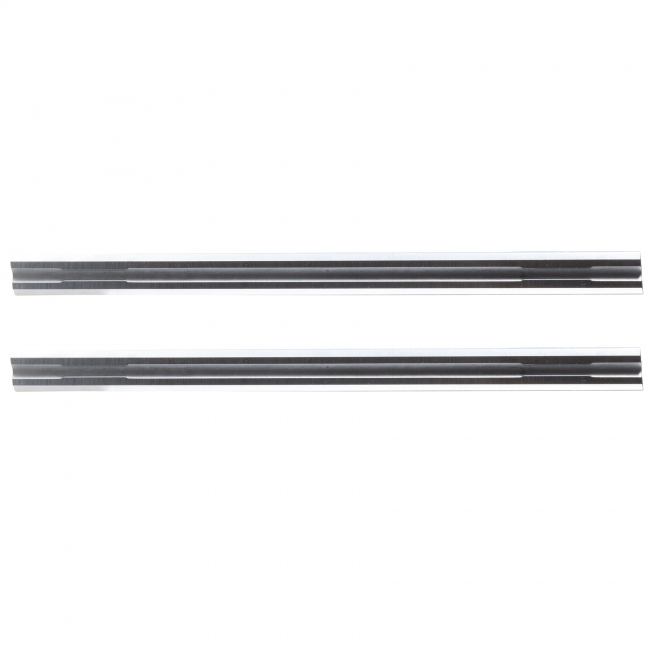

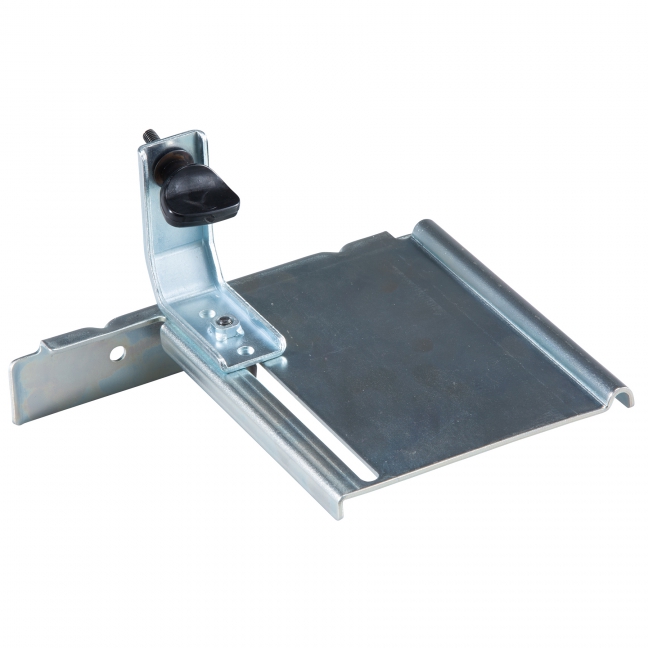

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 3-1/4" C.T. Mini Planer Blade (A-82921), Blade Gauge Assembly (191C19-9), Guide Rule (191C23-8), Depth Guide (342390-8), Socket Wrench 9 (782209-3), Interlocking Case (197212-5)

  • Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electric brake stops blades 3-5 seconds after trigger is released for increased operator safety
  • Anti-restart feature prevents accidental startup of tool during battery changing when switch is locked in the on position
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Base plate foot protects materials and blade from damage
  • Three chamfering grooves enables quick and easy chamfering of corners
  • Depth adjustment knob with click stops for precision planing applications
  • Large lock-off safety lever prevents accidental start up
  • Left or right side chip ejection or dust collection using dust bag or Makita dust extractor
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 3-1/4" C.T. Mini Planer Blade (A-82921), Blade Gauge Assembly (191C19-9), Guide Rule (191C23-8), Depth Guide (342390-8), Socket Wrench 9 (782209-3), Interlocking Case (197212-5)

Shipping Dimensions (Length x Width x Height) & Weight : 9.92 In. X 16.5 In. X 12.56 In. Weight : 19.84 Lb.

Specifications

Battery Capacities 40Vmax XGT
No Load Speed 15,000 RPM
Maximum Capacities:
Planing Width 3-1/4" (82 mm)
Planing Depth 5/32" (4 mm)

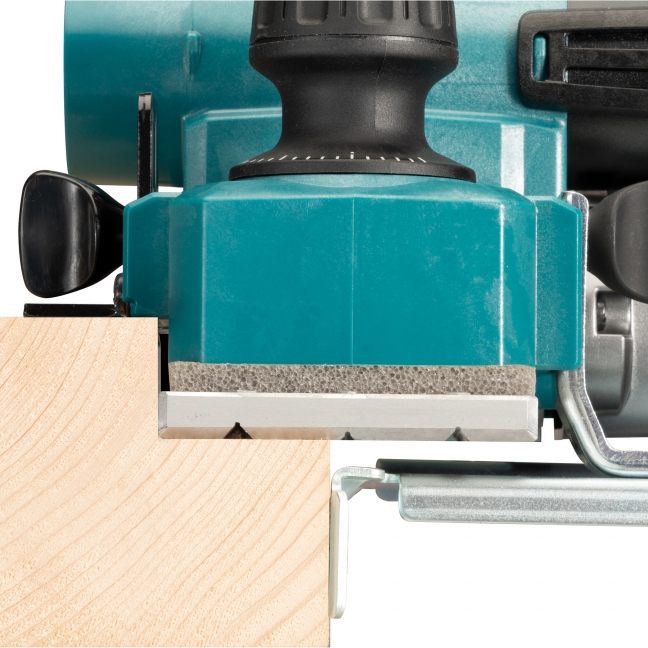

Shiplapping 1" (25 mm)
Vibration Level 4.3 m/s²
Noise Level 87 dB(A)
Overall Length 15-1/8" (385 mm)
Net Weight 8.9 lbs (4.0 kg)
