TD003GZ

40Vmax XGT Brushless 1/4" Impact Driver, Tool Only

Variable 4-Speed, Reversible, Constant Speed Control

XGT Technology LXT Technology LXT Technology
  • POWER : Makita-built brushless motor delivers 1,860 in. lbs. of Max Torque
  • DURABILITY : eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • SPEED : 4 speed settings (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,400/ 0-2,600/ 0-3,600/ 0-4,100 IPM)

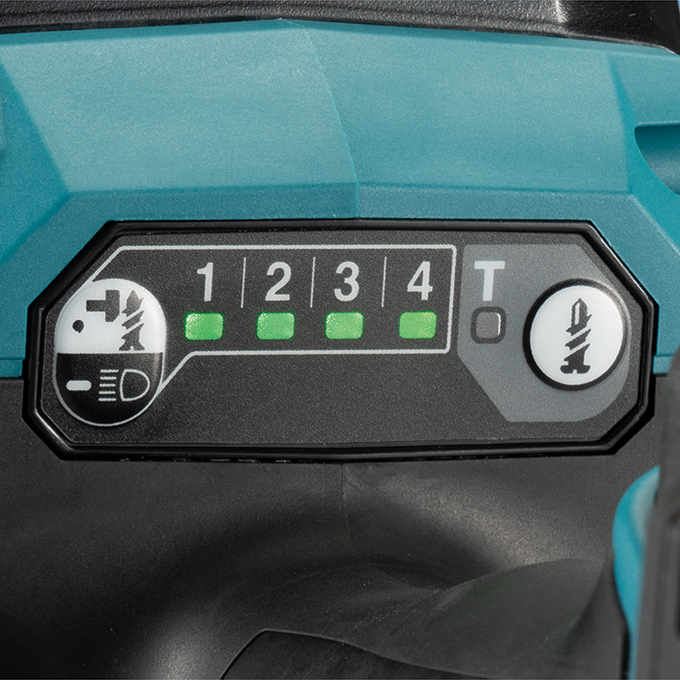

  • 4 stage impact speed selection + TEK 1 mode to ensure precise fastening and prevent damage to fasteners
  • LED Light mode to illuminate dark areas
  • 'Cam-out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • Fastening capacities- Machine screw: M4 - M8 (5/32" - 5/16"), Standard bolt: M5 - M16 (3/16" - 5/8"), High tensile bolt: M5 - M14 (3/16" - 9/16")
  • One-stage TEK modes reduce impact power during final stages of fastener seating in thin metals
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Constant speed control maintains constant speed under heavy load

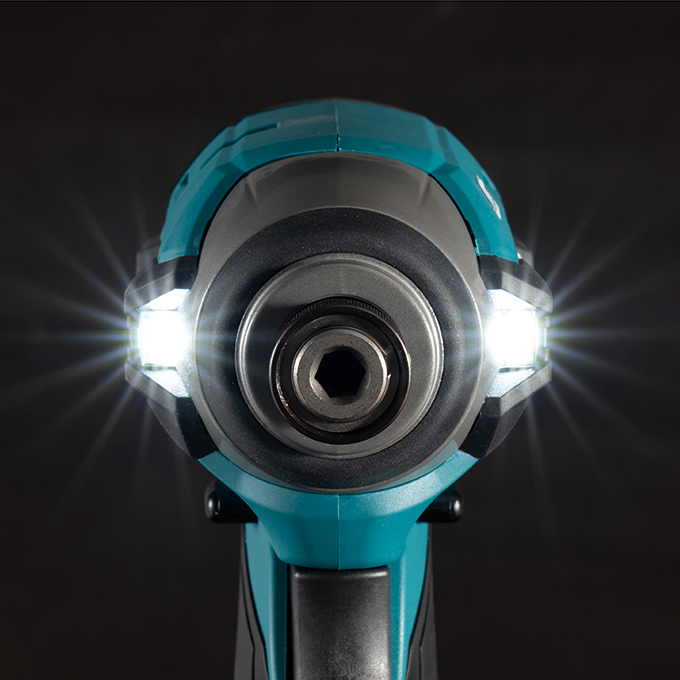

  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Batteries and Charger Sold Separately, + Bit 2-50, Hook (346317-0)

  • POWER : Makita-built brushless motor delivers 1,860 in. lbs. of Max Torque
  • DURABILITY : eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • SPEED : 4 speed settings (0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM & 0-1,400/ 0-2,600/ 0-3,600/ 0-4,100 IPM)
  • 4 stage impact speed selection + TEK 1 mode to ensure precise fastening and prevent damage to fasteners
  • LED Light mode to illuminate dark areas
  • 'Cam-out' elimination mode operates at low speed until fastening begins to eliminate 'cam-out' and cross-threading
  • Fastening capacities- Machine screw: M4 - M8 (5/32" - 5/16"), Standard bolt: M5 - M16 (3/16" - 5/8"), High tensile bolt: M5 - M14 (3/16" - 9/16")
  • One-stage TEK modes reduce impact power during final stages of fastener seating in thin metals
  • Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
  • Constant speed control maintains constant speed under heavy load
  • Twin LED job lights with pre-glow and afterglow features
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately, + Bit 2-50, Hook (346317-0)

Shipping Dimensions (Length x Width x Height) & Weight : 9.13 In. X 6.14 In. X 3.98 In. Weight : 2.05 Lb.

Specifications

Battery Capacities:  40Vmax XGT
Hex Shank 1/4"
No Load Speed 0 - 3,700/ 3,200/ 2,100/ 1,100 RPM
Impacts Per Minute  0 - 4,100/ 3,600/ 2,600/ 1,400 IPM
Maximum Torque   1,860 in. lbs (210 Nm)
Vibration Level  11.9 m/s²
Noise Level  95 dB(A)
Overall Length  4-3/4" ( 121 mm)
Net Weight  2.3 lbs (1.0 kg)
