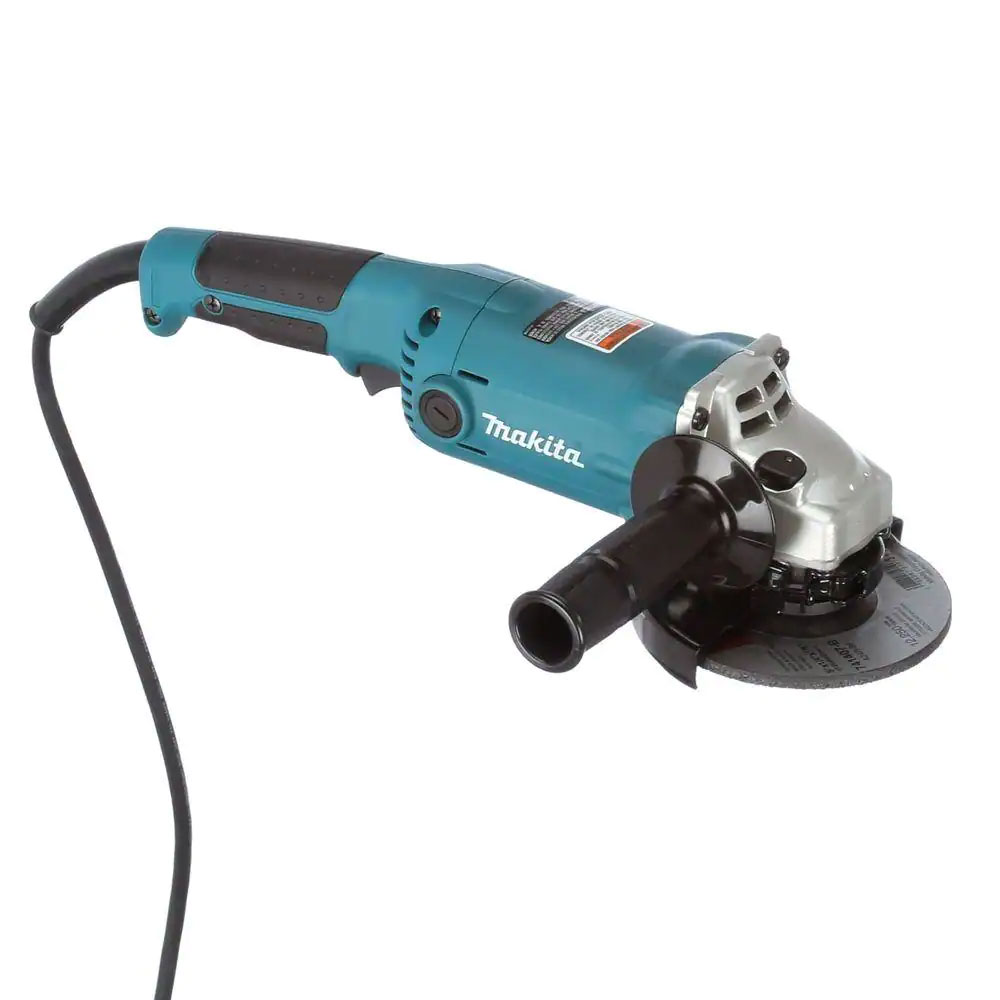

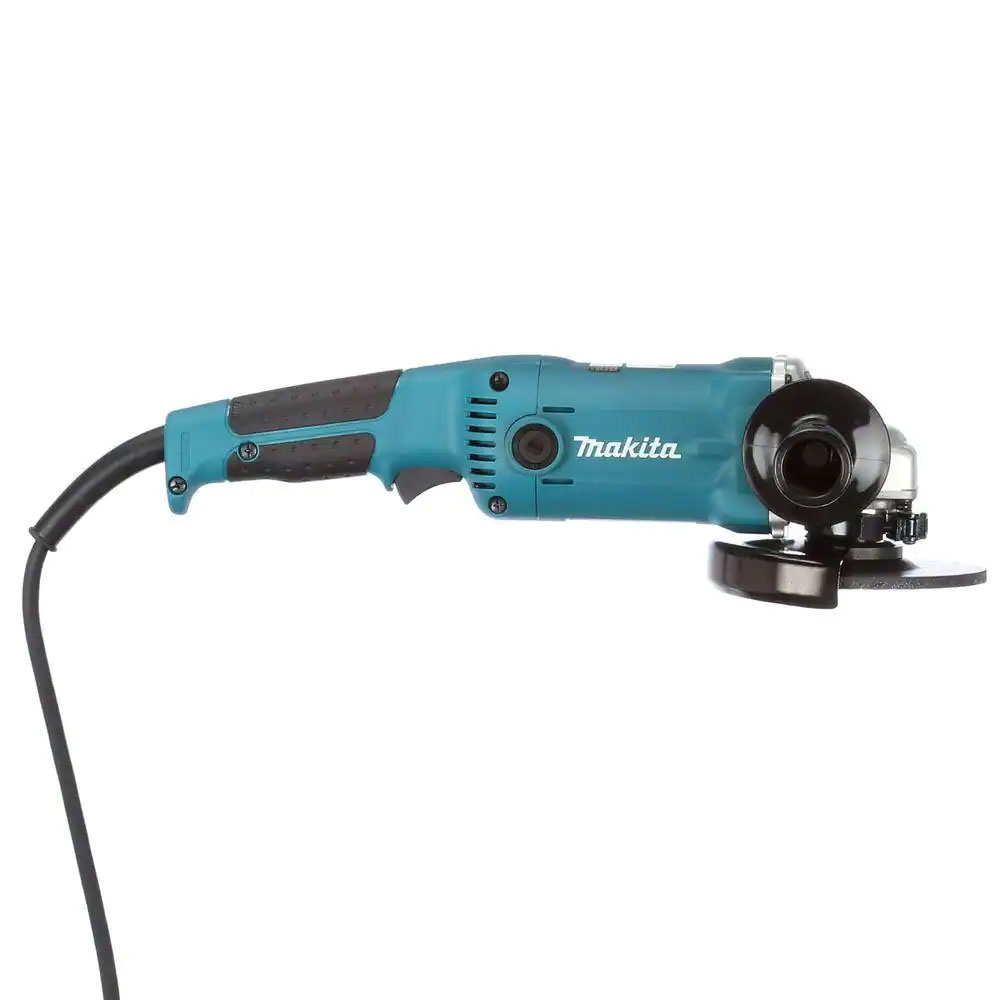

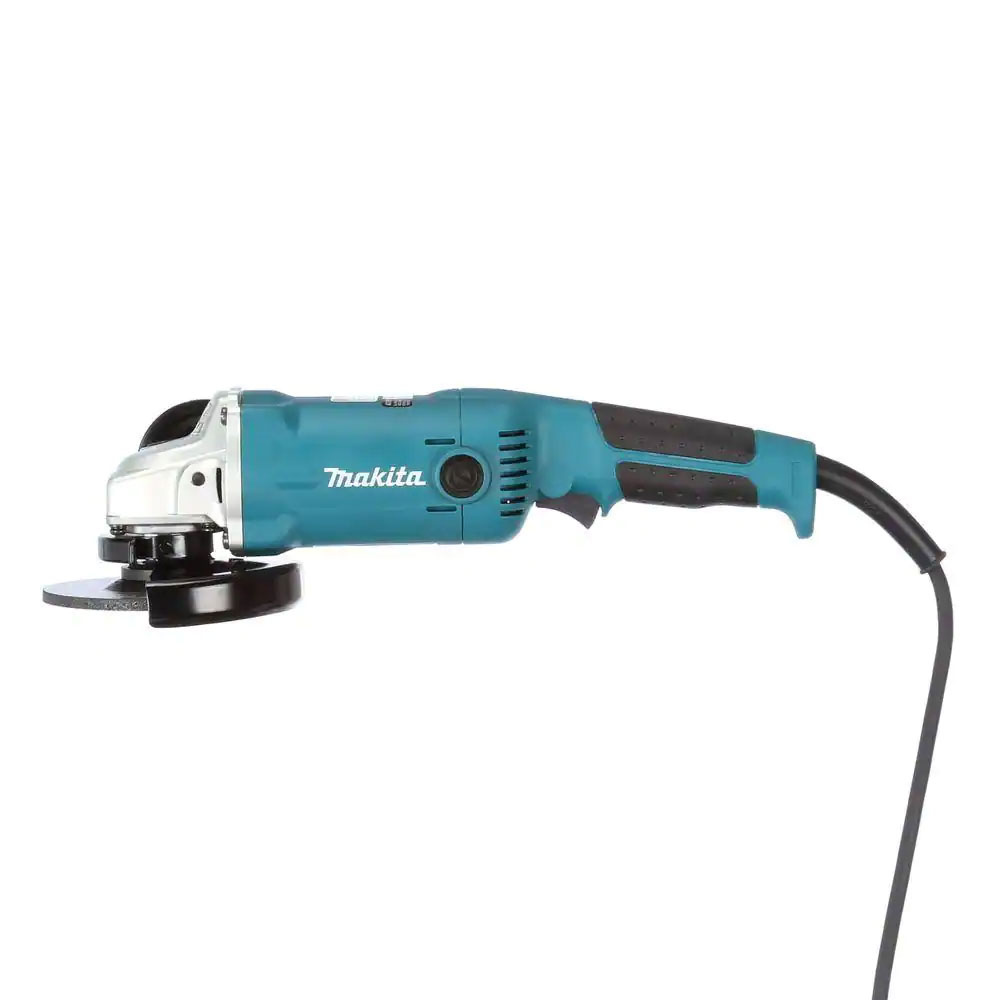

5" Angle Grinder w/Trigger Switch AC/DC

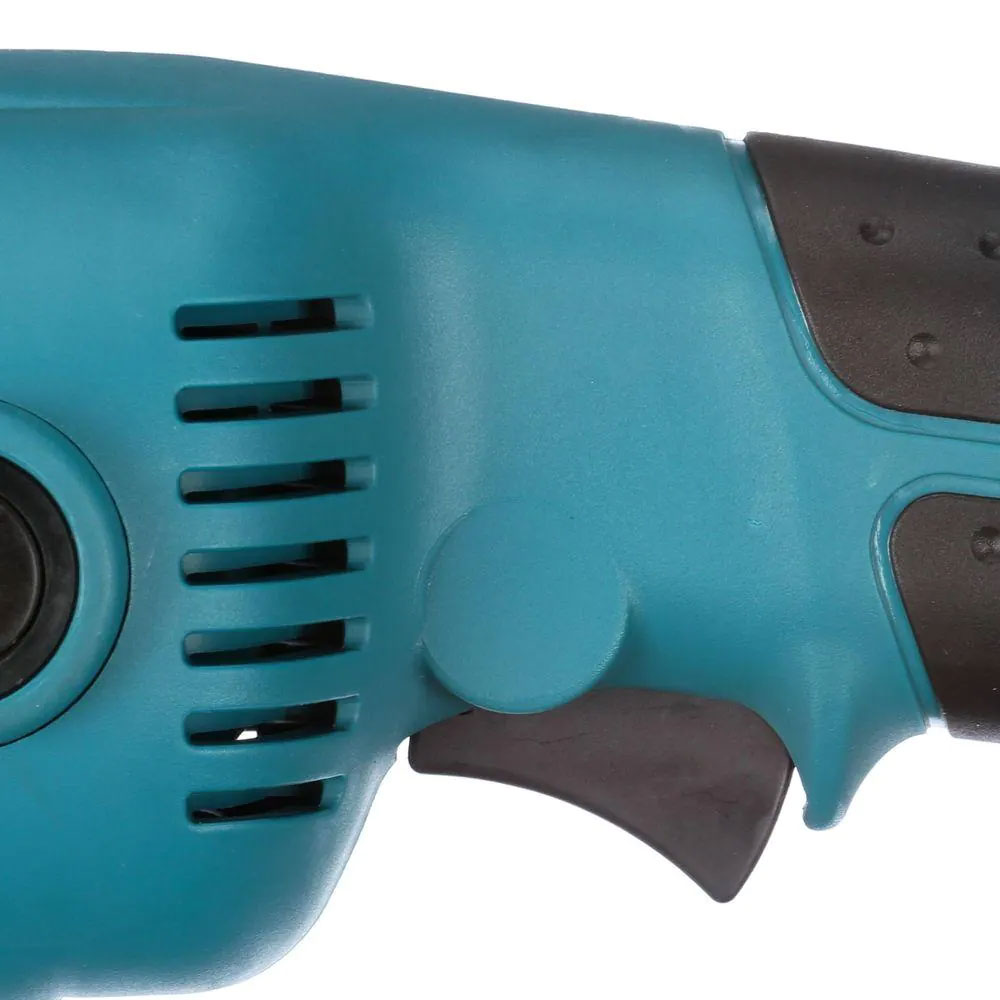

Trigger Switch with Lock-On Button (AC/DC)

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rotatable gear housing can be positioned at every 90^o for optimal positioning

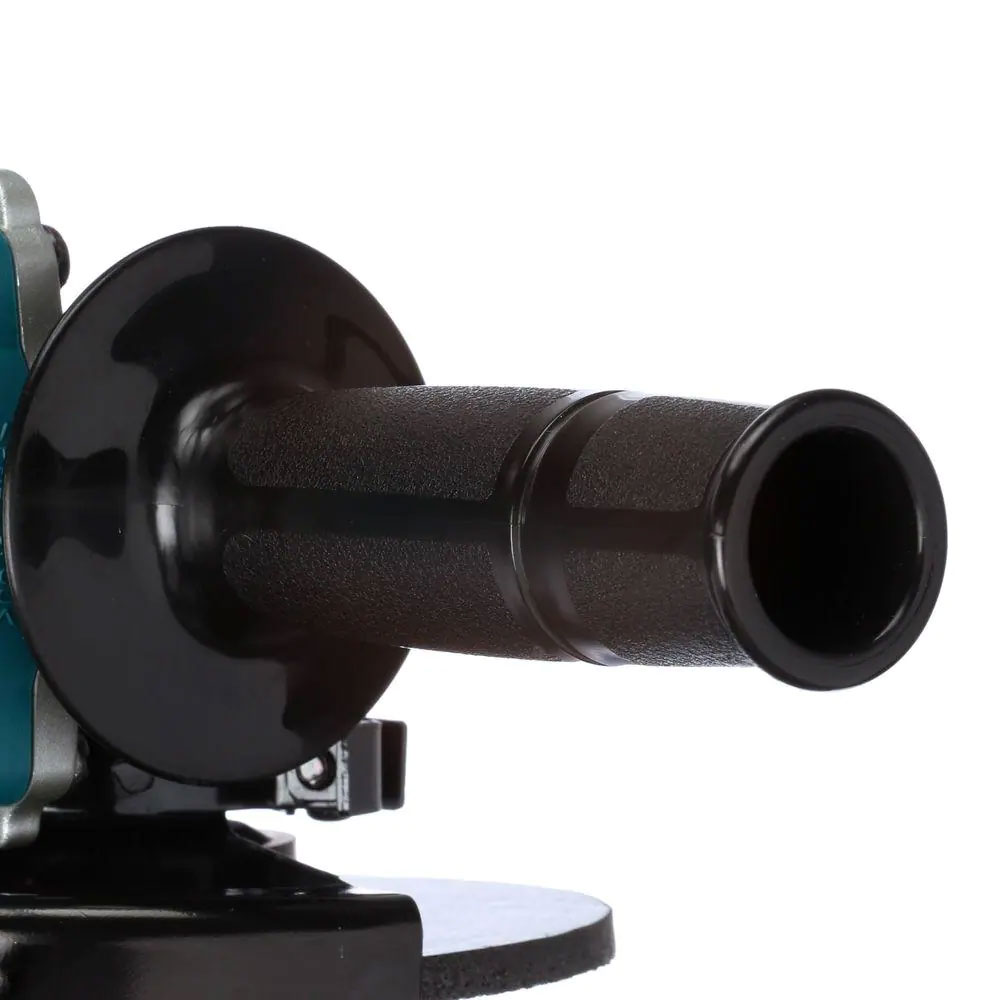

Removable side handle can be mounted on left or right side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

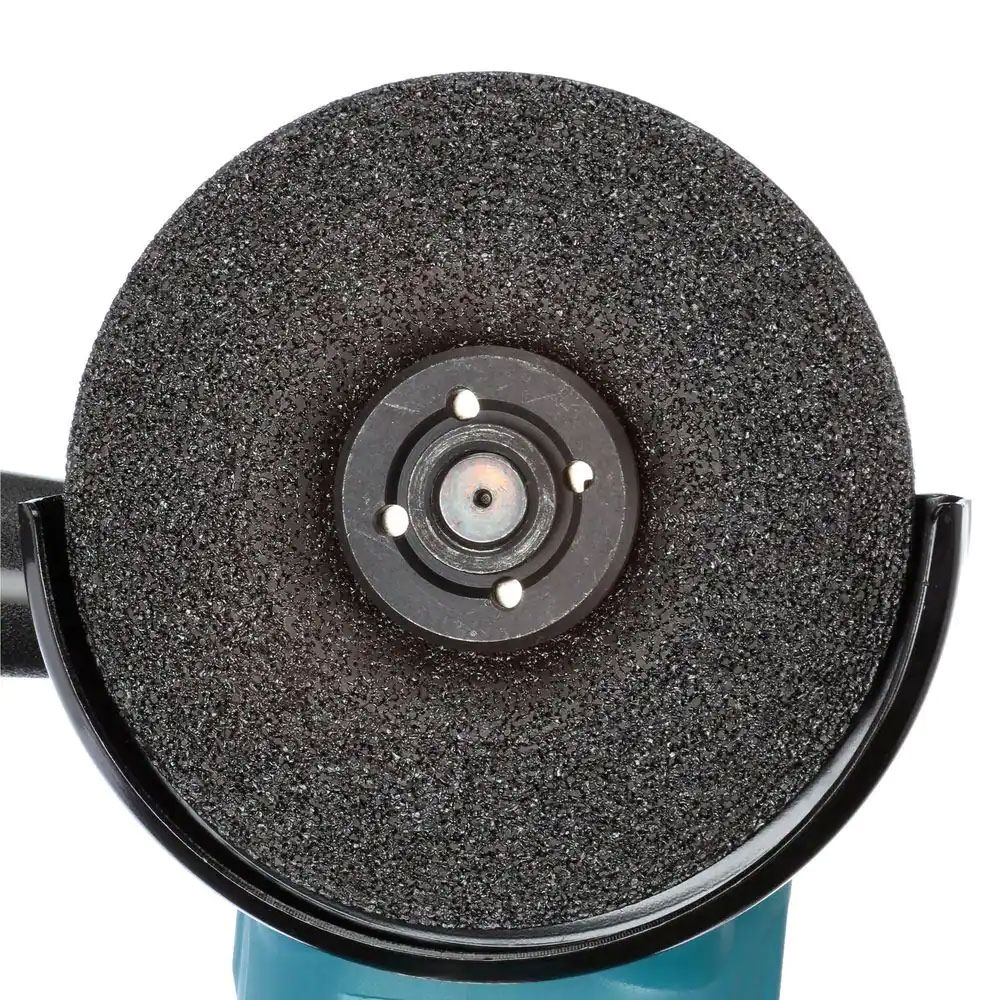

Items Included:Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123145-8), 5” Depressed Center Wheel (1 Ea. A-95962-25), Inner Flange (224399-1), Lock Nut 5/8-45 (224568-4)

Where to buy

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Removable side handle can be mounted on left or right side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Toolless Wheel Cover (123145-8), 5” Depressed Center Wheel (1 Ea. A-95962-25), Inner Flange (224399-1), Lock Nut 5/8-45 (224568-4)

Shipping Dimensions (Length x Width x Height) & Weight : 18.43 In. X 5.12 In. X 6.89 In. Weight : 7.72 Lb.

Specifications

Maximum Capacities:
Grinding Wheel	5" (125 mm)
Sanding Disc	5" (125 mm)
Wire Cup Brush	3-1/2" (90 mm)
Spindle Thread	5/8" - 11 UNC
No Load Speed	11,000 RPM
AMPS (120 V)	10.5 A
Vibration Level	9.5 m/s²
Noise Level	89 dB(A)
Overall Length	14" (356 mm)
Net Weight	5.7 lbs (2.6 kg)
