Home / Tool / Cordless / XGT / Grinding & Metalworking / Angle Grinders / GA023GM102

XGT Technology

(Tool + Battery + Charger)


GA023GM102

40Vmax XGT Brushless 5"Angle Grinder w/AWS, Thumb Switch, 4.0Ah x1Kit

Thumb Switch with Lock-On, Electric Brake, Soft Start, Electronic Current Limiter, Anti-Restart


XGT Technology LXT Technology Active Feedback technology LXT Technology AWS Technology
  • Power: Makita-built brushless motor delivers up to 8,500 RPM for heavy-load applications and increased power and speed.
  • Performance: Offers up to 60% faster cutting speed when cutting #5 (5/8”) rebar.
  • Efficiency: 40V max XGT 4.0Ah Battery Reaches full charge in 45 minutes or less with 40V max XGT Rapid Charger
  • Applications: It is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more.
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED charge level indicator displays approximate remaining battery power
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Variable speed dial enables operator to adjust wheel speed based on materials or application
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

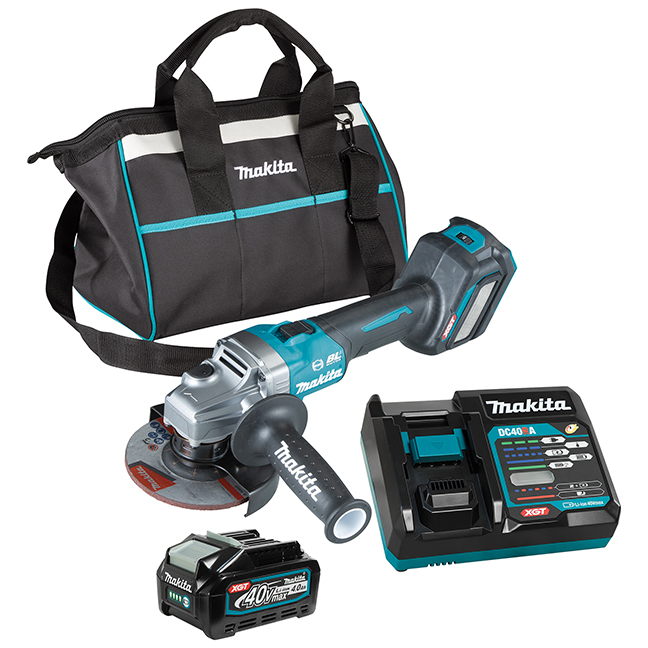

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), 5 " Depressed Centre Wheel (D-20797), Wheel Cover (347480-2), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4), Tool Bag (832319-7)

  • Power: Makita-built brushless motor delivers up to 8,500 RPM for heavy-load applications and increased power and speed.
  • Performance: Offers up to 60% faster cutting speed when cutting #5 (5/8”) rebar.
  • Efficiency: 40V max XGT 4.0Ah Battery Reaches full charge in 45 minutes or less with 40V max XGT Rapid Charger
  • Applications: It is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more.
  • Active Feedback sensing Technology (AFT) automatically shuts down the tool if there is a sudden drop in rotation speed (e.g. kick-back)
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • LED charge level indicator displays approximate remaining battery power
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Soft start feature gradually increases speed to eliminate start up shock
  • Electronic current limiter protects motor from accidental overload
  • Variable speed dial enables operator to adjust wheel speed based on materials or application
  • Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Integrated dust screens act as additional protection against dust, dirt and debris
  • Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), 5 " Depressed Centre Wheel (D-20797), Wheel Cover (347480-2), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4), Tool Bag (832319-7)

Shipping Dimensions (Length x Width x Height) & Weight : 6.89 In. X 21.85 In. X 10.31 In. Weight : 14.6 Lb.

Specifications

Battery Capacities 40Vmax XGT
Grinding Wheel 5" (125 mm)
No Load Speed 3,000 - 8,500 RPM
Arbor Size 7/8" (22.23 mm)
Spindle Thread 5/8" - 11 UNC
Vibration Level 6.0 m/s²
Noise Level 81 dB(A)
Overall Length 16-3/4" (425 mm)
Net Weight 7.3 lbs (3.3 kg)
