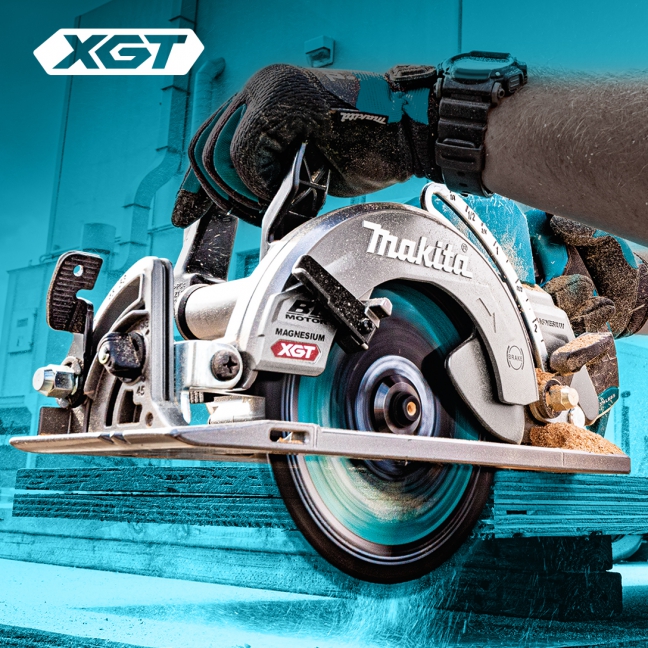

40Vmax XGT Brushless 7-1/4" Circular Saw, 4.0Ah x1Kit

BEST CUTTING CAPACITY, SPEED AND WEIGHT IN CLASS!

Electric Brake, Soft Start

Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Max. 2-9/16” cut capacity (at 0°) ideal for single pass cutting of 3X dimensional lumber
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
Trigger-lock button prevents accidental start-up for increased safety

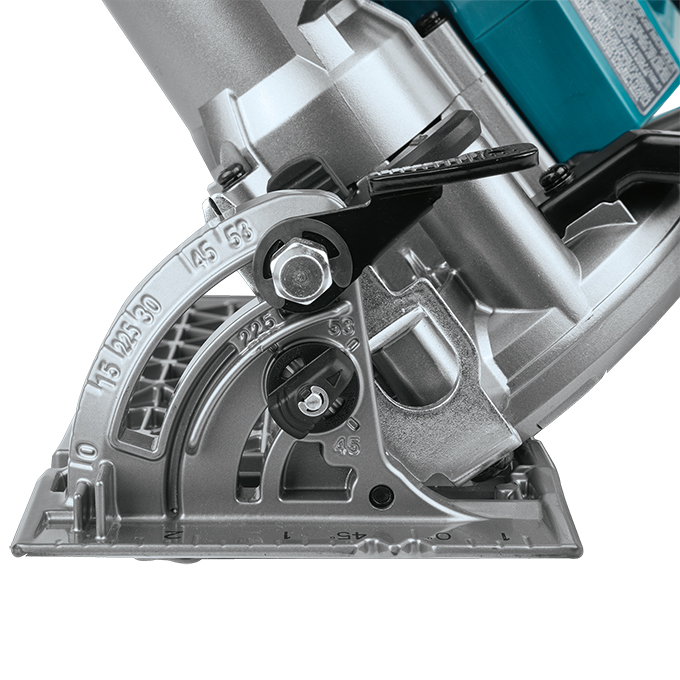

Bevel capacity of 0° - 53° with positive stop at 22.5° and 45°
High performance and lightweight design with magnesium blade case and base plate
On-board wrench storage for fast and easy blade changes
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

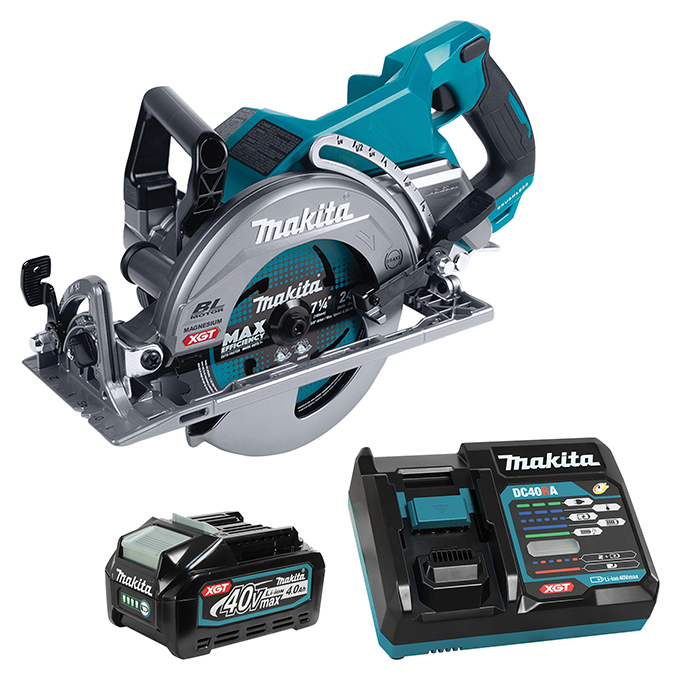

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 7-1/4" CT Blade 24T (B-61656), Offset Wrench 13 (782016-4)

Where to buy

Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
Max. 2-9/16” cut capacity (at 0°) ideal for single pass cutting of 3X dimensional lumber
Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
Trigger-lock button prevents accidental start-up for increased safety
Bevel capacity of 0° - 53° with positive stop at 22.5° and 45°
High performance and lightweight design with magnesium blade case and base plate
On-board wrench storage for fast and easy blade changes
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 7-1/4" CT Blade 24T (B-61656), Offset Wrench 13 (782016-4)

Shipping Dimensions (Length x Width x Height) & Weight : 12.64 In. X 23.86 In. X 9.72 In. Weight : 18.61 Lb.

Specifications

Battery Capacities	40Vmax XGT
Blade Diameter	7-1/4" (185 mm)
Arbor	5/8" (15.88 mm)
Maximum Cutting Depth:
0°	2-9/16" (65 mm)
45°	1-3/4" (45 mm)
53°	1-1/2" (38 mm)
No Load Speed	6,400 RPM
Vibration Level	2.5 m/s²
Noise Level	92 dB(A)
Overall Length	17-1/2" (446 mm)
Net Weight	11.7 lbs (5.3 kg)
