LS004GM102

40Vmax XGT Brushless 10" Dual Compound Mitre Saw w/AWS, 4.0Ah x1Kit

LARGE CUTTING CAPACITY AND MAXIMUM CUTTING POWER!

Cuts Up To 3-5/8" x 11" or 2-13/16″ x 12″

XGT Technology LXT Technology AWS Technology

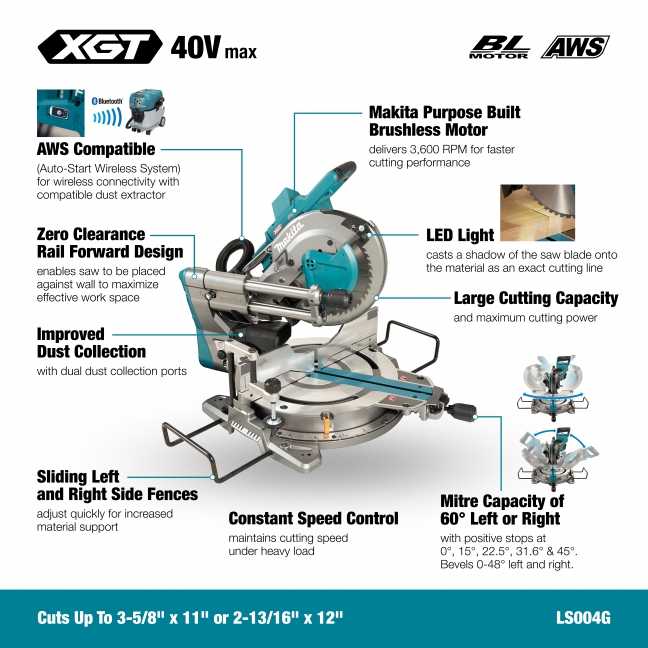

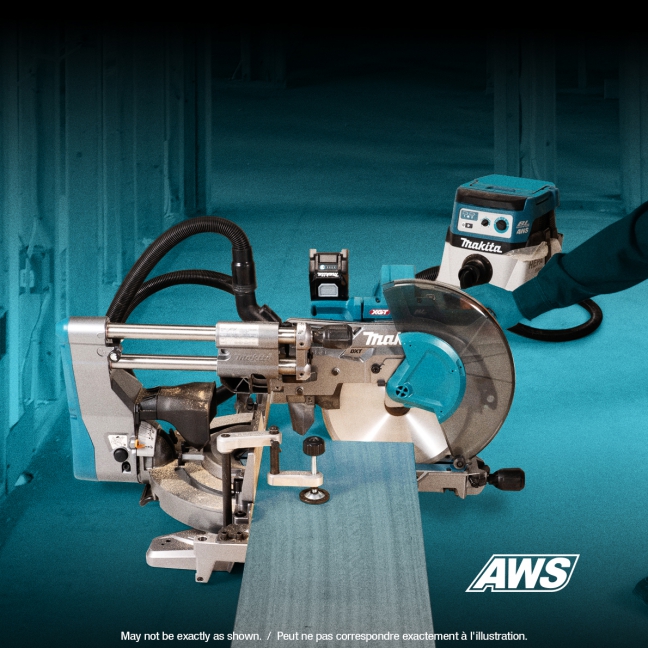

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch allows operator to run dust extractor when mitre saw is not running for maximum dust collection and cleaning after operation
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • “Zero clearance” rail forward design enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains cutting speed under heavy load
  • LED cut line indication enables easy and precise alignment of blade and material for fast and accurate cutting with no adjustment required
  • Bevel capacity of 48o left or right

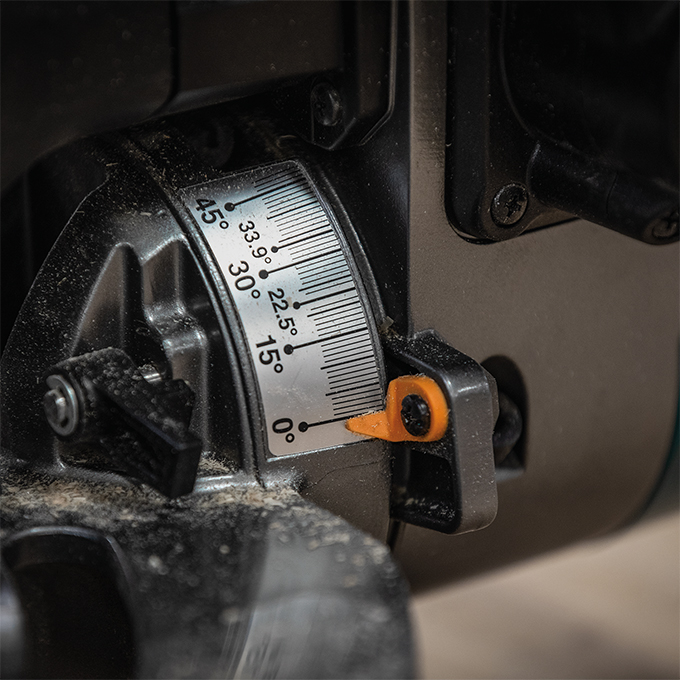

  • Mitre capacity of 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Easy to operate mitre angle lock with free spin releasing and locking levers
  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

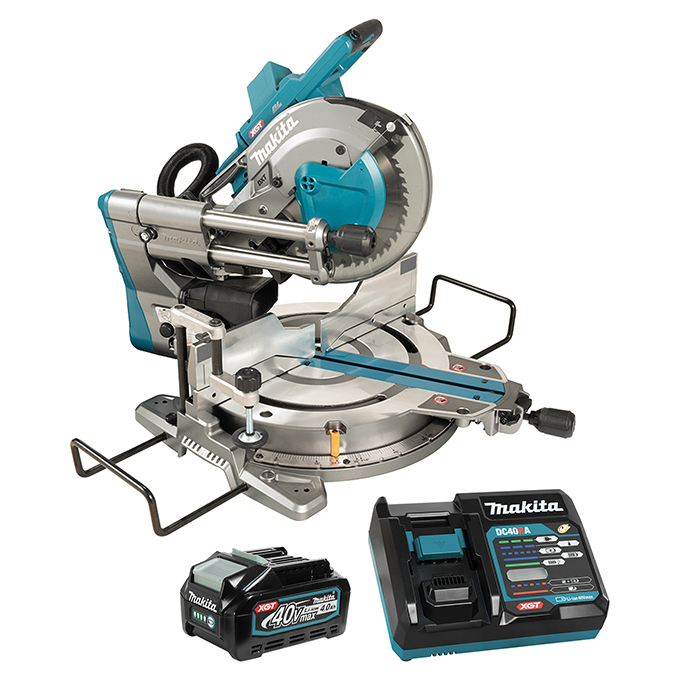

Items Included:40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), 10" C.T. Blade 45T (B-62103), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Holder 200 (327095-1), Hex Wrench 6 (781044-6)

  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Independent AWS push-button switch allows operator to run dust extractor when mitre saw is not running for maximum dust collection and cleaning after operation
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • “Zero clearance” rail forward design enables saw to be placed against wall to maximize effective work space
  • Gear reduction system maximizes cutting capacity
  • Sliding left and right side fences can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains cutting speed under heavy load
  • LED cut line indication enables easy and precise alignment of blade and material for fast and accurate cutting with no adjustment required
  • Bevel capacity of 48o left or right
  • Mitre capacity of 60o left or right with positive stops at 0o, 15o, 22.5o, 31.6o & 45o
  • Easy to operate mitre angle lock with free spin releasing and locking levers
  • Improved dust collection with dual dust collection ports
  • 2-stage safety switch for increased operator safety
  • Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

Items Included: 40V Max (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), 10" C.T. Blade 45T (B-62103), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Holder 200 (327095-1), Hex Wrench 6 (781044-6)

Shipping Dimensions (Length x Width x Height) & Weight : 20.87 In. X 32.44 In. X 22.28 In. Weight : 81.4 Lb.

Specifications

Battery Capacities 40Vmax XGT
Blade Diameter 10" (255 mm)
Arbor 5/8" (15.88 mm)
No Load Speed 3,600 RPM
Vibration Level 2.5 m/s²
Noise Level 91 dB(A)
Dimensions (L x W x H)  31-3/4" x 25-3/8" x 26"  (805 mm x 644 mm x 660 mm)
Net Weight 59.4 lbs (26.9 kg)
