Home / Tool / OPE / Chainsaws / UC100DWM

CXT Technology

(Tool + Battery + Charger)


UC100DWM

12Vmax CXT Brushless 4" Pruning Saw, 4.0Ah x1Kit

A Compact, Lightweight Design with up to 1,570 FPM for Faster Cutting.

CXT Technology LXT Technology LXT Technology
  • Tool-less change and tension adjustment of saw chain
  • Movable guard-covers the top of the guide bar and the guard opens as the branch is cut for added protection and convenience.
  • Adjustable automatic chain oiling to ensure optimal lubrication for application
  • Rear hand guard for additional safety
  •  eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Electric Brake, saw chain comes to a standstill in a few seconds.

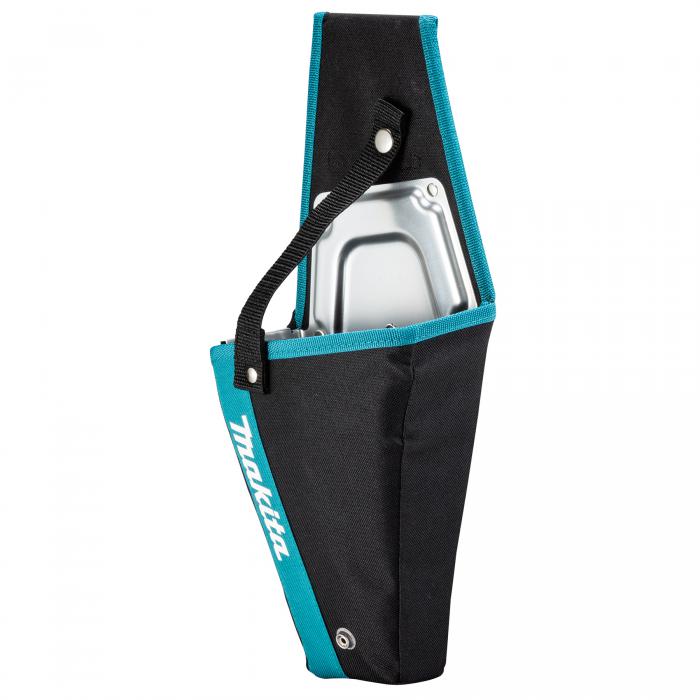

  • Pruning Saw Holster available 1911R0-4

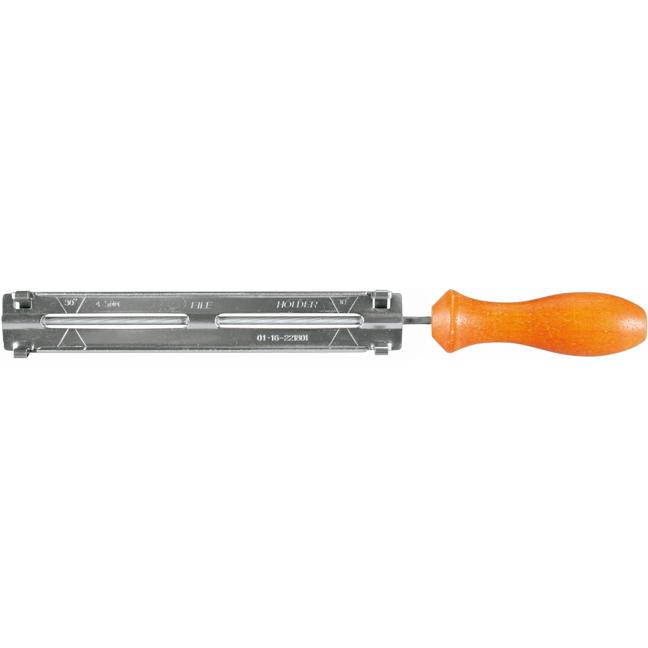

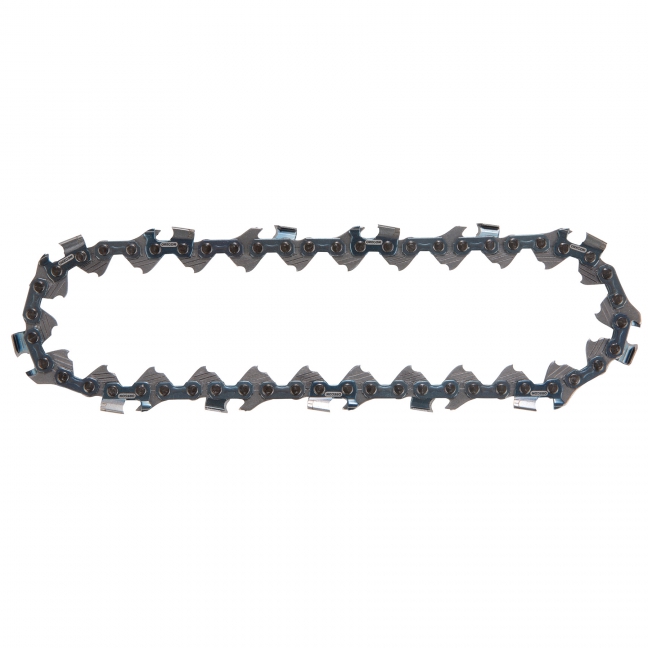

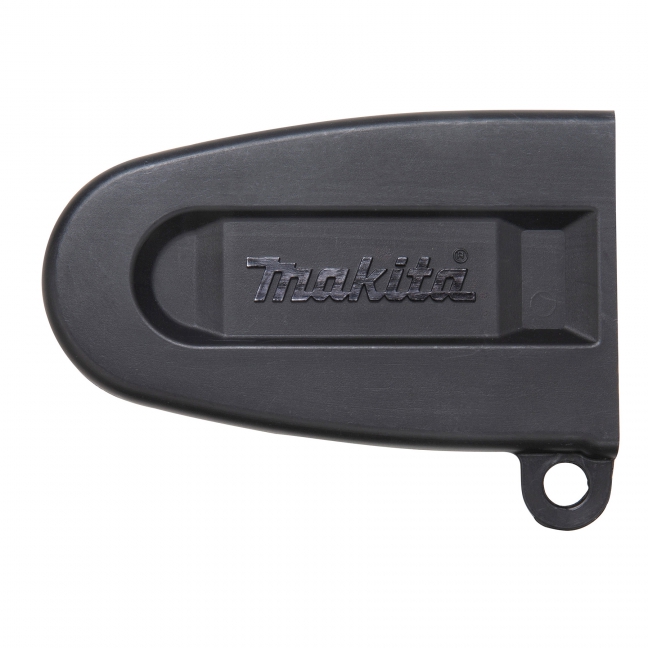

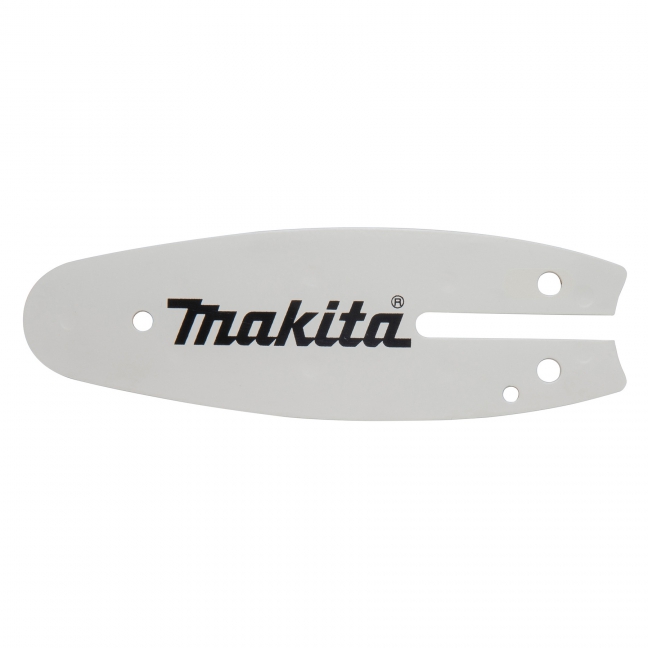

Items Included:12V Max Li-Ion Battery BL1041B (197416-9), Standard Charger (DC10WD), 4" Chain (1910V6-4), 4" Guide Bar (1910W0-3), Chain Cover (413M40-1), Chain Edger (198457-8), Oil Supply (199897-3)

  • Tool-less change and tension adjustment of saw chain
  • Movable guard-covers the top of the guide bar and the guard opens as the branch is cut for added protection and convenience.
  • Adjustable automatic chain oiling to ensure optimal lubrication for application
  • Rear hand guard for additional safety
  •  eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Electric Brake, saw chain comes to a standstill in a few seconds.
  • Pruning Saw Holster available 1911R0-4

Items Included: 12V Max Li-Ion Battery BL1041B (197416-9), Standard Charger (DC10WD), 4" Chain (1910V6-4), 4" Guide Bar (1910W0-3), Chain Cover (413M40-1), Chain Edger (198457-8), Oil Supply (199897-3)

Shipping Dimensions (Length x Width x Height) & Weight : 9.29 In. X 16.54 In. X 6.26 In. Weight : 6.79 Lb.

Specifications

Battery Capacities 12Vmax CXT Li-ion
Guide Bar Length  4" (100 mm)
Chain Pitch / Gauge 0.325" / 0.043"
Chain Speed 0 - 1,570 FPM (0-480 m/min)
Vibration Level  4.8 m/s²
Noise Level 87 dB(A)
Overall Length 13-3/4" (350 mm)
Net Weight 3.6 lbs (1.6 kg)
12Vmax CXT Rapid Charger Starter Kit, DC10SB, 4.0Ah x2

12Vmax CXT Rapid Charger Starter Kit, DC10SB, 4.0Ah x2

Read More
12Vmax CXT Standard Charger Starter Kit, DC10WD, 2.0Ah x1

12Vmax CXT Standard Charger Starter Kit, DC10WD, 2.0Ah x1

Read More

User Manual: UC100D - EN FR SP.pdf

Parts Breakdown: UC100DWM, UC100DZ - NOV2022.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
