XGT Technology

(Tool only)


HS012GZ

40Vmax XGT Brushless 6-1/2" Circular Saw w/AWS, Tool Only

40V max XGT Brushless Cordless 6-1/2" Circular Saw Has The Power To Cut Up To 310 Linear Feet Of 1/2" Plywood With 40V max XGT (2.5Ah) Battery (Battery Sold Separately)

Constant Speed, Anti-Restart Function, Twin LED Lights, Soft Start

XGT Technology LXT Technology LXT Technology AWS Technology
  • POWER : Makita-built brushless motor delivers 5,200 RPM for faster cutting performance
  • PERFORMANCE : 2-1/4" cutting capacity at 90°
  • CONVENIENCE : Dual L.E.D. lights illuminate the work area
  • COMPATIBILITY : Compact and ergonomic design at only 11-3/4" in Length
  • DURABILITY: Die-cast magnesium base, blade guard, and blade cover provide a lightweight design built to last; weighs only 5.6 lbs
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Easy-to-operate Lock-off button minimizes accidental start up

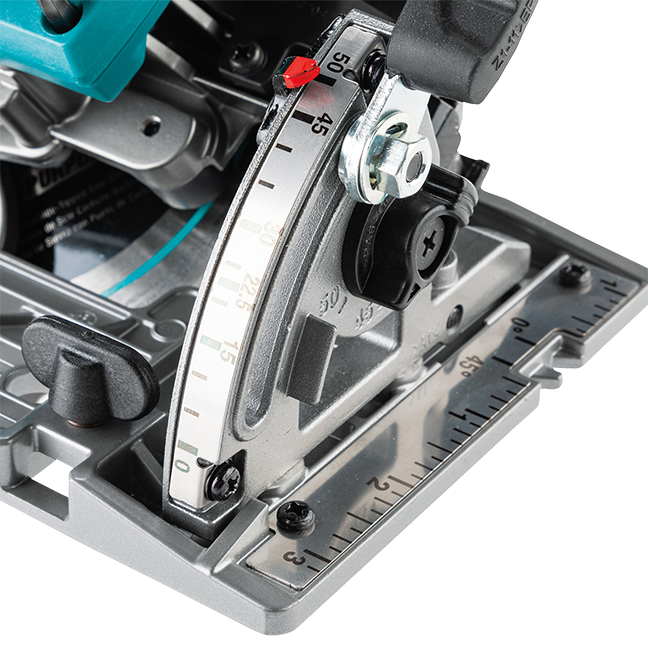

  • Bevel capacity of 0°- 50° with positive stops at 22.5°, 45°, and 50°
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Twin LED lights with pre-glow and after-glow functions for better illumination and more accurate work
  • Soft start suppresses start-up reaction for more control and better accuracy
  • Constant speed control maintains speed and minimizes reduction in rotation speed under load
  • Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
  • Soft grip to maximize comfort on the job
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Rafter hook for storage convenience
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Related Accessories: Front cuff 24mm (195546-0)

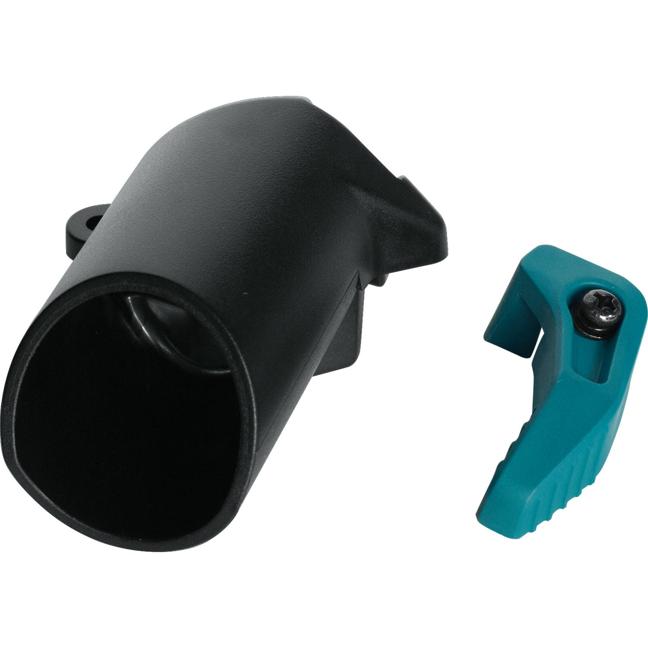

Items Included:Batteries and Charger Sold Separately. 6-1/2" C.T. Blade 24T (A-85092), Guide Rule (164095-8), Dust Nozzle (196952-2), Hex Wrench 5 (783203-8)

  • POWER : Makita-built brushless motor delivers 5,200 RPM for faster cutting performance
  • PERFORMANCE : 2-1/4" cutting capacity at 90°
  • CONVENIENCE : Dual L.E.D. lights illuminate the work area
  • COMPATIBILITY : Compact and ergonomic design at only 11-3/4" in Length
  • DURABILITY: Die-cast magnesium base, blade guard, and blade cover provide a lightweight design built to last; weighs only 5.6 lbs
  • AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
  • Easy-to-operate Lock-off button minimizes accidental start up
  • Bevel capacity of 0°- 50° with positive stops at 22.5°, 45°, and 50°
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Twin LED lights with pre-glow and after-glow functions for better illumination and more accurate work
  • Soft start suppresses start-up reaction for more control and better accuracy
  • Constant speed control maintains speed and minimizes reduction in rotation speed under load
  • Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
  • Soft grip to maximize comfort on the job
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Rafter hook for storage convenience
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Related Accessories: Front cuff 24mm (195546-0)

Items Included: Batteries and Charger Sold Separately. 6-1/2" C.T. Blade 24T (A-85092), Guide Rule (164095-8), Dust Nozzle (196952-2), Hex Wrench 5 (783203-8)

Shipping Dimensions (Length x Width x Height) & Weight : 10.71 In. X 13.9 In. X 7.99 In. Weight : 8.44 Lb.

Specifications

Battery Capacities 40Vmax XGT
Blade Diameter 6-1/2" (165 mm)
Arbor 5/8" (15.88 mm)
Max. Cutting Depth:
  0° 2-1/4" (57 mm)
  45° 1-5/8" (41 mm)
  50°  1-7/16" (37 mm)
No Load Speed 5,200 RPM
Vibration Level 2.5 m/s²
Noise Level 91 dB(A)
Overall Length 11-3/4" (298 mm)
Net Weight 5.6 lbs (2.5 kg)
