HR4002

1-9/16" Rotary Hammer SDS-MAX

SDS-MAX Shank

Hammer & Rotation / Hammer Only


  • Torque Limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • 12 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
  • One-Touch Sliding Chuck for easy bit installation and removal
  • Ergonomic Soft Rubber Grip for vibration absorption and comfortable operation

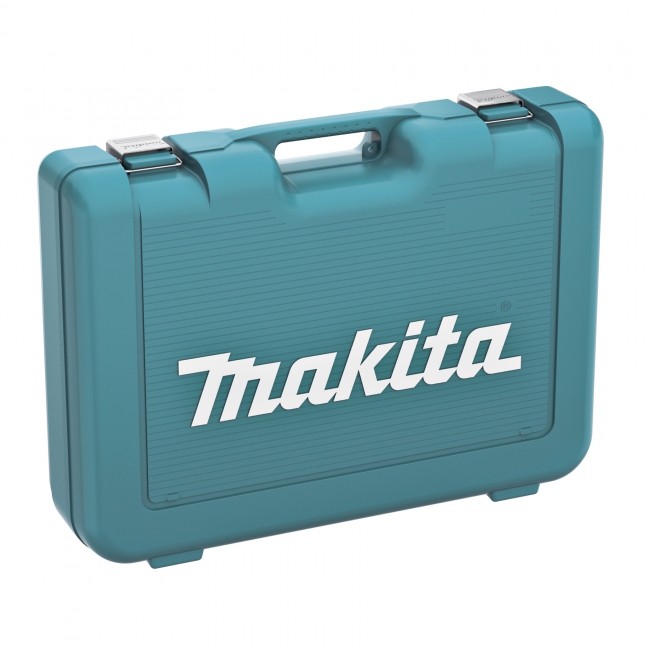

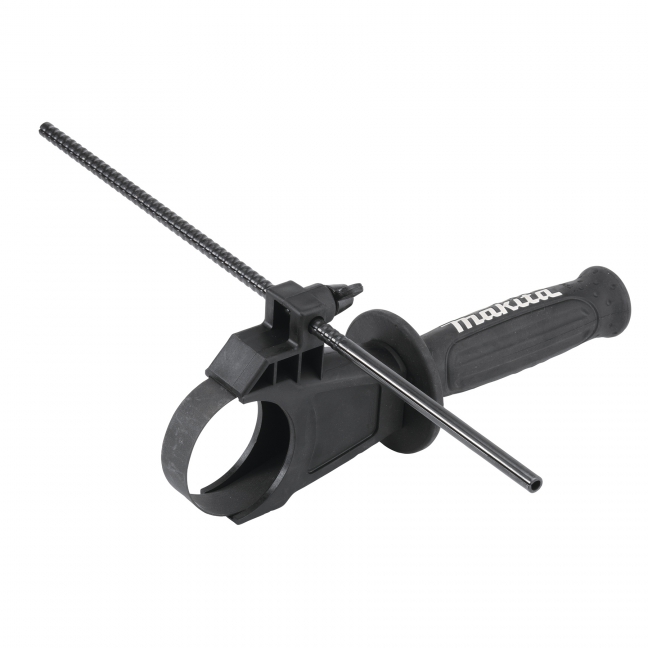

Items Included:Straight Side Handle Incl. Depth Gauge (135209-6), Bit Grease (194683-7), Plastic Carrying Case (824798-3)

Read More
  • Torque Limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • 12 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
  • One-Touch Sliding Chuck for easy bit installation and removal
  • Ergonomic Soft Rubber Grip for vibration absorption and comfortable operation

Items Included: Straight Side Handle Incl. Depth Gauge (135209-6), Bit Grease (194683-7), Plastic Carrying Case (824798-3)

Shipping Dimensions (Length x Width x Height) & Weight : 7.48 In. X 18.5 In. X 25.59 In. Weight : 26.01 Lb.

Check out product flyer

Specifications

Bit Type SDS-MAX
Maximum Capacities:
Concrete (TCT) 1-9/16" (40 mm)
Concrete (Core Bit) 4-1/8" (105 mm)
No Load Speed 680 RPM
Blows Per Minute 2,500 BPM
Impact Energy 6.2 J (4.6 ft.lbs)
AMPS (120V) 10.0 A
Vibration Level 17.5 m/s2 (Drilling) / 10.5 m/s2 (Chiseling)
Noise Level 92 dB(A)
Overall Length 18" (458 mm)
Net Weight 14.6 lbs (6.6 kg)
