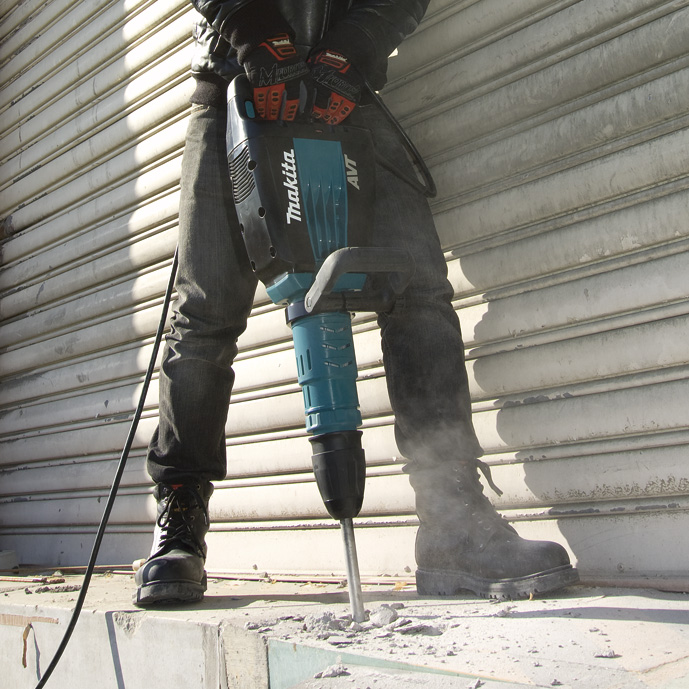

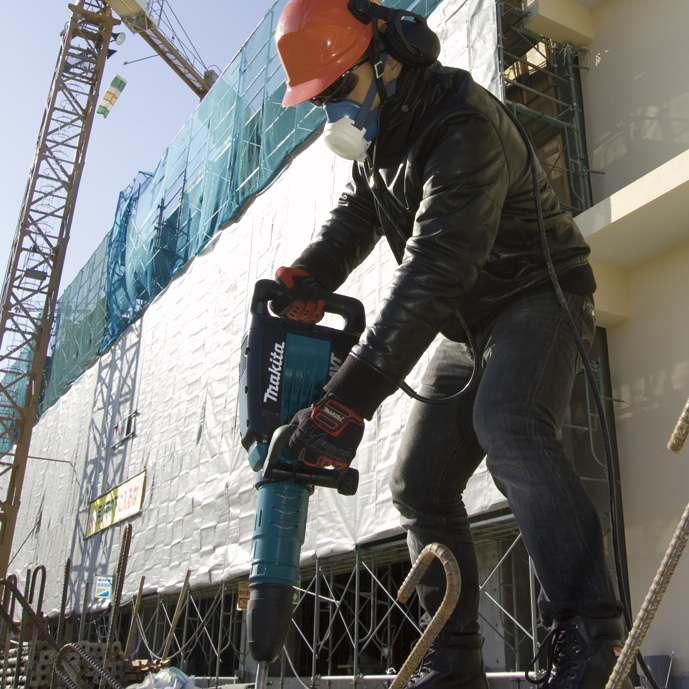

HM1214C

27.1 lbs Demolition Hammer SDS-MAX

SDS-MAX Shank

Constant Speed Control, Variable Speed, Soft Start

Anti vibration Technology
  • Anti-Vibration Technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • Constant Speed Control maintains constant speed under heavy load
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Variable Speed Dial allows operator to adjust speed based on materials or application
  • No-Load Motor Suppression limits vibration and bit deflection when idling
  • Auto-Shut Off Carbon Brushes shut off motor when carbon brushes require replacement
  • Slide Style On/Off Switch for easy continuous use applications
  • 12 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
  • One-Touch Sliding Chuck for easy bit installation and removal
  • LED Service Light indicates appropriate time to change carbon brushes
  • LED Power Light indicates active power supply
  • Extra Long Carbon Brushes for extended service life
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

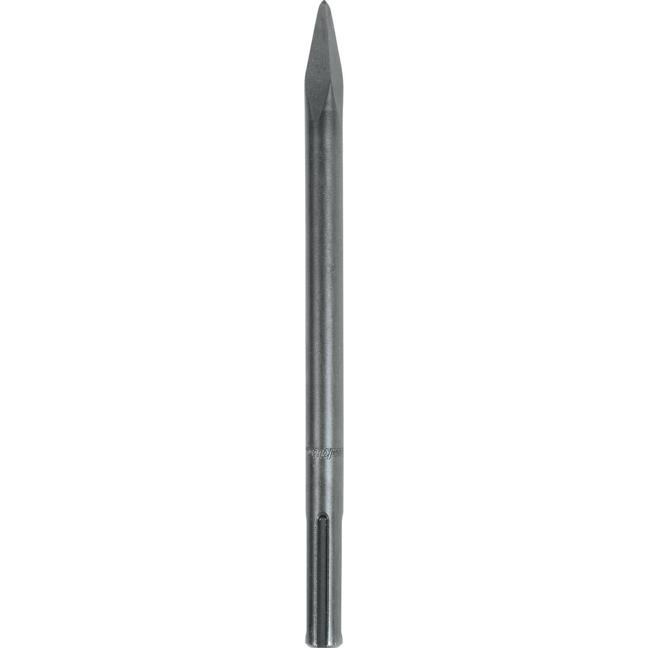

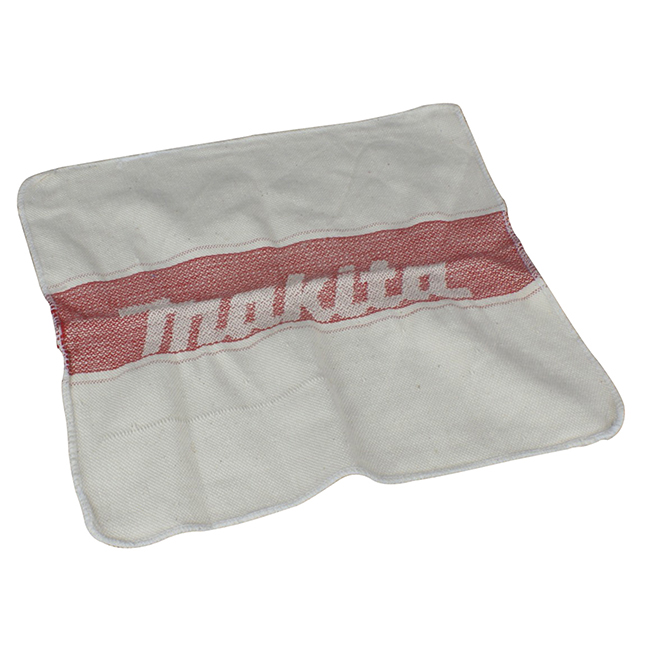

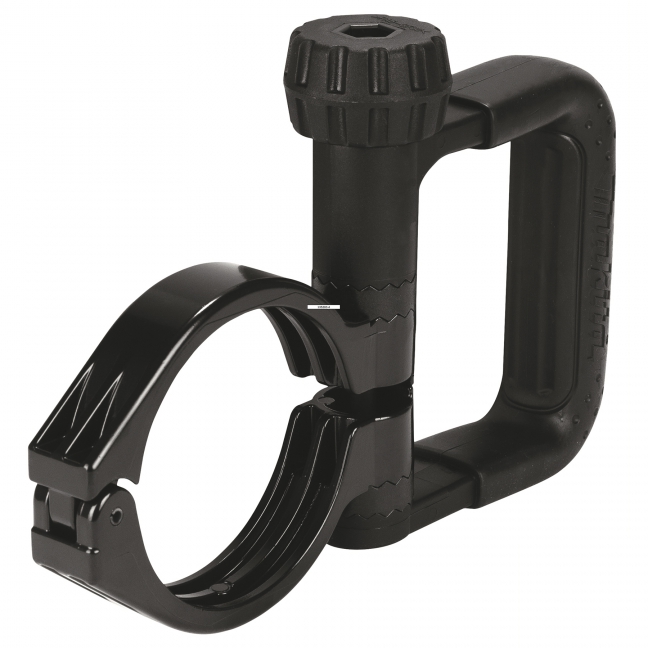

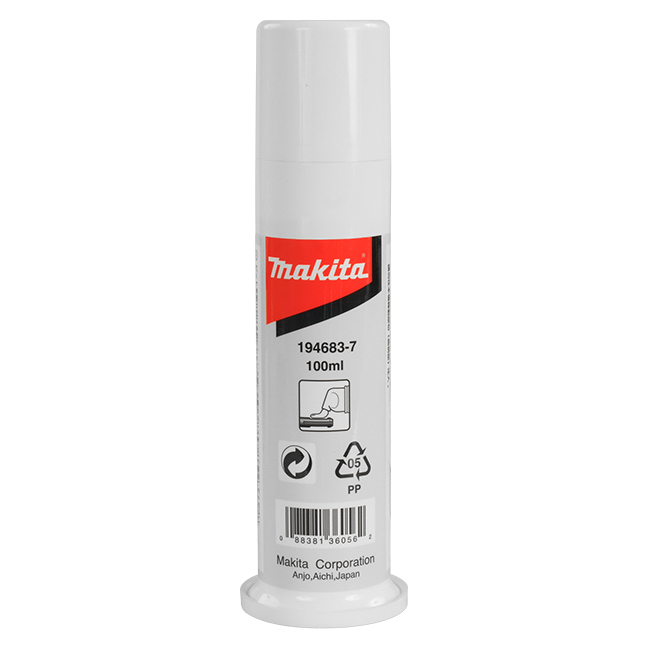

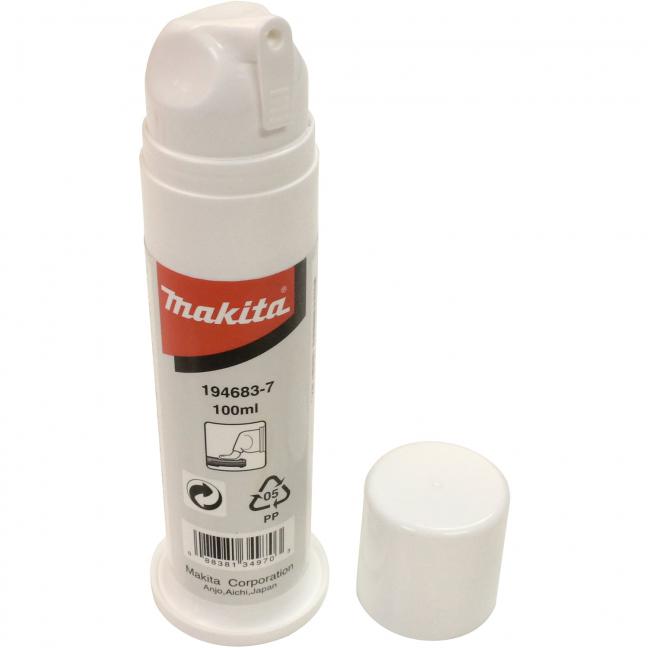

Items Included:SDS-MAX Bull Point (D-36463), Bit Grease (194683-7), Cleaning Cloth (443122-7), D-Style Side Handle (135283-4), Plastic Carrying Case (824882-4)

  • Anti-Vibration Technology (AVTTM) actively counteracts vibration of tool for greatly reduced transmission to operator
  • Constant Speed Control maintains constant speed under heavy load
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Variable Speed Dial allows operator to adjust speed based on materials or application
  • No-Load Motor Suppression limits vibration and bit deflection when idling
  • Auto-Shut Off Carbon Brushes shut off motor when carbon brushes require replacement
  • Slide Style On/Off Switch for easy continuous use applications
  • 12 Angle Bit Positions enable chisels to be positioned at optimum angle of operation
  • One-Touch Sliding Chuck for easy bit installation and removal
  • LED Service Light indicates appropriate time to change carbon brushes
  • LED Power Light indicates active power supply
  • Extra Long Carbon Brushes for extended service life
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: SDS-MAX Bull Point (D-36463), Bit Grease (194683-7), Cleaning Cloth (443122-7), D-Style Side Handle (135283-4), Plastic Carrying Case (824882-4)

Shipping Dimensions (Length x Width x Height) & Weight : 7.76 In. X 14.45 In. X 35.43 In. Weight : 45.19 Lb.

Specifications

Bit Type SDS-MAX
Blows Per Minute 950 - 1,900 BPM
Impact Energy 26.0 J (19.2 ft. lbs)
AMPS (120V) 14.0 A
Vibration Level 8.0 m/s2
Noise Level 78 dB(A)
Overall Length 27-1/2" (700 mm)
Net Weight 27.1 lbs (12.3 kg)
Cord Holders

Cord Holders

Read More
Demolition & Rotary Hammer Service Kits

Demolition & Rotary Hammer Service Kits

Read More
Demolition Hammer Bit Quick Reference Chart

Demolition Hammer Bit Quick Reference Chart

Read More
LED Pen Light

LED Pen Light

Read More
Rotary & Demolition Hammer Bit Grease

Rotary & Demolition Hammer Bit Grease

Read More
Rotary & Demolition Hammer Cleaning Cloth

Rotary & Demolition Hammer Cleaning Cloth

Read More
SDS-MAX Bit Extension Adapter

SDS-MAX Bit Extension Adapter

Read More

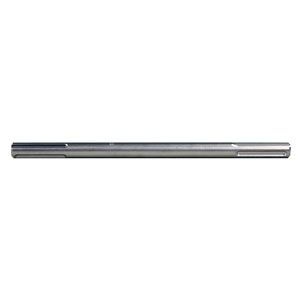

SDS-MAX Bit Extensions

SDS-MAX Bit Extensions

Read More
SDS-MAX Demolition Bits

SDS-MAX Demolition Bits

Read More

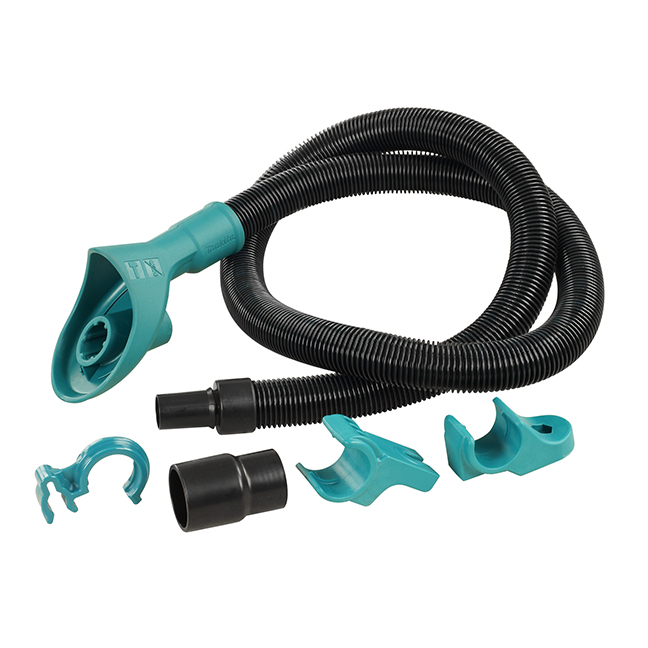

SDS-MAX Demolition Dust Extraction Attachment
