9005BZ

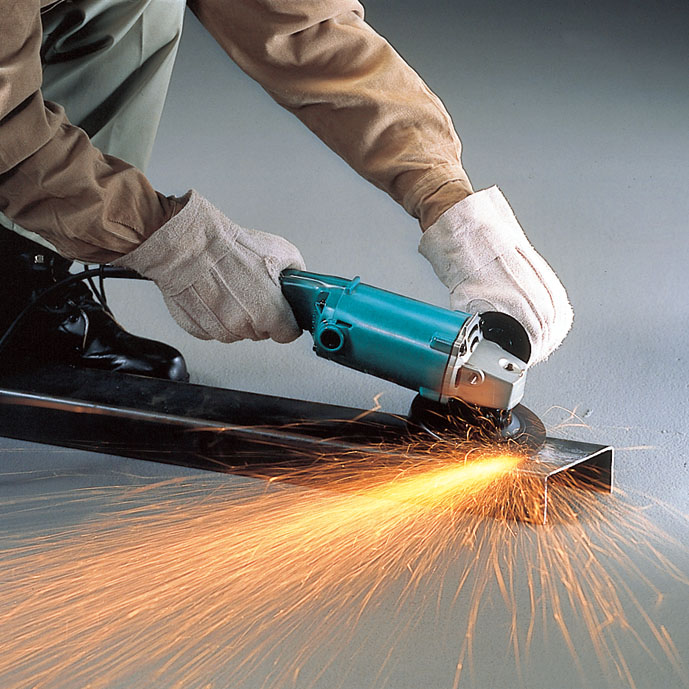

5" Angle Grinder w/Trigger Switch AC/DC

Trigger Switch with No Lock-On Button (AC/DC)


  • Powerful 10 amp motor ideal for high production applications
  • Lightweight design reduces operator fatigue during periods of prolonged use

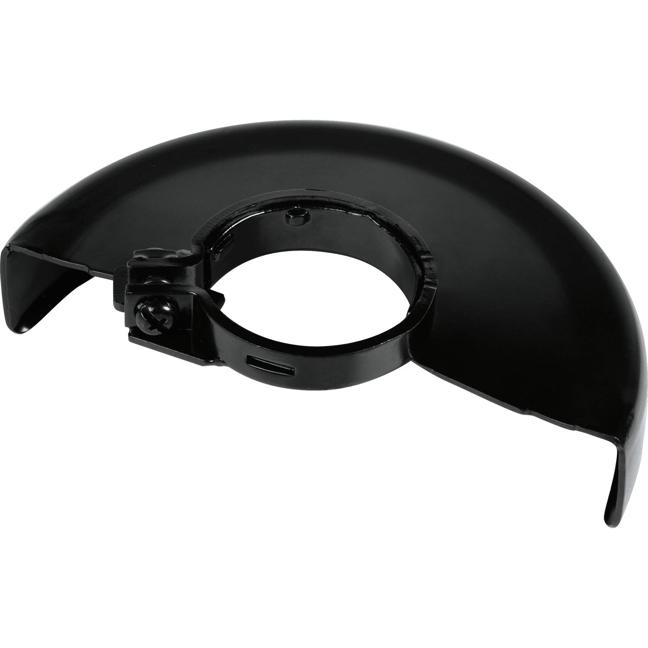

Items Included:5" Depressed Center Wheel (1 Ea. A-95962-25), Wheel Cover (123099-9), Side Handle (152492-0), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4), Lock Nut Wrench 28 (782424-9)

  • Powerful 10 amp motor ideal for high production applications
  • Lightweight design reduces operator fatigue during periods of prolonged use

Items Included: 5" Depressed Center Wheel (1 Ea. A-95962-25), Wheel Cover (123099-9), Side Handle (152492-0), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4), Lock Nut Wrench 28 (782424-9)

Shipping Dimensions (Length x Width x Height) & Weight : 5.75 In. X 15.87 In. X 5.75 In. Weight : 8.6 Lb.

Specifications

Maximum Capacities:
Grinding Wheel 5" (125 mm)
Sanding Disc 5" (125 mm)
Wire Cup Brush 3-1/2" (90 mm)
Spindle Thread 5/8" - 11 UNC
No Load Speed 10,000 RPM
AMPS (120V) 10.0 A
Vibration Level 6.5 m/s²
Noise Level (Unavailable)
Overall Length 14" (356 mm)
Net Weight 6.4 lbs (2.9 kg)
21

21" Tool Bag

Read More
4

4" - 10" Optimum Series Diamond Blades for Circular Saws

Read More
4

4" - 9" Optimum Series Diamond Blades for Angle Grinders

Read More
4-1/2

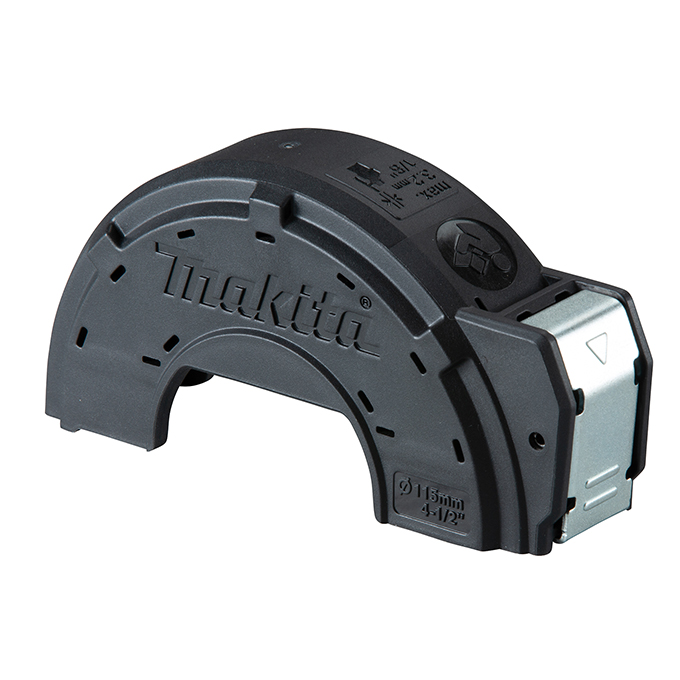

4-1/2" & 5" Clip-On Cut Off Wheel Guards
