1-1/4 HP Plunge Router

Compact And Lightweight Plunge Router With Enhanced Durability

Trigger Switch

Large Ball Bearing on fan end and Dust Proof Bearing on commutator end of armature for enhanced durability of tool
3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
Trigger Switch located on handle for operator convenience
Conveniently located Plunge Locking Lever for easy engagement during operation
Four Raised Ribs on top of Motor Housing provide a stable platform during bit changes
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Can be used with 55" (194368-5) or 118" (194367-7) Guide Rails and Router Guide Rail Adapter (194579-2) for precision routing applications

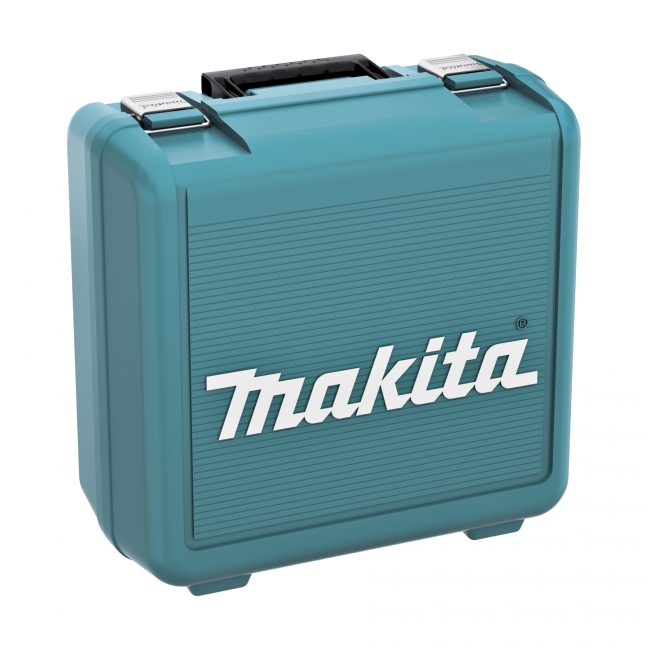

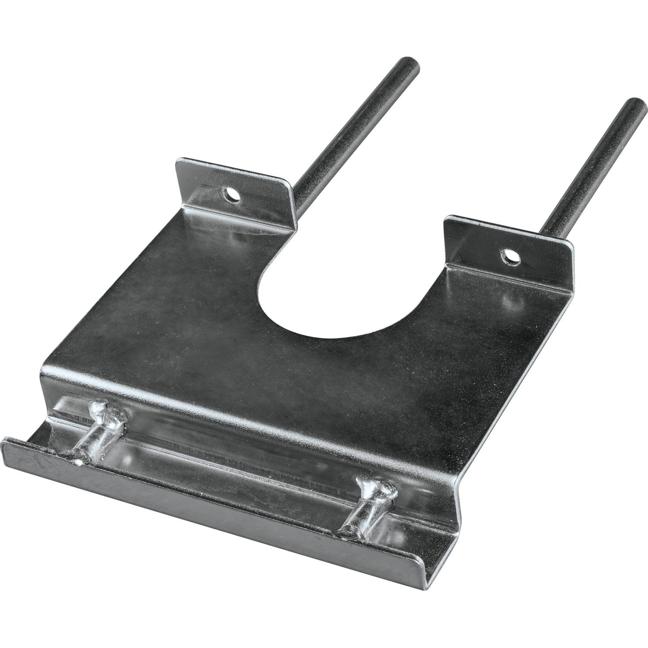

Items Included:1/4” Collet Cone (763637-1), Wrench 13 (781039-9), Wrench 22 (781011-1), Straight Guide (164834-6), Plastic Carrying Case (824880-8)

Where to buy

Large Ball Bearing on fan end and Dust Proof Bearing on commutator end of armature for enhanced durability of tool
3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
Trigger Switch located on handle for operator convenience
Conveniently located Plunge Locking Lever for easy engagement during operation
Four Raised Ribs on top of Motor Housing provide a stable platform during bit changes
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Can be used with 55" (194368-5) or 118" (194367-7) Guide Rails and Router Guide Rail Adapter (194579-2) for precision routing applications

Items Included: 1/4” Collet Cone (763637-1), Wrench 13 (781039-9), Wrench 22 (781011-1), Straight Guide (164834-6), Plastic Carrying Case (824880-8)

Shipping Dimensions (Length x Width x Height) & Weight : 6.69 In. X 12.83 In. X 13.39 In. Weight : 12.13 Lb.

Specifications

Collet Capacity	1/4", 3/8" (6.35 mm , 9.53 mm)
Plunge Capacity	1-3/8" (35 mm)
No Load Speed	27,000 RPM
AMPS (120V)	8.0 A
Vibration Level	4.0 m/s²
Noise Level	89 dB(A)
Base Diameter	4-5/16" (110 mm)
Overall Height	8-17/32" (217 mm)
Net Weight	6.0 lbs (2.7 kg)
