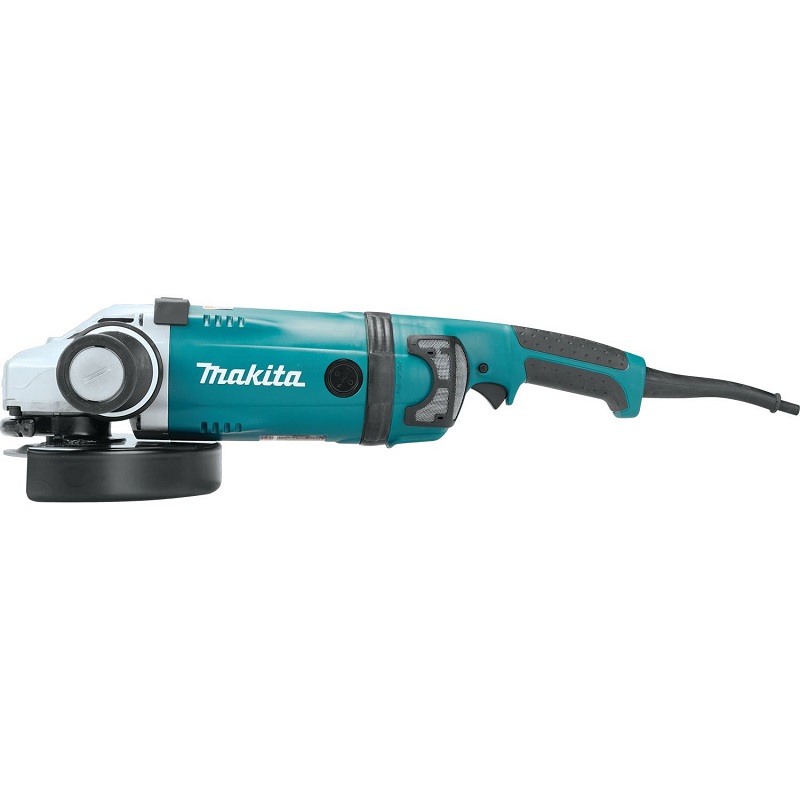

9" Angle Grinder w/Trigger Switch AC/DC

Trigger Switch With Lock-On Button (AC/DC)

Torque Limiter

Heavy duty torque limiter prevents damage to internal gearing and prevents operator from experiencing a surge of torque during wheel lock up
Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Includes rear vent "Dust Cover Assembly" for added protection against dust and debris
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rear handle swivels 180^o to adjust to the most comfortable grinding position
Rotatable gear housing can be positioned at every 90^o for optimal positioning

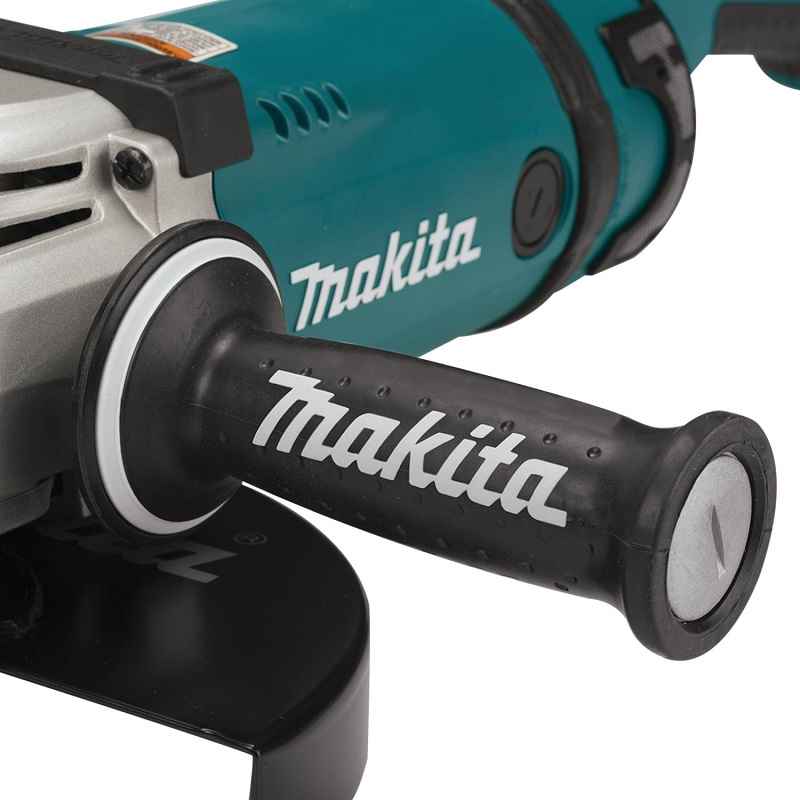

Removable side handle can be mounted on left or right side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

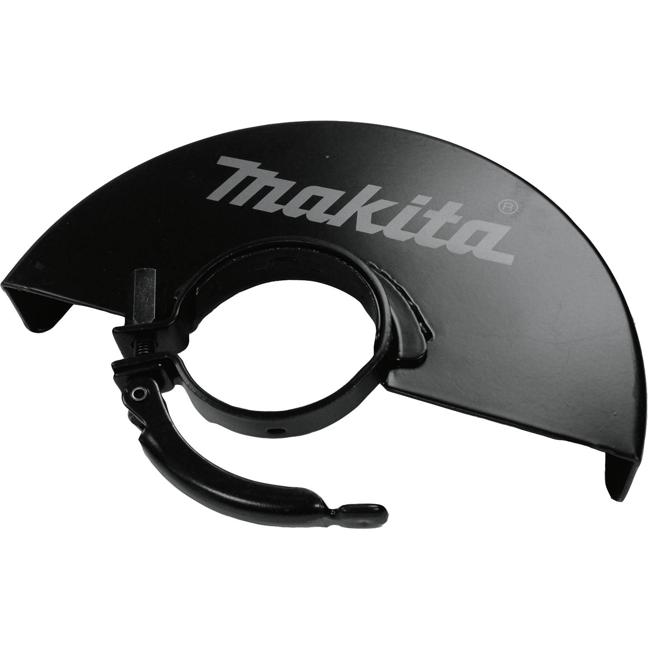

Items Included:Anti-Vibration Side Handle (194543-3), Dust Cover Attachment Set (194289-1), Lock Nut Wrench 28 (782412-6), Toolless Wheel Cover (123543-6), Inner Flange (224317-9), Lock Nut 5/8-45 (224568-4)

Where to buy

Heavy duty torque limiter prevents damage to internal gearing and prevents operator from experiencing a surge of torque during wheel lock up
Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Includes rear vent "Dust Cover Assembly" for added protection against dust and debris
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rear handle swivels 180^o to adjust to the most comfortable grinding position
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Removable side handle can be mounted on left or right side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Anti-Vibration Side Handle (194543-3), Dust Cover Attachment Set (194289-1), Lock Nut Wrench 28 (782412-6), Toolless Wheel Cover (123543-6), Inner Flange (224317-9), Lock Nut 5/8-45 (224568-4)

Shipping Dimensions (Length x Width x Height) & Weight : 7.01 In. X 8.07 In. X 23.7 In. Weight : 17.59 Lb.

Specifications

Maximum Capacities:
Grinding Wheel	9" (230 mm)
Sanding Disc	7" (180 mm)
Wire Cup Brush	4-3/8" (110 mm)
Spindle Thread	5/8" - 11 UNC
No Load Speed	6,600 RPM
AMPS (120V)	15.0 A
Vibration Level	(Unavailable)
Noise Level	(Unavailable)
Overall Length	19-7/8" (504 mm)
Net Weight	14.3 lbs (6.5 kg)
