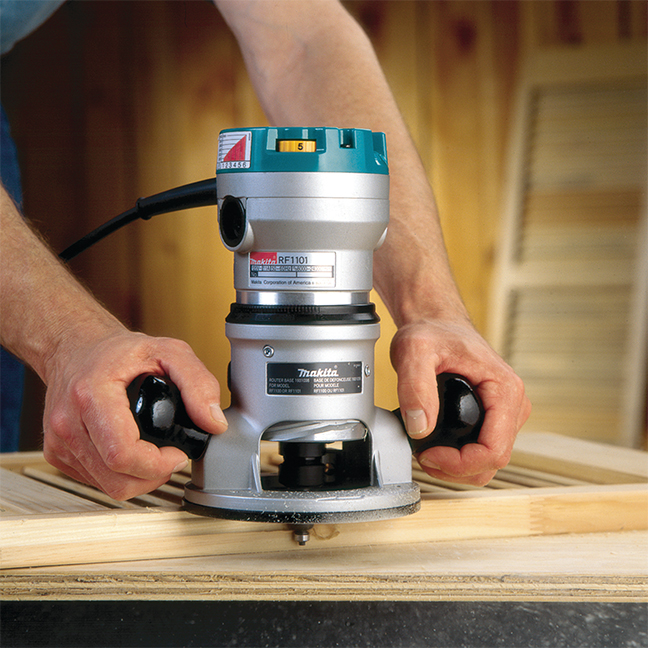

2-1/4 HP Router Kit

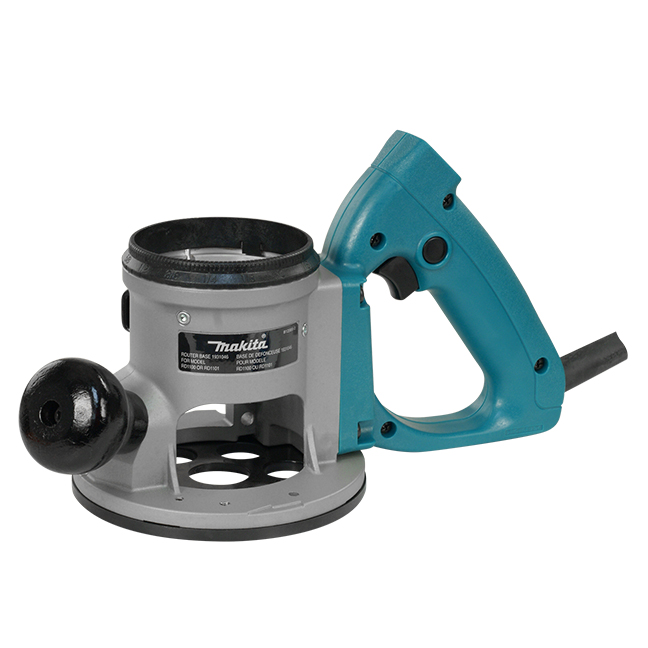

Fixed Base

On/Off Toggle Switch

Electronic Speed Control, Variable Speed, Soft Start

Industrial Cam-Lock enables fast and easy depth adjustment and removal of motor

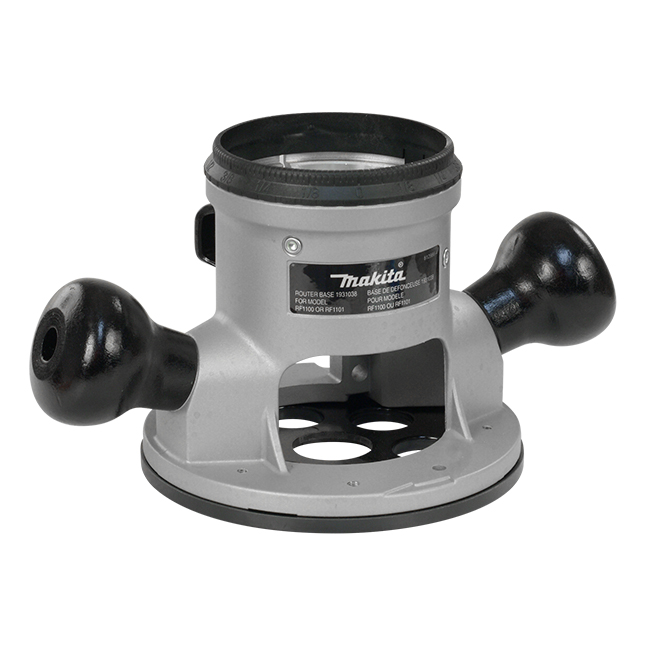

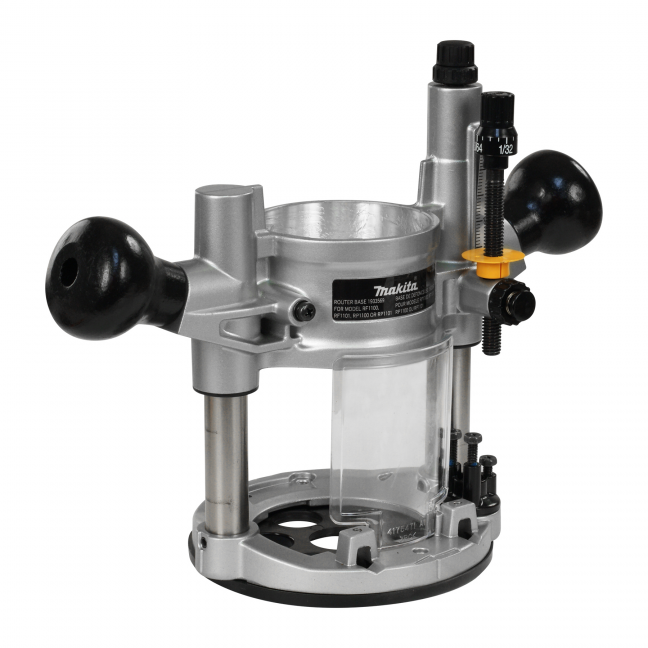

Plunge Base
3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
Conveniently located Plunge Locking Lever for easy engagement during operation

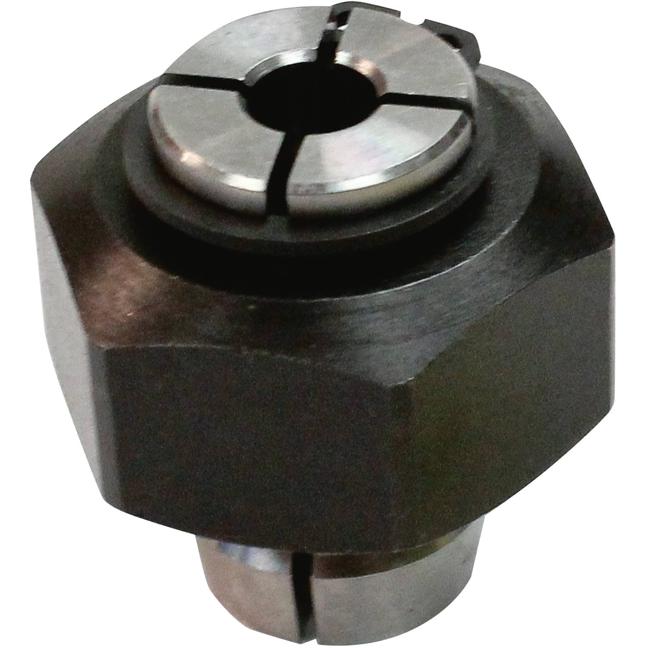

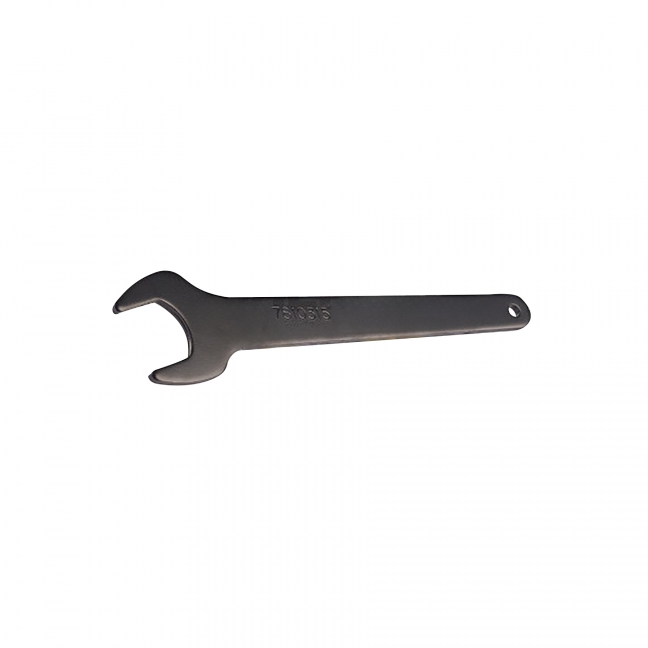

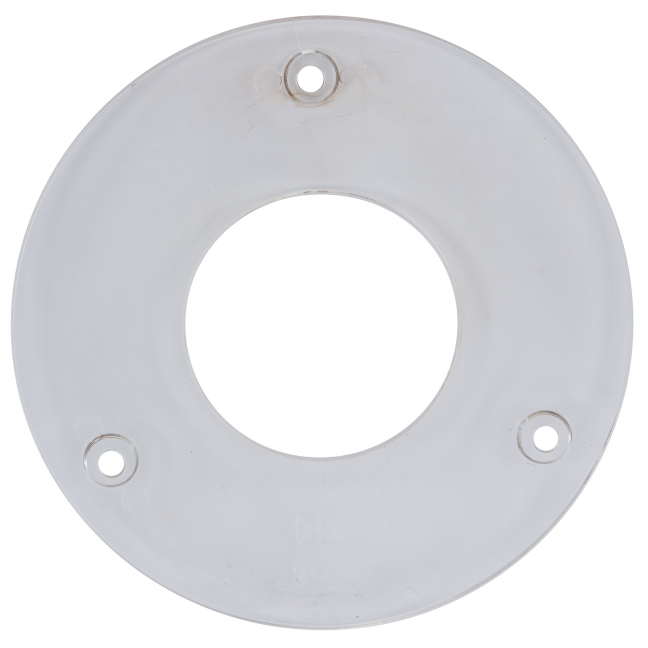

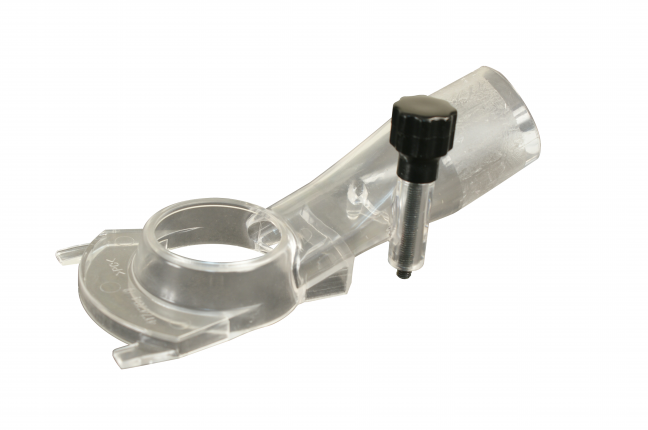

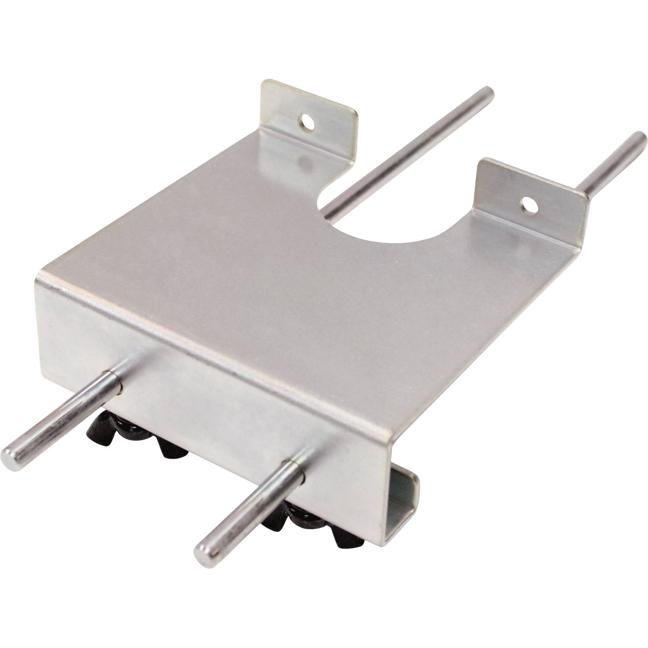

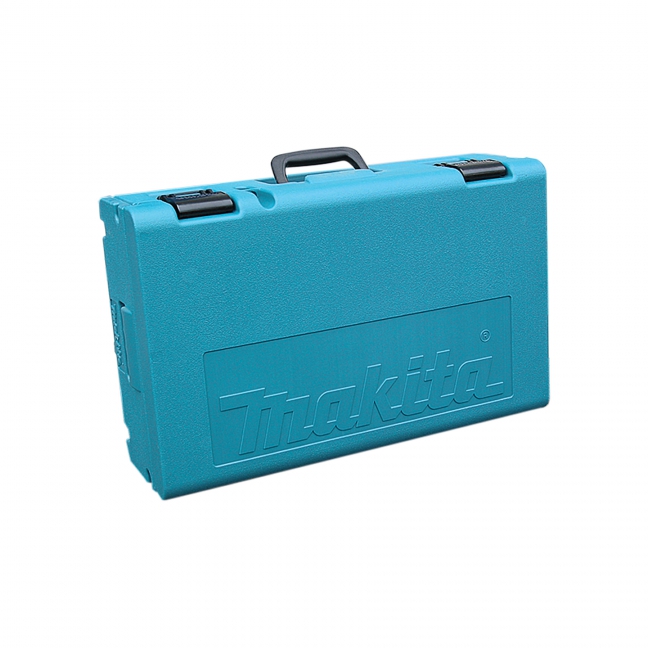

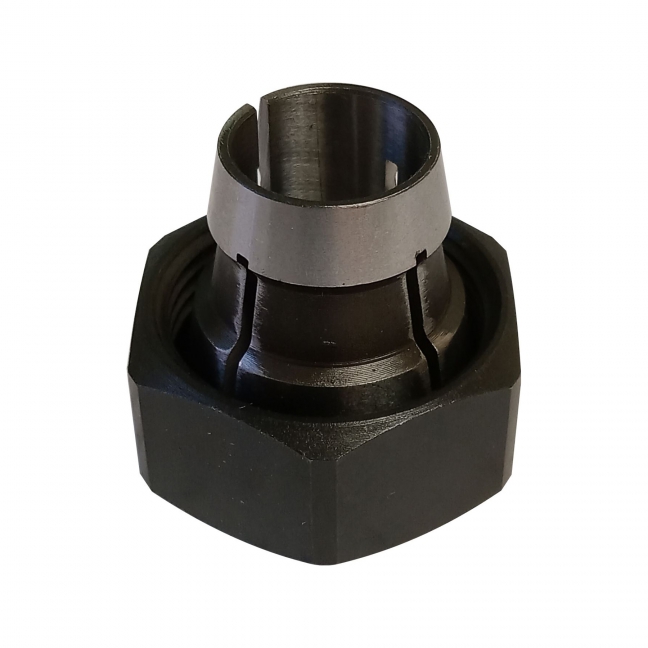

Items Included:2-1/4 hp Router Motor RF1101, Plunge Base (193457-3), 1/4" Collet (193214-9), 1/2" Collet (193215-7), Dust Nozzle (P-80009), Straight Guide (193073-1), Base Plate (193155-9), Two Wrenches 27 (781031-5), Hex Wrench 4 (783202-0), Plastic Carrying Case (125153-5)

Where to buy

Industrial Cam-Lock enables fast and easy depth adjustment and removal of motor
Plunge Base
3 Stage Depth Adjustments ideal for use when performing deep or repetitive cutting operations
Conveniently located Plunge Locking Lever for easy engagement during operation

Items Included: 2-1/4 hp Router Motor RF1101, Plunge Base (193457-3), 1/4" Collet (193214-9), 1/2" Collet (193215-7), Dust Nozzle (P-80009), Straight Guide (193073-1), Base Plate (193155-9), Two Wrenches 27 (781031-5), Hex Wrench 4 (783202-0), Plastic Carrying Case (125153-5)

Shipping Dimensions (Length x Width x Height) & Weight : 14.37 In. X 22.24 In. X 7.13 In. Weight : 20.94 Lb.

Specifications

Collet Capacities:	1/4" & 1/2" (6.35 mm & 12.7 mm)
Plunge Capacity	2-19/32" (66 mm)
No Load Speed	8,000 - 24,000 RPM
Center Hole Diameter	1-3/16" (30.5 mm)
AMP (120V)	11.0 A
Vibration Level	(Unavailable)
Noise Level	(Unavailable)
Base Diameter	5-3/4" (146 mm)
Overall Height:
Fixed	8-3/4" (223 mm)
Plunge	11-1/2" (292 mm)
Net Weight	7.3 lbs (3.3 kg)
