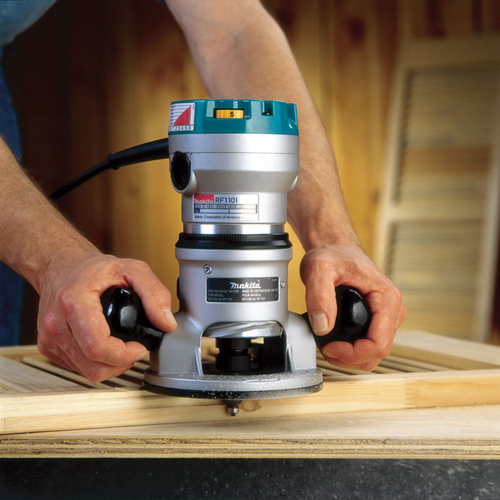

RF1101

2-1/4 HP Router

On/Off Toggle Switch

Electronic Speed Control, Variable Speed, Soft Start

  • Electronic Speed Control maintains constant speed under heavy load
  • Variable Speed Dial adjusts motor speed based on materials or application
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Flat Top Design for increased stability when changing bits
  • Industrial Cam-Lock enables fast and easy depth adjustment and removal of motor
  • Sub-Base accepts industry standard template guides

Items Included:1/4” Collet Cone (193214-9), 1/2” Collet Cone (193215-7), Two Wrenches 27 (781031-5)

  • Electronic Speed Control maintains constant speed under heavy load
  • Variable Speed Dial adjusts motor speed based on materials or application
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Flat Top Design for increased stability when changing bits
  • Industrial Cam-Lock enables fast and easy depth adjustment and removal of motor
  • Sub-Base accepts industry standard template guides

Items Included: 1/4” Collet Cone (193214-9), 1/2” Collet Cone (193215-7), Two Wrenches 27 (781031-5)

Shipping Dimensions (Length x Width x Height) & Weight : 10.08 In. X 8.27 In. X 10.39 In. Weight : 9.92 Lb.

Specifications

Collet Capacities 1/4" & 1/2" (6.35 mm & 12.7 mm)
No Load Speed 8,000 - 24,000 RPM
AMP (120V) 11.0 A
Vibration Level (Unavailable)
Noise Level (Unavailable)
Base Diameter 5-3/4" (146 mm)
Overall Height 8-3/4" (223 mm)
Net Weight 7.3 lbs (3.3 kg)
